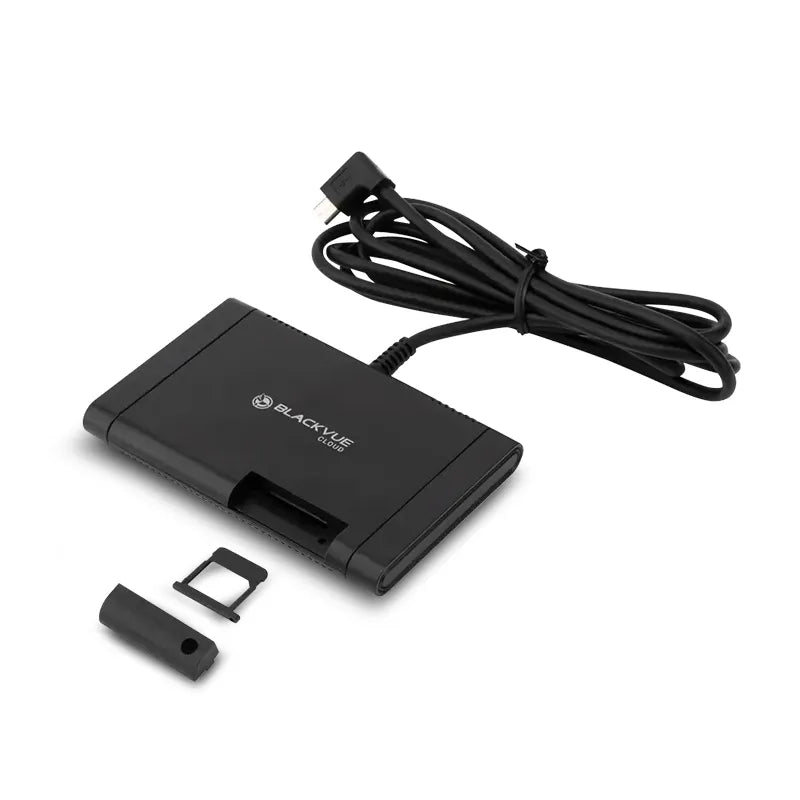

BlackVue CM100GLTE External 4G LTE Connectivity Module For DR900X/DR750X Dashcam

Empower Your BlackVue Dashcam With 4G LTE Connectivity!

External 4G LTE Module – Compatible With DR900X & DR750X
You can connect an LTE Connectivity Module (CM100GLTE) which is powered by the dashcam and provides 4G LTE connectivity for your dashcam. This allows you to connect your dashcam to BlackVue Cloud and receive notifications to your phone when your parked car gets hit.

It also lets you remotely see what your dashcam sees in real-time. Being powered by the dashcam, you do not need to worry about the CM100GLTE running out of power as you might with a self-powered router. Your BlackVue powers the module and automatically accesses the Cloud when the module is plugged in.

Features:

• New CM100LGTE Model
• Works as a 4G modem for your data SIM Card (Telstra/Vodafone)
• Plugs into your DR750X or DR900X Dashcam
• Easy Installation (Powered by Camera)
• AU Version
• BYO Nano SIM Card

Specifications:

• Colour: Black
• Cable Length: 3M
• Input Charging Power: QUECTEL EC25-J CM100LTE
• LTE Supported Band: B1/B2/B3/B4/B5/B7/B8/B28
• LTE Features: Support Up to Non-CA CAT. 4 FDD & TDD LTE-FDD: Max 150Mbps (DL) / Max 50Mbps (UL) LTE-TDD
• Transmitting Power:
  Class 3: 23dBm +/-2dBm @ LTE-FDD Bands
  Class 3: 24dBm +1/-3dBM @ WCDMA Bands
• SIM Card: Support Nano SIM Card, 3.0V
• Connector Type: Micro USB Type-B Connector with Harness Cable
• USB Interface: Compliant with USB 2.0 Specification (Slave Only), Reach Up to 480Mbps For Data Transfer Rate
• Antenna Type: Fixed / Antenna (Main, Diversity)
• Power Supply:
  USB Harness Cable: 5.0V
  1A Supply Input Voltage: 3.3V ~ 5.5V
  Max Current: 2A
• Power Consumption:
• Idle Mode: 20mA
• Traffic Mode: 570mA @ Max Power (23dBm)
• Temperature Range:
  Operation Temperature Range: -35°C ~ +75°C
  Storage Temperature Range: -40°C ~ +85°C
• Certifications: PTCRB/FCC/ISED/RCM/TELEC/WEEE/RoHS
• Dimension: (L) 90mm x (W) 60mm x (H) 10mm
• Weight: 74g
