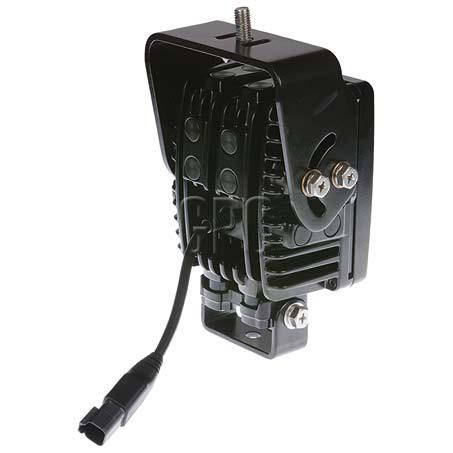

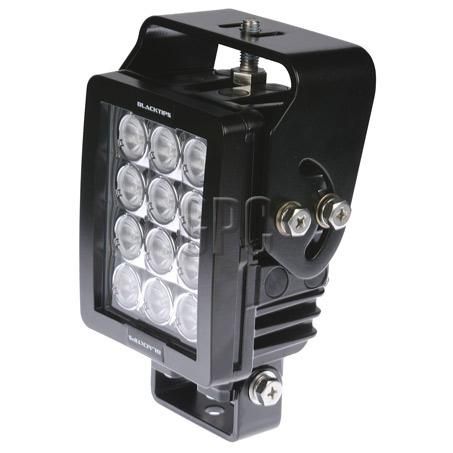

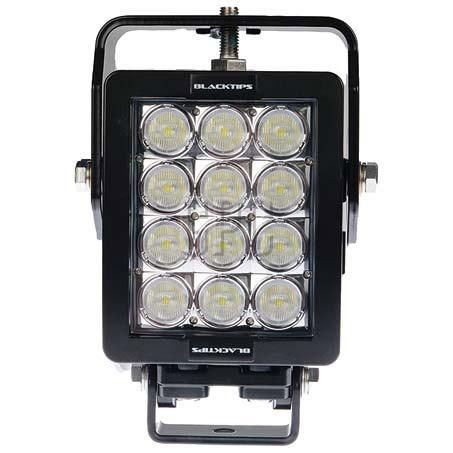

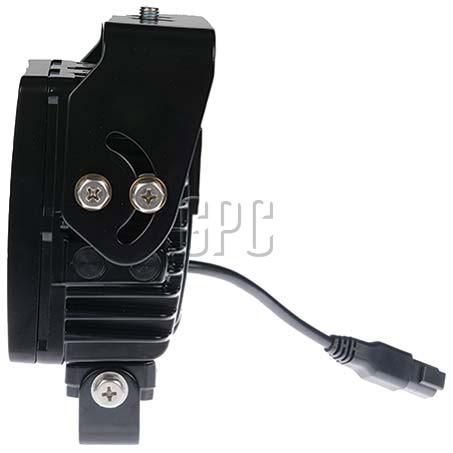

Blacktips BLB071260 12 LED Work Light 60DEG Wide Flood

Blacktips BLB071260 12 LED Work Light 60DEG Wide Flood

Maximum-output, marine-grade aluminium rectangular work light delivering a broad 60° wide flood beam with IP68/IP69K dual-rated protection, CISPR25 Class 1 EMC approval, and anti-corrosive coating — the flagship wide-area configuration in the Blacktips work light range for 4WD, marine, agricultural, and heavy industrial applications demanding the highest available flood illumination intensity.

Product Overview

The Blacktips BLB071260 is the top-tier wide flood configuration in the Blacktips work light series, deploying a 12 LED array for maximum wide-area output in the most demanding applications. Housed in a larger 145 x 165 x 85mm rectangular aluminium body, the BLB071260 produces a broad 60° wide flood beam at a crisp 6000 Kelvin colour temperature, delivering the greatest near-field area coverage in the Blacktips range — ideal for large reversing zones on heavy mining trucks, expansive equipment bay and loading dock lighting, wide-area illumination on large agricultural machinery, and offshore vessels requiring maximum deck or work area coverage. A clear step up from the 9 LED BLB070960, the 12 LED array and taller 165mm body height provide greater LED spread and flood output intensity across the same broad 60° coverage zone, making the BLB071260 the preferred choice where the 9 LED configuration cannot deliver sufficient area brightness. The BLB071260 carries a dual IP68 and IP69K ingress protection rating — the highest combined standard available — confirming full submersion resistance alongside protection against high-pressure, high-temperature washdowns. This makes the light equally at home on offshore marine vessels, agricultural washdown machinery, mining equipment, and construction plant subject to regular high-pressure cleaning. A marine-grade anti-corrosive coating on the aluminium body provides targeted protection against salt spray, moisture, and chemical exposure. CISPR25 Class 1 EMC approval ensures the light generates minimal electromagnetic interference, protecting sensitive vehicle electronics and communications equipment. The DT04-2P deutsch-style connector delivers a secure, weatherproof wiring connection rated to 21.2G vibration resistance, and universal 9–32V input covers both 12V and 24V electrical systems. The multiple bolt mount provides a stable, vibration-resistant installation platform well suited to the 2.65kg body weight of this flagship configuration.

Features & Benefits

12 LED Array — Maximum Wide-Area Output Configuration — The flagship 12 LED array delivers the highest flood output and broadest area coverage in the Blacktips work light range within the same 60° wide flood beam, purpose-built for the most demanding large-scale equipment and wide-area illumination applications.

60° Wide Flood Beam Pattern — Broad area illumination spreads light across a wide zone close to the vehicle or equipment, ideal for reversing, work zone lighting, equipment bays, loading areas, and applications where maximum near-field coverage intensity is required.

IP68 & IP69K Dual Rating — Full submersion rating combined with high-pressure washdown protection provides the highest available ingress protection standard. Suitable for marine applications, underground mining, and equipment subject to regular high-pressure cleaning.

Marine-Grade Anti-Corrosive Coating — Specialised protective coating on the aluminium body resists salt spray, moisture, and chemical exposure, making the BLB071260 a genuine long-term solution for coastal, offshore, and marine vessel applications.

CISPR25 Class 1 EMC Approved — Meets the highest electromagnetic compatibility standard for vehicle components, ensuring no interference with onboard radios, GPS, communications, or control systems across automotive, marine, and industrial applications.

6000 Kelvin Output — Pure white, daylight-spectrum colour temperature delivers excellent colour rendering and clarity for work tasks, providing fatigue-reducing visibility during extended night operations.

21.2G Vibration Resistance — Engineered to withstand extreme vibration levels from heavy machinery, off-road driving, and industrial equipment without compromising LED connections or optical integrity.

Rectangular Aluminium Body — Taller 165mm rectangular form factor accommodates the 12 LED array in a vertical spread for maximum flood output across the wide coverage zone, while the thermally efficient aluminium housing maintains consistent performance and extended LED lifespan across demanding duty cycles.

Multiple Bolt Mount — Multi-point mounting footprint provides a stable, vibration-resistant installation platform suited to the 2.65kg body weight of this flagship configuration, ideal for heavy machinery and high-vibration equipment.

DT04-2P Deutsch Connector — Industry-standard weatherproof connector provides a secure, moisture-resistant wiring termination resistant to vibration loosening and corrosion in harsh environments.

9–32V Universal Input — Compatible with 12V and 24V vehicle electrical systems, covering passenger 4WDs, light commercial vehicles, heavy trucks, agricultural machinery, and marine vessels without voltage adapters.

Technical Specs

Compatible With / Goes Well With

The Blacktips BLB071260 suits any 12V or 24V vehicle, vessel, or equipment requiring maximum-output wide-area flood lighting in the most demanding environments. Primary applications include large mining trucks and underground vehicles requiring maximum reversing and side-zone illumination, broad-acre agricultural tractors and harvesters needing full work zone coverage, heavy construction plant including large excavators, graders, and dozers, offshore commercial fishing vessels and marine platforms requiring wide deck lighting, heavy recovery and tow trucks needing powerful wide-area side and rear lighting, and large commercial vehicles where the 9 LED BLB070960 does not deliver sufficient flood coverage intensity.

Pairs well with the Blacktips BLB071225 narrow beam for a maximum-output combined near/far coverage setup, OEX emergency beacons and strobe lighting for comprehensive vehicle safety configurations, DT04-2P wiring harnesses and switch kits, and heavy-duty bull bar or equipment frame mounting brackets suited to the larger, heavier form factor.

Frequently Asked Questions

How does the BLB071260 differ from the BLB070960 9 LED wide flood?

Both lights share the same 60° wide flood beam pattern, IP68/IP69K dual rating, marine-grade coating, CISPR25 Class 1 compliance, and multiple bolt mount. The BLB071260 steps up to 12 LEDs for greater flood output and area brightness intensity, and uses a taller 165mm body to accommodate the additional LEDs. It is the preferred choice when maximum wide-area illumination is required and the 9 LED configuration does not deliver sufficient brightness for the application.

What is the difference between IP68 and IP69K ratings?

IP68 certifies the light can withstand continuous submersion in water beyond 1 metre depth, while IP69K certifies protection against high-pressure, high-temperature water jets at close range (typically 80°C at 80–100 bar). Carrying both ratings simultaneously means the BLB071260 is protected against both prolonged water immersion and harsh pressure-washing — the most comprehensive ingress protection available for a work light.

Is this light suitable for saltwater marine environments?

Yes. The marine-grade anti-corrosive coating on the aluminium body provides specific protection against salt spray, sea mist, and moisture ingress that causes premature corrosion on standard work lights. Combined with the IP68/IP69K dual rating, the BLB071260 is built to withstand the demands of coastal and offshore marine applications.

What does CISPR25 Class 1 EMC approval mean?

CISPR25 is an international standard governing electromagnetic emissions from vehicle components. Class 1 is the strictest level, confirming the BLB071260 produces the minimum possible electromagnetic interference. This ensures the light will not disrupt onboard AM/FM radio, GPS navigation, UHF communications, or sensitive vehicle control electronics — particularly important for trucks, vessels, and work vehicles with complex electrical systems.

Can the BLB071260 be paired with a narrow beam light for a combined setup?

Yes. Pairing the BLB071260 wide flood with the Blacktips BLB071225 narrow beam delivers a maximum-output combined near/far illumination setup — the flood beam covers the wide work zone close to the vehicle while the narrow beam provides the greatest long-throw intensity in the Blacktips range. Both lights share identical dimensions, mounting, and connector specifications, making them the natural matched pair for the most demanding large vehicle and heavy equipment lighting configurations.
