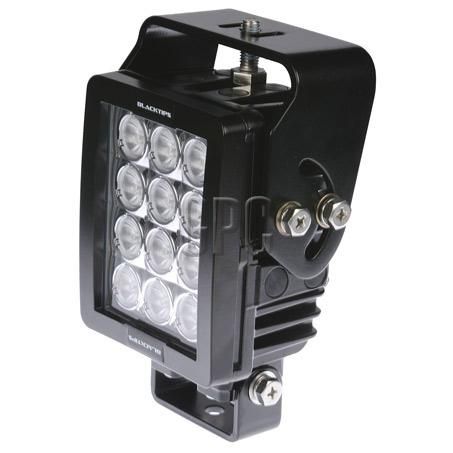

Blacktips BLB071225 12 LED Work Light 25DEG Narrow Beam

Blacktips BLB071225 12 LED Work Light 25DEG Narrow Beam

Maximum-output, marine-grade aluminium rectangular work light delivering a precise 25° narrow beam with IP68/IP69K dual-rated protection, CISPR25 Class 1 EMC approval, and polycarbonate lens construction — the flagship long-throw configuration in the Blacktips work light range for 4WD, marine, agricultural, and heavy industrial applications demanding the highest available narrow beam intensity.

Product Overview

The Blacktips BLB071225 is the top-tier narrow beam configuration in the Blacktips work light series, stepping up to a 12 LED array for maximum long-throw output in the most demanding applications. Housed in a larger 145 x 165 x 85mm rectangular aluminium body, the BLB071225 produces a focused 25° narrow beam at a crisp 6000 Kelvin colour temperature, delivering the greatest long-throw intensity in the Blacktips range — ideal for large mining trucks requiring maximum forward illumination, heavy agricultural machinery operating across broad-acre properties at night, high-mast forward spotlighting on construction plant, and offshore vessels requiring powerful deck or working area lighting at distance. A notable step up from the 9 LED BLB070925, the 12 LED array and taller 165mm body height provide greater LED spread and output intensity while maintaining the same focused 25° beam profile. The lens material is upgraded to polycarbonate — offering greater impact resistance than acrylic — making this the most robust optical configuration in the Blacktips range. The BLB071225 carries a dual IP68 and IP69K ingress protection rating, confirming full submersion resistance alongside protection against high-pressure, high-temperature washdowns. A marine-grade anti-corrosive coating on the aluminium body provides targeted protection against salt spray, moisture, and chemical exposure. CISPR25 Class 1 EMC approval ensures the light generates minimal electromagnetic interference, protecting sensitive vehicle electronics and communications equipment. The DT04-2P deutsch-style connector delivers a secure, weatherproof wiring connection rated to 21.2G vibration resistance, and universal 9–32V input covers both 12V and 24V electrical systems. The multiple bolt mount provides a stable, vibration-resistant installation platform well suited to the 2.65kg body weight of this flagship configuration.

Features & Benefits

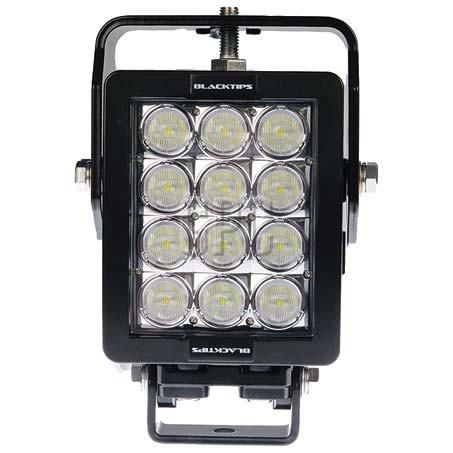

12 LED Array — Maximum Output Configuration — The flagship 12 LED array delivers the highest light output and longest throw distance in the Blacktips work light range within the same focused 25° narrow beam, purpose-built for the most demanding large-scale equipment and long-range illumination applications.

25° Narrow Beam Pattern — Focused long-throw illumination concentrates light output at distance for spotlighting, forward work lighting, and machinery applications where precision targeting and maximum reach are required rather than wide flood coverage.

Polycarbonate Lens — Upgraded from acrylic to polycarbonate lens material, providing superior impact resistance against stone strikes, debris, and physical knocks in demanding off-road, mining, and industrial environments.

IP68 & IP69K Dual Rating — Full submersion rating combined with high-pressure washdown protection provides the highest available ingress protection standard. Suitable for marine applications, underground mining, and equipment subject to regular high-pressure cleaning.

Marine-Grade Anti-Corrosive Coating — Specialised protective coating on the aluminium body resists salt spray, moisture, and chemical exposure, making the BLB071225 a genuine long-term solution for coastal, offshore, and marine vessel applications.

CISPR25 Class 1 EMC Approved — Meets the highest electromagnetic compatibility standard for vehicle components, ensuring no interference with onboard radios, GPS, communications, or control systems across automotive, marine, and industrial applications.

6000 Kelvin Output — Pure white, daylight-spectrum colour temperature delivers excellent colour rendering and clarity for work tasks, providing fatigue-reducing visibility during extended night operations.

21.2G Vibration Resistance — Engineered to withstand extreme vibration levels from heavy machinery, off-road driving, and industrial equipment without compromising LED connections or optical integrity.

Rectangular Aluminium Body — Taller 165mm rectangular form factor accommodates the 12 LED array in a vertical spread for maximum output, while the thermally efficient aluminium housing maintains consistent performance and extended LED lifespan across demanding duty cycles.

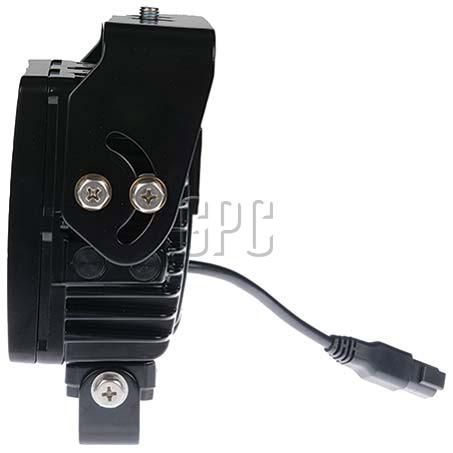

Multiple Bolt Mount — Multi-point mounting footprint provides a stable, vibration-resistant installation platform suited to the 2.65kg body weight of this flagship configuration, ideal for heavy machinery and high-vibration equipment.

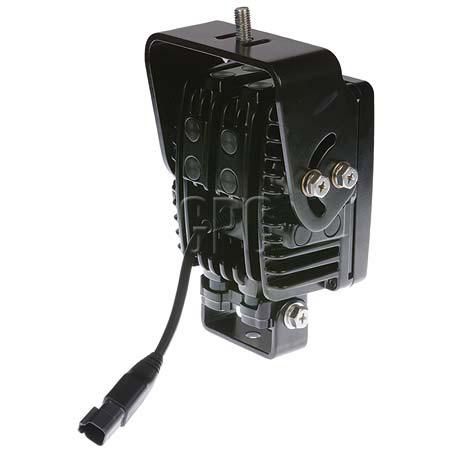

DT04-2P Deutsch Connector — Industry-standard weatherproof connector provides a secure, moisture-resistant wiring termination resistant to vibration loosening and corrosion in harsh environments.

9–32V Universal Input — Compatible with 12V and 24V vehicle electrical systems, covering passenger 4WDs, light commercial vehicles, heavy trucks, agricultural machinery, and marine vessels without voltage adapters.

Technical Specs

Compatible With / Goes Well With

The Blacktips BLB071225 suits any 12V or 24V vehicle, vessel, or equipment requiring maximum-output focused narrow-beam work lighting in the most demanding environments. Primary applications include large mining trucks and underground vehicles requiring maximum forward illumination, broad-acre agricultural tractors and harvesters operating at night, heavy construction plant including large excavators, graders, and dozers, offshore commercial fishing vessels and marine platforms, heavy recovery and tow trucks requiring powerful long-range lighting, and large commercial vehicles where the 9 LED BLB070925 does not provide sufficient output for the application.

Pairs well with the Blacktips BLB071260 wide flood variant for a maximum-output combined near/far coverage setup, OEX emergency beacons and strobe lighting for comprehensive vehicle safety configurations, DT04-2P wiring harnesses and switch kits, and heavy-duty bull bar or equipment frame mounting brackets suited to the larger, heavier form factor.

Frequently Asked Questions

How does the BLB071225 differ from the BLB070925 9 LED narrow beam?

Both lights share the same 25° narrow beam pattern, IP68/IP69K dual rating, marine-grade coating, CISPR25 Class 1 compliance, and multiple bolt mount. The BLB071225 steps up to 12 LEDs for greater output and throw distance, features an upgraded polycarbonate lens (versus acrylic on the BLB070925) for superior impact resistance, and uses a taller 165mm body to accommodate the additional LEDs. It is the preferred choice when maximum long-throw intensity is required and the 9 LED configuration falls short.

Why is the lens material polycarbonate rather than acrylic?

Polycarbonate offers significantly greater impact resistance than acrylic, making it better suited to the high-vibration, debris-heavy environments that the 12 LED flagship model is typically deployed in — including mining operations, large construction sites, and off-road environments where stone strikes and physical knocks are more likely. Polycarbonate also maintains good optical clarity and UV resistance across demanding duty cycles.

What is the difference between IP68 and IP69K ratings?

IP68 certifies the light can withstand continuous submersion in water beyond 1 metre depth, while IP69K certifies protection against high-pressure, high-temperature water jets at close range (typically 80°C at 80–100 bar). Carrying both ratings simultaneously means the BLB071225 is protected against both prolonged water immersion and harsh pressure-washing — the most comprehensive ingress protection available for a work light.

Is this light suitable for saltwater marine environments?

Yes. The marine-grade anti-corrosive coating on the aluminium body provides specific protection against salt spray, sea mist, and moisture ingress that causes premature corrosion on standard work lights. Combined with the IP68/IP69K dual rating, the BLB071225 is built to withstand the demands of coastal and offshore marine applications.

Can the BLB071225 be paired with a flood beam light for a combined setup?

Yes. Pairing the BLB071225 narrow beam with the Blacktips BLB071260 wide flood delivers a maximum-output combined near/far illumination setup — the flood beam covers the wide work zone close to the vehicle while the narrow beam provides the greatest long-throw intensity in the Blacktips range. Both lights share identical dimensions, mounting, and connector specifications, making them the natural matched pair for the most demanding large vehicle and heavy equipment lighting configurations.
