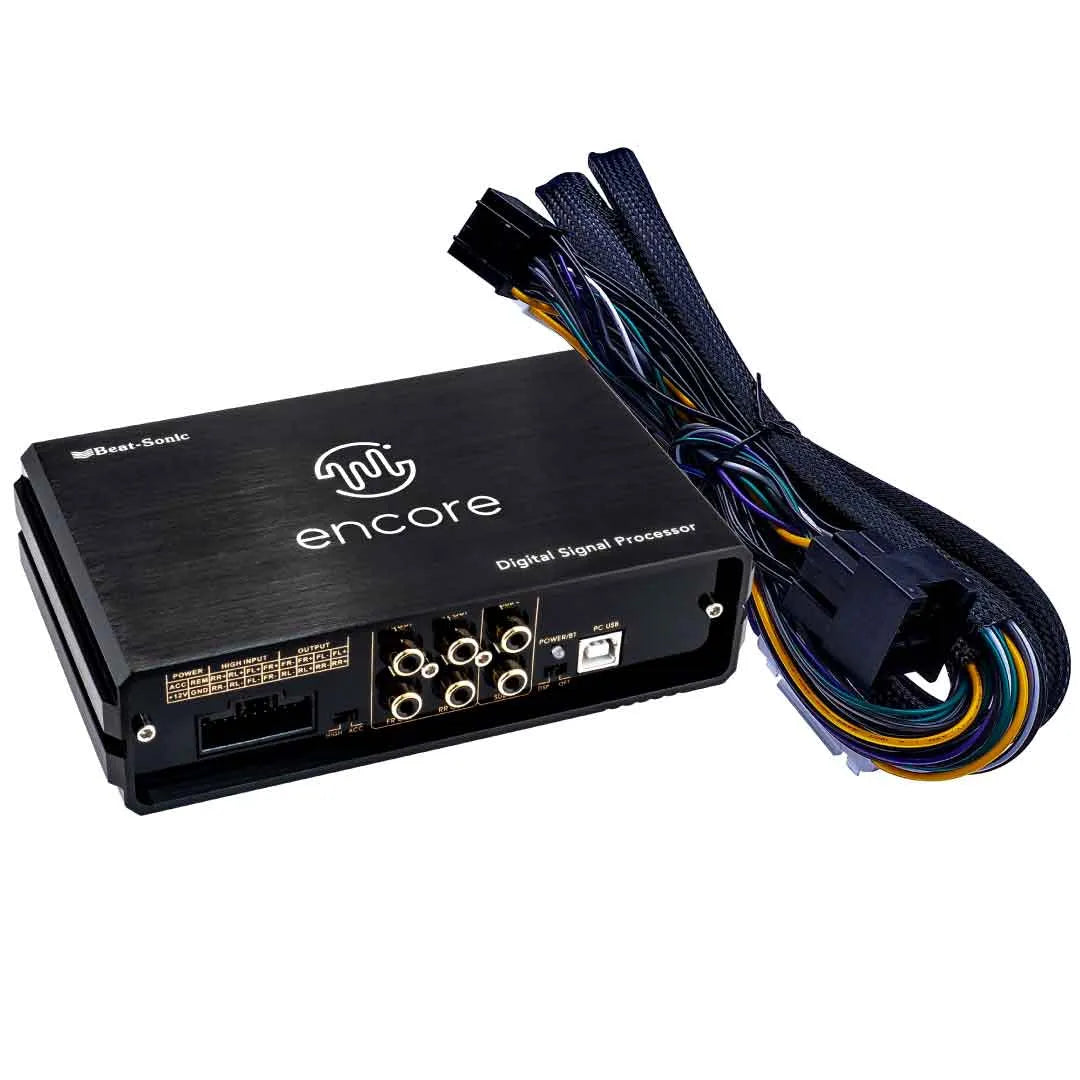

Beat-Sonic DSP-FO3 Encore X DSP Amplifier Suitable for Ford Ranger / VW Amarok

Beat-Sonic DSP-FO3 Encore X DSP Amplifier Suitable for Ford Ranger / VW Amarok

Transform the sound quality of your factory audio system with the Beat-Sonic DSP-FO3 Encore X DSP Amplifier — engineered specifically for the 2022+ Ford Ranger and 2023+ Volkswagen Amarok.

Your vehicle’s infotainment system is integral to its functionality, making head unit replacements impractical. However, improving audio performance is easy with the Encore X DSP amplifier. Designed by Beat-Sonic, this small-form factory upgrade delivers significantly louder output, improved clarity, and an enhanced overall sound experience all while retaining your factory head unit and speakers.

Featuring a 100% plug-and-play installation process, the Encore X DSP amplifier connects directly via the included T-Harness. No cutting, no splicing, and no factory wiring modifications required.

Key Features & Benefits:

• 100% Plug & Play Installation: No cutting, splicing, or additional harnesses required.
• Custom DSP Audio Tuning: Preloaded DSP tune optimized for Ford Ranger (’22+) and VW Amarok (’23+).
• Compact & Discreet Design: Ultra-compact amplifier installs seamlessly into your factory system.
• Superior Sound Quality: Delivers more clarity and balanced power output across lows, mids, and highs.
• Factory System Retention: Keep your OEM infotainment system, head unit, and factory speakers.
• Future Upgrade Ready: Integrated RCA outputs for subwoofers or additional amplifiers.
• Customizable DSP Settings: Adjustable tuning via downloadable Beat-Sonic software.

Technical Specifications:

• Model: DSP-FO3
• SKU: DSP-FO3
• Brand: Beat-Sonic
• Type: DSP Amplifier
• Channels: 4-Channel Class AB Amplifier
• Power Output: 45W x 4CH @ 4Ω
• Speaker Impedance: 4Ω
• Audio Inputs: 4 x Speaker High-Level Inputs
• Audio Outputs: 4 x Speaker Outputs & 6 x RCA (2.2V P-P)
• DSP Resolution: 24-Bit
• Sampling Rate: 48kHz
• Crossover Options: Bypass, Bandpass, Lowpass, High-Pass
• Frequency Range: 20Hz - 22kHz (31 Bands)
• THD: 0.01%
• Operating Voltage: DC 10V - 15V
• Quiescent Current: 350mA
• Fuse: 15A
• Dimensions: 170mm (W) x 103mm (D) x 45mm (H)
• Weight: 625g (excluding T-Harness)

What's Included in the Kit:

• Beat-Sonic DSP-FO3 Encore X DSP Amplifier
• Vehicle-Specific Plug & Play T-Harness
• Installation Guide

Compatibility Notes:

• Compatible with the following vehicles without factory amplifiers:
• Ford Ranger Next-Gen (2022+) — 12" or 10" Sync 4 systems with 6-speaker audio.
• Volkswagen Amarok (2023+) — 12" or 10" infotainment systems with 6-speaker audio.
• Not Compatible with vehicles equipped with factory B&O or Harman Kardon systems.

Installation Applications:

• Ford Ranger Audio Upgrade: Enhance sound performance while retaining OEM integration.
• Volkswagen Amarok Audio Upgrade: Achieve a premium sound experience without replacing the factory head unit.
• Factory-Look Installation: Maintain a clean, OEM aesthetic with hidden amplifier placement.

Frequently Asked Questions

• Do I need to replace my head unit?
  No, the Encore X integrates seamlessly with your existing infotainment system.
• Is installation plug-and-play?
  Yes, the included T-Harness allows full integration without cutting or splicing wires.
• Can I add a subwoofer later?
  Yes, the built-in RCA outputs allow for future upgrades like subwoofers or additional amplifiers.
• Does this work with factory B&O or Harman Kardon systems?
  No, it is only compatible with non-amplified OEM systems.
• Is tuning customizable?
  Yes, DSP settings can be customized using downloadable Beat-Sonic software.
