Axxess AXHN-2 Honda Lane Watch Camera Retention Interface

Included with the Axxess AXHN-2 is pre-wired and loomed vehicle specific harness. This harness allows easy installation of the Axxess AXSWC steering interface for retention of vehicle steering wheel mounted audio control buttons for your aftermarket infotainment system.

Plug & Play SWC Compatibility:

• HONDA CRV 2012 – 2016 (RM)
• HONDA CIVIC 2012 – 2015 (9TH GEN)

Compatible with major branded radios only (see AXSWC instruction manual for applications)

Features:

• Provides accessory power (10-amp)
• Provides NAV outputs (parking brake, reverse, speed sense)
• Pre-wired AXSWC harness (AXSWC sold separately)
• Retains the factory backup camera
• Retains the LaneWatch camera
• Retains ability to change factory clock and date*
• Retains the factory AUX-IN jack
• Can be used in non-amplified, or amplified models
• Retains balance and fade
• Micro-B USB updatable

* Excluding LX and NAV models

Specifications:

• Retain Factory Reverse Camera?: YES – Included With Interface
• Plug & Play: YES – FACTORY CONNECTOR TO BARE WIRES
• Retain Factory Steering Wheel Audio Controls?: YES – If used with Axxess AXSWC or Autoleads CP2-UNI or PAC SWI-CP5 Interfaces ONLY
• Vehicle Specific Notes:Due to a limitation of the factory camera. when the factory radio is removed the fish eye lens is the remaining default view.

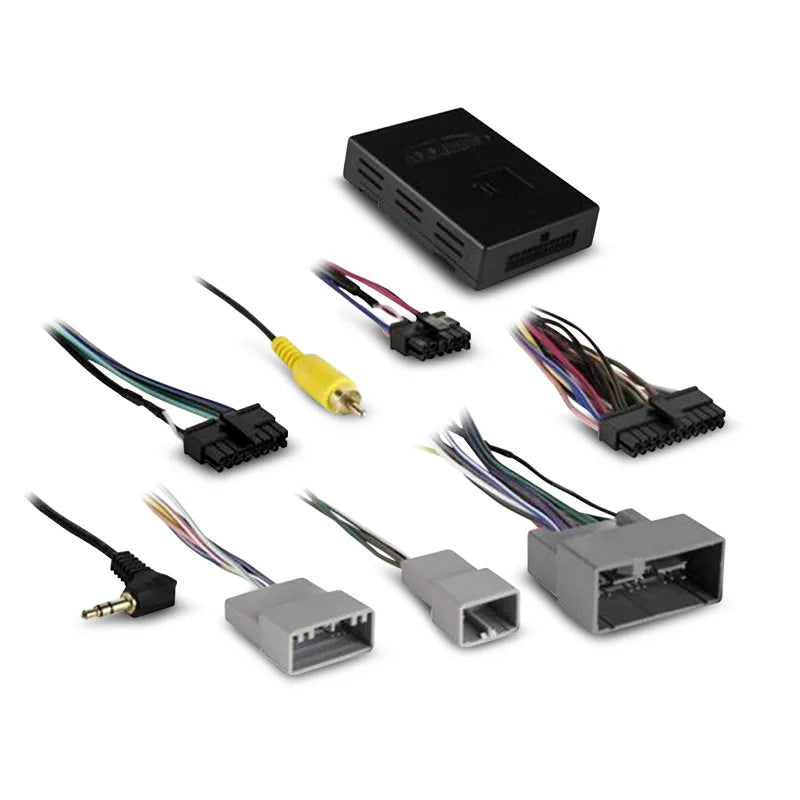

What's In The Box?

• Vehicle Specific Interface
• Vehicle Specific Harness
• Installation Manual

Vehicle Compatibility:

• HONDA CRV 2015 - 2016 (RM)
• HONDA HRV 2015 - 2017 (2ND GEN)
• HONDA JAZZ 2014 - 2016 (GF)
