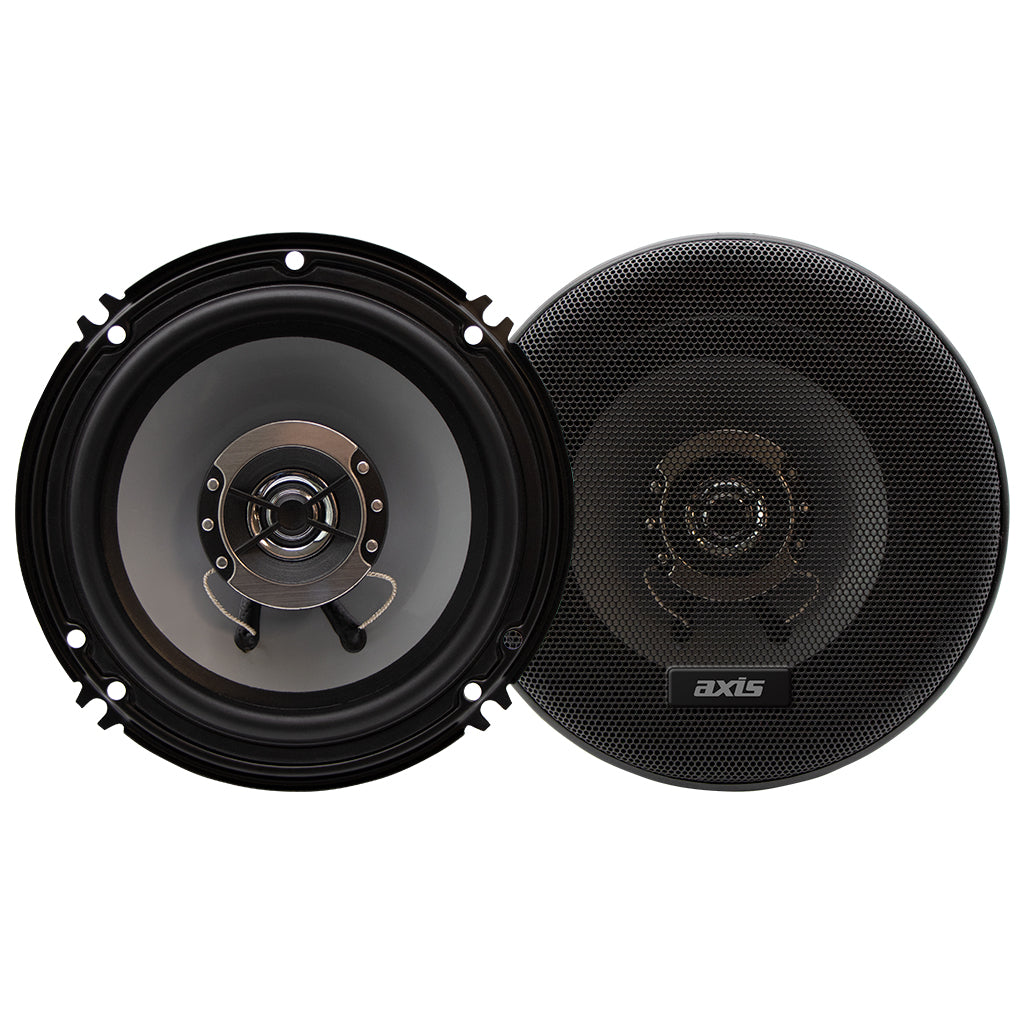

AXIS XR622 - 6 Inch 2-Way Coaxial Speakers

AXIS XR622 - 6 Inch 2-Way Coaxial Speakers

6-inch 2-way coaxial speaker system featuring ABS material construction, rubber surround, 25mm ASV voice coil, 10oz magnet, 110W peak power, 90dB sensitivity, 60Hz-20kHz response, 4-ohm impedance, and 51mm mounting depth for door or shelf installation.

Product Overview

The AXIS XR622 is a cutting-edge 6-inch 2-Way Coaxial Performance Speaker System meticulously crafted to deliver unparalleled audio experience within vehicle confines. Immerse yourself in captivating sound that resonates with sheer power and pristine clarity catering to auditory senses precisely when craved most. The 2-way coaxial design integrates woofer and tweeter into single compact assembly providing full-range audio reproduction from deep bass through crisp high frequencies. ABS material construction provides lightweight durable speaker frame resistant to environmental conditions typical in vehicle applications. Rubber surround accommodates cone excursion providing reliable long-term performance resistant to UV degradation and temperature extremes. The 25mm ASV (Aluminum Square Voice Coil) design improves thermal management and power handling compared to standard round voice coils. The 10-ounce magnet provides strong magnetic field ensuring precise voice coil control and efficient power conversion. Peak power handling of 110 watts accommodates dynamic musical peaks while 25-watt nominal rating provides sustainable output for extended listening. The 60Hz-20kHz frequency response reproduces wide audio spectrum from bass fundamentals through detailed high frequencies. High 90dB sensitivity enables loud playback from modest amplifier power suitable for direct head unit connection. Standard 4-ohm impedance matches most aftermarket equipment ensuring optimal power transfer. Mounting hole diameter of 124-142mm accommodates various factory speaker locations while 51mm mounting depth enables installation in doors with moderate clearance behind speaker locations.

Features & Benefits

2-Way Coaxial Design Integrated woofer and tweeter provide full-range audio reproduction simplifying installation while delivering superior sound quality. Eliminates complexity of separate component systems while maintaining excellent frequency response.

6-Inch Driver Size Larger 6-inch size delivers improved bass output and overall volume compared to smaller 5.25-inch speakers. Fits most vehicles with factory 6-inch or 6x9-inch locations providing upgrade path for enhanced audio performance.

ABS Material Construction Lightweight durable ABS frame provides stable mounting platform resistant to environmental conditions. ABS material withstands temperature extremes and moisture exposure typical in vehicle door installations.

Rubber Surround Durable rubber surround accommodates cone excursion while resisting UV degradation and temperature extremes. Provides reliable long-term performance compared to foam surrounds prone to deterioration in harsh conditions.

25mm ASV Voice Coil Aluminum Square Voice Coil design improves thermal management and power handling compared to standard round coils. Enhanced cooling maintains consistent performance during high-power operation preventing thermal compression.

10-Ounce Magnet Strong magnet structure provides consistent magnetic field ensuring precise voice coil control and efficient power conversion. Improves transient response, extends bass output, and increases power handling.

110W Peak Power Handling High peak rating accommodates brief musical transients and dynamic peaks without distortion. Provides headroom for loud passages ensuring clean reproduction during demanding musical content.

90dB Sensitivity Efficient design produces high output with modest amplifier power enabling loud playback from head unit outputs. High sensitivity provides satisfactory volume without requiring dedicated amplifier installation.

4-Ohm Impedance Standard impedance matches most aftermarket head units and amplifiers ensuring optimal power transfer. Extracts maximum power from head units while maintaining amplifier compatibility.

51mm Mounting Depth Moderate mounting depth accommodates most vehicle doors with standard clearance behind speaker locations. Enables installation without extensive modifications in typical door configurations.

Technical Specifications

Installation & Compatibility

Vehicle Compatibility The XR622 6-inch speakers fit most vehicles with factory 6-inch or 6x9-inch speaker locations in doors or rear shelves. The 51mm mounting depth accommodates standard door configurations with moderate clearance. Verify mounting hole diameter (124-142mm) and depth clearance before purchase by measuring existing speaker locations.

Amplification Requirements Speakers perform well with 25-50 watts RMS amplification per channel. The 90dB sensitivity enables satisfactory volume powered directly from aftermarket head unit outputs. Dedicated amplifier provides increased volume and improved bass response but isn't required for most listeners.

Installation Planning Gather speaker wire (16-18 gauge), wire connectors, and mounting hardware. Remove factory speakers noting wire colors and polarity markings. Measure mounting hole diameter and depth clearance verifying compatibility. Consider sound deadening material on door panels for improved bass response.

Wiring Process Connect speaker wires observing correct polarity with positive terminal to positive amplifier output and negative to negative. Use crimp connectors, solder connections, or spring terminals ensuring secure electrical connections. Incorrect polarity causes phase cancellation reducing bass output.

Physical Mounting Mount speakers using supplied or factory mounting hardware ensuring secure attachment. Tighten screws evenly preventing speaker frame warping. Verify speaker clears window mechanism and door lock assembly. Test window operation through full travel confirming no interference.

System Testing Test speakers at moderate volume confirming both speakers produce sound without distortion or rattling. Verify correct polarity by checking bass response; properly phased speakers produce strong focused bass. Adjust head unit gain settings optimizing volume without clipping.

Break-In Period Play speakers at moderate volume for 10-20 hours before demanding maximum output. During break-in, rubber surround and suspension components loosen improving excursion linearity and bass response. Avoid maximum volume during initial hours preventing mechanical damage.

Frequently Asked Questions

Will these speakers fit my vehicle?

The XR622 6-inch speakers fit most vehicles with factory 6" or 6x9" locations. You need 124-142mm mounting hole diameter and minimum 51mm depth clearance. Measure your existing speaker locations to confirm fitment.

Do I need an amplifier?

These speakers work well powered directly from aftermarket head units. The 90dB sensitivity provides satisfactory volume without amplifier. Dedicated amplifier improves bass and maximum volume but isn't required for most users.

How do these compare to 5.25-inch speakers?

The 6-inch size delivers noticeably stronger bass output and higher overall volume compared to 5.25-inch speakers. The larger cone area moves more air providing improved low-frequency performance and dynamic range.

What's included in the package?

The package includes a pair of speakers (2 speakers) with mounting hardware. You'll need to supply speaker wire (16-18 gauge recommended) and wire connectors separately.

Can I install these myself?

Yes, installation is straightforward if you're comfortable removing door panels and connecting wires. Ensure correct polarity when wiring and verify speakers clear your window mechanism before final installation.
