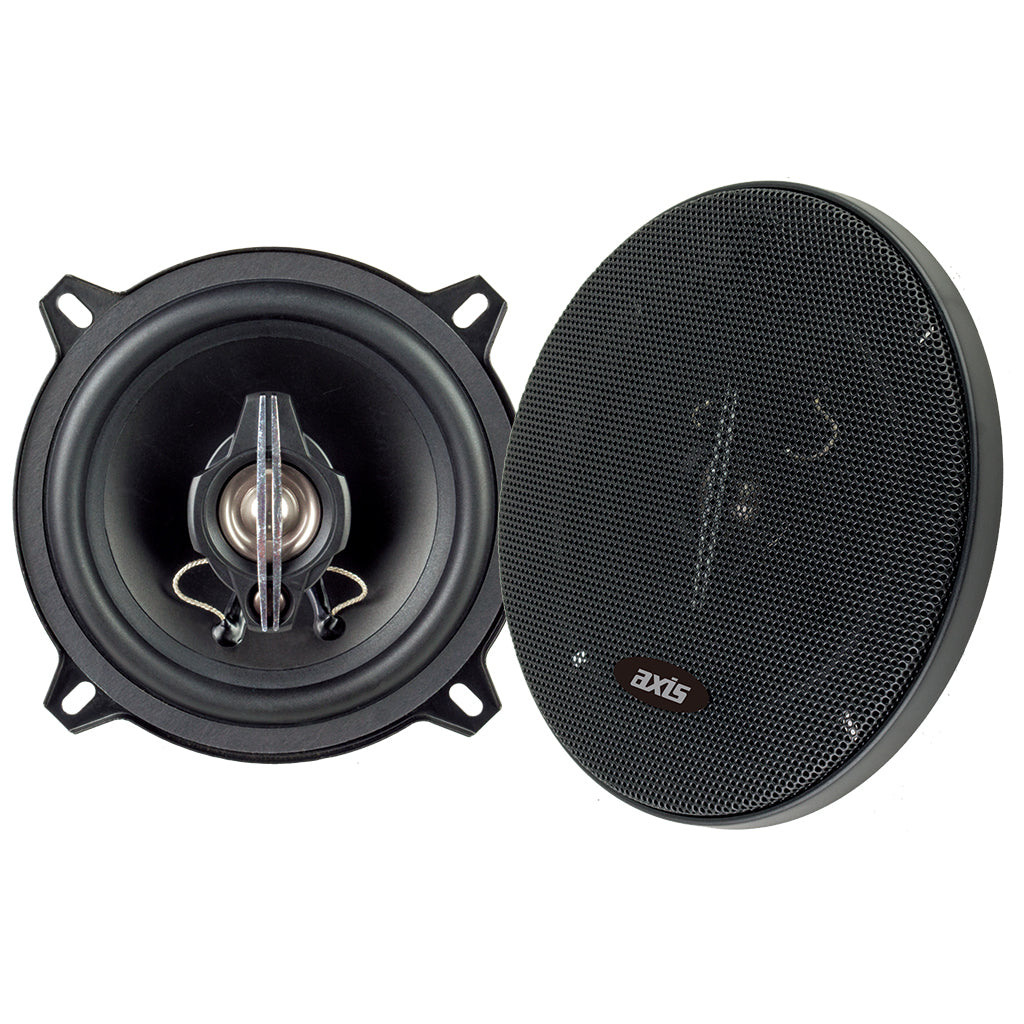

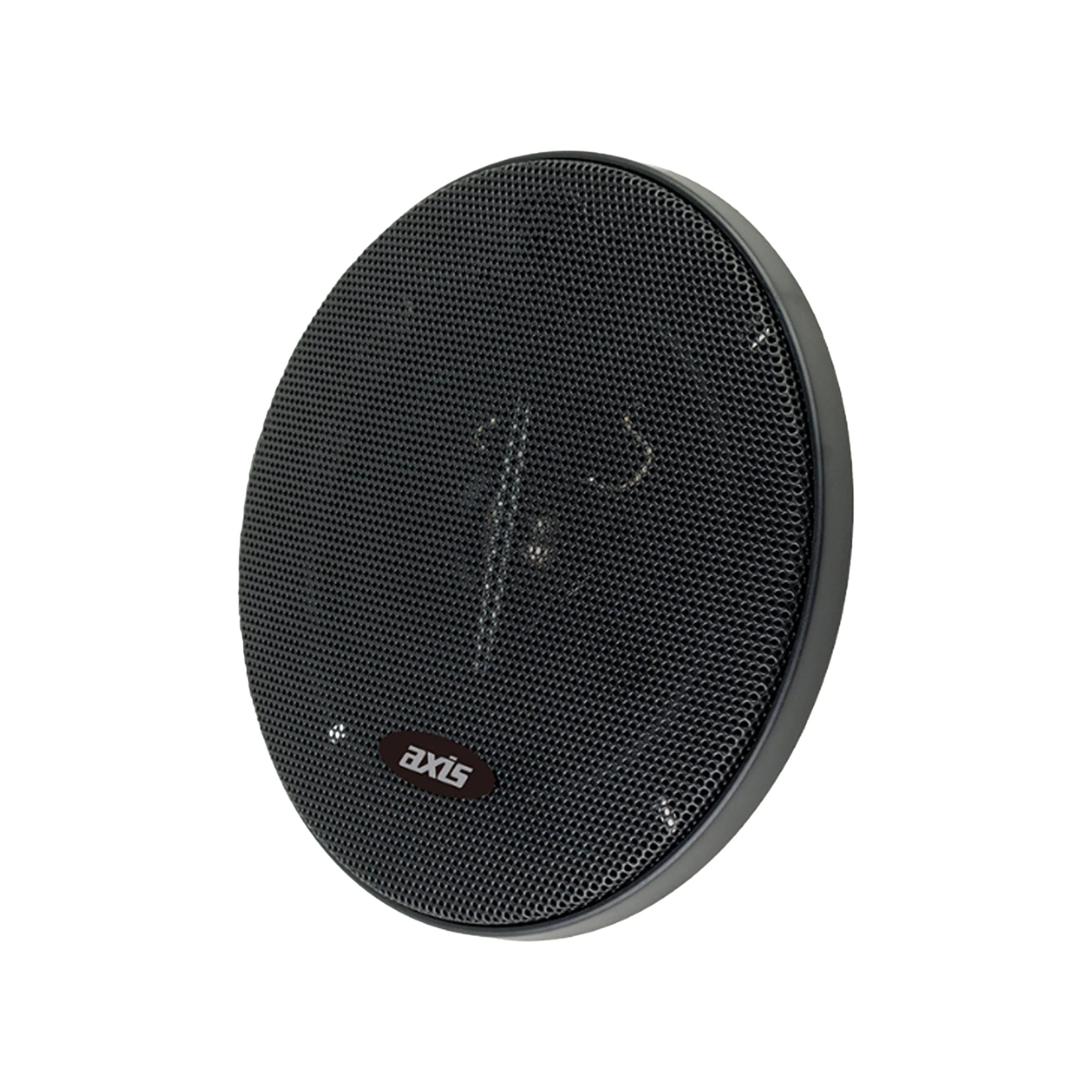

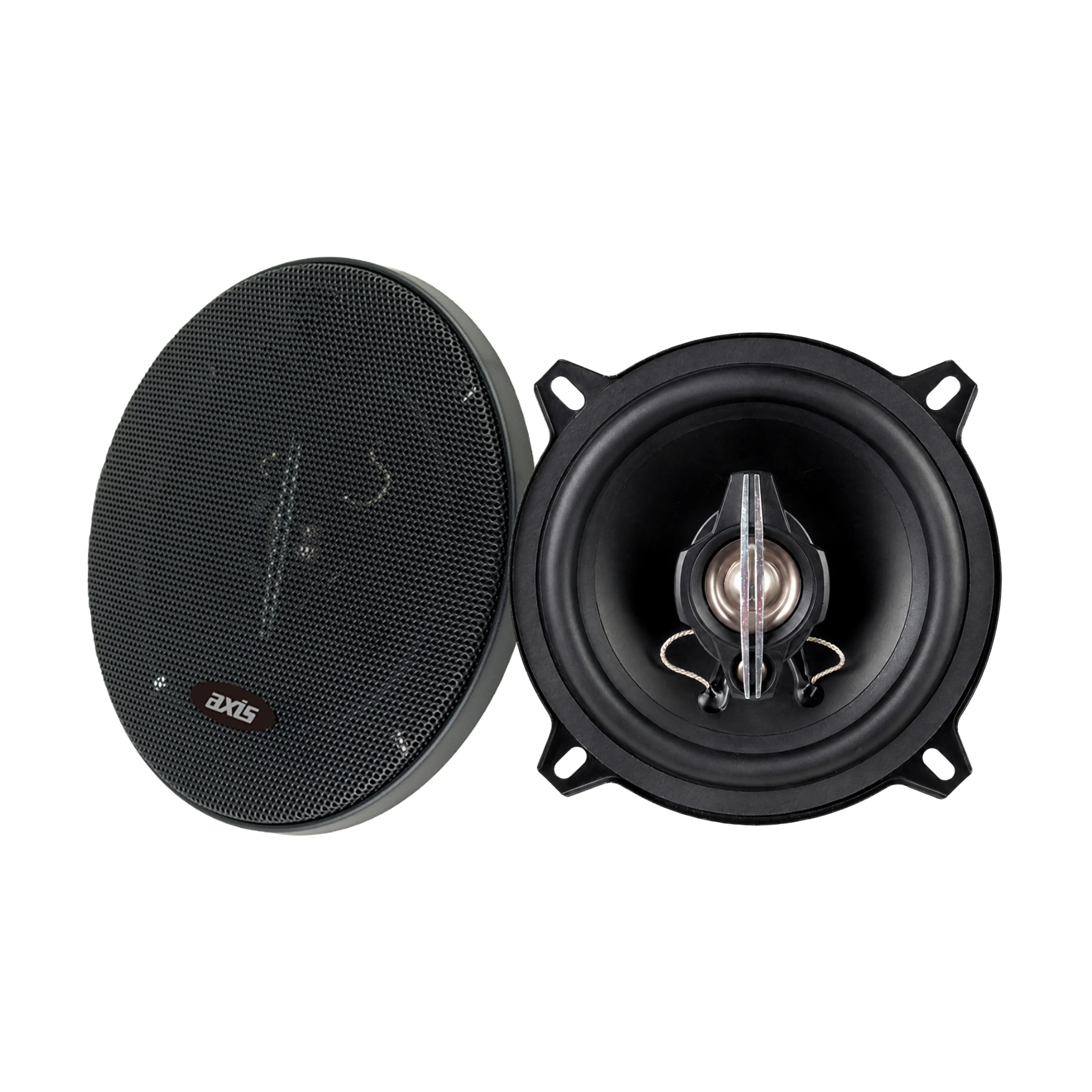

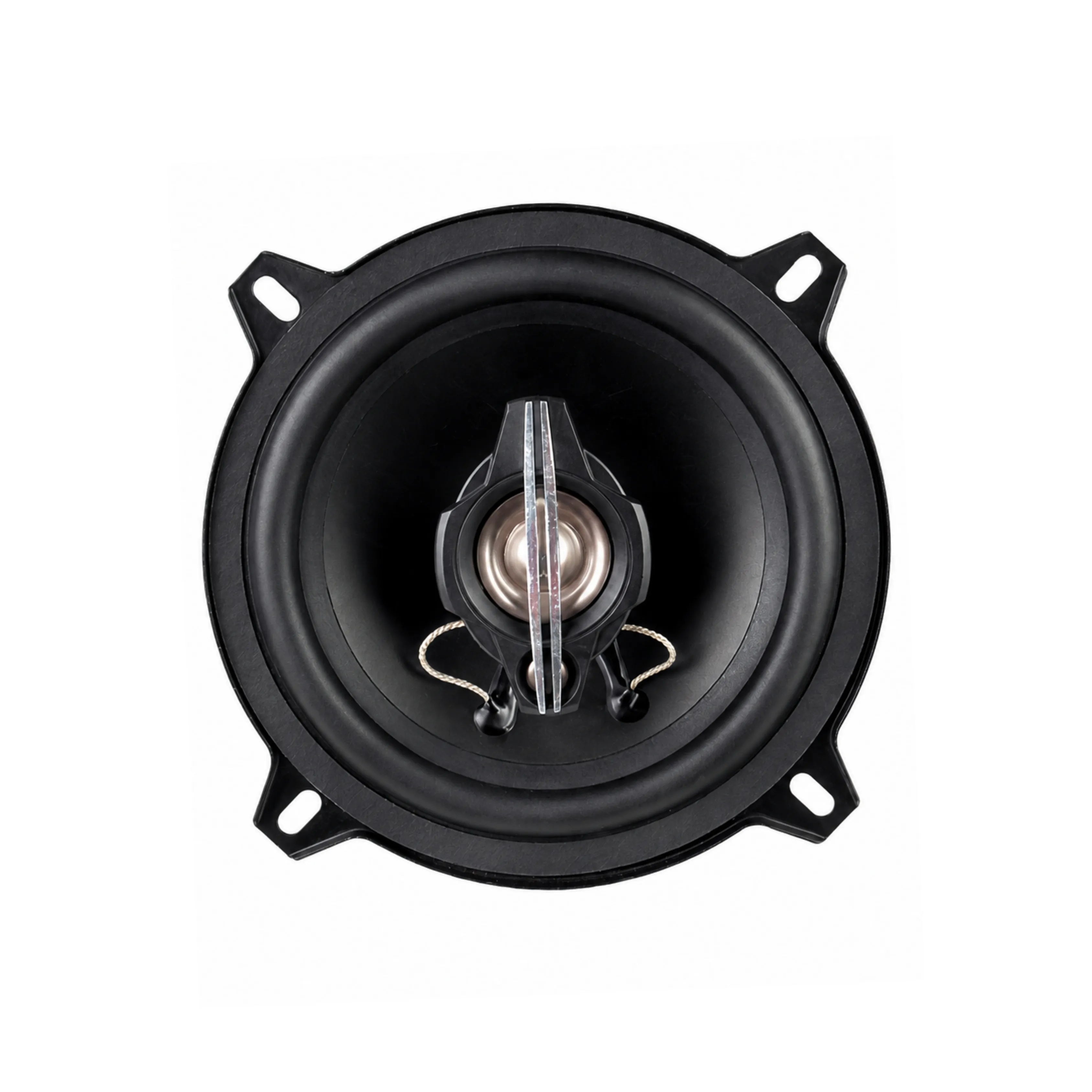

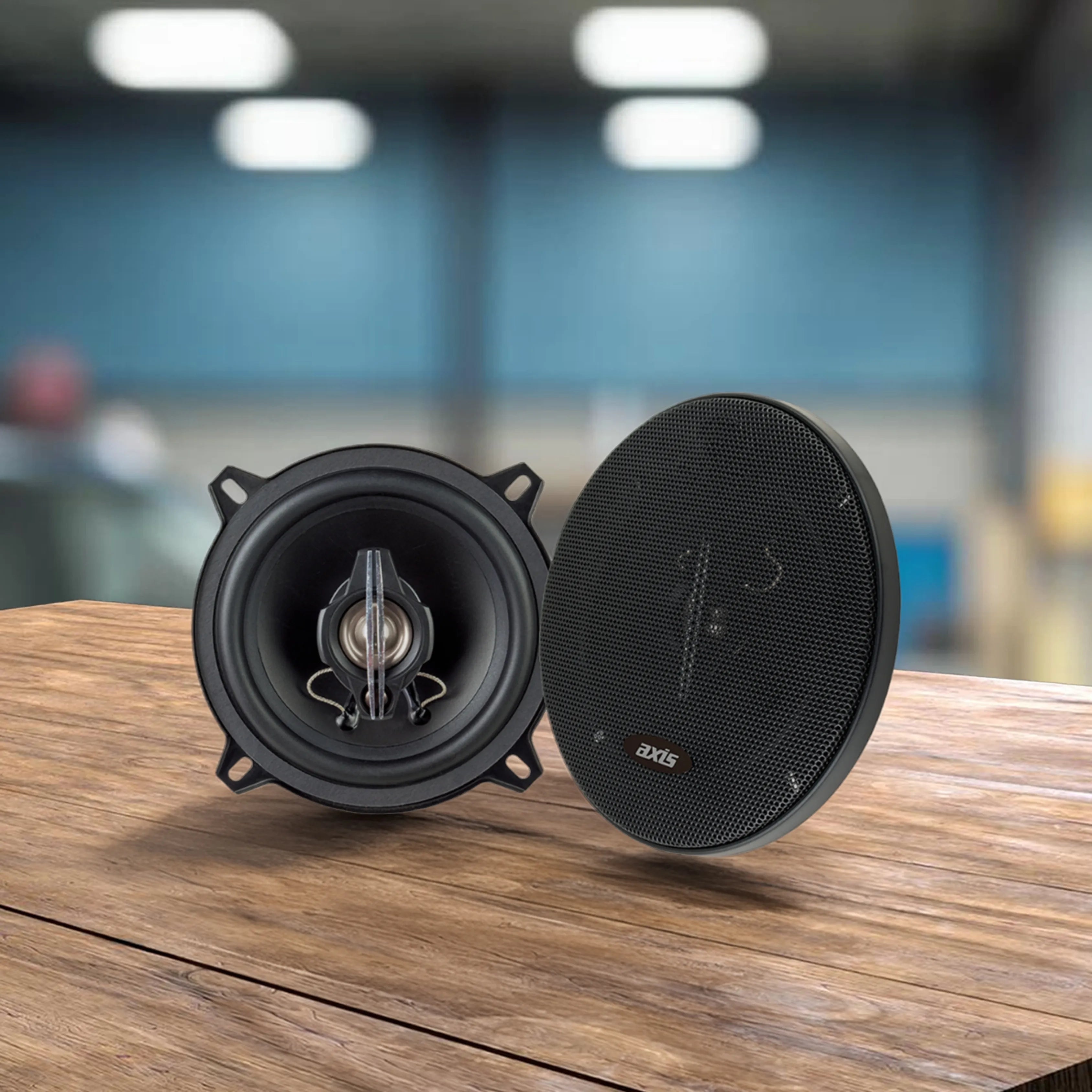

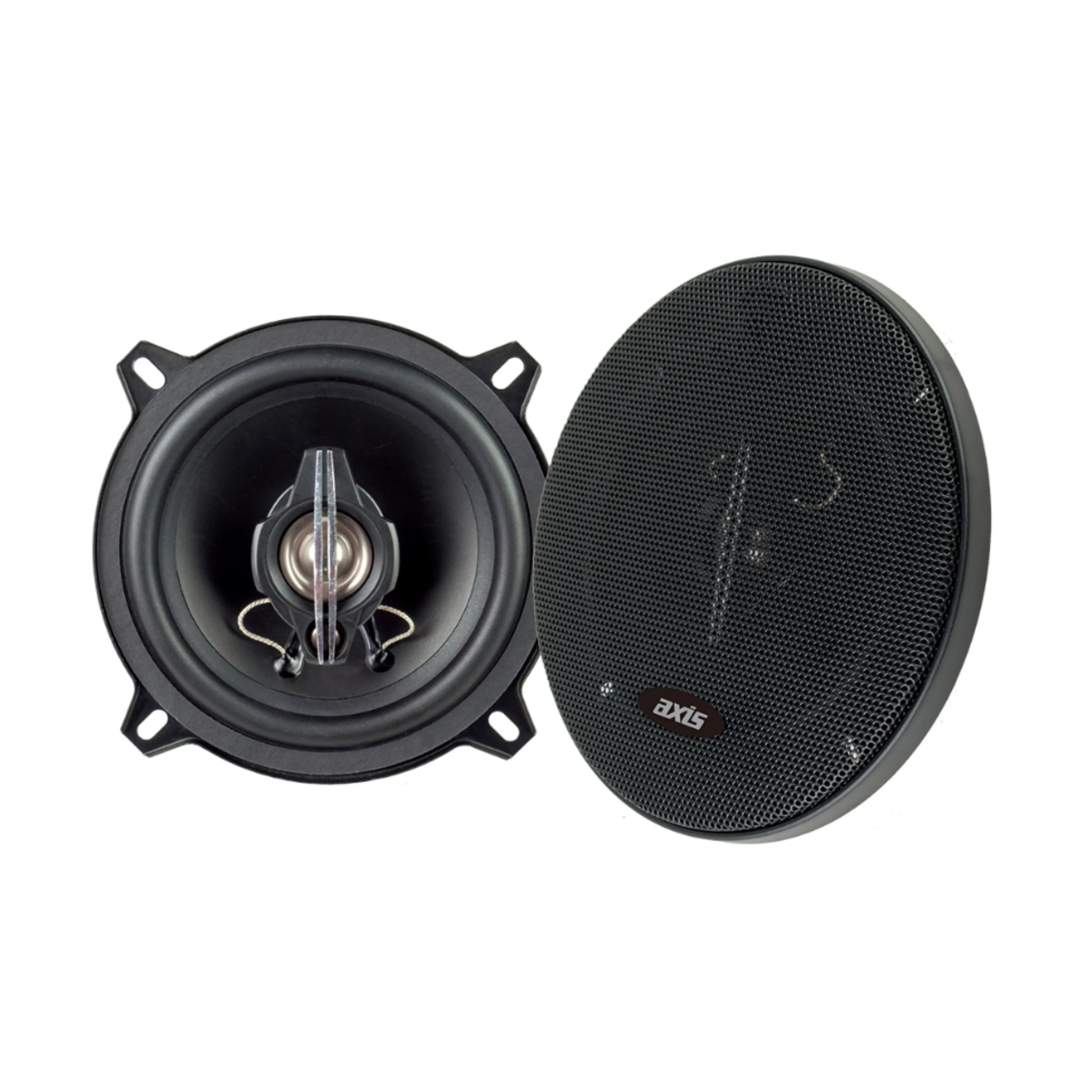

AXIS XR53 - 5 Inch 3-Way Coaxial Speakers

AXIS XR53 - 5 Inch 3-Way Coaxial Speakers

5.25-inch 3-way coaxial speaker system featuring long-throw acoustic drivers, 48mm slim depth, 150W peak power, 93dB sensitivity, 60-23,000Hz response, and 4-ohm impedance for door or shelf installation.

Product Overview

Experience clear and superior sound quality with the AXIS XR53 5.25" 3-Way Coaxial Speaker System. Designed with slim mounting depth of 48mm, these speakers are perfect for installation in vehicle doors or rear shelves. The long-throw acoustic drivers have been specially engineered to deliver exceptional sound ensuring enjoyment of music and entertainment while on the open road. The 3-way coaxial design integrates woofer, midrange, and tweeter into single compact assembly providing full-range audio reproduction from deep bass through crisp high frequencies. Anti-resonance steel basket construction provides rigid mounting platform minimizing vibrations while mica-filled polypropylene cone combines lightweight responsiveness with rigidity preventing distortion during loud passages. Long-throw acoustic engineering maximizes cone excursion within compact mounting depth allowing greater air displacement and improved bass output. The flux-density strontium magnet weighing 10 ounces provides strong magnetic field ensuring precise voice coil control while ferro-cooled voice coil design improves thermal management preventing thermal compression during high-power operation. Peak power handling of 150 watts accommodates dynamic musical peaks while 35-watt nominal rating provides sustainable output for extended listening. Recommended amplification of 25-50 watts matches typical aftermarket head unit outputs ensuring optimal performance. Wide 60Hz-23,000Hz frequency response reproduces entire audible spectrum while high 93dB sensitivity enables loud playback from modest amplifier power. Standard 4-ohm impedance matches most aftermarket equipment and the shallow 48mm mounting depth enables installation in doors with limited clearance behind speaker locations.

Features & Benefits

3-Way Coaxial Design Integrated woofer, midrange, and tweeter provide full-range audio reproduction from single speaker assembly. This design eliminates complexity of separate component systems while delivering superior sound quality with excellent frequency response.

5.25-Inch Driver Size Optimal size balances bass output capability with universal fitment compatibility. Provides significantly improved bass response compared to smaller speakers while maintaining compact dimensions for installation without extensive modifications.

48mm Slim Mounting Depth Shallow profile enables installation in doors with limited clearance accommodating power window mechanisms and door lock assemblies. Expands installation possibilities compared to deeper speakers in space-constrained locations.

Long-Throw Acoustic Drivers Engineered design maximizes cone excursion within compact mounting depth allowing greater air displacement and improved bass output. Provides dynamic range typically associated with larger speakers while maintaining slim installation profile.

Anti-Resonance Steel Basket Rigid steel frame minimizes vibrations and resonances ensuring accurate sound reproduction. Maintains structural integrity under high power levels preserving audio fidelity where standard stamped baskets would flex.

Mica-Filled Polypropylene Cone Advanced cone material combines lightweight responsiveness with rigidity maintaining cone shape under high excursion. Mica reinforcement increases stiffness extending piston range and improving midrange clarity.

High-Excursion Foam Surround Specialized surround accommodates extended cone travel without mechanical failure. Maintains linear excursion throughout power range preventing edge distortion typical of inferior surrounds.

Flux-Density Strontium Magnet High-strength 10-ounce magnet provides strong consistent magnetic field ensuring precise voice coil control and efficient power conversion. Improves transient response, extends bass output, and increases power handling.

Ferro-Cooled Voice Coil Advanced thermal management dissipates heat during high-power operation preventing thermal compression and voice coil damage. Maintains consistent performance during extended high-volume listening.

150W Peak Power Handling High peak rating accommodates brief musical transients and dynamic peaks without distortion or damage. Provides headroom for loud passages ensuring clean reproduction during demanding musical content.

Wide Frequency Response 60Hz-23,000Hz range reproduces entire audible spectrum from deep bass fundamentals through ultrasonic harmonics. Extended response ensures full-range reproduction contributing to perceived clarity and natural sound quality.

93dB High Sensitivity Efficient design produces high output with relatively low amplifier power. Speakers sound louder with same amplifier power compared to low-sensitivity designs or maintain same volume with reduced distortion.

4-Ohm Standard Impedance Standard impedance matches most aftermarket head units and amplifiers ensuring optimal power transfer. Extracts maximum power from head units while maintaining compatibility with amplifier outputs.

Technical Specifications

Installation & Compatibility

Vehicle Compatibility The XR53 5.25-inch speakers fit most vehicles with factory 5.25" or 5x7" speaker locations in doors or rear shelves. The shallow 48mm mounting depth accommodates doors with power window mechanisms and door lock assemblies. Verify mounting depth clearance by measuring distance from mounting surface to obstructions behind speaker location before purchase.

Amplification Requirements Speakers perform optimally with 25-50 watts RMS amplification per channel matching typical aftermarket head unit outputs and small amplifiers. Speakers function adequately powered directly from head unit outputs but benefit from dedicated amplifier providing increased volume, improved bass response, and reduced distortion. Avoid exceeding 50 watts RMS continuous power.

Installation Planning Gather necessary materials including speaker wire (16-18 gauge), wire connectors, and mounting hardware. Remove factory speakers noting wire colors and polarity markings. Measure mounting depth clearance verifying 48mm minimum clearance. Consider sound deadening installation on door panels improving bass response and reducing rattles.

Wiring Process Connect speaker wires observing correct polarity ensuring positive terminal connects to positive amplifier output and negative to negative output. Incorrect polarity causes phase cancellation reducing bass output. Use crimp connectors, solder connections, or spring terminals ensuring secure electrical connections preventing intermittent contact.

Physical Mounting Mount speakers in factory locations using supplied or factory mounting hardware ensuring secure attachment. Tighten mounting screws evenly preventing speaker frame warping. Verify speaker clears window mechanism and door lock assembly. Test window operation through full travel confirming no interference with speaker frame or magnet.

System Testing Test speakers at moderate volume confirming both speakers produce sound without distortion or rattling. Verify correct polarity by checking bass response; properly phased speakers produce strong focused bass whereas out-of-phase speakers sound hollow. Adjust head unit or amplifier gain settings optimizing volume without clipping.

Break-In Period Play speakers at moderate volume levels for 10-20 hours before demanding maximum output. During break-in, foam surrounds soften and suspension loosens improving excursion linearity and bass response. Avoid maximum volume during initial hours preventing mechanical damage before proper break-in completion.

Frequently Asked Questions

Will these speakers fit my vehicle doors?

The XR53 5.25-inch speakers fit most vehicles with factory 5.25" or 5x7" locations. You need minimum 48mm clearance behind the mounting surface. Measure your door depth before purchasing to confirm fitment.

Do I need an amplifier or can I power these from my head unit?

These speakers work well powered directly from aftermarket head units (18-25W RMS). An amplifier provides louder volume and better bass but isn't required. The high 93dB sensitivity means they sound great with modest power.

How do these compare to factory speakers?

The XR53 provides significant upgrade with louder output, stronger bass, and clearer sound. The 3-way design and quality materials deliver noticeably better performance than standard factory speakers.

What's included in the package?

The package includes a pair of speakers (2 speakers) with mounting hardware. You'll need to supply speaker wire (16-18 gauge recommended) and wire connectors separately.

Can I install these myself?

Yes, installation is straightforward if you're comfortable removing door panels and connecting wires. Ensure correct polarity when wiring and verify the speakers clear your window mechanism before final installation.
