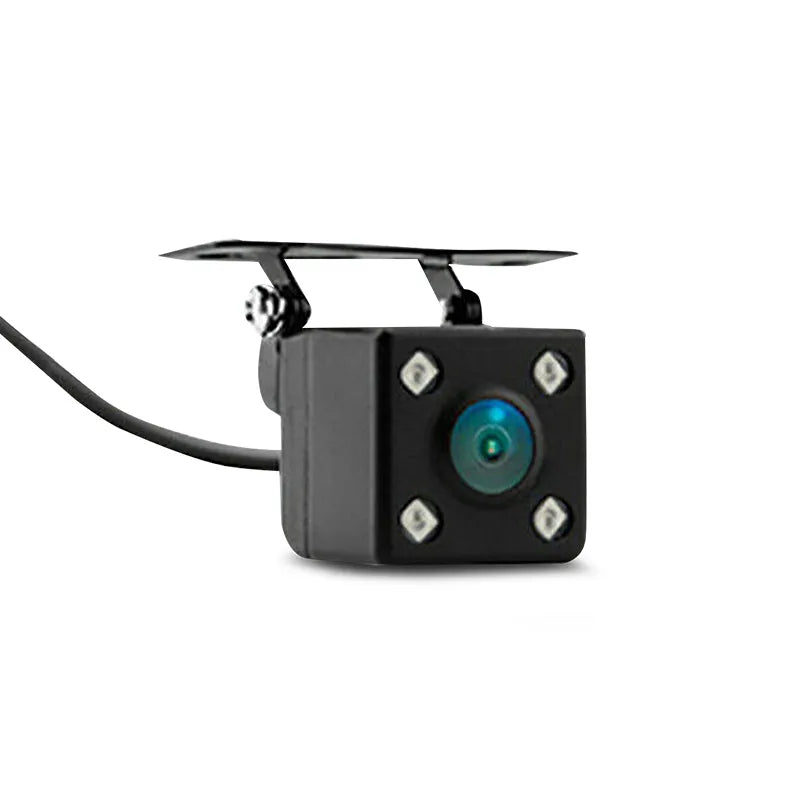

Axis SD23 12/24 V Surface Mount Reversing Camera
Axis SD23 12/24 V Surface Mount Reversing Camera
Click to open expanded view
AXIS logo

Axis SD23 12/24 V Surface Mount Reversing Camera

SKU: SD23
Price
$99
Inc. GST. Most orders ship Australia wide for a flat $15.95. Larger or heavier items may cost more.
Buy now, pay later
  • image
  • image
  • image

Shipping information

Australia wide flat rate shipping is $15.95. Larger or heavier items may cost more; we will confirm when your order is processed. In stock items are dispatched within 1 to 2 business days. Report transit damage within 24 hours with photos so we can lodge a freight claim.

Share this product

Share Post Pin E-mail
Axis SD23 12/24 V Surface Mount Reversing Camera

Axis SD23 12/24 V Surface Mount Reversing Camera

$99

Product features

A small 23 mm surface mount reversing camera that runs on 9 to 32 V, so it suits cars, trucks and buses.

It has a 1/3 inch CMOS sensor with a 165 degree diagonal view, a full glass lens, selectable guidelines and 4 IR LEDs for night vision. It is IP67 rated and comes with an 8 m RCA video cable for any monitor with an RCA input.

Specifications

  • Sensor: 1/3 inch CMOS
  • View: 165 degrees diagonal, 120 degrees horizontal, mirror image
  • Signal: PAL/NTSC selectable, 640 x 480, 480 TV lines
  • Lens: full glass
  • Guidelines: selectable on or off
  • Night vision: 4 IR LEDs, 0.2 lux
  • Rating: IP67
  • Operating temperature: minus 20 to 70 °C
  • Current: 90 to 300 mA
  • Size: 23.4W x 23.4H x 25D mm, not including bracket
  • Connection: mini 4-pin to RCA female
  • Lead: 8 m RCA male to RCA male
  • Power: 9 to 32 V DC

FAQ

What is the Axis SD23?

A 12/24 V surface mount reversing camera, 165 degree view, IR night vision, IP67, with 8 m RCA cable.

Will it work with my monitor?

Yes, if the monitor has an RCA video input.

Can you fit it?

Yes. Book in at Albion Park Rail (02) 4257 2636 or South Nowra (02) 4423 5254.
