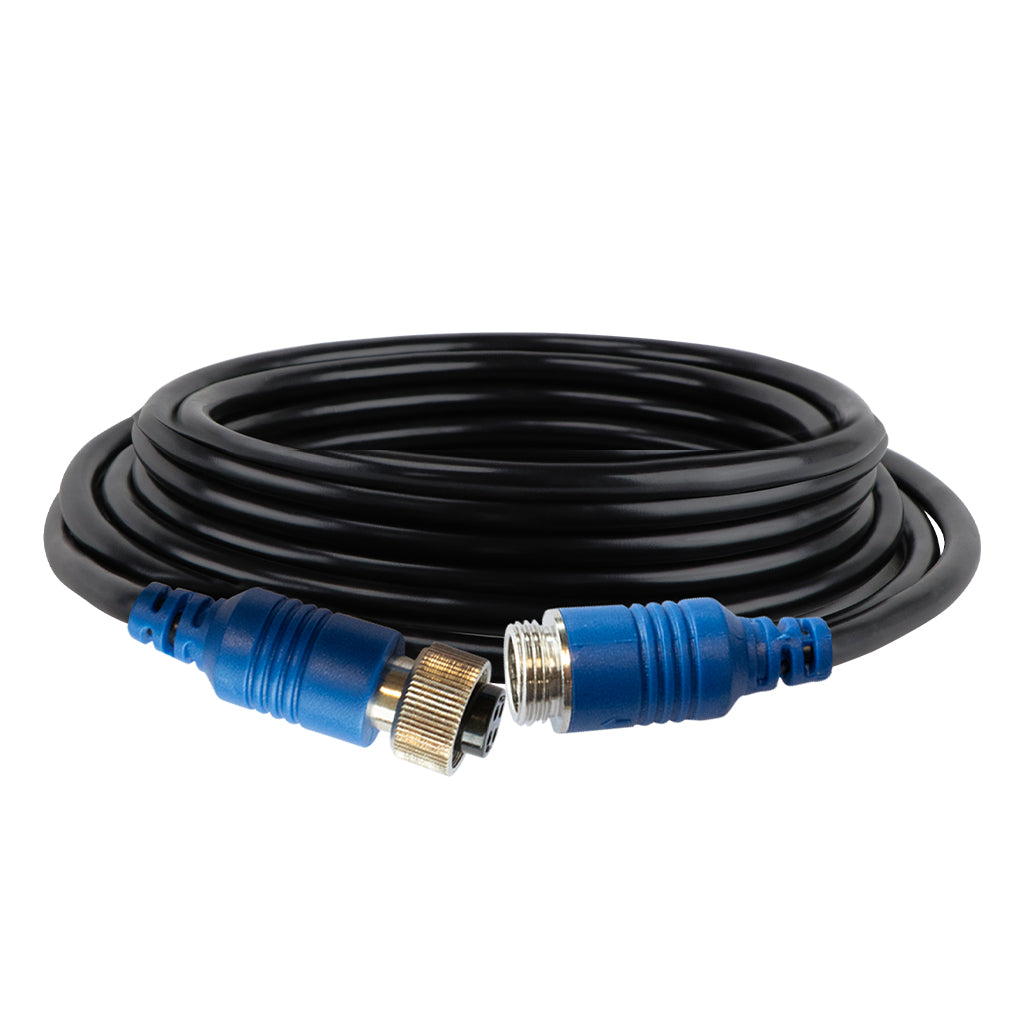

Axis HDC3M4P 3m 4-Pin AHD Camera Extension Cable

AXIS HDC3M-4P - 3 Metre HD Camera Extension

High-grade low-loss camera extension cable featuring 3-metre length, industry-standard 4-pin male to female configuration, blue aviation connectors, weatherproof construction, shielded design for signal integrity, gold-plated contacts, threaded locking coupling nuts, and compatibility with universal standard 4-pin backup cameras and monitor systems in compact vehicles, UTVs, and cabin installations.

Product Overview

The AXIS HDC3M-4P 3-metre HD camera extension cable connects to industry standard 4-pin cameras. This extension lead enables camera placement at convenient distances from monitors or recording equipment overcoming cable length limitations of standard factory camera cables. High-grade low-loss cable construction maintains video signal quality over 3-metre distance with virtually no degradation, interference, or voltage drop. Industry-standard 4-pin configuration ensures compatibility with universal pinout cameras and monitors from various manufacturers eliminating proprietary connector compatibility issues. The male-to-female design features 4-pin male connector on one end plugging into camera female output connector or monitor female input, with 4-pin female connector on opposite end accepting male plugs from existing camera cables or monitor input cables. Blue connector housings provide visual identification distinguishing this extension cable from other vehicle wiring simplifying installation and future troubleshooting. Aviation-grade 4-pin connectors deliver IP67 weatherproof sealing when properly connected protecting electrical connections from moisture ingress, dust contamination, and corrosive environmental exposure typical in vehicle applications. Threaded locking coupling nuts on both connectors ensure secure mechanical connection resistant to vibration, shock, and cable tension preventing accidental disconnection during vehicle operation over rough terrain. Shielded cable construction prevents electromagnetic interference from vehicle electrical systems, ignition components, and radio frequency sources that could introduce video noise or distortion. Gold-plated contact pins minimize electrical resistance and prevent oxidation ensuring reliable signal transmission and power delivery over extended service life in harsh environmental conditions. The 3-metre length accommodates installations where cameras mount near monitor locations such as dashboard-mounted monitors in compact vehicles, cabin installations in UTVs and side-by-sides, forward-facing cameras near windshield monitors, or short-run applications in small caravans and campers. Flexible cable jacket maintains pliability in temperature extremes enabling routing through tight spaces, around corners, and behind dashboard panels without creating stress points that could cause cable failure. Standard 4-pin configuration carries power positive, ground negative, video signal positive, and video signal ground enabling both video transmission and camera power delivery through single cable simplifying installation compared to separate power and video cables. The compact 3-metre length provides ideal extension for close-proximity installations while maintaining exceptional video quality with minimal signal loss, making this cable perfect for applications where longer extensions would create unnecessary cable bulk and management challenges.

Features & Benefits

High-Grade Low-Loss Cable Construction Premium cable design ensures virtually zero signal attenuation over 3-metre distance maintaining perfect video quality without brightness reduction, detail loss, or color degradation. The short cable length combined with low-loss construction guarantees cameras deliver optimal image quality to monitors eliminating any concerns about signal degradation affecting visibility or safety.

3-Metre Compact Length Compact length provides ideal extension for close-proximity installations without excess cable requiring management. This length perfectly suits dashboard monitor installations, cabin-mounted systems, forward camera installations near windshields, or compact vehicle applications where longer cables would create unnecessary bulk and cable management challenges.

Industry-Standard 4-Pin Configuration Universal pinout compatibility ensures connection with cameras and monitors from various manufacturers using industry-standard 4-pin configuration. This standardization prevents compatibility issues and enables mixing equipment brands providing flexibility for system upgrades or component replacement without requiring complete system replacement.

Male-to-Female Inline Design Male connector at one end and female connector at opposite end enable inline installation between existing equipment connections. This configuration allows extension insertion between factory camera cables and monitors or between cameras and existing extension cables providing installation flexibility without requiring connector removal or cable modification.

Blue Connector Identification Distinctive blue housing color provides immediate visual identification distinguishing extension cable from vehicle wiring, power cables, or other system components. This color coding simplifies initial installation and future maintenance enabling technicians to quickly identify camera system cables during troubleshooting or system modifications.

Aviation-Grade Weatherproof Connectors IP67-rated sealing when properly connected protects electrical connections from moisture, dust, salt spray, and corrosive contaminants typical in marine, agricultural, and off-road vehicle applications. This weatherproofing ensures reliable operation in rain, vehicle washing, high humidity, and dusty conditions preventing corrosion-related failures that plague inferior connectors.

Shielded Cable Design Comprehensive shielding prevents electromagnetic interference from vehicle alternators, ignition systems, two-way radios, and electronic equipment that could introduce video noise, lines, or distortion. Unshielded cables pickup interference causing poor video quality especially in electrically noisy environments typical of vehicles with high-output electrical systems.

Threaded Locking Connectors Coupling nuts on both connectors provide secure mechanical connection resistant to vibration and accidental disconnection. This positive locking prevents intermittent video loss or complete disconnection during vehicle operation over rough terrain maintaining continuous monitoring capability essential for safety and operational awareness.

Gold-Plated Contact Pins Gold plating on electrical contacts minimizes contact resistance and prevents oxidation ensuring long-term signal integrity and power delivery reliability. Standard tin or nickel contacts corrode over time increasing resistance causing video signal degradation, color shift, or intermittent power delivery especially in high-humidity or salt-spray environments.

Flexible Temperature-Resistant Jacket Cable jacket maintains flexibility from -20°C to +70°C enabling installation in extreme climate zones and preventing cable stiffness or brittleness in cold conditions. This flexibility allows routing through tight spaces and around sharp corners without creating stress points that could cause conductor breakage or insulation cracking.

Combined Power and Video Transmission Four-conductor design carries both video signals and camera power through single cable simplifying installation compared to separate power and video cables. This integration reduces cable clutter, minimizes installation time, and eliminates need for additional power wire routing from camera locations to power sources.

Minimal Cable Management Requirements Short 3-metre length requires minimal securing and management compared to longer extensions reducing installation time and complexity. The compact cable length integrates cleanly into vehicle interiors without excess cable loops or coiling that could create unsightly appearances or snagging hazards.

Technical Specifications

Installation & Compatibility

Camera and Monitor Compatibility The HDC3M-4P extension cable is compatible with backup cameras, dash cameras, and monitors using industry-standard universal 4-pin pinout configuration. Compatible equipment includes most aftermarket vehicle cameras and monitors from major manufacturers utilizing standard pin assignments for power, ground, and video signals. Verify equipment uses universal standard 4-pin configuration rather than proprietary pinouts such as AXIS-specific or manufacturer-specific configurations which would require appropriate converter adapters. Check equipment specifications or contact manufacturers to confirm pinout standard before purchasing extension cable.

Cable Routing Planning Before installation, plan cable routing path from camera location to monitor considering distance requirements and aesthetics for visible interior installations. Measure actual cable path length accounting for routing behind dashboard panels, along A-pillar trim, or through headliner ensuring 3-metre cable provides adequate length without excessive surplus. Identify cable entry points through dashboard openings or trim panels for clean concealed routing maintaining professional appearance in visible cabin areas.

Installation Process Connect 4-pin male end of extension cable to female connector on camera output, monitor input, or existing extension cable. Connect 4-pin female end to male connector from camera cable, monitor input cable, or additional extension cable. Ensure threaded coupling nuts engage fully and tighten hand-tight creating weatherproof seal and secure mechanical connection. Route cable behind dashboard panels, within trim pieces, or along existing wiring harnesses maintaining clean concealed appearance. The short 3-metre length simplifies routing through dashboard areas without requiring extensive cable management.

Cable Protection and Securing Secure extension cable every 300-500mm using cable ties or cable clips preventing movement that could cause vibration wear or rattling noises in cabin areas. Route cable away from moving components such as steering columns, pedal assemblies, or adjustable seats that could pinch or damage cable. Avoid sharp edges on dashboard structures or trim panel mounting points that could damage cable jacket. The compact 3-metre length minimizes cable securing requirements compared to longer extensions simplifying installation in tight dashboard spaces.

Connection Point Protection Position connectors in accessible locations behind dashboard panels or within console areas enabling future disconnection for system maintenance or equipment replacement. While connectors provide IP67 weatherproof rating when properly connected, mounting in protected cabin locations extends service life and maintains clean appearance. Use connector boots or heat shrink tubing over connection points providing additional protection and professional finish.

System Testing After Installation After completing installation, power vehicle electrical system and monitor verifying video display appears clearly without distortion, interference, or color abnormalities. Test video quality at various engine speeds confirming shielding prevents alternator noise interference. Check connections under vehicle vibration by operating vehicle over rough surfaces while observing monitor for intermittent signal loss indicating loose connections requiring tightening. The short 3-metre length ensures optimal signal quality with minimal concerns about degradation.

Multiple Cable Applications For installations requiring moderate cable lengths, combining 3-metre extension with existing factory cables often provides adequate reach without requiring longer single extensions. This approach maintains optimal signal quality by using shorter cable segments and allows positioning of connection points in accessible locations for future maintenance. However, multiple connection points should be minimized when possible to reduce potential failure locations.

Frequently Asked Questions

When should I choose the 3-metre extension instead of longer cables?

Choose the HDC3M-4P 3-metre extension for installations where cameras mount relatively close to monitors, typically within dashboard or cabin areas of compact vehicles, UTVs, side-by-sides, small caravans, or boats. This length provides ideal extension for dashboard-mounted monitors connecting to windshield-mounted cameras, cabin rear-view monitors in UTVs, or compact vehicle applications where camera and monitor reside in same general area. The 3-metre length offers optimal signal quality due to minimal cable length while avoiding excess cable requiring management or coiling. Choose longer extensions (10m, 15m, 20m) only when greater distances between camera and monitor require extended cable runs such as rear cameras on long-wheelbase vehicles or caravan installations.

Can I use this cable with AXIS proprietary pinout equipment?

No, the HDC3M-4P uses industry-standard universal 4-pin pinout configuration incompatible with AXIS proprietary pinout equipment. AXIS brand cameras and monitors using AXIS-specific pin assignments require AXIS-compatible extension cables or HDC/AX-F and HDC/AX-M converters bridging compatibility between AXIS and universal equipment. Using this universal extension cable with AXIS equipment results in no video display or potential equipment damage due to incorrect power and signal pin connections. Verify equipment pinout standard before purchasing extension cable ensuring compatibility. For AXIS equipment, select AXIS-specific extension cables or use appropriate converters with this universal extension cable.

Will there be any signal loss with this 3-metre cable?

The HDC3M-4P high-grade low-loss construction maintains virtually perfect video quality over 3-metre distance with no noticeable signal degradation. The short cable length combined with quality shielded construction, gold-plated contacts, and proper connector sealing ensures video signals maintain full brightness, color accuracy, and detail clarity from camera to monitor. Signal loss concerns typically emerge only with longer cable runs exceeding 15-20 metres or when using inferior unshielded cables. At 3 metres, this cable delivers essentially perfect signal transmission equivalent to direct camera-to-monitor connection. Installations using 3-metre extensions can expect optimal video quality without any brightness reduction, color shift, or interference issues.
