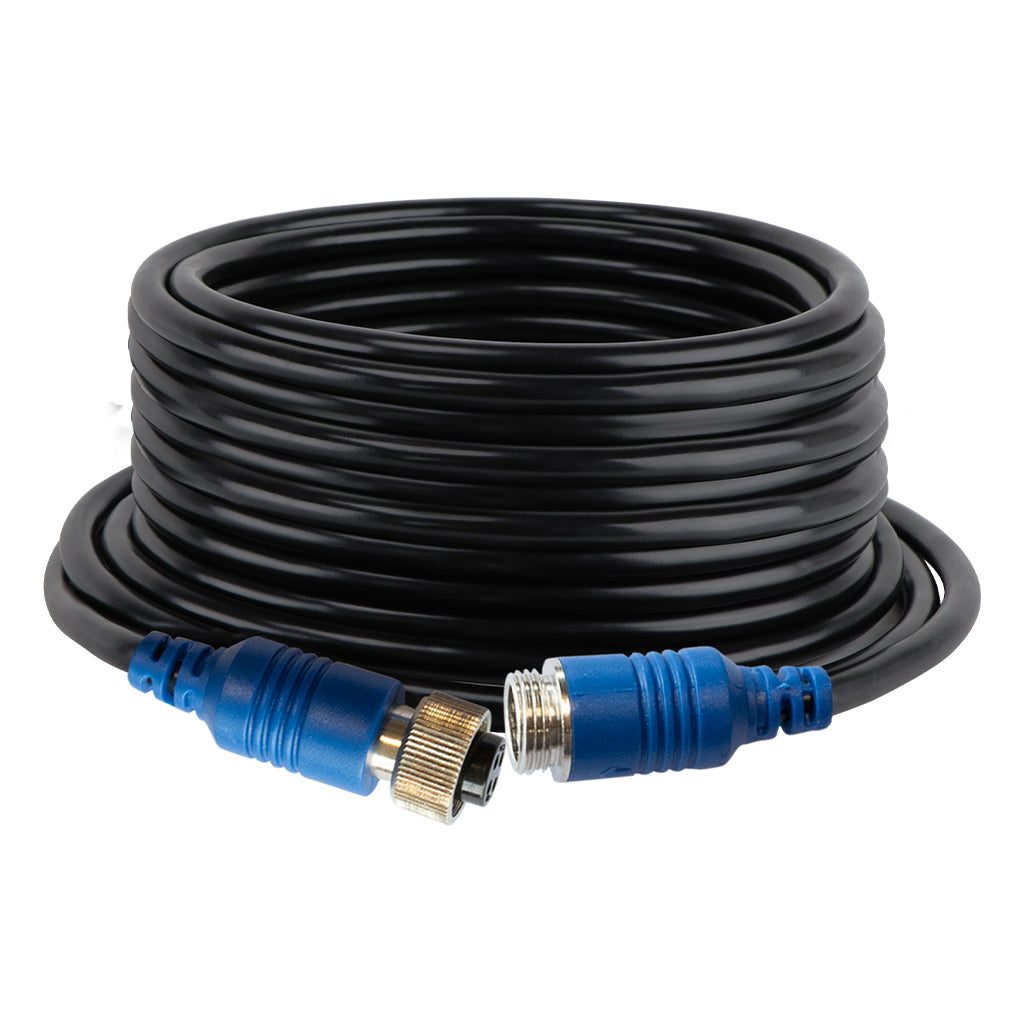

Axis HDC20M4P 20m 4-Pin AHD Camera Extension Cable

AXIS HDC20M-4P - 20 Metre 4-Pin Extension Lead

High-grade low-loss camera extension cable featuring 20-metre length, industry-standard 4-pin male to female configuration, blue aviation connectors, weatherproof construction, shielded design for signal integrity, gold-plated contacts, threaded locking coupling nuts, and compatibility with universal standard 4-pin backup cameras and monitor systems in commercial vehicles, caravans, and 4WD applications.

Product Overview

The AXIS HDC20M-4P 20-metre HD camera extension cable connects to industry standard 4-pin cameras. This extension lead enables camera placement at maximum distances from monitors or recording equipment overcoming cable length limitations of standard factory camera cables. High-grade low-loss cable construction maintains video signal quality over 20-metre distance preventing degradation, interference, or voltage drop common with inferior extension cables. Industry-standard 4-pin configuration ensures compatibility with universal pinout cameras and monitors from various manufacturers eliminating proprietary connector compatibility issues. The male-to-female design features 4-pin male connector on one end plugging into camera female output connector or monitor female input, with 4-pin female connector on opposite end accepting male plugs from existing camera cables or monitor input cables. Blue connector housings provide visual identification distinguishing this extension cable from other vehicle wiring simplifying installation and future troubleshooting. Aviation-grade 4-pin connectors deliver IP67 weatherproof sealing when properly connected protecting electrical connections from moisture ingress, dust contamination, and corrosive environmental exposure typical in vehicle applications. Threaded locking coupling nuts on both connectors ensure secure mechanical connection resistant to vibration, shock, and cable tension preventing accidental disconnection during vehicle operation over rough terrain. Shielded cable construction prevents electromagnetic interference from vehicle electrical systems, ignition components, and radio frequency sources that could introduce video noise or distortion. Gold-plated contact pins minimize electrical resistance and prevent oxidation ensuring reliable signal transmission and power delivery over extended service life in harsh environmental conditions. The 20-metre length accommodates installations where cameras mount at maximum distances from monitor locations such as rear cameras on extra-long wheelbase trucks, large motorhomes or caravans with rear-mounted cameras connecting to front cabin monitors, articulated vehicle combinations requiring camera runs through multiple sections, or side cameras on extra-wide agricultural and mining machinery spanning considerable widths. Flexible cable jacket maintains pliability in temperature extremes enabling routing through tight spaces, around corners, and along vehicle frames without creating stress points that could cause cable failure. Standard 4-pin configuration carries power positive, ground negative, video signal positive, and video signal ground enabling both video transmission and camera power delivery through single cable simplifying installation compared to separate power and video cables.

Features & Benefits

High-Grade Low-Loss Cable Construction Premium cable design minimizes signal attenuation over 20-metre distance maintaining video quality without brightness reduction, detail loss, or color degradation. Low-loss specifications ensure cameras deliver consistent image quality to monitors even over extended cable runs preventing compromised visibility affecting safety and operational effectiveness in large vehicle installations.

20-Metre Maximum Extended Reach Maximum length enables camera placement at extreme distances from monitors accommodating extra-long wheelbase trucks, large motorhomes, articulated vehicle combinations, or equipment with maximum separation between operator stations and camera mounting points. This reach provides ultimate flexibility for complex installations eliminating compromises in camera positioning or monitor placement.

Industry-Standard 4-Pin Configuration Universal pinout compatibility ensures connection with cameras and monitors from various manufacturers using industry-standard 4-pin configuration. This standardization prevents compatibility issues and enables mixing equipment brands providing flexibility for system upgrades or component replacement without requiring complete system replacement.

Male-to-Female Inline Design Male connector at one end and female connector at opposite end enable inline installation between existing equipment connections. This configuration allows extension insertion between factory camera cables and monitors or between cameras and existing extension cables providing installation flexibility without requiring connector removal or cable modification.

Blue Connector Identification Distinctive blue housing color provides immediate visual identification distinguishing extension cable from vehicle wiring, power cables, or other system components. This color coding simplifies initial installation and future maintenance enabling technicians to quickly identify camera system cables during troubleshooting or system modifications.

Aviation-Grade Weatherproof Connectors IP67-rated sealing when properly connected protects electrical connections from moisture, dust, salt spray, and corrosive contaminants typical in marine, agricultural, and mining vehicle applications. This weatherproofing ensures reliable operation in rain, vehicle washing, high humidity, and dusty conditions preventing corrosion-related failures that plague inferior connectors.

Shielded Cable Design Comprehensive shielding prevents electromagnetic interference from vehicle alternators, ignition systems, two-way radios, and electronic equipment that could introduce video noise, lines, or distortion. Unshielded cables pickup interference causing poor video quality especially in electrically noisy environments typical of commercial vehicles and machinery.

Threaded Locking Connectors Coupling nuts on both connectors provide secure mechanical connection resistant to vibration and accidental disconnection. This positive locking prevents intermittent video loss or complete disconnection during vehicle operation over rough terrain maintaining continuous monitoring capability essential for safety and operational awareness.

Gold-Plated Contact Pins Gold plating on electrical contacts minimizes contact resistance and prevents oxidation ensuring long-term signal integrity and power delivery reliability. Standard tin or nickel contacts corrode over time increasing resistance causing video signal degradation, color shift, or intermittent power delivery especially in high-humidity or salt-spray environments.

Flexible Temperature-Resistant Jacket Cable jacket maintains flexibility from -20°C to +70°C enabling installation in extreme climate zones and preventing cable stiffness or brittleness in cold conditions. This flexibility allows routing through tight spaces and around sharp corners without creating stress points that could cause conductor breakage or insulation cracking.

Combined Power and Video Transmission Four-conductor design carries both video signals and camera power through single cable simplifying installation compared to separate power and video cables. This integration reduces cable clutter, minimizes installation time, and eliminates need for additional power wire routing from camera locations to power sources.

Technical Specifications

Installation & Compatibility

Camera and Monitor Compatibility The HDC20M-4P extension cable is compatible with backup cameras, side cameras, and monitors using industry-standard universal 4-pin pinout configuration. Compatible equipment includes most aftermarket vehicle cameras and monitors from major manufacturers utilizing standard pin assignments for power, ground, and video signals. Verify equipment uses universal standard 4-pin configuration rather than proprietary pinouts such as AXIS-specific or manufacturer-specific configurations which would require appropriate converter adapters. Check equipment specifications or contact manufacturers to confirm pinout standard before purchasing extension cable.

Cable Routing Planning Before installation, plan cable routing path from camera location to monitor considering distance requirements, obstacles, and protection from damage. Measure actual cable path length accounting for vertical runs, horizontal spans, and routing around vehicle structures ensuring 20-metre cable provides adequate length with minimal excess. Identify cable entry points through vehicle body panels, floor, or ceiling requiring grommets or protective bushings preventing chafing against sharp metal edges. The 20-metre length accommodates complex routing paths in extra-large vehicles, articulated combinations, or installations requiring cable runs through multiple compartments, chassis sections, or along extended vehicle frames.

Installation Process Connect 4-pin male end of extension cable to female connector on camera output, monitor input, or existing extension cable. Connect 4-pin female end to male connector from camera cable, monitor input cable, or additional extension cable. Ensure threaded coupling nuts engage fully and tighten hand-tight creating weatherproof seal and secure mechanical connection. Route cable along vehicle frame rails, body panels, or existing wiring harnesses avoiding hot surfaces near exhaust systems, moving components such as steering linkages, and areas where cable could be pinched or damaged.

Cable Protection and Securing Secure extension cable every 300-500mm using cable ties, cable clips, or cable looms preventing excessive movement that could cause vibration wear or stress on connectors. Use spiral wrap, split loom tubing, or conduit in areas exposed to abrasion, UV light, or physical damage such as undercarriage routing or exposed frame rail mounting. Install grommets where cable passes through body panels preventing chafing against sharp metal edges that could damage cable jacket and cause short circuits or signal loss. The extended 20-metre length requires meticulous securing along entire cable run preventing sagging sections that could snag on obstacles, drag on road surfaces, or create trip hazards in walkways.

Connection Point Protection Position connectors in protected locations away from direct water spray, road debris, and physical impact. While connectors provide IP67 weatherproof rating when properly connected, mounting in sheltered locations extends service life and prevents damage from external forces. Use connector boots or heat shrink tubing over connection points providing additional environmental protection and strain relief. For 20-metre runs, consider positioning connectors in accessible locations enabling future disconnection for troubleshooting without requiring complete cable removal.

System Testing After Installation After completing installation, power vehicle electrical system and monitor verifying video display appears clearly without distortion, interference, or color abnormalities. Test video quality at various engine speeds confirming shielding prevents alternator noise interference. Check connections under vehicle vibration by operating vehicle over rough surfaces while observing monitor for intermittent signal loss indicating loose connections requiring tightening. The 20-metre cable length makes thorough testing critical confirming signal quality remains acceptable over maximum extended distance. Test in both daylight and night conditions verifying image clarity under various lighting scenarios.

Signal Quality Considerations The 20-metre length represents maximum practical distance for passive extension cables. While high-grade low-loss construction maintains signal quality, installations at this length should carefully evaluate video quality during testing. Factors affecting signal quality include cable routing near electrical interference sources, number of connection points in series, total system cable length including factory cables, camera output signal strength, and monitor input sensitivity. If experiencing marginal signal quality at 20-metre length, consider signal amplifiers or active extension cables maintaining video quality over extended distances. Avoid exceeding 20 metres total cable length without signal amplification.

Frequently Asked Questions

Is 20 metres the maximum length for camera extension cables?

The HDC20M-4P 20-metre length represents maximum practical distance for passive extension cables maintaining acceptable video quality without signal amplification. While cable physical length could theoretically exceed 20 metres, signal loss, voltage drop, and interference susceptibility increase with distance causing degraded video quality. Installations requiring runs exceeding 20 metres should utilize video signal amplifiers or active extension cables boosting signal strength maintaining quality over extended distances. Total system cable length including factory camera cables and extension cables approaching or exceeding 25 metres typically requires amplification. For maximum distance installations, test video quality thoroughly during installation confirming acceptable image clarity before permanent installation.

Can I use this cable with AXIS proprietary pinout equipment?

No, the HDC20M-4P uses industry-standard universal 4-pin pinout configuration incompatible with AXIS proprietary pinout equipment. AXIS brand cameras and monitors using AXIS-specific pin assignments require AXIS-compatible extension cables or HDC/AX-F and HDC/AX-M converters bridging compatibility between AXIS and universal equipment. Using this universal extension cable with AXIS equipment results in no video display or potential equipment damage due to incorrect power and signal pin connections. Verify equipment pinout standard before purchasing extension cable ensuring compatibility. For AXIS equipment, select AXIS-specific extension cables or use appropriate converters with this universal extension cable.

Will video quality be acceptable over 20 metres?

The HDC20M-4P high-grade low-loss construction maintains good video quality over full 20-metre length under optimal conditions. However, the 20-metre distance approaches maximum practical cable length where signal degradation becomes more noticeable compared to shorter cables. Video quality depends on multiple factors including camera output signal strength, monitor input sensitivity, electromagnetic interference environment, connection quality, and total system cable length. After installation, evaluate video quality by observing monitor display for clear detailed image with accurate colors and no interference. If experiencing reduced brightness, color desaturation, visible interference, or reduced detail clarity, verify all connections tight, inspect cable routing avoiding electromagnetic interference sources, and consider signal amplifier for marginal installations. Most quality camera systems perform adequately with 20-metre extensions, but this length represents upper limit before amplification typically becomes necessary.
