Axis ECC80 Series 2 Heavy Duty Ccd Ip69k Weatherproof

Axis Series 2 Heavy Duty Ccd Ip69k Weatherproof: Heavy Duty CCD IP69k Weatherproof

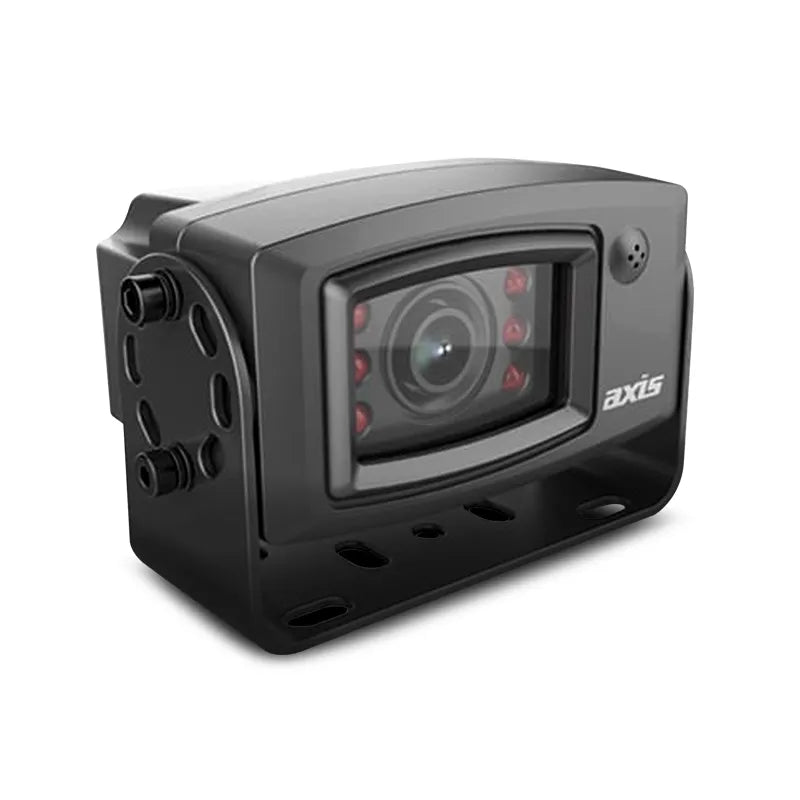

The ECC80-Series 2 is a heavy duty CCD IP69K weatherproof 12V rearview camera. It connects easily with LCD monitors and features robust construction for demanding applications.

Axis ECC80 Specifications:

• Image Device: 1/3” Ccd
• Diagonal Viewing Angle: 120°
• Signal System: Pal
• Effective Pixels: 752h X 582v
• Picture Element: 0.47mp
• Sync System: Internal
• Resolution: 532 Tv Lines
• Orientation: Mirror (Modification Possible For Non-mirror)
• Night Vision: Yes, 6 Ir Leds
• Illumination: 0 Lux With Ir Led On
• Ingress Protection: Ip69k
• Integrated Microphone: Yes
• Operating Temp: -30 To 50°c
• Power Consumption: 100-170ma
• Dimensions: 96w X 61d X 54h Mm (Excluding Bracket)
• Chassis: Charcoal, Diecast Aluminium
• Connection: Terminated 4 Pin Male
• Power Supply: 12v Dc (9-14v)

What's in the Box:

• Installation Manual
• 20m 4 Pin (Male) To 4 Pin (Female) Extension Cable
• 40cm Adapter Cable 4 Pin(F) To 2 Rca (Video-yellow; Audio-white)
• Mounting Bracket
• Installation Hardware
