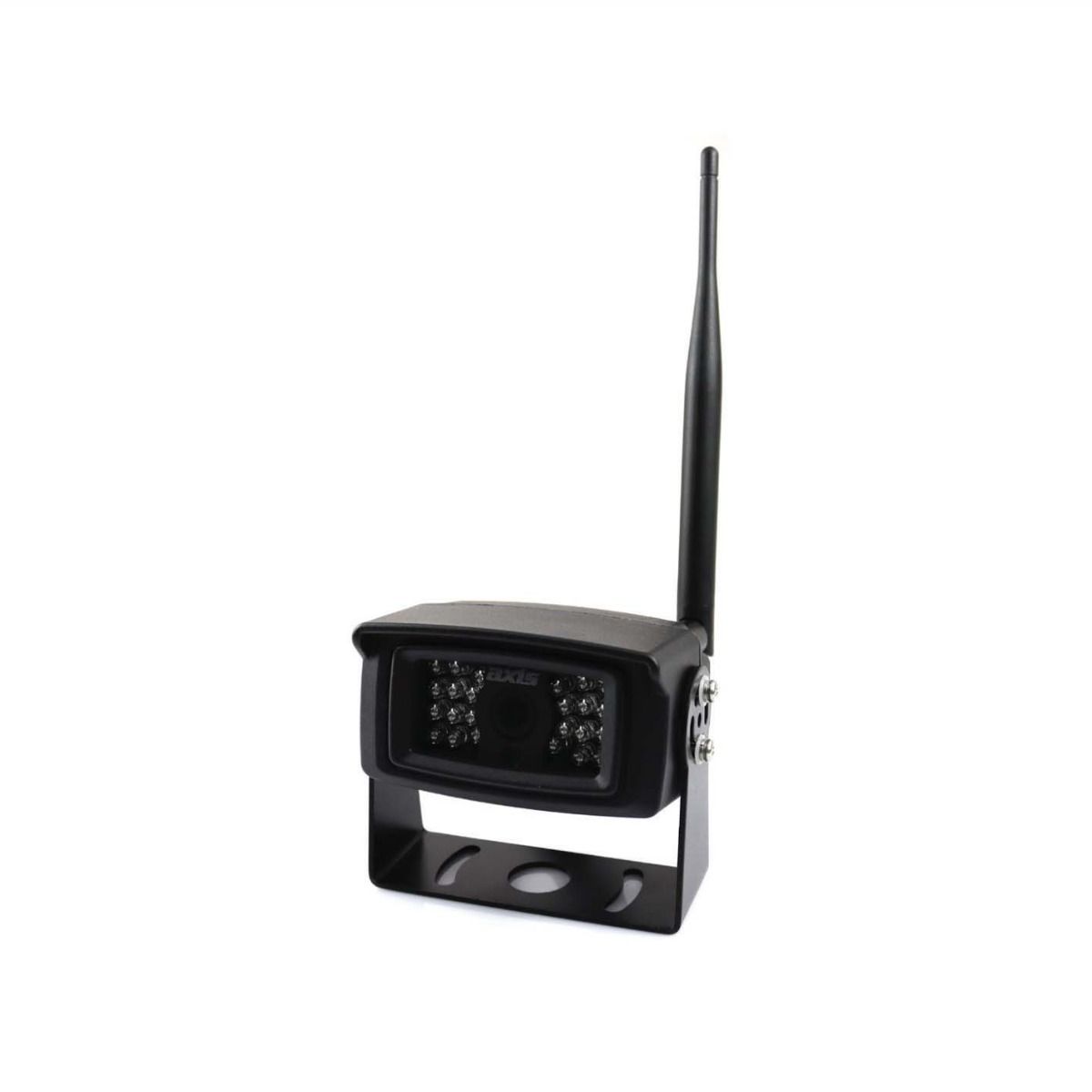

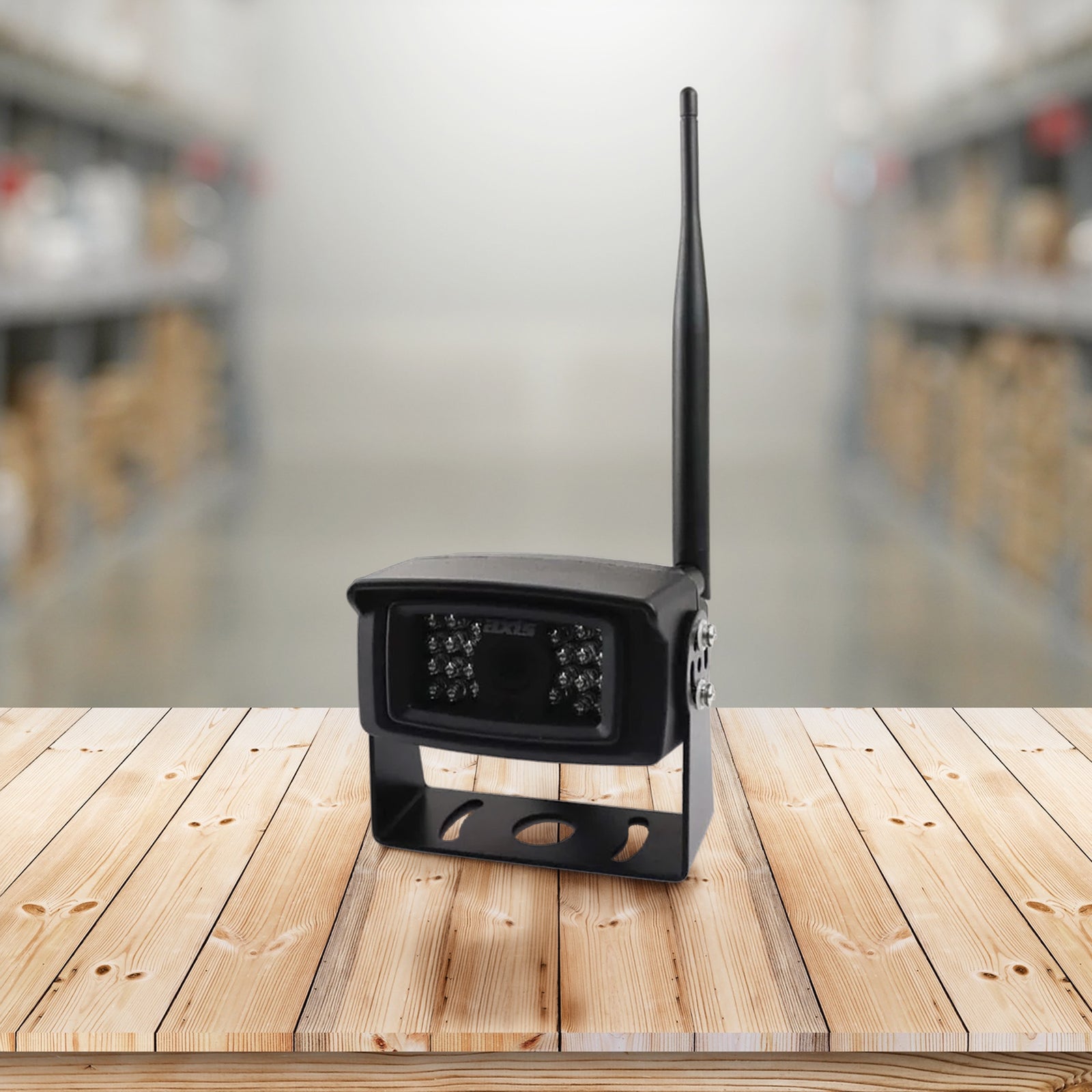

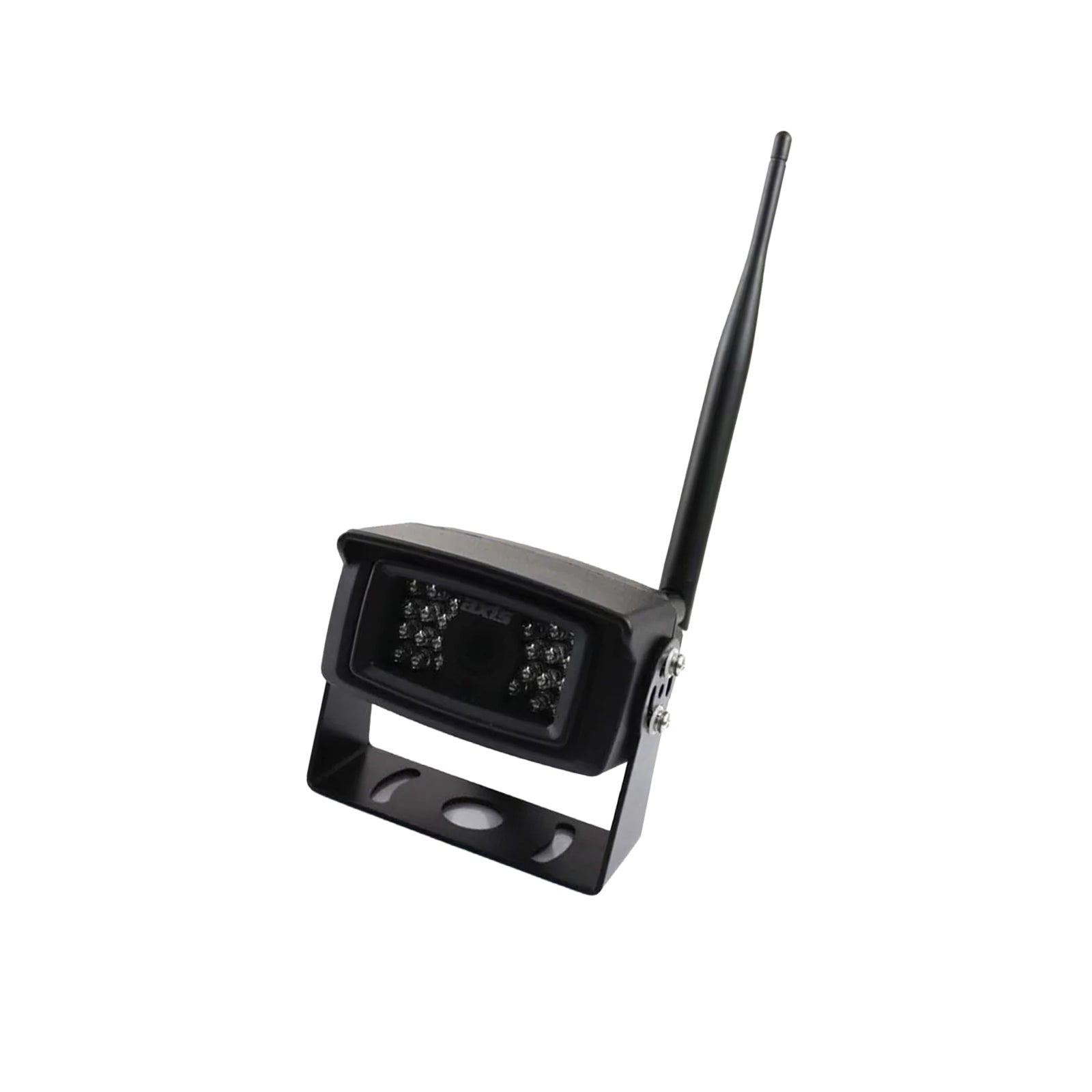

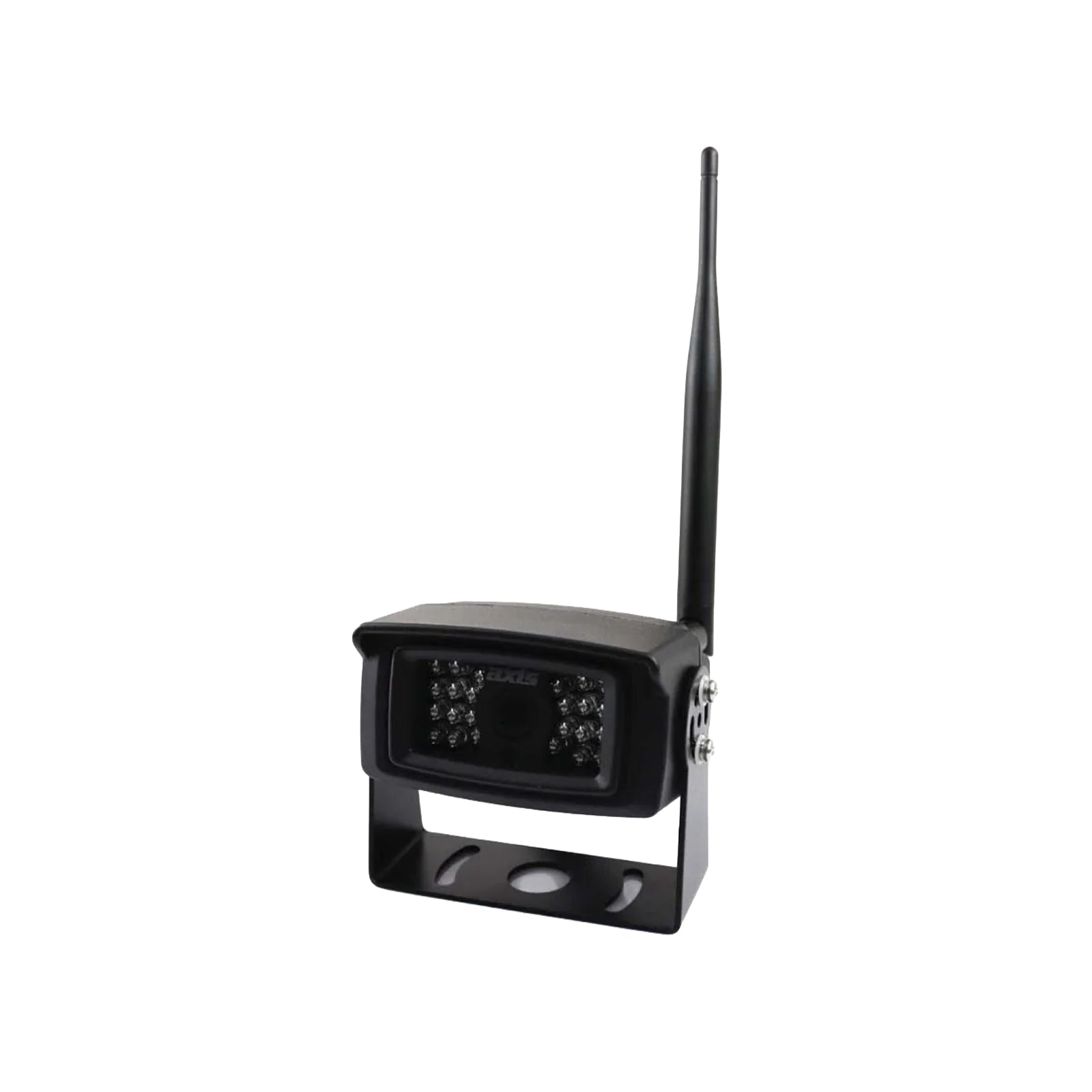

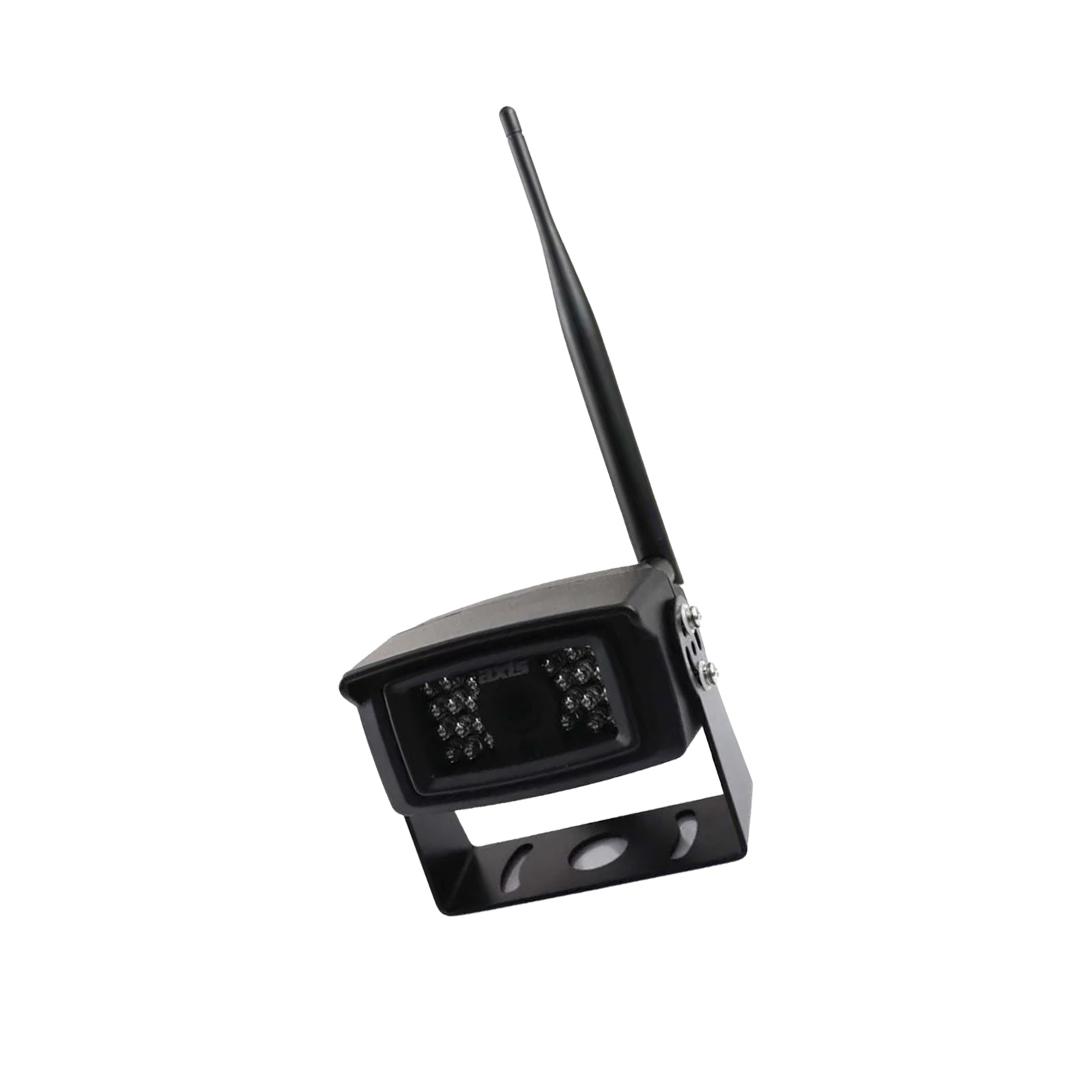

AXIS CHD074W - Wireless HD Camera to Suit HD074WK System
High-resolution wireless reversing camera designed specifically for AXIS HD074WK system featuring Full HD 1080p resolution providing crystal-clear image quality, IP69K waterproof rating withstanding high-pressure hot water washing up to 100°C and 100 bar, wide 10-36V DC operating range compatible with 12V light commercial, 24V heavy trucks, and 36V industrial machinery, 170° diagonal viewing angle capturing wide rear coverage, 12 infrared LED night vision for complete darkness operation, 2.4GHz wireless transmission eliminating complex cable installation, ideal for trucks, buses, mining equipment, construction vehicles, and commercial machinery requiring robust wireless reversing camera.
Product Overview
The AXIS CHD074W is a professional-grade wireless HD camera engineered specifically as a replacement or additional camera for the AXIS HD074WK wireless reversing camera system. The Full HD 1080p resolution delivers significantly sharper image quality compared to standard analogue reversing cameras, enabling drivers to identify smaller obstacles and make more precise judgments about clearances. The exceptional IP69K rating represents the highest level of ingress protection - complete dust-tight sealing plus resistance to high-pressure (100 bar) high-temperature (100°C) water jets, making this camera ideal for mining equipment requiring regular pressure washing and construction vehicles operating in dusty environments. The wide 10-36V operating voltage accommodates light commercial 12V systems, heavy commercial 24V trucks, and industrial machinery up to 36V without requiring voltage converters. The 170° diagonal viewing angle provides exceptionally wide rear coverage reducing blind spots, while the integrated 12 infrared LED array enables clear night vision in complete darkness. The 2.4GHz wireless transmission eliminates running video cables through truck chassis and frame rails. The 1/2.7-inch Starlight HD image sensor with 0.5 lux minimum illumination ensures excellent low-light performance.
Important Notes:
HD074WK System Required: This camera is designed specifically for AXIS HD074WK wireless system. It will NOT work as standalone camera or with other wireless systems.
Wireless Range Limitations: Typical wireless range 15-30 metres depending on vehicle construction and obstructions. Verify adequate range before permanent installation.
High-Pressure Washing Capability: IP69K rating withstands industrial pressure washing. However, avoid direct prolonged spray on camera lens which may temporarily affect image quality.
Voltage Compatibility: While rated 10-36V, verify your specific vehicle voltage falls within this range. Some heavy mining equipment exceeds 36V.
Professional Installation Recommended: Proper mounting angle, wireless pairing, and power connection ensures optimal performance and system reliability.
Key Features
Full HD 1080p Resolution - 1920x1080 pixel resolution provides crystal-clear image quality for precise reversing and obstacle identification.
IP69K Waterproof Rating - Highest ingress protection withstanding high-pressure (100 bar) hot water (100°C) washing for mining and commercial cleaning.
Wide Voltage Range - 10-36V DC compatibility works across 12V, 24V, and 36V systems without voltage-specific models.
170° Diagonal View - Exceptionally wide viewing angle (127° horizontal) captures broad rear coverage reducing blind spots.
12 IR LED Night Vision - Infrared illumination enables clear imaging in complete darkness for 24-hour operation capability.
Starlight HD Sensor - 1/2.7-inch image sensor with 0.5 lux minimum illumination provides excellent low-light performance.
Wireless Transmission - 2.4GHz wireless (2400-2483.5MHz) eliminates complex cable routing through vehicle chassis.
18dBm Transmitter Power - Strong wireless signal maintains reliable transmission through metal vehicle structures.
1000 TV Lines Resolution - High-resolution imaging exceeds standard reversing camera quality for detailed rear view.
250,000 Pixel Element - High pixel count delivers sharp, clear images for professional reversing operations.
PAL Signal Type - Compatible with Australian/Asian video standards for proper display on monitors.
Heavy-Duty Construction - Robust housing withstands impacts, vibration, and harsh industrial environments.
Wide Temperature Range - Operates -20°C to +70°C suitable for extreme climate conditions and industrial heat.
Compact Design - 100W x 50H x 70D mm (excluding mount) fits tight mounting locations on machinery and vehicles.
U-Bracket Mounting - Included adjustable bracket allows precise camera angle adjustment for optimal rear coverage.
Technical Specifications
| Specification | Details |
|---|---|
| Brand | AXIS |
| Model | CHD074W |
| SKU | CHD074W |
| Barcode | 9321886016642 |
| MPN | CHD074W |
| Product Type | Wireless Reversing Camera |
| Compatibility | AXIS HD074WK Wireless Camera System |
| Image Sensor | 1/2.7" Starlight HD |
| Resolution | Full HD 1080p (1920 x 1080 pixels) |
| TV Lines | 1000 TV lines |
| Picture Element | 250,000 pixels |
| Diagonal Viewing Angle | 170° |
| Horizontal Viewing Angle | 127° |
| Signal Type | PAL |
| Effective Pixels | 1920(H) x 1080(V) |
| IP Rating | IP69K (Waterproof & Dustproof) |
| Night Vision | 12 IR LED Array |
| Minimum Illumination | 0.5 lux |
| Operating Voltage | 10-36V DC |
| Wireless Frequency | 2400-2483.5MHz (2.4GHz) |
| Transmitter Power | 18dBm |
| Operating Temperature | -20°C to +70°C (RH 95% Max) |
| Storage Temperature | -30°C to +80°C (RH 95% Max) |
| Camera Dimensions (Excluding Mount) | 100W x 50H x 70D mm |
| Package Includes | Camera, U-Bracket, Antenna |
| Mounting | Adjustable U-Bracket Included |
| High-Pressure Washing | Withstands 100 bar at 100°C |
| Applications | Trucks, Buses, Machinery, Mining Equipment, Construction Vehicles |
| Warranty | 2 Years |
| Shipping Weight | 0.65kg |
| Shipping Dimensions | 200 x 110 x 60 mm |
| Country of Origin | Not specified |
Frequently Asked Questions
Q: Will this camera work with any wireless reversing camera system?
A: No, the CHD074W is designed specifically for the AXIS HD074WK wireless camera system and will NOT work with other brands. If you don't already own an HD074WK system, you need to purchase the complete kit. This camera is ideal as a replacement for damaged HD074WK cameras or as an additional camera for multi-camera installations.
Q: What does IP69K rating mean, and do I really need it?
A: IP69K is the highest ingress protection rating - complete dust-tight sealing plus resistance to high-pressure (100 bar) hot water (100°C) jets. You need IP69K if you regularly pressure-wash equipment, operate in extremely dusty environments like mines or quarries, or require absolute sealing. For standard vehicles with occasional washing, IP67 cameras suffice.
Q: What's the actual wireless range, and will it work on my long vehicle?
A: Typical wireless range is 15-30 metres in real-world installations, depending on vehicle construction. Most rigid trucks (8-12m), buses (10-15m), and semi-trailers (15-20m) work reliably. Very long B-doubles or road trains may experience signal issues. Test wireless range before permanent installation to verify stable signal.
Q: Can I use this camera for side-view or front-view applications?
A: Physically yes, but it's optimized for reversing with rear-mounting design. The 170° viewing angle provides excessive coverage for side-view applications. The HD074WK system supports multiple camera inputs, so you can add additional CHD074W cameras in various positions for multi-angle coverage.
Q: How do I clean the camera lens without damaging it?
A: Use soft microfiber cloth with water or mild detergent to wipe lens surface. For heavy mud, rinse from oblique angle rather than direct frontal spray. Despite IP69K body rating, avoid direct prolonged spray on lens which may force water into seals or temporarily fog image quality.
