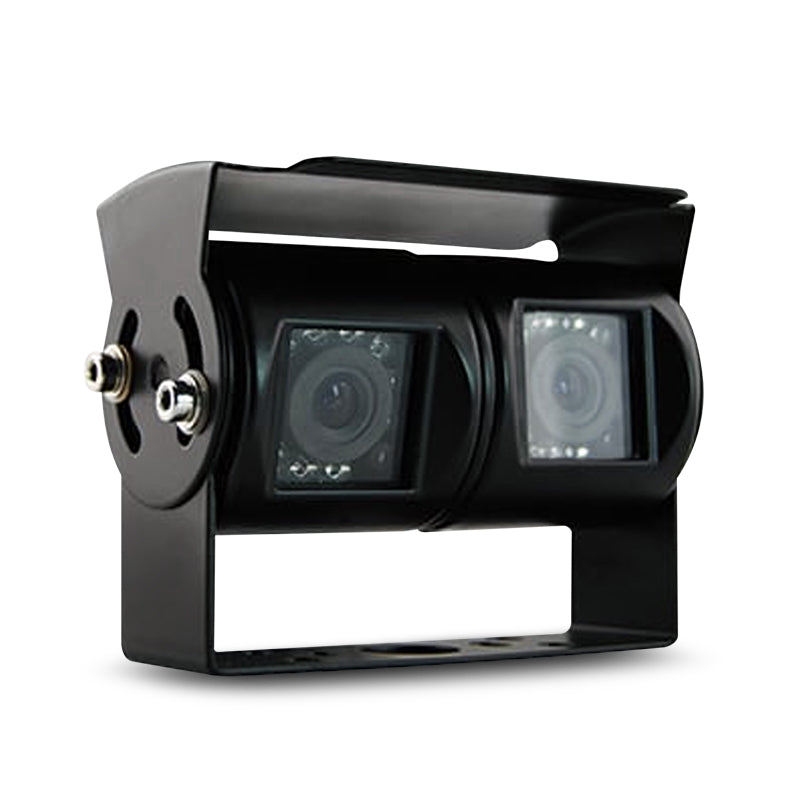

Axis CC70M 12/24v Heavy Duty 1/3” Camera With Shutter

Axis 12/24v Heavy Duty 1/3” Camera With Shutter

The CC70M performs in rugged conditions and is suitable for 4WD, trucks and heavy duty applications in 12-24V vehicles. The motorised shutter protects and keeps the lens and camera window clean to retain high image quality. Shutter automatically opens when reverse gear is selected.

Axis CC70M Specifications:

• Image Sensor: 1/3” Sharp Ccd
• Signal System: Pal
• Picture Resolution: 976 X 582 Pixels
• Sensing Area: 4.9mm X 3.7mm
• Sync System: Internal
• Horizontal Resolution: 600 Tv Lines
• Signal-to Noise Ratio: Better Than 48db
• Audio Function: Yes
• Backlight Compensation: Auto
• White Balance: Auto
• Image: Mirror / Normal Switchable
• Video Output: 1.0vp-p, 75-ohm
• Viewing Angle: 120°
• Ingress Protection: Ip69
• Power Supply: Dc 10-32v
• Current Consumption: 250ma
• Operating Temperature: -20 ~ +70° C
• Minimum Illumination: O Lux
• Infrared Led Lamps: 4
• Night Vision Distance: 10m (Approx)
• Electronic Shutter: 1/50~1/10,000 Seconds

What's in the Box

• 15 Metre Extension Cable (4 Pin Locking Connectors)
• 4-pin F ~ Rca M Adaptor Lead
• Mounting Bracket
• Visor
