Product features

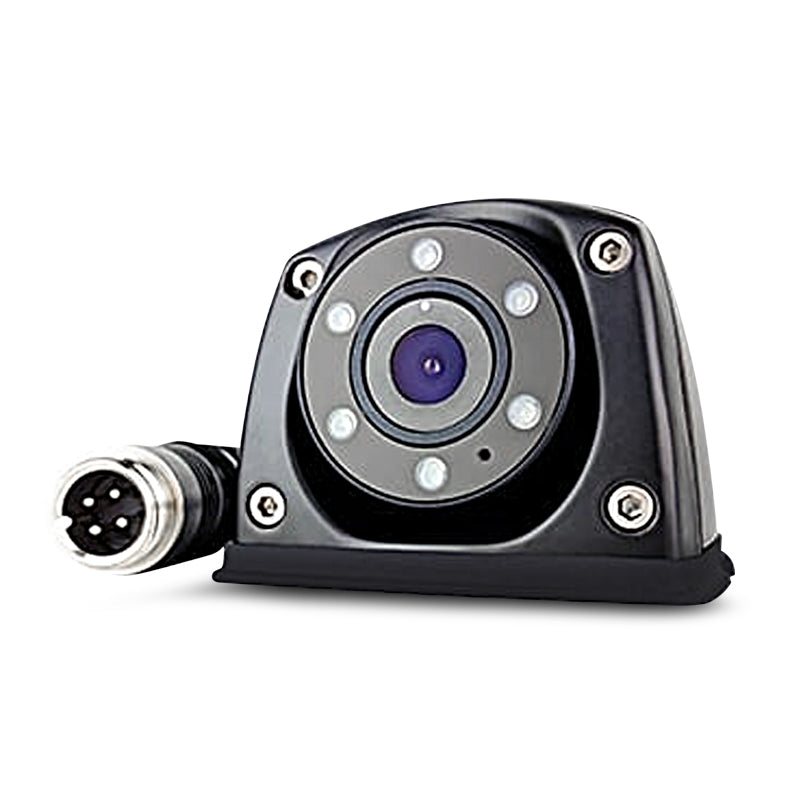

Axis Heavy-Duty Multi-Fit 1/3” Camera
Axis C40 Specifications:
- Image Sensor: 1/3” Colour CMOS
- Image Device: High Definition PC1089K
- Viewing Angle: 150° (Diagonal)
- Rotating Lens: 360° (Manually Adjustable)
- Angle Adjustment: Up/Down
- Effective Pixels: 728 x 488
- Resolution: 500 TV Lines
- TV System: PAL
- Image: Mirror
- Sensing Area: 4.6228mm x 3.6112mm
- Scanning System: 2:1 Interlace
- Sync. System: Internal
- Minimum Illumination: .01 Lux (Day) 0 Lux (with IR)
- Video Output: 1.0Vp-p, 75Ohm
- Signal to Noise Ratio: Better than 48dB
- White Balance: Auto
- Electronic Shutter: Auto, 1/50
- Operating Temperature: -20° to 60° C
- Connection: 4 Pin Connector
- Current Consumption: 100mA
- Power Supply: 12V DC – Negative Ground
- Protection: IP69 Water, Dust, Shatterproof
- Construction: Die Cast Housing
- Night Vision: 6 IR LED – Approx 5m Distance
- Resistor: Light Sensitive
- Mounting: Left/Right/Rear or other location
- Dimensions: 56.77W x 41.46H x 68.38D mm
What's in the Box
- Installation Manual
- Installation Hardware
