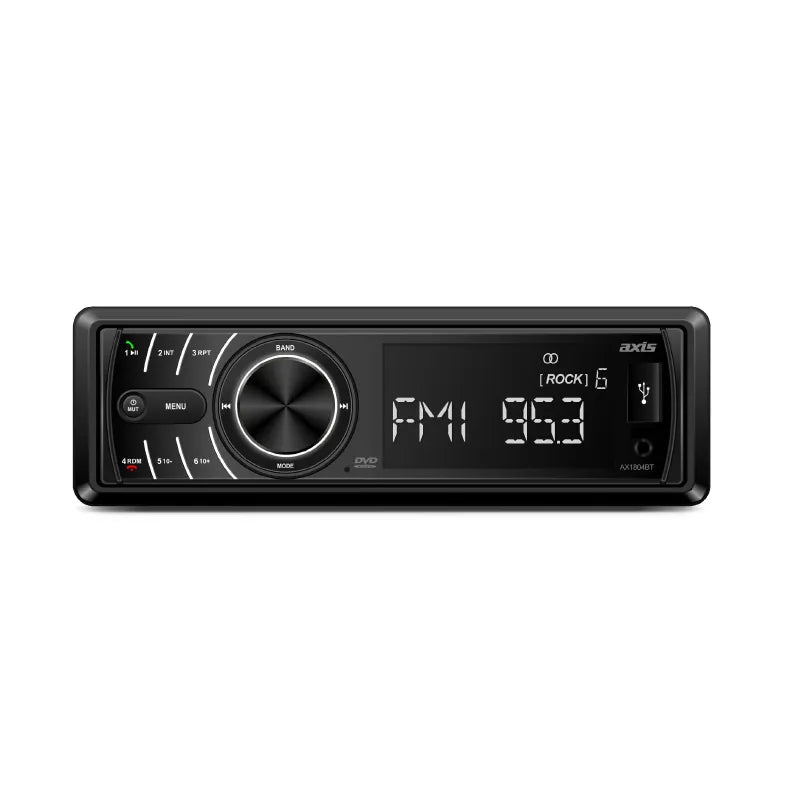

Axis AX1804BT 12/24V Bluetooth DVD/CD Multimedia Player

Axis 12/24V Bluetooth DVD/CD Multimedia Player

12/24V Bluetooth DVD/CD Multimedia Player

The AX1804BT is a robust, 12/24 Volt DVD/CD & AM/FM multimedia player with the added convenience of Bluetooth, designed for universal applications including trucking, agricultural, commercial & passenger vehicles.

Axis AX1804BT Features:

• AM/FM Enabled Radio. 30 Channel Presets (18FM, 12AM Channels)
• Multiple Media Input, Including Bluetooth, USB & AUX
• Flip Down Detachable Face Panel with Illuminated Controls for Night Function
• Elite Tuner (FM 87.5 - 108MhZ; AM 522 - 1620Khz)
• Ultra Memory, Retains Settings Even when Vehicle’s Battery Is Removed

Axis AX1804BT Specifications:

• General:
  • Flip Down Detachable Face Panel
  • Illuminated Controls
  • 12/24 Volt DC (10.8 - 32V)
  • Ultra Memory
  • Digital Clock
  • Dimensions: 178W x 50H x 158D mm (Chassis) 187W x 58H (Front Panel)
• Multimedia:
  • 1 x USB with 5V, 2A Charging (Front)
  • Up to 64GB Support
  • MP3, WMA, FLAC, APE, WAV Playback
  • 1 x 3.5mm Aux-In (Front)
  • 1 x RCA Video Out (Rear)
  • Supports DVD/CD/CD-R/CD-RW/MP3/WMA
  • Electronic Shock Protection
• Tuner:
  • PLL Synthesized AM/FM Stereo
  • ELITE Tuner (FM 87.5-108 MHz; AM 522-1620 Khz)
  • Interference Absorption Circuit
  • 30 Station Presets (18 FM, 12 AM)
  • Mono/Stereo
• Audio:

  • 4 x 45W Max Power
  • EQ Presets
  • Loud/Mute
  • Telemute
  • 4-8 Ohm Speaker Impedance
  • 2CH RCA Pre-Out
  • 2CH RCA Line Input
  • RCA Video Out
• Bluetooth:
  • Version 4.2
  • Hands Free
  • A2DP Audio Streaming
  • External Microphone

General Specifications:

• Power Supply: 12/24V DC (10.8 - 32V allowable)
• Speaker Impedance: 4 - 8 Ohm
• RCA Input/Output: 2 Ch Pre-out / 2 Ch Line Input
• Output Power (Max): 45W x 4 Channel
• Chassis Dimensions: 178mm (W) x 50mm (H)x 158mm (D)
• Bluetooth Version: Version 4.2

Tuner Specifications:

• Tuner Function: PLL Synthesized AM/FM stereo
• Frequency Range (FM): 87.5 - 108MHz
• Frequency Range (AM): 522 - 1620 KHz
• Speaker Output: Mono / Stereo
• Tuning Type: Elite Tuner
• No. of Station: 30 Stations (18FM / 12AM)

Multimedia Specifications:

• Multimedia Inputs:
  • USB: 1 x 5V, 2A Charging (Front)
  • Aux-In: 1 x 3.5mm (Front)
  • RCA Video Out: 1 x Rear
• Multimedia Support: DVD/CD/CD-R/CD-RW/MP3/WMA
• SSD Card Support: Up to 64GB Support

What's in The Box:

• AX1804BT
• ISO Wiring Harness
• Surround Frame
• Installation Cage
• Wiring Leads
• External HF Microphone
