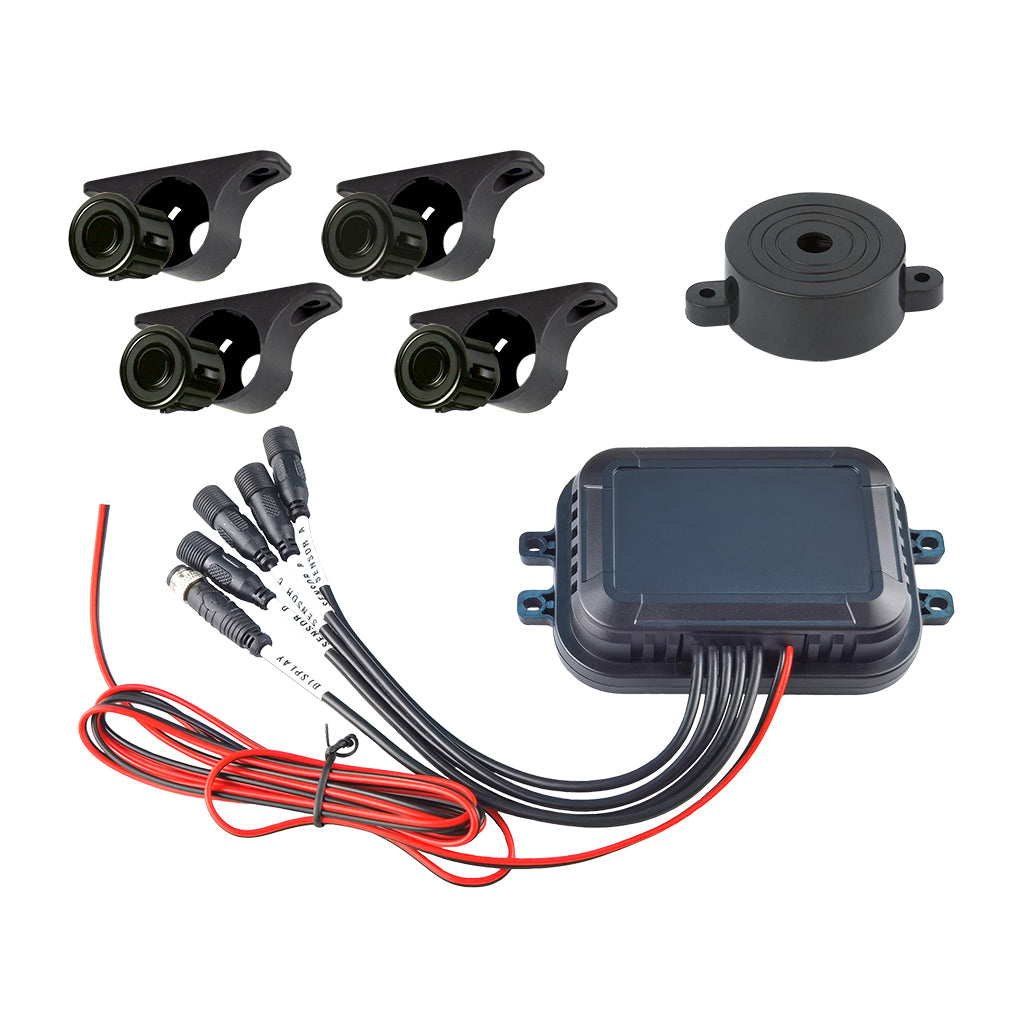

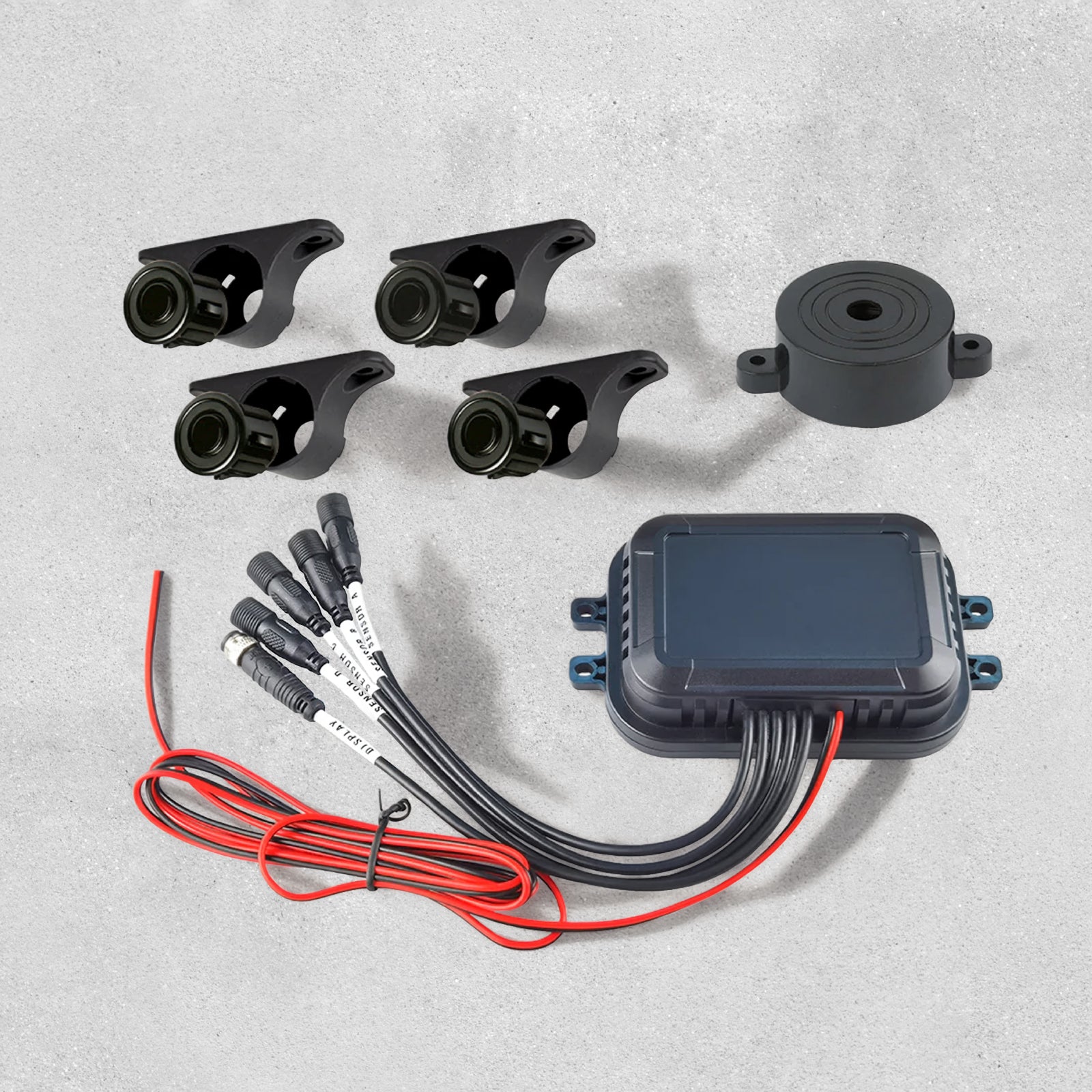

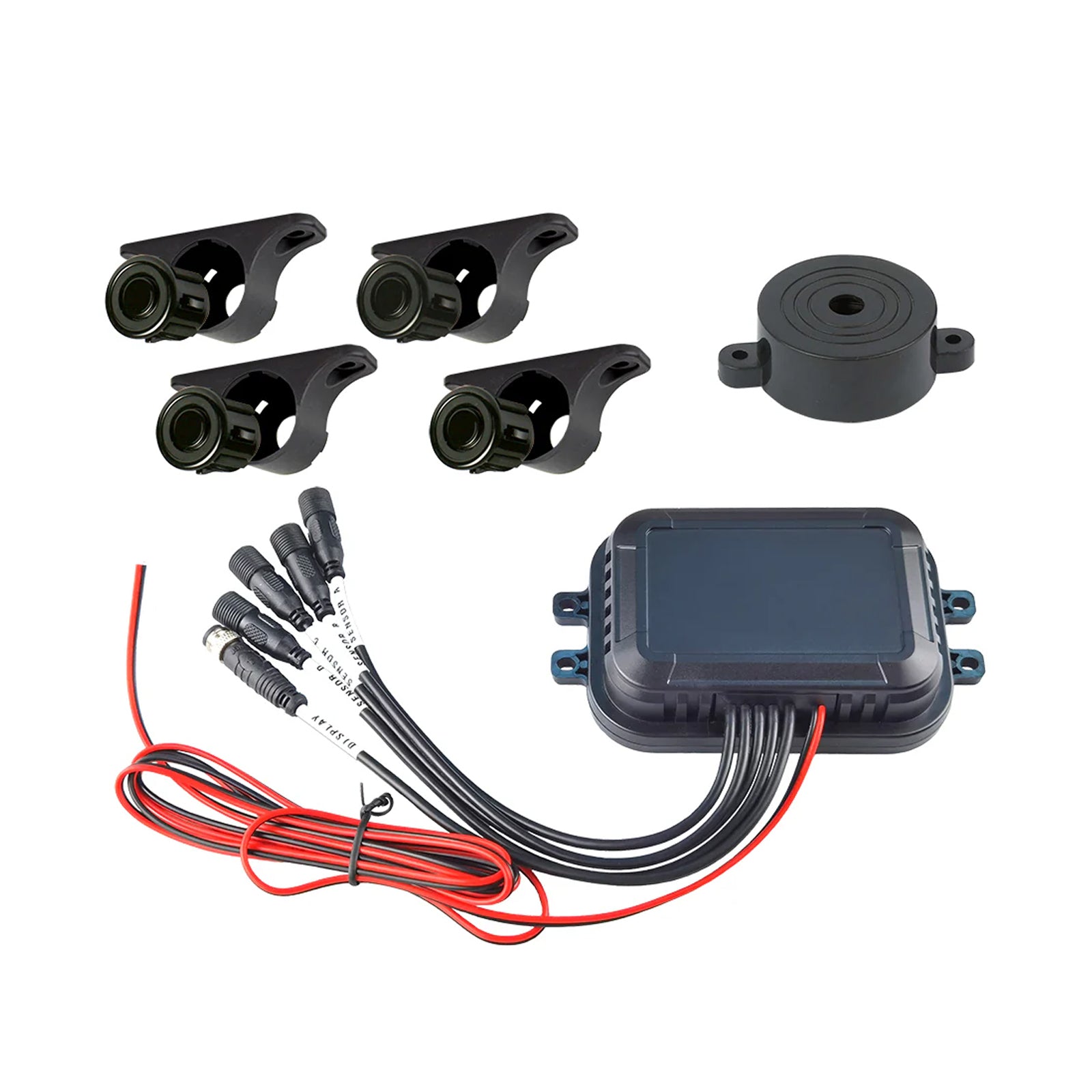

AXIS APS401T - 4-Sensor Heavy-Duty Truck Parking System with Extended Cables

AXIS APS401T - 4-Sensor Heavy-Duty Truck Parking System with Extended Cables

Professional-grade 4-sensor parking system specifically engineered for trucks, buses, RVs, and caravans featuring heavy-duty angled rubber sensors designed for commercial vehicle steel bumpers and harsh operating conditions, extended 15.8m buzzer cable length accommodating large truck cabins and long wheelbase vehicles, audible buzzer proximity alerts with increasing frequency as obstacles approach, 0.3-1.5m detection range optimized for truck reversing and loading dock applications, IP67 dust and waterproof control box withstanding harsh commercial environments and weather exposure, rugged IP68 waterproof rubber sensors for extreme conditions, wide 9-32V DC input range compatible with 12V and 24V commercial vehicle electrical systems, dual mounting options with in-bumper steel drilling or under-mount installation, ideal for trucks, buses, motorhomes, caravans, delivery vehicles, fleet operations, construction equipment, and heavy-duty commercial applications requiring reliable durable parking assistance.

Product Overview

The AXIS APS401T is a heavy-duty 4-sensor parking system specifically engineered for trucks, buses, RVs, and caravans where standard passenger vehicle parking sensors would be inadequate due to vehicle size, electrical system differences, and harsh operating conditions. The rugged angled rubber sensors withstand the demanding conditions of commercial vehicle operations including steel bumper vibration, loading dock impacts, extreme temperatures, and industrial environments where standard plastic sensors would fail. The extended 15.8m buzzer cable is specifically designed for large vehicle cabins, long wheelbase trucks, motorhomes, and buses where standard 8m cables would not reach from rear bumper to driver position. The IP67 rated control box provides superior dust and water protection for mounting in exposed locations under vehicles or in engine bays where passenger vehicle control boxes would fail. Wide 9-32V DC compatibility ensures operation across diverse commercial vehicles from 12V campervans to 24V semi-trailers and coaches.

Important Notes:

Truck/Commercial Vehicle Focus: Specifically designed for trucks, buses, RVs, and caravans. Extended cables and heavy-duty construction exceed passenger vehicle requirements.

Professional Installation Required: Commercial vehicle electrical integration and steel bumper mounting requires qualified technicians with commercial vehicle experience.

Extended Cable Lengths: 15.8m buzzer cable accommodates large vehicles. Excess cable should be secured properly, not cut or shortened.

No Visual Display: Audible-only system reduces complexity for commercial installations. Consider adding aftermarket display if visual feedback needed.

IP67 Control Box: Higher water/dust resistance allows exposed mounting locations unsuitable for standard control boxes.

Key Features

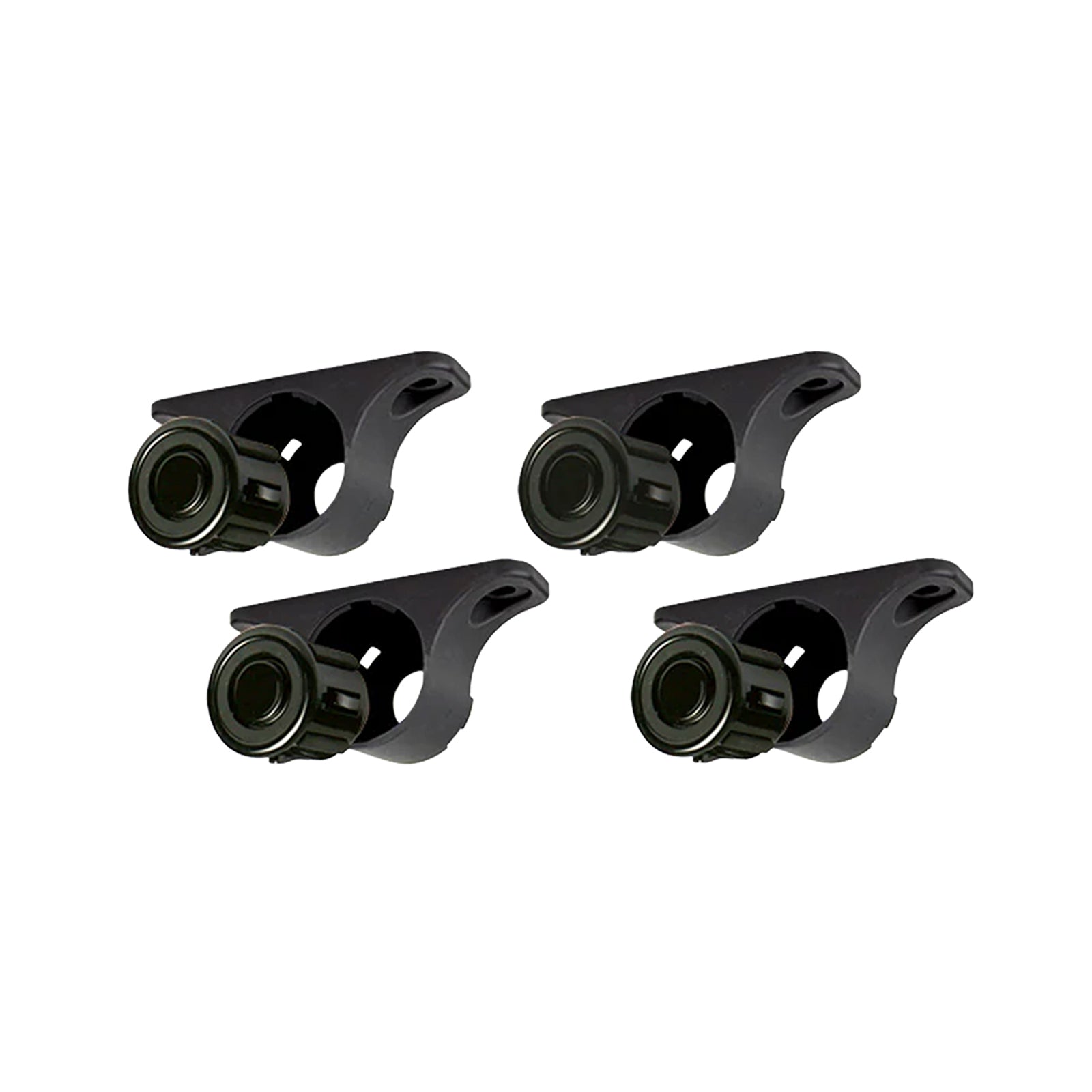

Heavy-Duty Rubber Sensors - Rugged angled construction withstands commercial vehicle vibration, impacts, and harsh operating conditions.

Extended 15.8m Buzzer Cable - Specifically designed for trucks, buses, motorhomes, and long wheelbase vehicles where standard cables won't reach.

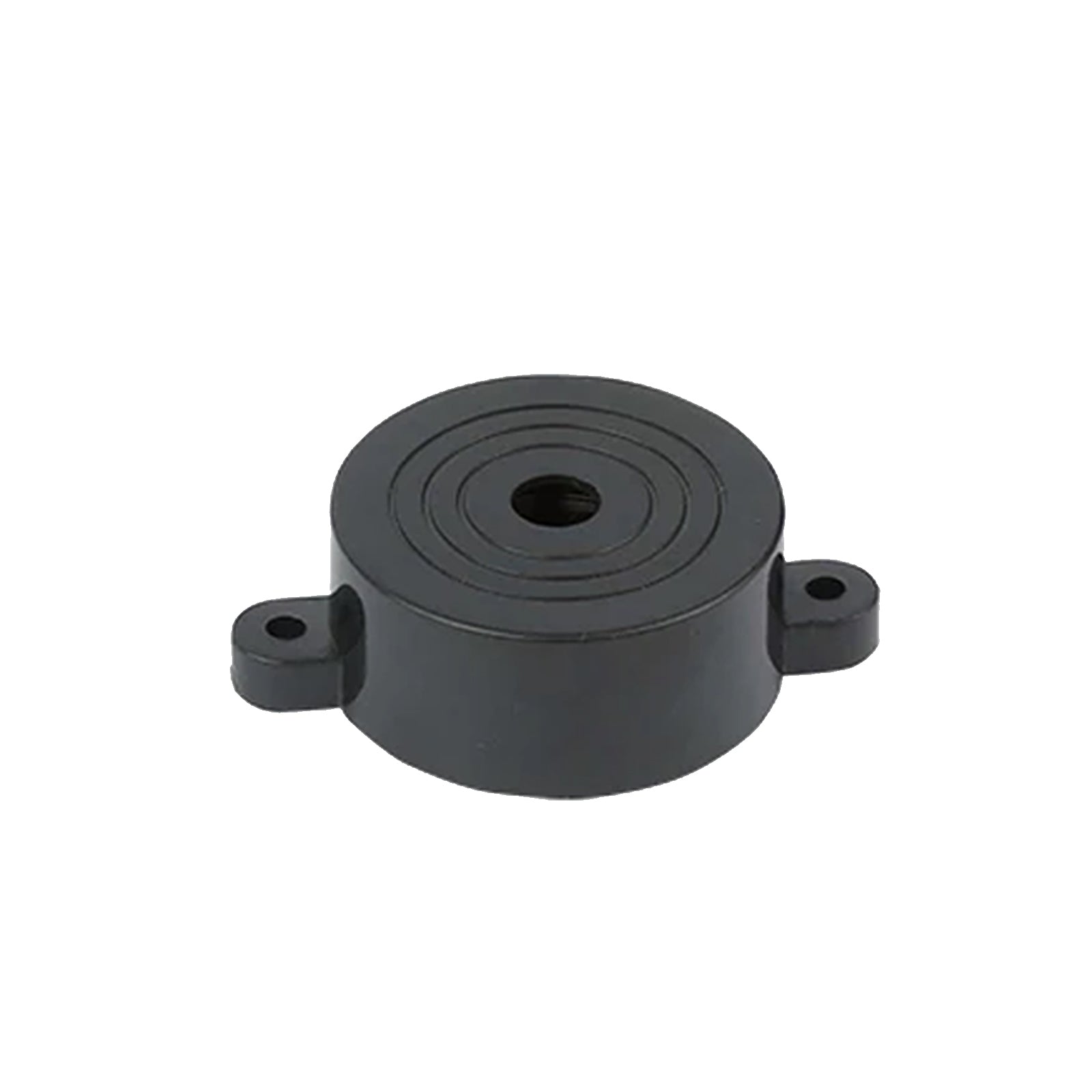

Audible Proximity Alerts - Clear buzzer with increasing beep frequency provides distance guidance for truck reversing operations.

0.3-1.5m Detection Range - Optimized range for truck loading docks, reversing manoeuvres, and commercial parking applications.

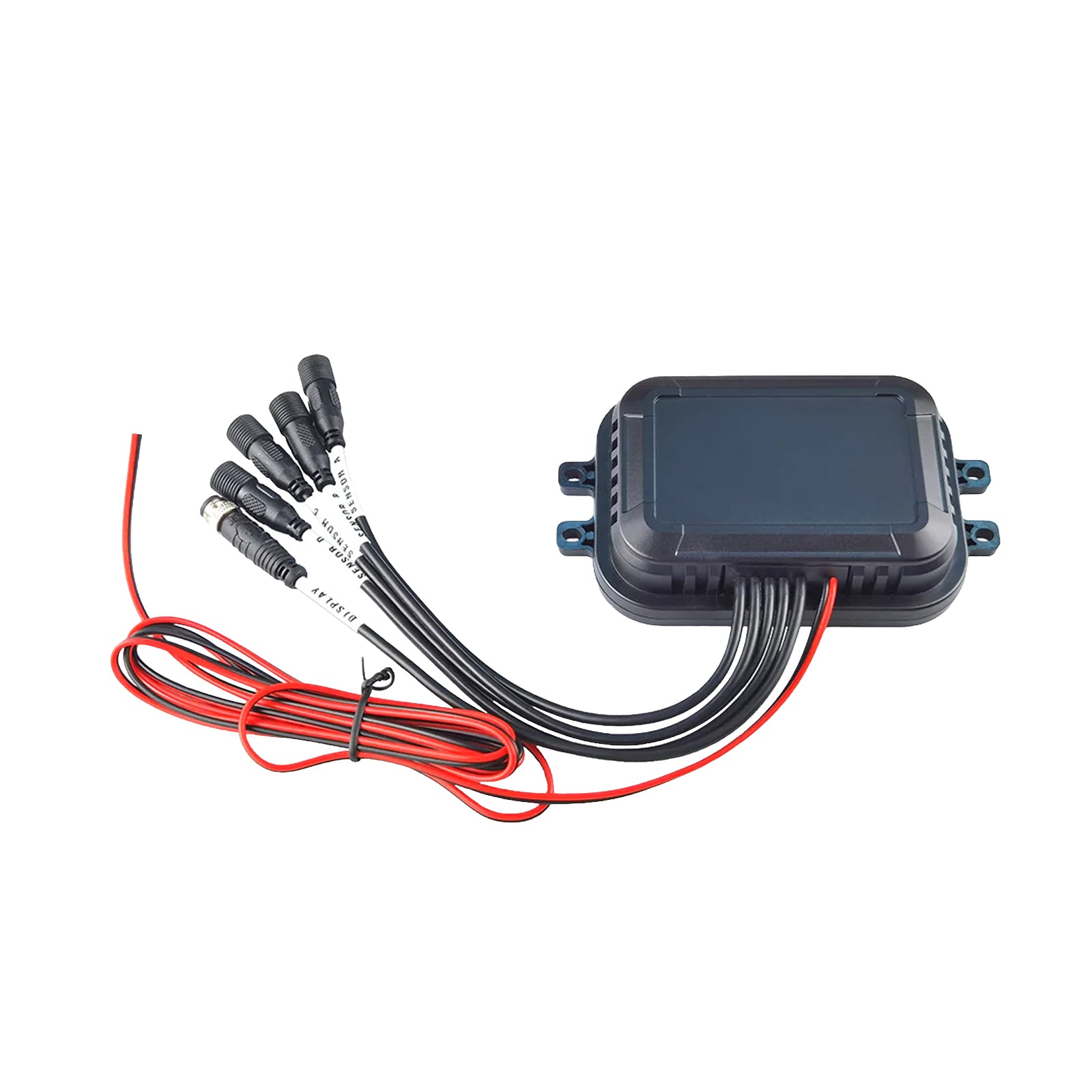

IP67 Control Box - Dust and waterproof control unit suitable for exposed mounting under vehicle or in engine bay.

IP68 Waterproof Sensors - Fully waterproof sensors operate reliably in rain, commercial washes, and extreme weather conditions.

12V/24V Compatible - Wide 9-32V DC input suitable for light commercial 12V and heavy commercial 24V electrical systems.

Dual Mounting Options - In-bumper steel drilling or under-mount installation for commercial vehicle flexibility.

Angled Rubber Construction - Durable material absorbs impacts and vibration better than plastic sensors in truck applications.

Wide Temperature Range - Operates reliably from -30°C to +85°C suitable for extreme climate and commercial conditions.

2.1m Sensor Cables - Adequate length for truck bumper installations with routing flexibility through large vehicle structures.

Commercial Grade Wiring - Heavy-duty cables and connections withstand commercial vehicle electrical environments.

Fleet Application Ready - Durable construction ideal for fleet installations across mixed commercial vehicle types.

RV and Caravan Compatible - Perfect for motorhomes, caravans, and recreational vehicles requiring extended cable reach.

No Complex Configuration - Simple operation without DIP switches or complex setup reduces installation time and training requirements.

Technical Specifications

Frequently Asked Questions

Q: Why does this system have a 15.8m buzzer cable, and do I need that length?

A: The extended 15.8m cable is specifically designed for trucks, buses, motorhomes, and caravans where the distance from rear bumper to driver's cabin significantly exceeds passenger vehicles. Standard 8m cables used in car systems won't reach the driver position in large vehicles. For example, a semi-trailer, coach bus, or large motorhome may have 10-12+ metres from rear sensors to the cab, requiring the extended cable. Even if your vehicle doesn't need the full 15.8m, excess cable should be neatly coiled and secured (not cut) under the vehicle or in accessible locations for future use or vehicle changes within your fleet.

Q: Will this system work on my motorhome or caravan, or is it only for commercial trucks?

A: Yes, the APS401T is perfect for motorhomes, caravans, RVs, and recreational vehicles. While marketed for "trucks," the system suits any large vehicle requiring extended cable reach and durable sensors. Motorhomes and caravans benefit from the 15.8m cable accommodating their length, heavy-duty sensors withstanding travel conditions, and wide voltage compatibility for various RV electrical systems. Many RV owners install on the rear to prevent reversing damage to expensive recreational vehicles. The system works equally well on 12V campervans and motorhomes as it does on 24V commercial vehicles.

Q: Can I install this system myself, or do I need professional help?

A: While technically possible for experienced DIYers with commercial vehicle knowledge, professional installation is strongly recommended for trucks and large vehicles. Installation involves drilling steel bumpers (requiring specialized tools and rust prevention), routing cables through large vehicle structures, integrating with 12V or 24V electrical systems, mounting control box in exposed locations requiring IP67 protection, and ensuring proper sensor positioning for truck-specific applications. Professional installers experienced with commercial vehicles understand appropriate mounting heights for truck bumpers, cable routing avoiding pinch points or heat sources, and proper electrical integration. Installation costs vary ($200-400 typically) but ensure reliable long-term operation.

Q: What's the advantage of the IP67 control box compared to standard parking sensors?

A: The IP67 dust and waterproof rating provides significantly superior protection compared to standard passenger vehicle control boxes, allowing mounting in exposed locations under trucks, in engine bays, or on chassis rails where standard boxes would fail from water ingress or dust accumulation. Commercial vehicles often lack protected mounting locations available in passenger cars, requiring control boxes that withstand direct weather exposure, underbody water spray, pressure washing, and dusty environments. The IP67 rating ensures reliable operation in harsh commercial conditions where standard IP65 or lower rated boxes would corrode or fail prematurely.

Q: Does this system work with 24V trucks and buses, or only 12V vehicles?

A: Yes, the APS401T features wide 9-32V DC operating range making it fully compatible with both 12V light commercial vehicles (vans, motorhomes, utilities) and 24V heavy commercial vehicles (trucks, semi-trailers, buses, coaches). The system automatically adapts to your vehicle's electrical system voltage without requiring configuration or voltage selection. This versatility makes the APS401T ideal for mixed commercial fleets operating diverse vehicle types, allowing standardized parking sensor systems across entire fleet regardless of voltage differences. Installation procedures are similar for both voltages, though 24V integration should be performed by technicians experienced with heavy commercial electrical systems.
