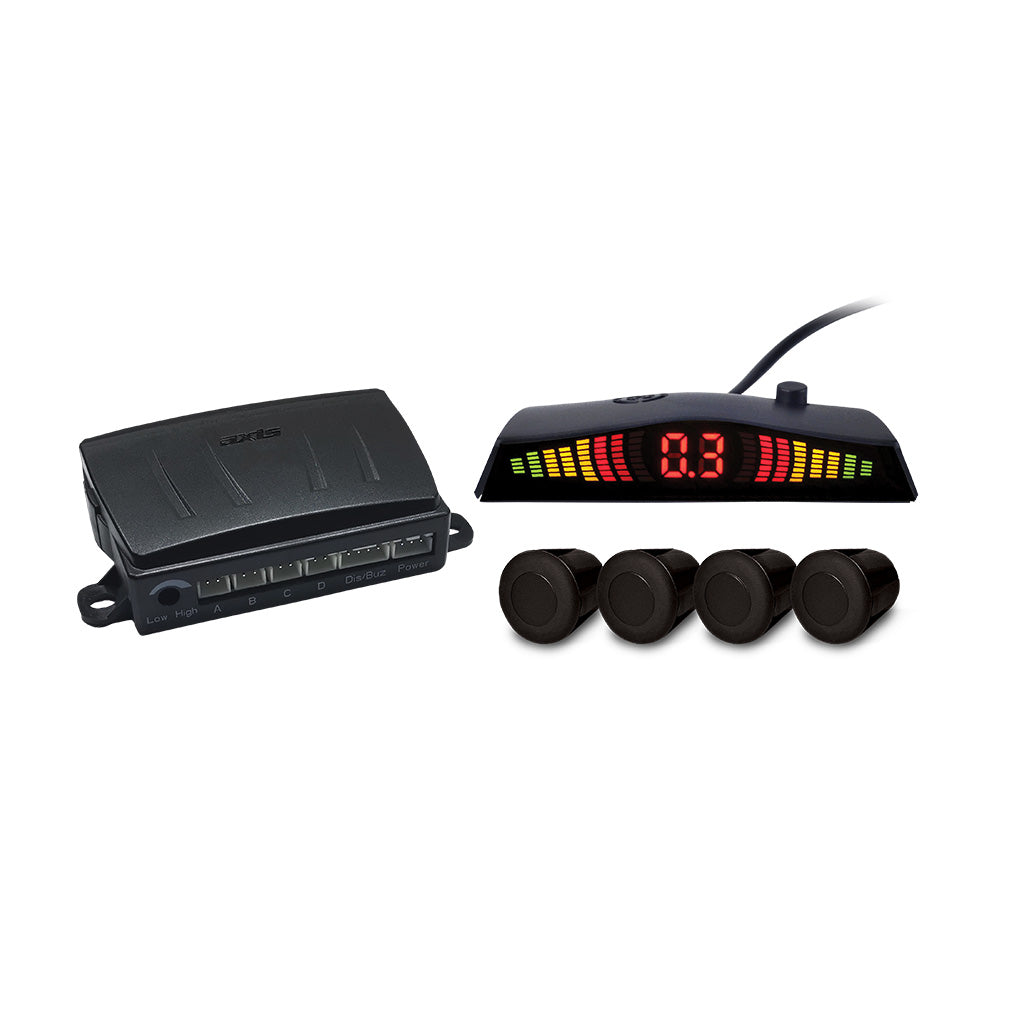

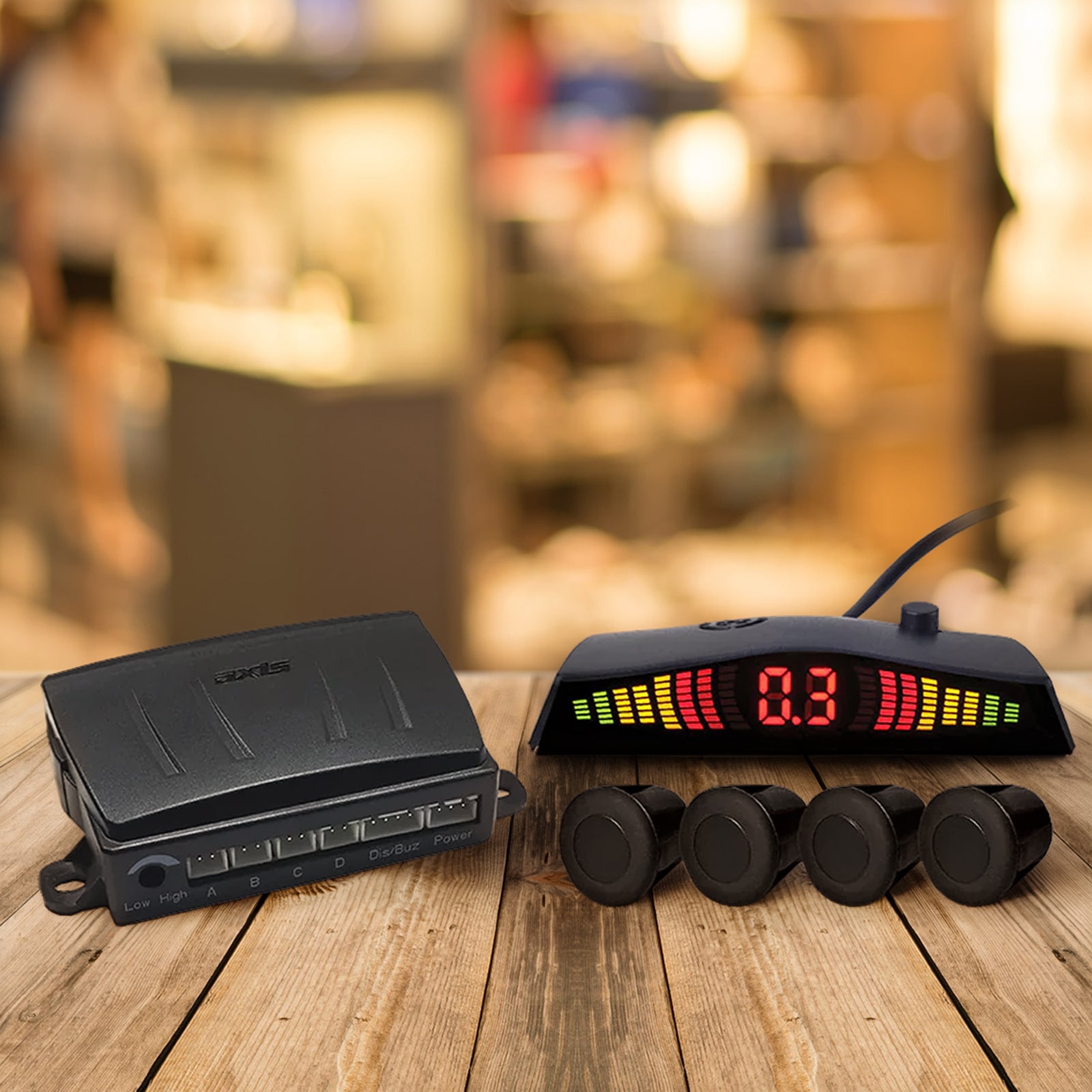

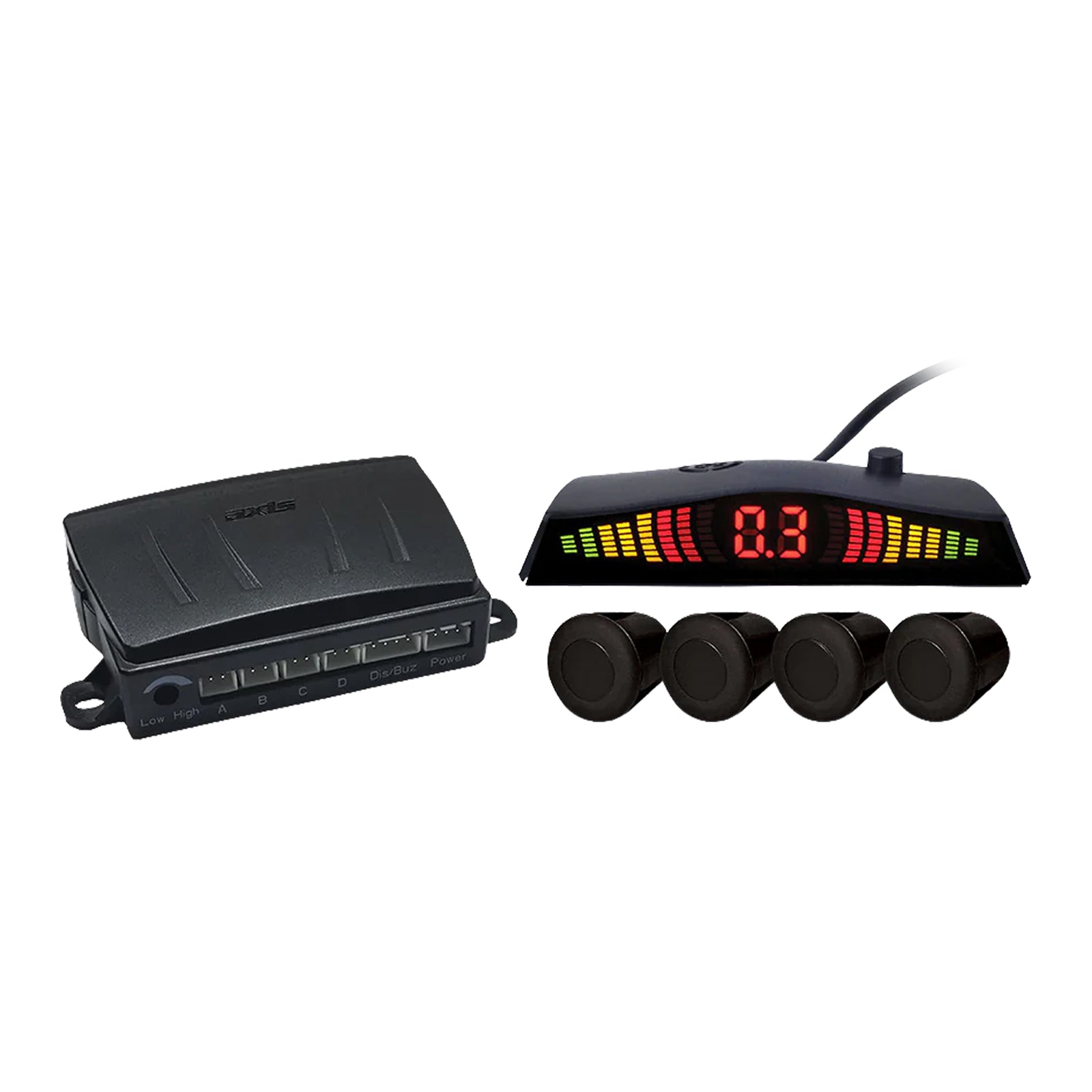

AXIS APS401R - 4-Sensor Commercial Parking System with Rubber Sensors and LED Display

AXIS APS401R - 4-Sensor Commercial Parking System with Rubber Sensors and LED Display

Heavy-duty 4-sensor parking system specifically designed for commercial vehicles with steel bumpers featuring rugged angled rubber sensors engineered for tough industrial environments, LED visual display and audible buzzer proximity alerts providing dual alert system with visual distance indicators and increasing tone frequency, dual mounting options with traditional in-bumper drilling or under-mount installation suitable for steel bumper applications, adjustable detection range via DIP switches with front setting 0.3-0.9m and rear setting 0.3-2.5m, IP68 water resistance for harsh weather and commercial wash conditions, wide 9-32V DC input range compatible with 12V and 24V commercial vehicle electrical systems, auto on/off function with brake activation, tow bar adjustment capability for trailers and commercial accessories, 8m LED display cable and 3.5m sensor cables, ideal for delivery vans, trucks, buses, work vehicles, fleet operations, construction equipment, and commercial applications requiring durable parking assistance.

Product Overview

The AXIS APS401R is a heavy-duty 4-sensor parking system specifically engineered for commercial vehicle applications where standard plastic sensors would not survive the demanding operating conditions of steel bumpers, industrial environments, and heavy-duty commercial use. The rugged angled rubber sensors withstand impacts, vibration, temperature extremes, and harsh conditions encountered in delivery operations, construction sites, mining environments, and fleet applications where standard ABS sensors would crack or fail. The system provides comprehensive parking assistance through combined LED visual display showing precise distance zones and audible buzzer alerts with increasing frequency as obstacles approach. The dual mounting system accommodates both traditional in-bumper drilling through steel bumpers and under-mount installation beneath bumper edges, providing installation flexibility for various commercial vehicle configurations. Wide 9-32V DC compatibility ensures operation across diverse fleet vehicles from 12V light commercials to 24V trucks and buses.

Important Notes:

Commercial Vehicle Focus: Specifically designed for steel bumpers and commercial applications. Rubber sensors withstand harsh conditions standard ABS sensors cannot.

Professional Installation Essential: Steel bumper drilling and commercial vehicle electrical integration requires qualified technicians with appropriate tools and expertise.

Steel Bumper Drilling: Installation through steel bumpers requires specialized drill bits, cutting fluid, and rust prevention treatment around drilled holes.

4 Sensors for Front OR Rear: System includes four sensors for comprehensive single-bumper coverage (front OR rear only).

LED Display Mounting: Display requires visible mounting location in commercial vehicle cabin considering driver sight lines and dashboard configuration.

Key Features

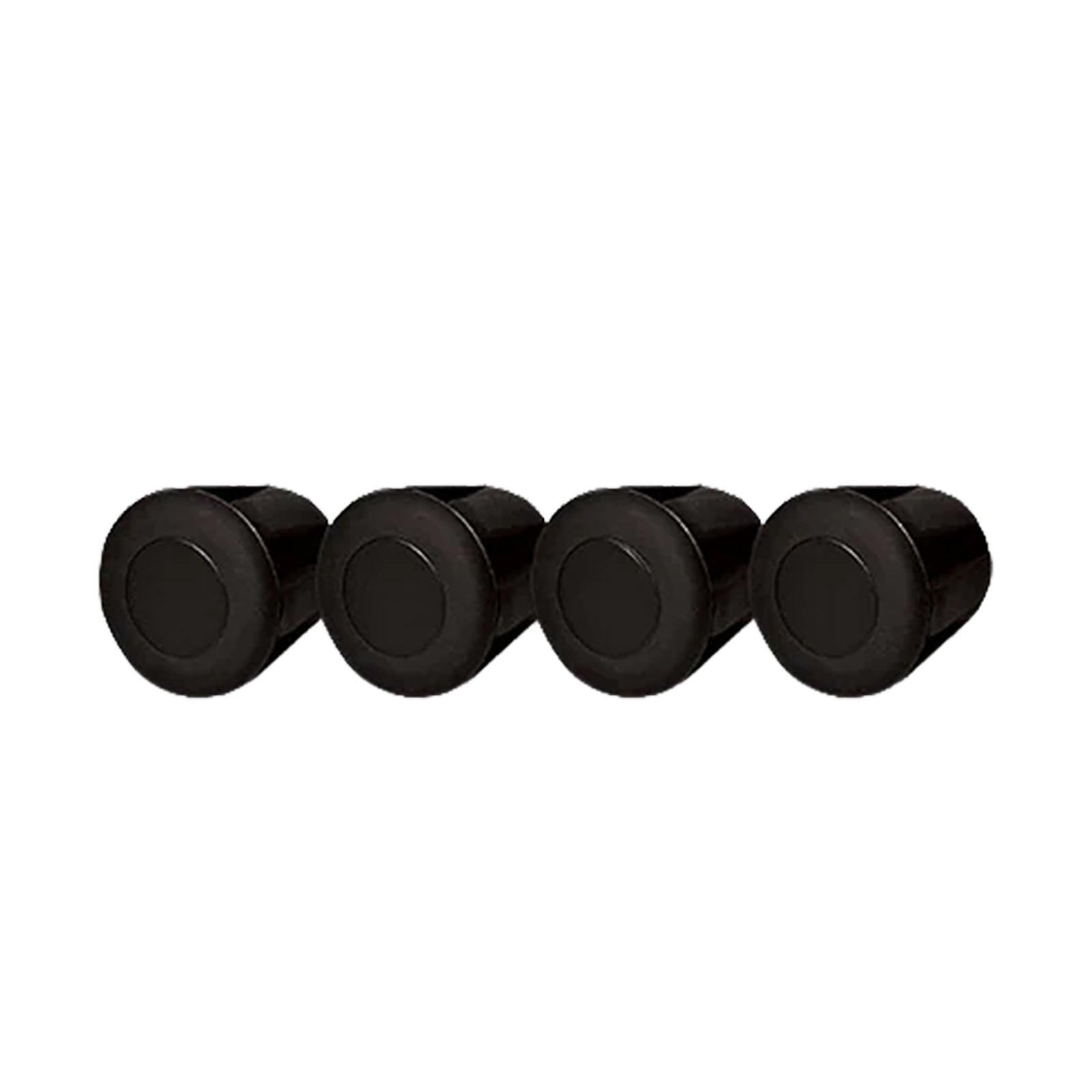

Rugged Angled Rubber Sensors - Heavy-duty construction withstands impacts, vibration, and harsh commercial environments where plastic sensors fail.

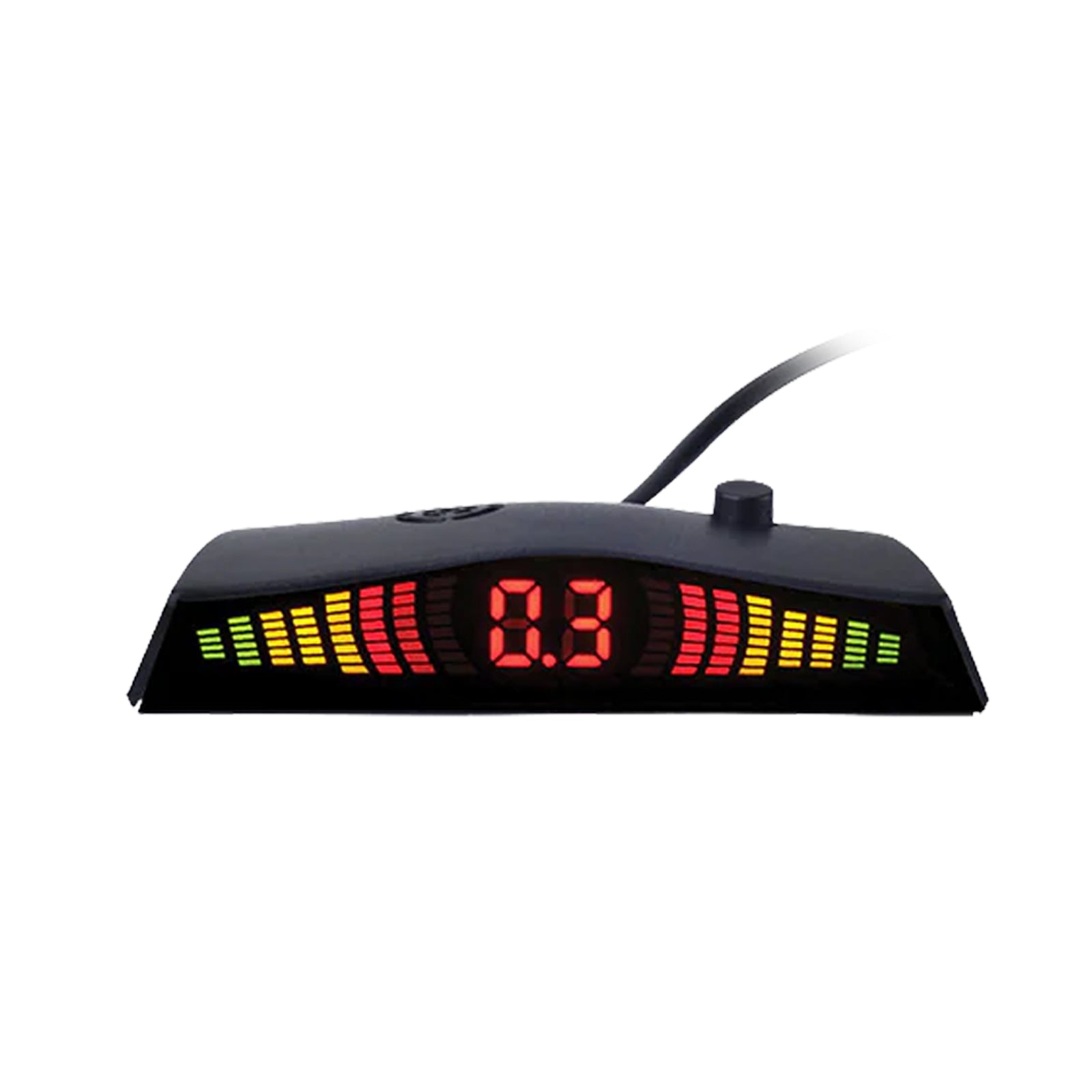

LED Visual Display - Clear distance indicators provide at-a-glance visual feedback ideal for commercial drivers.

Audible Buzzer Alerts - 70-90dB buzzer with increasing beep frequency provides audible distance guidance.

Dual Alert System - Combined visual and audible alerts ensure comprehensive feedback in noisy commercial environments.

Steel Bumper Compatible - Specifically designed for installation through steel commercial vehicle bumpers.

Dual Mounting Options - Traditional in-bumper drilling or under-mount installation for commercial vehicle flexibility.

Front or Rear Installation - DIP switch selection configures system for front bumper or rear bumper use.

Adjustable Detection Range - Front: 0.3-0.9m for manoeuvring. Rear: 0.3-2.5m for reversing and loading docks.

IP68 Water Resistance - Fully waterproof sensors operate reliably in rain, commercial washes, and harsh industrial conditions.

Wide Voltage Compatibility - 9-32V DC input suitable for 12V light commercial and 24V heavy commercial vehicles.

Auto On/Off with Brake - Front installation automatically activates when brake applied for commercial parking convenience.

Tow Bar Adjustment - Supports adjustments for commercial trailers, tail lifts, and rear equipment preventing false alerts.

Extended Cable Lengths - 8m LED display cable and 3.5m sensor cables accommodate larger commercial vehicle dimensions.

Commercial Temperature Range - Operates reliably from -30°C to +85°C suitable for extreme climate and industrial conditions.

Fleet Application Ready - Durable construction and wide compatibility ideal for mixed fleet installations across vehicle types.

Technical Specifications

Frequently Asked Questions

Q: Why do I need rubber sensors instead of standard ABS plastic sensors for commercial vehicles?

A: Rubber sensors are significantly more durable than ABS plastic sensors for commercial vehicle environments. The angled rubber construction withstands repeated impacts from loading dock walls, industrial equipment, vibration from heavy-duty suspension systems, temperature extremes in commercial operations, and physical abuse that would crack standard plastic sensors. Steel bumpers also conduct more vibration and impact forces than plastic bumpers - rubber sensors absorb these forces better preventing premature failure. For delivery vans, trucks, buses, or work vehicles operating in industrial environments, construction sites, or heavy-duty applications, rubber sensors provide the longevity and reliability that plastic sensors cannot match in commercial service.

Q: Can I install this system through a steel bumper, and what's involved?

A: Yes, the APS401R is specifically designed for steel bumper installation. However, drilling through steel bumpers requires specialized equipment and expertise - high-quality HSS or cobalt drill bits, cutting fluid to prevent overheating, accurate measurement and marking, debur tools for clean holes, and rust prevention treatment (primer/paint) around drilled holes to prevent corrosion. Most commercial vehicle owners opt for professional installation by qualified technicians with appropriate tools and experience drilling steel bumpers safely. Improper drilling can damage bumper structural integrity, create sharp edges, or start rust that spreads over time. Professional installation typically costs more than passenger vehicle installation but ensures proper execution and long-term durability.

Q: Will this system work on my 24V truck or bus?

A: Yes, the APS401R features wide 9-32V DC operating range making it fully compatible with both 12V light commercial vehicles (vans, utilities) and 24V heavy commercial vehicles (trucks, buses, large delivery vehicles). The system automatically adapts to your vehicle's electrical system voltage. This versatility makes the APS401R ideal for mixed commercial fleets operating both light and heavy vehicles, allowing standardized parking sensor installation across entire fleet using single product. Installation procedures are similar regardless of voltage, though professional installation is strongly recommended for commercial vehicles to ensure proper electrical integration and compliance with commercial vehicle standards.

Q: What's the advantage of the LED display for commercial drivers?

A: The LED display is particularly beneficial for commercial drivers who may be less familiar with their vehicle's exact dimensions (rental trucks, pool vehicles, multiple fleet vehicles) or who frequently manoeuvre in tight loading docks, warehouses, or urban delivery areas. The visual distance indicators show exactly how much clearance remains at a glance without requiring drivers to interpret beep frequency patterns, especially helpful in noisy commercial environments where buzzer sounds might be difficult to distinguish. The display remains visible even when cab noise from diesel engines, air brakes, or industrial sounds makes audible alerts less effective. Many fleet operators find LED displays reduce parking damage incidents compared to buzzer-only systems.

Q: Can I install sensors on both front and rear bumpers for complete protection?

A: The APS401R includes 4 sensors designed for installation on either front OR rear bumper (not split between both), providing comprehensive coverage on one bumper. For complete front AND rear protection on commercial vehicles, you would need two APS401R systems (8 sensors total). Most commercial operators prioritize rear bumper installation since reversing causes the majority of parking damage in commercial operations - loading dock collisions, backing into obstacles, or blind spot issues while reversing. Front installation benefits vehicles frequently parking in tight urban spaces or loading bays requiring precise front positioning. Consider your specific operational needs and damage history when deciding single or dual bumper coverage.
