Axis AC552 9600mAh 9.5-12.6V Portable DC Power Supply IP69K
Axis AC552 9600mAh 9.5-12.6V Portable DC Power Supply IP69K
Click to open expanded view
AXIS logo

Axis AC552 9600mAh 9.5-12.6V Portable DC Power Supply IP69K

SKU: AC552
Price
$235.95
Buy now, pay later
  • image
  • image
  • image

Shipping information

We offer fast and reliable shipping options to ensure that your order arrives in a timely manner. Our dedicated team works diligently to process and ship your items as quickly as possible.

Here are some key points to note about our shipping policy:

Standard Shipping

  • Frankies offers a $15.95 flat rate for Australia-wide shipping, no matter how many items you order. Some larger or heavier items may incur an additional fee, which will be communicated to you when your order is processed.
  • While we endeavour to dispatch all orders promptly, please be advised that due to the current national fuel shortages in Australia and the resulting pressure on logistics networks, order processing and dispatch may take up to 7 business days. We are not liable for delays caused by third-party freight carriers or fuel-related logistical disruptions. By placing an order, you acknowledge that delivery timeframes may be extended beyond our standard estimates during this period.

Estimated delivery times:

  • WA, NT, and TAS: currently experiencing longer shipping times
  • Holiday periods (e.g. Christmas): deliveries may be delayed due to increased freight volumes

Express Shipping

  • Express shipping is available and calculated based on your delivery location, as well as the size and weight of your order. To receive an accurate quote, please contact our Albion Park Rail store and request an "express shipping quote." Our team will promptly assist with pricing and availability. Payment for express shipping can be securely arranged over the phone.

Share this product

Share Post Pin E-mail

Product features

Axis AC552 9600mAh Rugged Portable DC Power Supply with IP69K Rating and Magnetic Base

The Axis AC552 is a rugged 9,600mAh (34.56Wh) portable DC power unit delivering adjustable 9.5V to 12.6V output with wide input support from 5V to 24V DC. Rated IP69K for dust and high-pressure water protection, it features built-in overcharge, over-discharge, overload, and short-circuit protection, a magnetic base mount, and LED capacity indicators. A DC 2.1mm charge lead and an Australian AC power adapter are included.

Product overview

The AC552 provides a portable and weatherproof DC power source suited to field applications where a stable 12V-range power supply is needed without access to mains or vehicle power. The adjustable 9.5V to 12.6V output covers a range of DC-powered devices, and the wide 5V to 24V input range allows the unit to be charged from USB sources, vehicle sockets, and mains via the included AC adapter. The IP69K rating confirms protection against dust ingress and high-pressure water jets, making it suited to outdoor, industrial, and off-road field use.

The magnetic base allows the AC552 to be attached to any metal surface for hands-free operation, and the LED capacity indicators provide a clear at-a-glance charge level reading. Four built-in protection circuits cover overcharge, over-discharge, overload, and short-circuit conditions for safe operation across a range of environments and load types.

Features and benefits

9,600mAh capacity at 34.56Wh: Provides 34.56Wh of usable energy with a discharge time of 17.5 hours at 160 to 180mA at 12V, suited to powering low-current DC devices for extended field sessions.

Adjustable 9.5V to 12.6V output: The adjustable output covers a range of DC-powered devices requiring a stable 12V-range supply, providing flexibility across different device types and voltage requirements.

Wide 5V to 24V input range: Accepts charging input from 5V USB sources through to 24V vehicle and mains supplies, with charge times of 3.3 hours at 12 to 24V and 7 hours at 5V.

IP69K weatherproof rating: Full protection against dust ingress and high-pressure water jets, suited to outdoor, industrial, and off-road field use in demanding conditions.

Four-circuit protection system: Built-in overcharge, over-discharge, overload, short-circuit protection, and load detection circuits protect both the unit and connected devices during operation.

Magnetic base mount: The magnetic base attaches securely to any metal surface for hands-free operation in field and workshop environments.

LED capacity indicators: Built-in LED indicators provide a clear at-a-glance charge level reading without requiring a separate meter or display.

DC 2.1mm charge lead and Australian AC adapter included: Both a DC 2.1mm male to USB male charge lead and an Australian AC power adapter are supplied for flexible charging from multiple power sources.

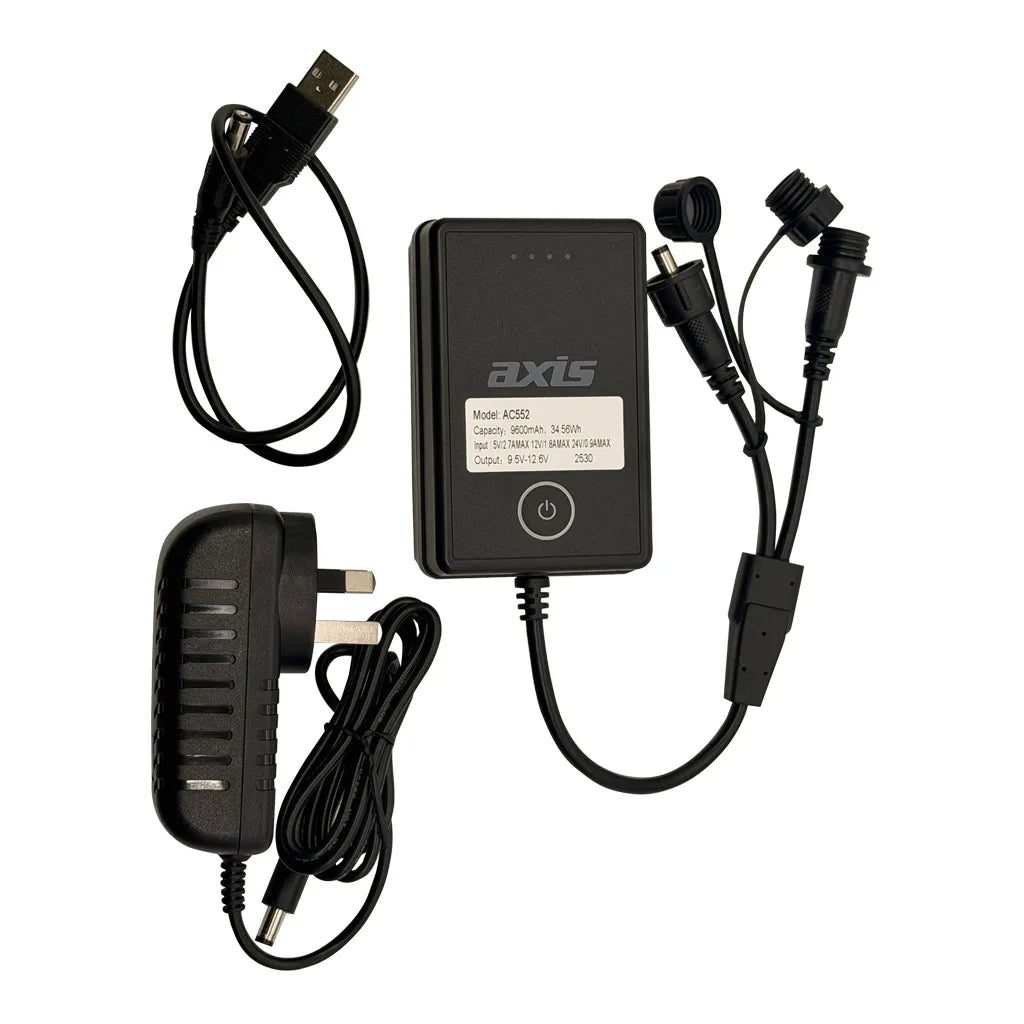

What's in the box

  • 1 x Axis AC552 portable DC power supply
  • 1 x DC 2.1mm male to USB male charge lead
  • 1 x Australian AC power adapter

Technical specs

Specification Detail
SKU AC552
Brand Axis
Capacity 9,600mAh at 3.6V (34.56Wh)
Input Voltage Range 5V to 24V DC
Output Voltage 9.5V to 12.6V adjustable
Charge Time 3.3 hours at 12-24V, 7 hours at 5V
Discharge Time 17.5 hours at 160-180mA at 12V
Charging Temperature -10 to +45 degrees C
Discharging Temperature -20 to +60 degrees C
Storage Temperature -20 to +60 degrees C
IP Rating IP69K
Plug and Socket DC 2.1mm
Protection Overcharge, over-discharge, overload, short-circuit, load detection
Mount Type Magnetic base
Dimensions 100.5 x 64.5 x 40.7mm

Frequently asked questions

What devices can the AC552 power?
The AC552 delivers an adjustable 9.5V to 12.6V DC output via a 2.1mm DC connector, suited to devices requiring a stable 12V-range power supply. Contact us for guidance on compatibility with your specific device.

Can the AC552 be charged from a vehicle cigarette socket?
The AC552 accepts input from 5V to 24V DC, covering standard 12V and 24V vehicle electrical systems. Contact us for guidance on compatible vehicle charging cables for your specific setup.

Is the AC552 suitable for outdoor and off-road use?
Yes. The IP69K rating confirms full protection against dust ingress and high-pressure water jets, making the AC552 suited to outdoor, industrial, and off-road field applications in demanding conditions.

How long does the AC552 take to charge?
The AC552 charges in 3.3 hours from a 12V to 24V source and 7 hours from a 5V USB source.

Does the AC552 protect against short circuits and overloading?
Yes. The AC552 includes built-in overcharge, over-discharge, overload, short-circuit protection, and load detection circuits for safe operation across a range of environments and load types.
