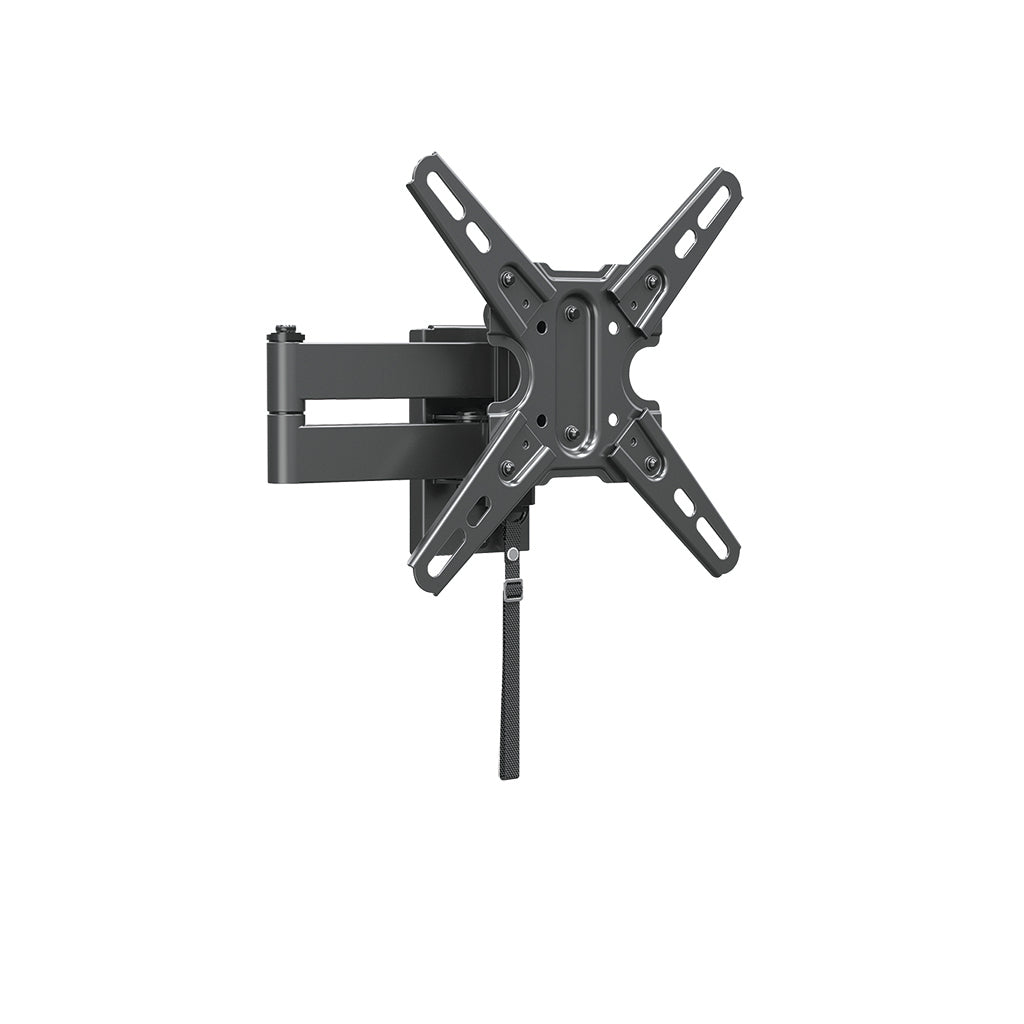

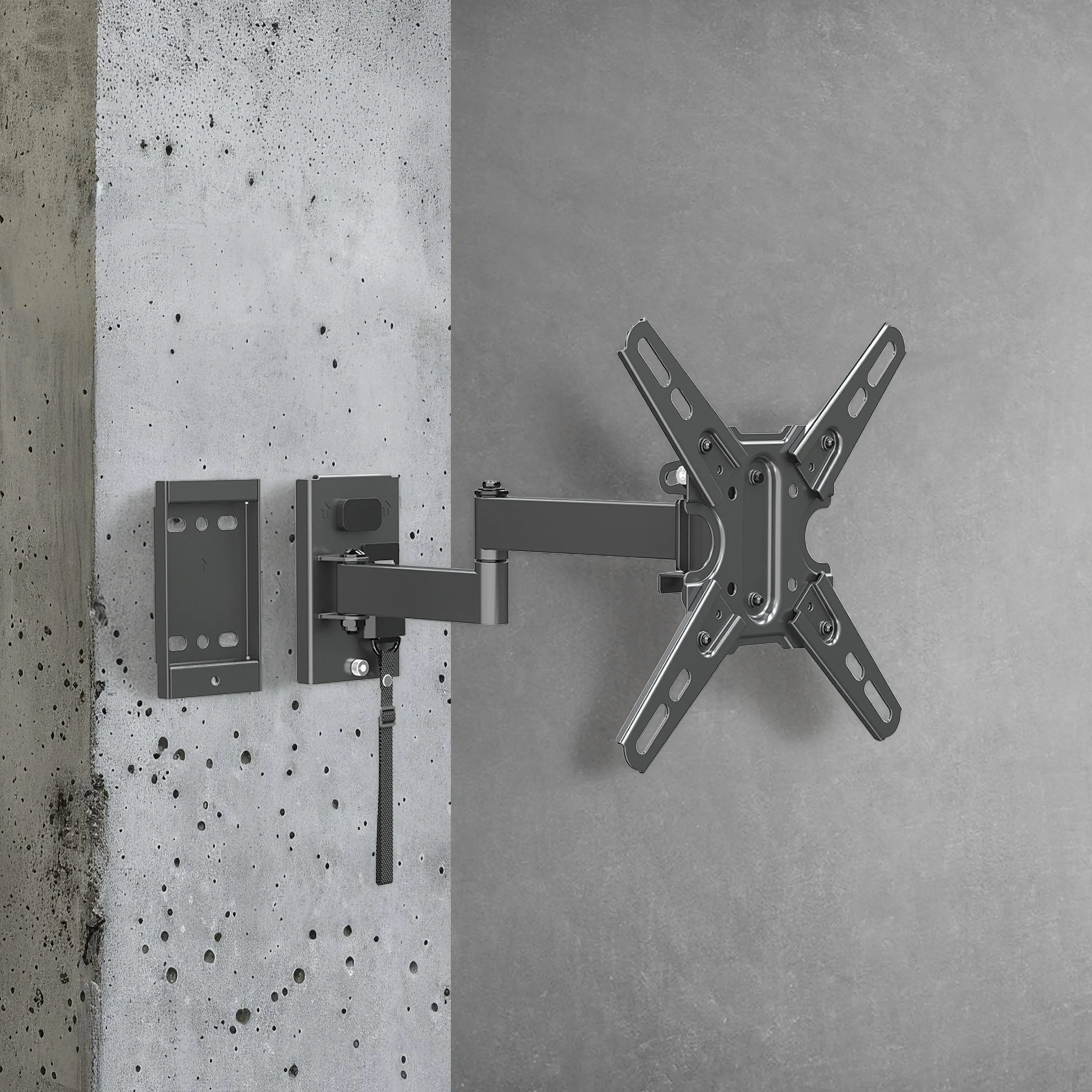

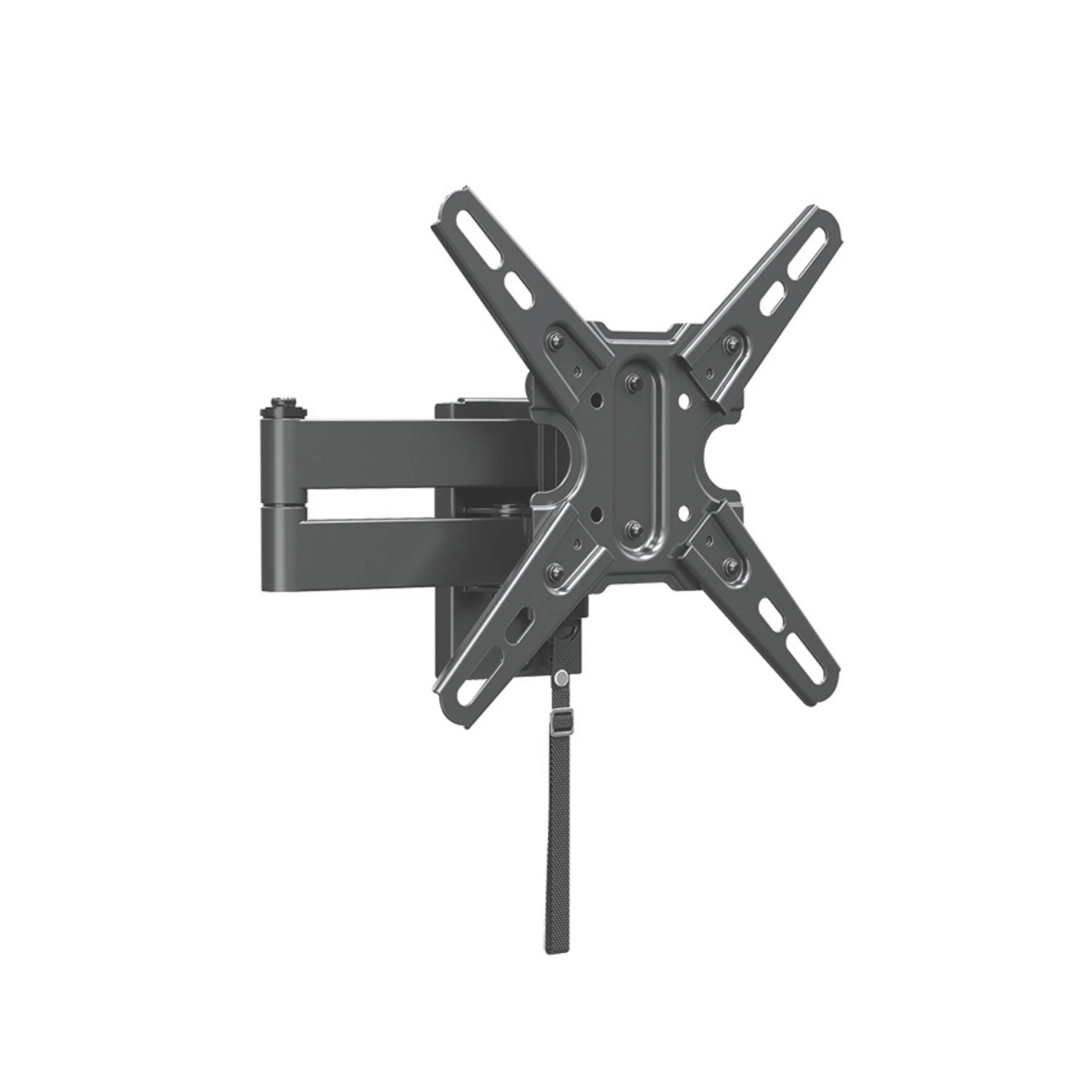

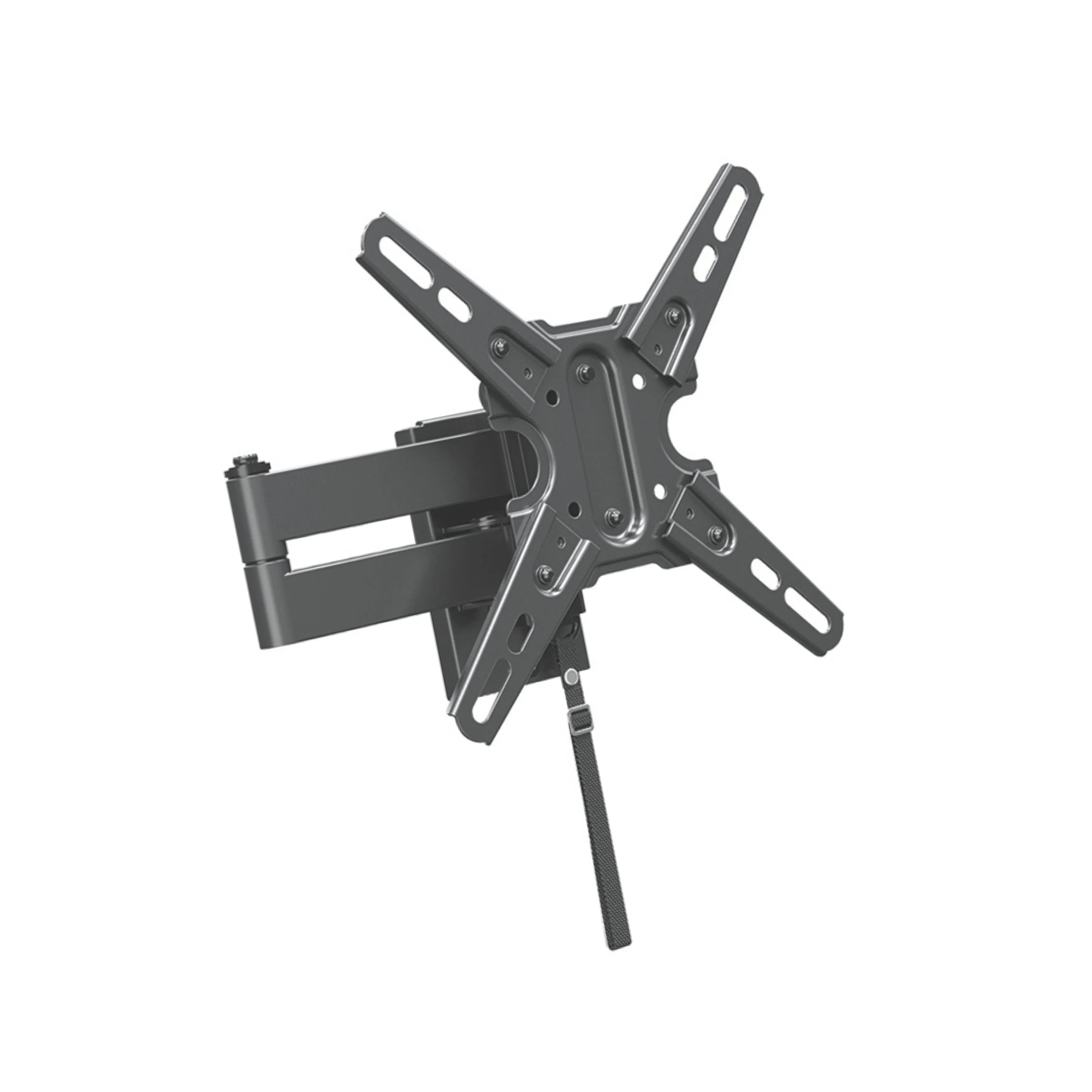

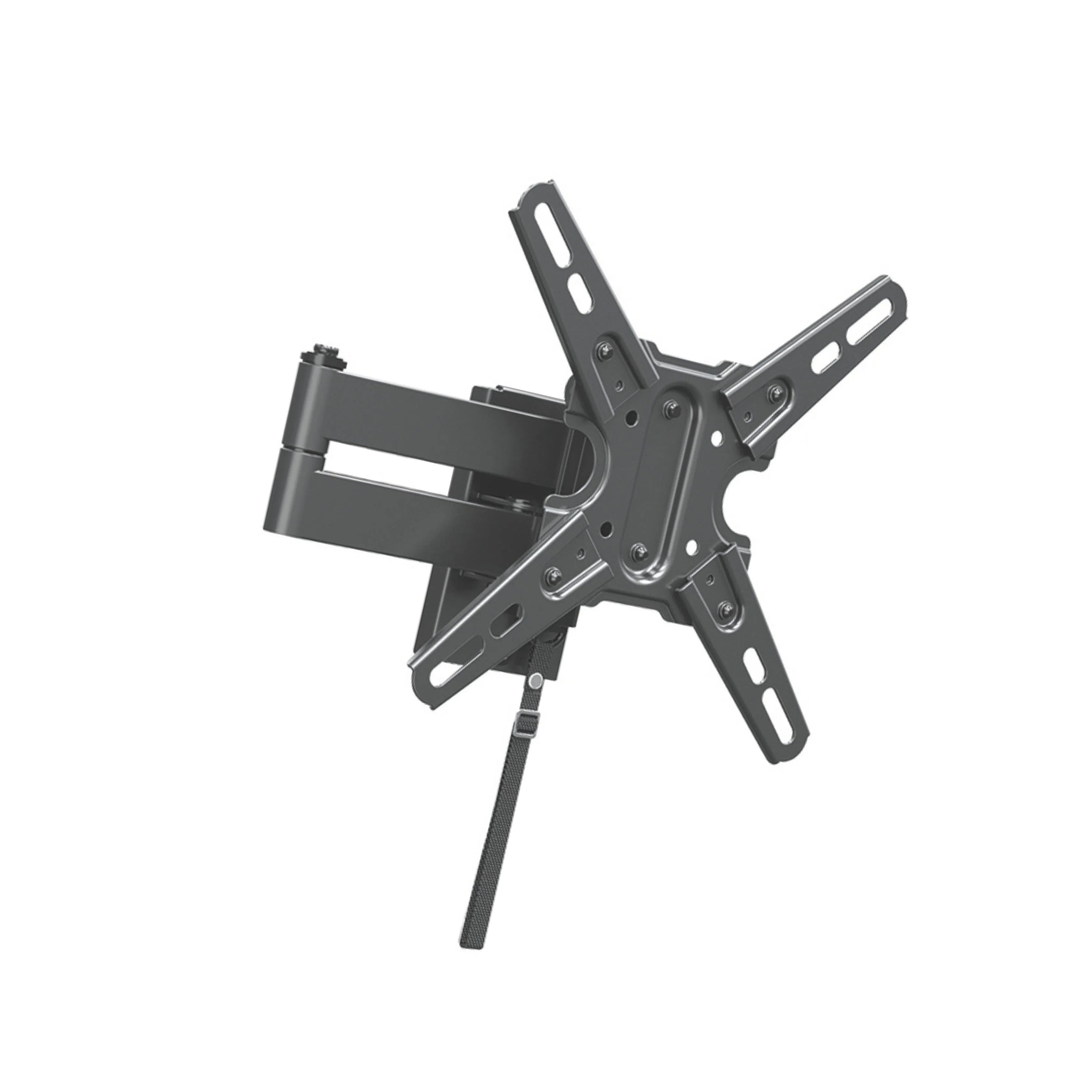

AUTOBACS TVBKT32 - Dual Arm TV Mount Bracket

AUTOBACS TVBKT32 - Dual Arm TV Mount Bracket

Dual-arm full motion wall bracket featuring 19"-32" TV compatibility, VESA 50/75/100/200x200 mounting, +5°/-15° tilt, +/-90° rotation, 353mm extension, 10kg load capacity, locking latch, and two wall plates for caravan and RV installations.

Product Overview

The AUTOBACS TVBKT32 dual-arm full motion wall bracket provides flexibility to adjust TV to the perfect viewing angle. Designed to hold TVs ranging in size from 19" to 32", this professional mounting solution features locking latch ensuring TV remains securely in place when vehicle is moving. The system comes with two wall plates making it easy to move TV and bracket to different locations, enabling TV setup wherever desired with ease. This dual-arm wall mount accommodates LCD and LED TVs with standard VESA mounting patterns including 50x50mm, 75x75mm, 100x100mm, and 200x200mm for compatibility with most TV brands. The articulating arm design provides tilt adjustment of +5° upward and -15° downward for optimal viewing angle reduction of glare, plus TV rotation angle of +/-90° enabling positioning for viewing from various seating locations. The bracket supports strength load up to 10kg accommodating most TVs within the 19"-32" size range, with maximum reach of 353mm from wall when fully extended for positioning TV away from mounting surface. The flat-to-wall locking mechanism secures bracket flush against wall during travel preventing TV movement or damage from vibration and motion typical in caravan and RV environments. The dual wall plate system enables quick TV relocation between different mounting positions without requiring complete bracket removal and reinstallation, perfect for seasonal room changes or reconfiguring caravan interior layout.

Key Features

Dual-Arm Full Motion Design - Professional dual-arm articulating design providing complete TV positioning flexibility with +5°/-15° tilt adjustment for optimal viewing angle and glare reduction, +/-90° rotation enabling positioning for viewing from various seating locations, and 353mm maximum extension positioning TV away from wall when needed, then folding flat against wall when not in use.

Locking Latch Security - Essential locking latch mechanism ensuring TV remains securely in place when vehicle is moving, preventing TV movement, screen damage, or mounting bracket failure from vibration and motion typical in caravan and RV travel, providing peace of mind during highway driving or rough road conditions.

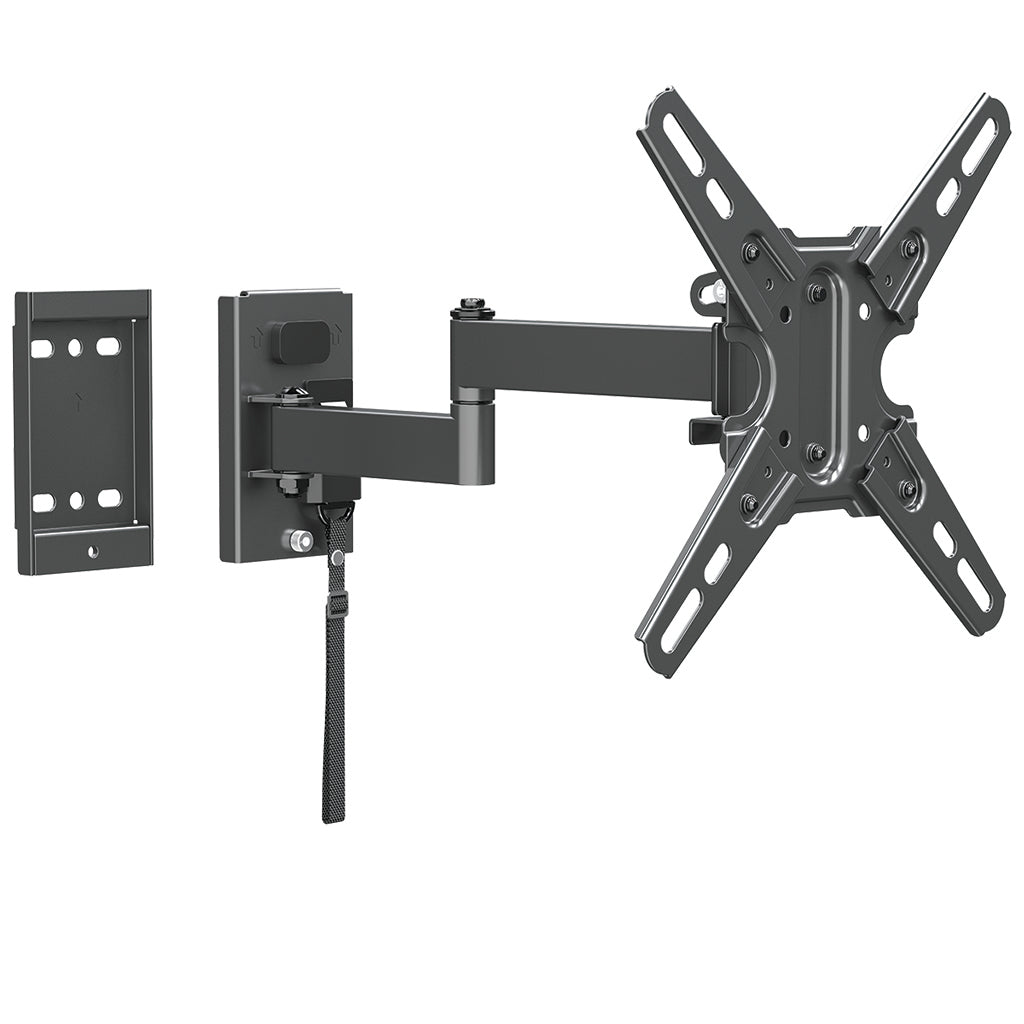

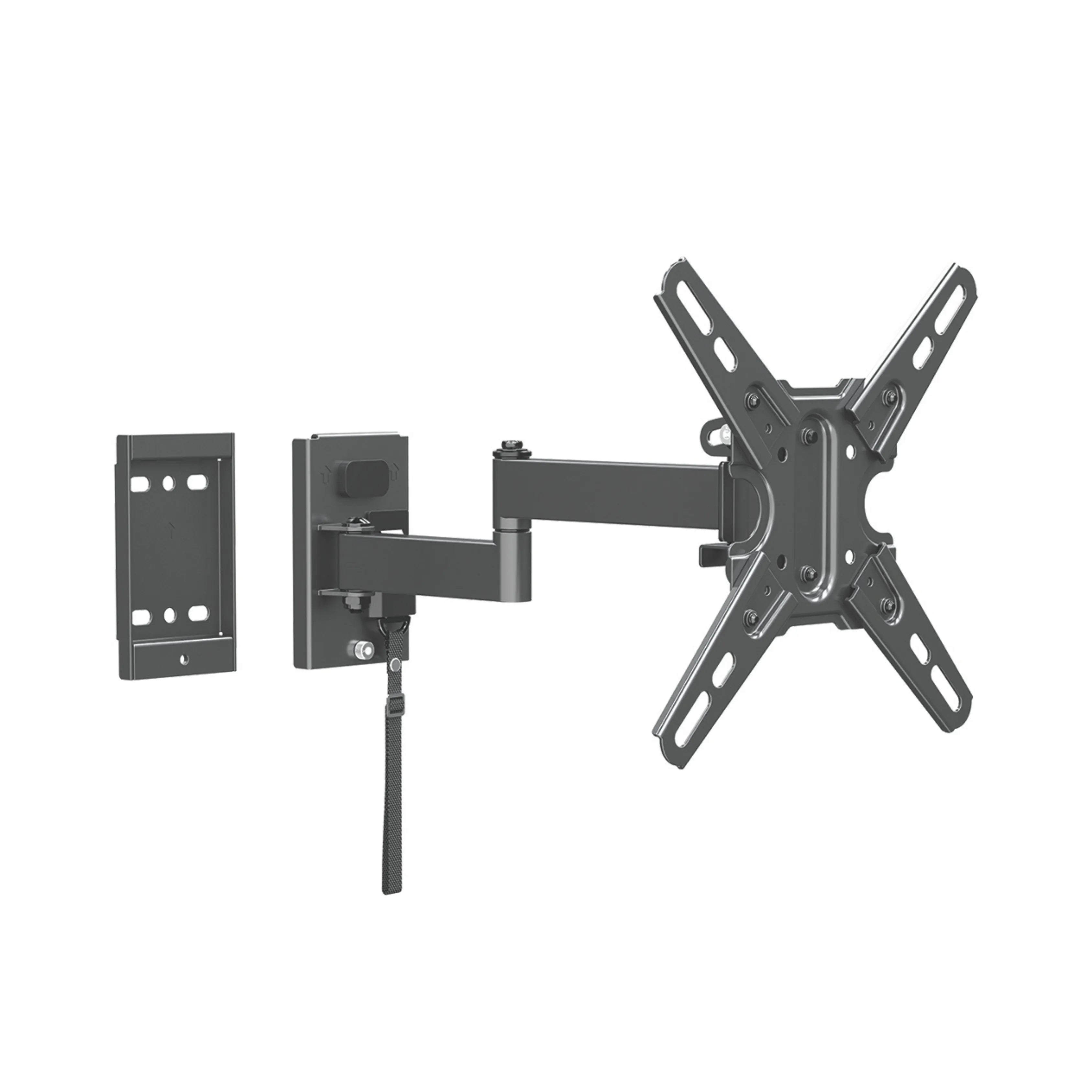

Dual Wall Plate System - Innovative two wall plate configuration enabling easy TV and bracket relocation to different locations without complete bracket removal and reinstallation, perfect for seasonal room changes, reconfiguring caravan interior layout, or moving TV between indoor and outdoor entertainment areas with minimal effort.

Universal VESA Compatibility - Standard VESA mounting pattern compatibility including 50x50mm, 75x75mm, 100x100mm, and 200x200mm accommodating most LCD and LED TV brands within 19"-32" size range, ensuring compatibility with existing TVs or future TV upgrades without requiring new mounting hardware.

10kg Load Capacity - Professional strength load rating up to 10kg supporting most TVs within the 19"-32" size range including heavier LED panels or TVs with integrated sound systems, providing reliable mounting with safety margin preventing bracket failure or wall mounting stress during extended use.

Flat-to-Wall Locking - Critical flat-to-wall locking mechanism securing bracket flush against mounting surface during caravan and RV travel, preventing TV extension or movement during driving, protecting TV screen from impact damage, and maintaining secure mounting throughout vibration and motion typical in mobile vehicle environments.

Technical Specifications

TV Compatibility

• TV Size Range: 19" to 32"
• Mount Type: Dual-Arm Wall Mount for LCD/LED TV

VESA Standards

• Standard VESA: 50/75/100/200 x 200

Adjustment Range

• Tilt: +5° to -15°
• TV Rotation Angle: +/-90°

Load Capacity

• Strength Load: Up to 10kg

Extension

• Maximum Reach: 353mm

Installation

• Wall Plates: 2 included
• Locking: Flat to wall locking

Frequently Asked Questions

What does the dual wall plate system enable?

The dual wall plate system includes two separate wall plates that mount to different locations. This allows you to move your TV and bracket between locations without removing and reinstalling the entire bracket system - simply detach the articulating arm from one wall plate and reattach to the second wall plate. This is perfect for seasonal room changes in caravans or moving TV between indoor and outdoor entertainment areas.

How does the locking latch protect my TV during travel?

The locking latch secures the articulating arm in the flat-to-wall position during caravan or RV travel, preventing the TV from extending away from the wall due to vibration or sudden braking. This protects your TV screen from impact damage, prevents mounting bracket stress, and ensures the TV remains securely positioned throughout highway driving or rough road conditions typical in mobile environments.

What VESA pattern does my TV use?

Check your TV's manual or measure the mounting hole spacing on the back of your TV. VESA patterns are measured in millimeters - 75x75mm means holes are 75mm apart horizontally and vertically. The TVBKT32 supports 50mm, 75mm, 100mm, and 200x200mm patterns, accommodating most 19"-32" TVs from brands like Samsung, LG, Sony, Panasonic, and others.

Can I adjust the TV angle while it's mounted?

Yes, the dual-arm design provides continuous adjustment including +5° upward tilt, -15° downward tilt for reducing glare from windows or lights, and +/-90° rotation enabling TV positioning toward different seating areas. The articulating arms extend up to 353mm from the wall, then fold flat when not in use. Adjust as needed without tools for optimal viewing angles from various seating positions.

What is the maximum TV weight this bracket supports?

The TVBKT32 supports loads up to 10kg, accommodating most 19"-32" LCD and LED TVs. Most TVs in this size range weigh 3-8kg, so the 10kg capacity provides safety margin. Always verify your TV's weight (found in manual or specifications) before installation. Heavier TVs approaching 10kg should be mounted on strong wall surfaces with appropriate anchoring hardware for secure installation.
