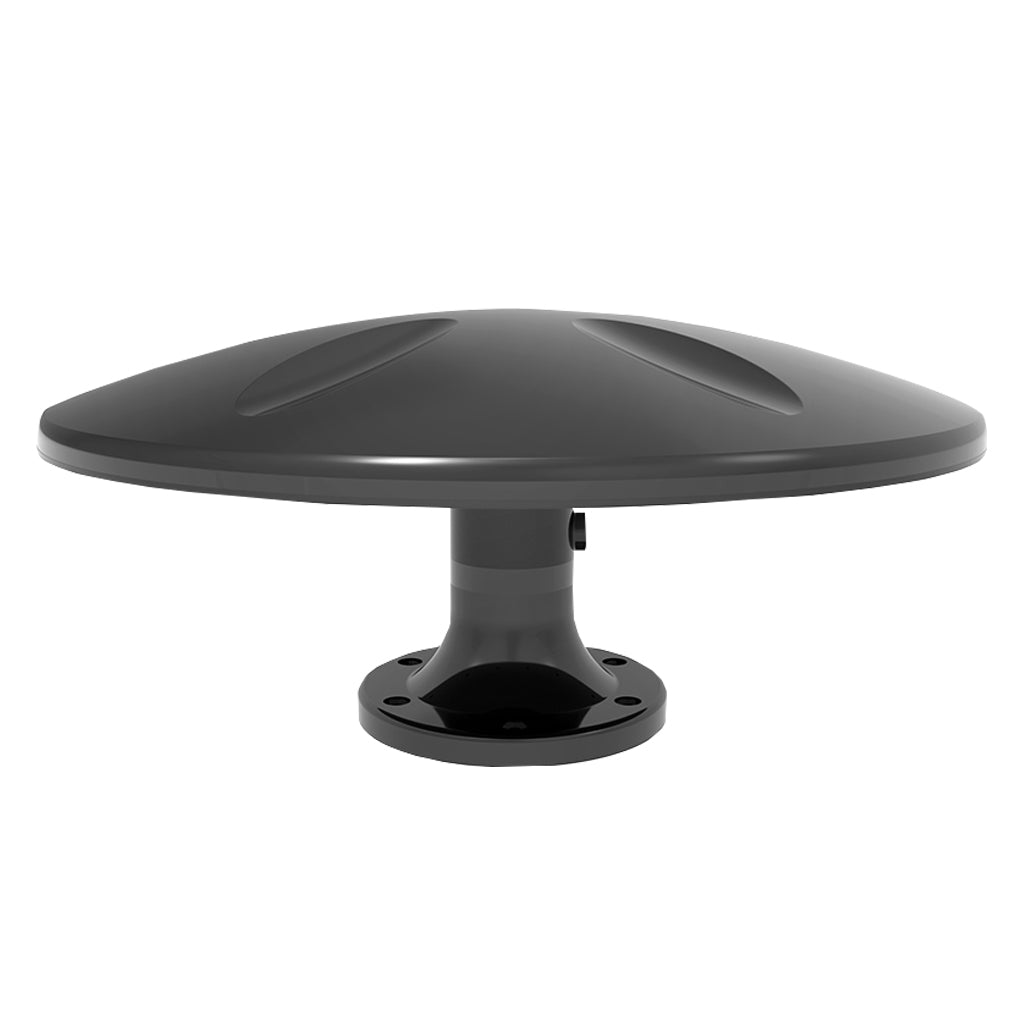

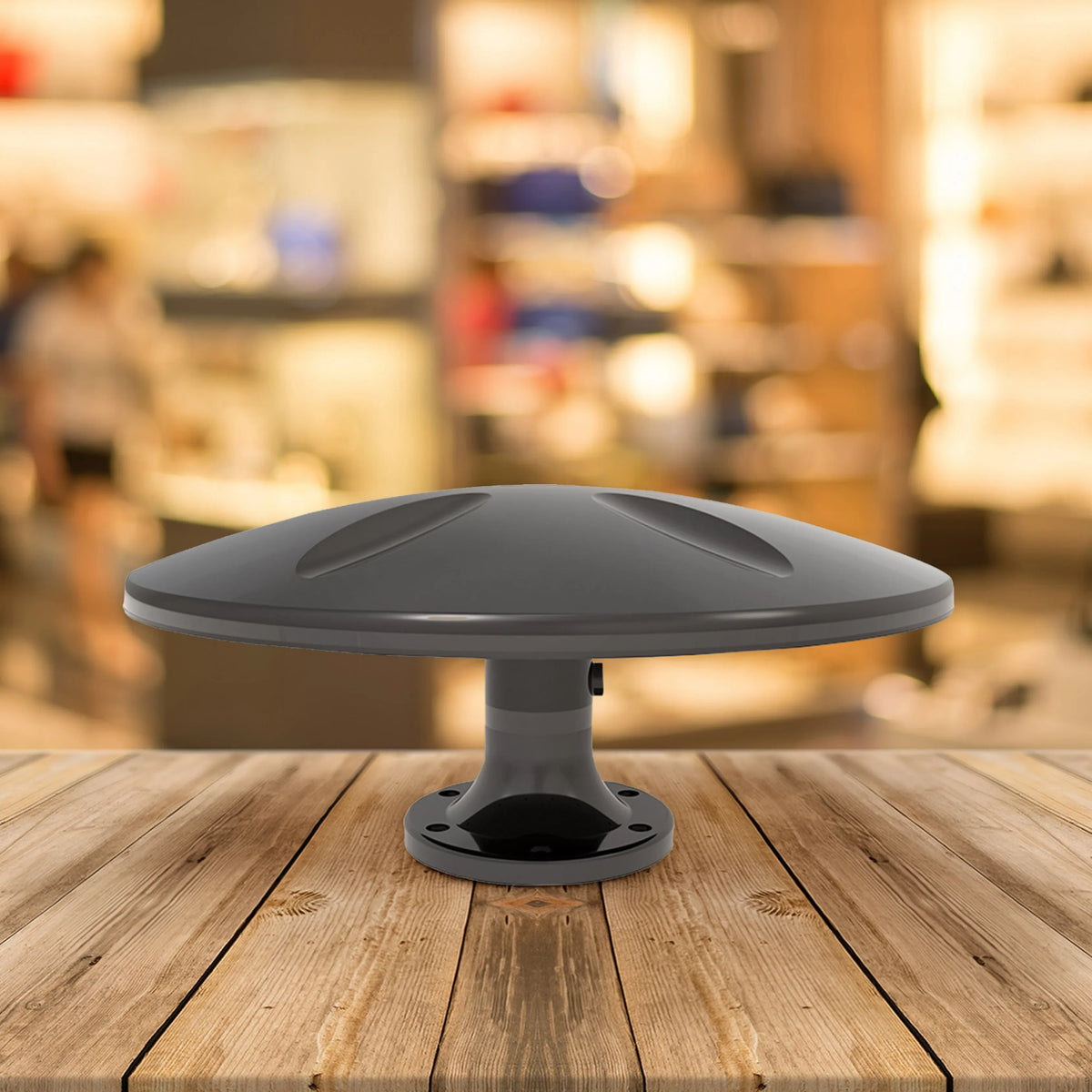

AUTOBACS ORBIT35B - Omni Directional TV Antenna - Black

AUTOBACS ORBIT35B - Omni Directional TV Antenna - Black

High-performance 360° omni-directional digital TV antenna featuring 8-12dBi gain, UHF/VHF reception, low-profile 162mm height, 8-metre RG6 coax, USB or phantom power, and strong ABS UV-resistant construction for caravans and RVs.

Product Overview

The AUTOBACS ORBIT35B is a high-performance 360° omni-directional digital TV antenna eliminating the hassle of figuring out where to point it to get the best reception. Measuring less than 162mm in height, its low-profile design makes it ideal to meet top-mount clearance requirements for caravans and RVs. This professional-grade antenna features 8-12dBi gain providing strong signal amplification for reliable digital TV reception across DTV, UHF, and VHF frequencies. The omni-directional radiation pattern enables 360° signal reception from all directions simultaneously, eliminating the need for manual antenna rotation or positioning adjustments when travelling between locations or when signal sources change direction. The antenna operates with 2.0:1 maximum VSWR for efficient power transfer and linear polarization for optimal broadcast signal compatibility. Constructed from strong UV-resistant ABS plastic maintaining structural integrity and appearance throughout extended sun exposure typical in outdoor caravan and RV applications. The system includes 8-metre RG6 coaxial cable providing flexible routing from roof-mounted antenna to interior entertainment system, terminated with F-type male connector and including right-angle F-type female to PAL adaptor for compatibility with Australian TV equipment. Power options include USB or phantom power through coaxial cable for flexible installation without separate power cable routing. The antenna measures 350mm diameter x 161.7mm height with 75 Ohm impedance for standard TV equipment compatibility.

Key Features

360° Omni-Directional Reception - High-performance omni-directional radiation pattern receiving digital TV signals from all directions simultaneously, eliminating the hassle of manual antenna positioning or rotation when travelling between locations, moving campsites, or when broadcast tower directions change, providing consistent reception without requiring antenna adjustment or signal strength monitoring.

Low-Profile Caravan Design - Compact 162mm height low-profile design specifically engineered to meet top-mount clearance requirements for caravans and RVs travelling under low bridges, tree branches, carport entries, or height-restricted areas, providing reliable digital TV reception without increasing overall vehicle height or creating aerodynamic drag concerns during highway travel.

8-12dBi Signal Gain - Professional 8-12dBi gain providing strong signal amplification for reliable digital TV reception in regional areas, remote locations, or challenging reception environments where weaker signals require amplification for stable viewing, covering DTV, UHF, and VHF frequencies for comprehensive Australian broadcast compatibility.

UV-Resistant Construction - Strong ABS plastic construction with UV resistance maintaining structural integrity, appearance, and performance throughout extended sun exposure typical in outdoor caravan and RV applications, preventing material degradation, discoloration, or brittleness that would compromise antenna performance or require premature replacement.

Complete Installation Package - Comprehensive system including 8-metre RG6 coaxial cable providing flexible routing from roof-mounted antenna to interior entertainment system, F-type male termination with right-angle F-type female to PAL adaptor for Australian TV equipment compatibility, and USB or phantom power options eliminating separate power cable requirements for simplified installation.

Australian TV Compatibility - 75 Ohm impedance standard for Australian TV equipment, linear polarization matching broadcast transmission standards, 2.0:1 maximum VSWR ensuring efficient power transfer, and included PAL adaptor providing direct connection to Australian digital TVs, set-top boxes, or caravan entertainment systems without additional adaptors or converters.

Technical Specifications

Performance

• Gain: 8-12dBi
• Frequencies: DTV - UHF/VHF
• VSWR: 2.0:1 Max
• Radiation Pattern: Omni-Directional
• Polarization: Linear
• Impedance: 75 Ohm

Power

• Power Source: USB or Phantom Power

Construction

• UV Resistance: Strong ABS Plastic

Cable & Connections

• Coax Type: RG6
• Coax Length: 8 metres
• Coax Terminated: F-Type (Male)
• Included Adaptor: Right Angle F-Type (Female) to PAL

Physical Specifications

• Dimensions: Φ350mm x 161.7mm (Height)

Frequently Asked Questions

How does omni-directional reception benefit caravan use?

Omni-directional reception receives signals from all directions simultaneously, eliminating the need to rotate or reposition the antenna when you arrive at different campsites or locations. As you travel around Australia, broadcast towers are located in different directions - the ORBIT35B automatically receives signals regardless of tower direction without requiring manual adjustment or signal strength monitoring.

Will this antenna fit under carport height restrictions?

Yes, the ORBIT35B's low-profile 162mm height design specifically meets top-mount clearance requirements for caravans and RVs. Adding this antenna typically increases total vehicle height by less than 170mm, enabling travel under most residential carport entries, shopping centre car parks, or height-restricted areas where taller traditional TV antennas would cause clearance issues.

What is the difference between USB and phantom power?

USB power connects to any USB port on your TV, entertainment system, or USB power adaptor, providing convenient power without additional wiring. Phantom power sends DC power through the coaxial cable from your TV or amplifier, eliminating separate power cables. Choose the power method that's most convenient for your caravan installation and equipment compatibility.

How far can I receive TV signals with this antenna?

Reception distance depends on broadcast tower power, terrain, obstacles, and signal frequency. The 8-12dBi gain provides reliable reception typically 40-80km from broadcast towers in flat terrain with clear line-of-sight. Regional areas with powerful transmitters may receive signals beyond 100km, while hilly terrain or obstacles reduce range. The omni-directional pattern ensures you capture available signals regardless of tower direction.

Is the antenna waterproof for all-weather use?

Yes, the strong UV-resistant ABS plastic construction withstands rain, humidity, and harsh weather conditions typical in outdoor caravan and RV applications. The sealed construction protects internal amplifier electronics from moisture ingress, ensuring reliable operation throughout Australian climate extremes including tropical humidity, outback heat, and coastal salt spray exposure.
