Complete wireless reversing system with DVR recording featuring 7-inch 1024 x 600 display, quad-view functionality supporting up to 4 wireless cameras, 1920 x 1080 camera with audio and 4 IR LEDs, IP69K rating, 128GB SD card support, and H.264 MP4 recording capability.

Product Overview

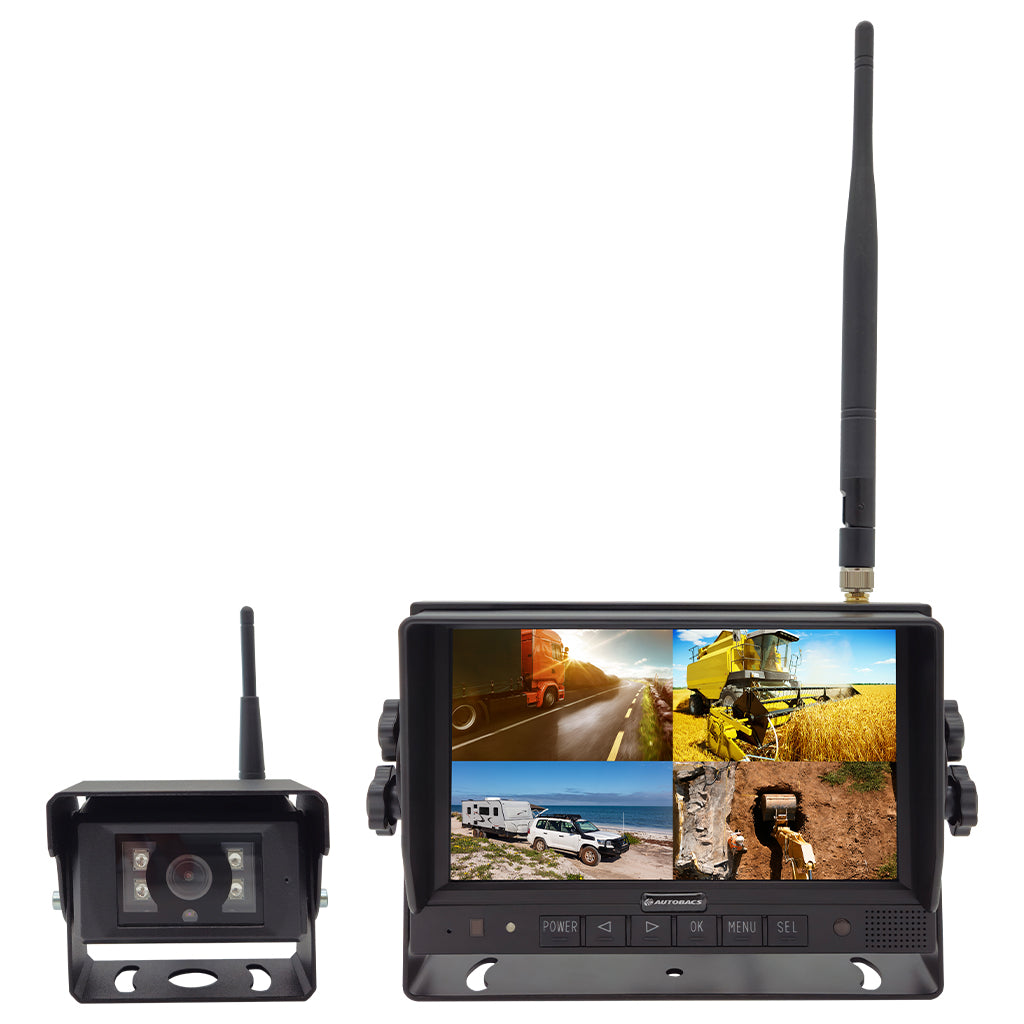

The AUTOBACS HDVR74W is a complete wireless reversing system enhancing driving safety through high-resolution 7-inch display, top-of-the-line camera with audio capabilities, and quad view functionality accommodating up to 4 cameras. This comprehensive system provides complete visibility of vehicle surroundings, making it easier to maneuver and park safely. The system is equipped with DVR recording functionality allowing drivers to record video footage of their entire journey, providing complete record of any incidents or accidents that may have occurred. The monitor features LCD TFT panel with 178mm diagonal 7-inch screen delivering 1024 x 600 resolution in 16:9 format with 700:1 contrast and 600cd/m2 brightness. Advanced features include 85° viewing angles in all directions, single/dual/quad selectable split screen display, normal/mirror/flip/mirror-flip image selection, automatic or manual screen dimmer adjustment, and adjustable guidelines with size and position control. DVR recording captures monitor displayed vision to Micro SD card up to 128GB maximum (not included) in H.264 MP4 decompression format. Operating on 2400-2483.5MHz frequency with -78dBm receiving sensitivity and 200ms time delay, the monitor includes built-in 1.5W audio output and super capacitor backup. The included camera features 1/2.9-inch CMOS sensor with 1920 x 1080 effective pixels, 130° diagonal viewing angle, 38dB signal-to-noise ratio, 81dB dynamic range, IP69K ingress protection, 0 Lux minimum illumination with 4 IR LEDs, integrated microphone, 2403MHz-2478MHz operating frequency with FHSS modulation, 20dBm transmitter power, 12Mbps bit rate, and 120 metres line-of-sight range. Both monitor and camera operate on 10-32V DC power through negative ground configuration with monitor consuming 10W maximum and camera 4W maximum. Complete system includes monitor, sunshade, U-bracket with thumb screw set, stand mount, camera, camera mount and sunshade, wiring harness, power cable, 2 antennas, patch antenna, and 2 hex keys.

Key Features

DVR Recording Capability - Advanced DVR recording functionality capturing monitor displayed vision to Micro SD card up to 128GB maximum capacity in H.264 MP4 format, providing complete record of entire journey including all camera views displayed on monitor for incident documentation, accident evidence, insurance claims, fleet management, or training purposes with continuous loop recording.

Complete Wireless System - Comprehensive wireless solution featuring 2400-2483.5MHz monitor frequency with -78dBm receiving sensitivity and camera operating on 2403MHz-2478MHz with FHSS modulation, 20dBm transmitter power, and 120 metres line-of-sight range, eliminating complex cable routing while supporting up to 4 wireless cameras with 200ms time delay for reliable real-time monitoring.

Quad View Multi-Camera Support - Advanced quad view functionality supporting up to 4 wireless cameras with selectable single, dual, or quad split screen display configurations, adjustable guidelines with size and position control, and normal/mirror/flip/mirror-flip image selection enabling comprehensive perimeter monitoring displaying rear, side, and front approaches simultaneously or individually based on operational requirements.

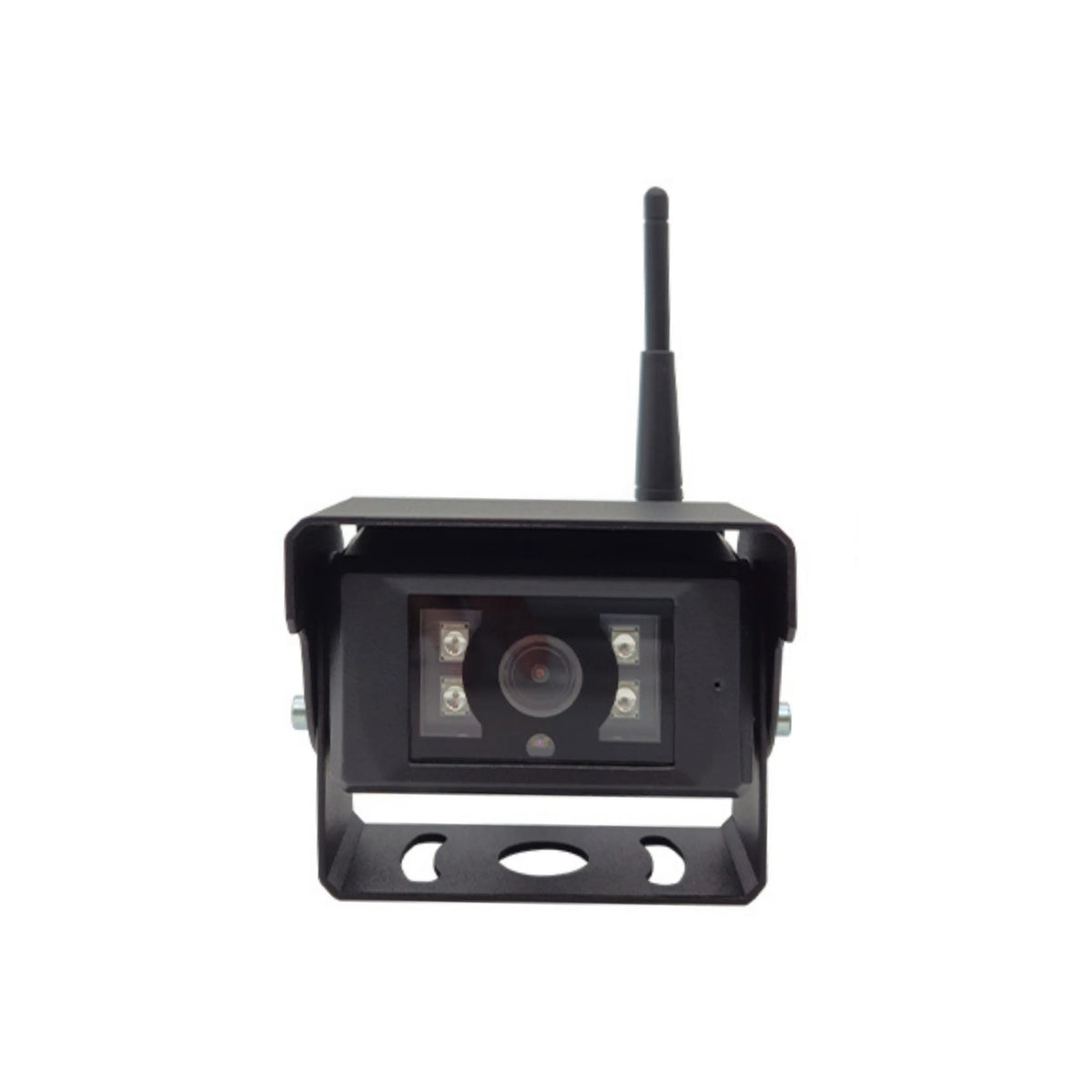

High-Resolution Camera Performance - Premium 1/2.9-inch CMOS sensor delivering 1920 x 1080 effective pixels with 130° diagonal viewing angle, 38dB signal-to-noise ratio, 81dB dynamic range, 12Mbps bit rate, 0 Lux minimum illumination with 4 IR LEDs for night vision, IP69K waterproof protection, integrated microphone for audio recording, and 4W maximum power consumption for demanding applications.

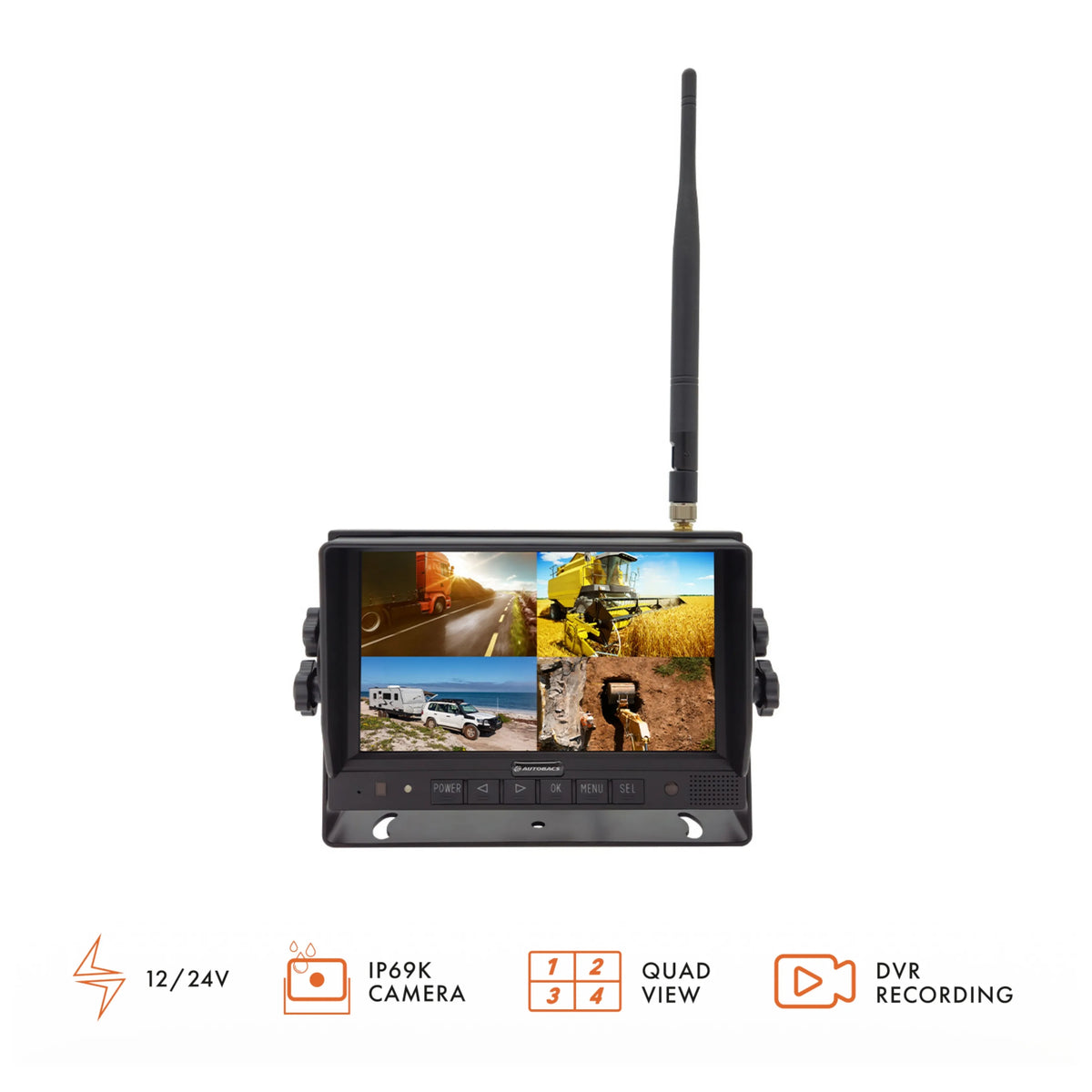

Professional Monitor Display - High-resolution 7-inch LCD TFT panel featuring 1024 x 600 resolution in 16:9 format with 700:1 contrast ratio and 600cd/m2 brightness, 85° viewing angles in all directions, automatic or manual screen dimmer adjustment for day/night operation, built-in 1.5W audio output, super capacitor backup, and 10W maximum power consumption.

12V/24V System Compatibility - Universal 10-32V DC power supply compatibility through negative ground configuration across both monitor and camera supporting 12V systems in cars, caravans, and light commercial vehicles, and 24V systems in trucks and heavy equipment, operating across -20°C to +70°C temperature range with high humidity tolerance.

Technical Specifications

Monitor Specifications

• TFT Panel: LCD
• LCD Size: 178mm (7-Inch) Diagonal
• Display Format: 16:9
• Resolution: 1024 x 600
• Contrast: 700:1
• Brightness: 600cd/m2
• Video Connect: Up to 4 Wireless Cameras
• Viewing Angles: 85° Left/Right/Up/Down
• Split Screen: Single/Dual/Quad Selectable Display
• Monitor View: Normal/Mirror/Flip/Mirror-Flip Image Select
• Screen Dimmer: Automatic or Manual Adjustment
• Guidelines: Adjustable Size & Position
• DVR Recording: Monitor Displayed Vision

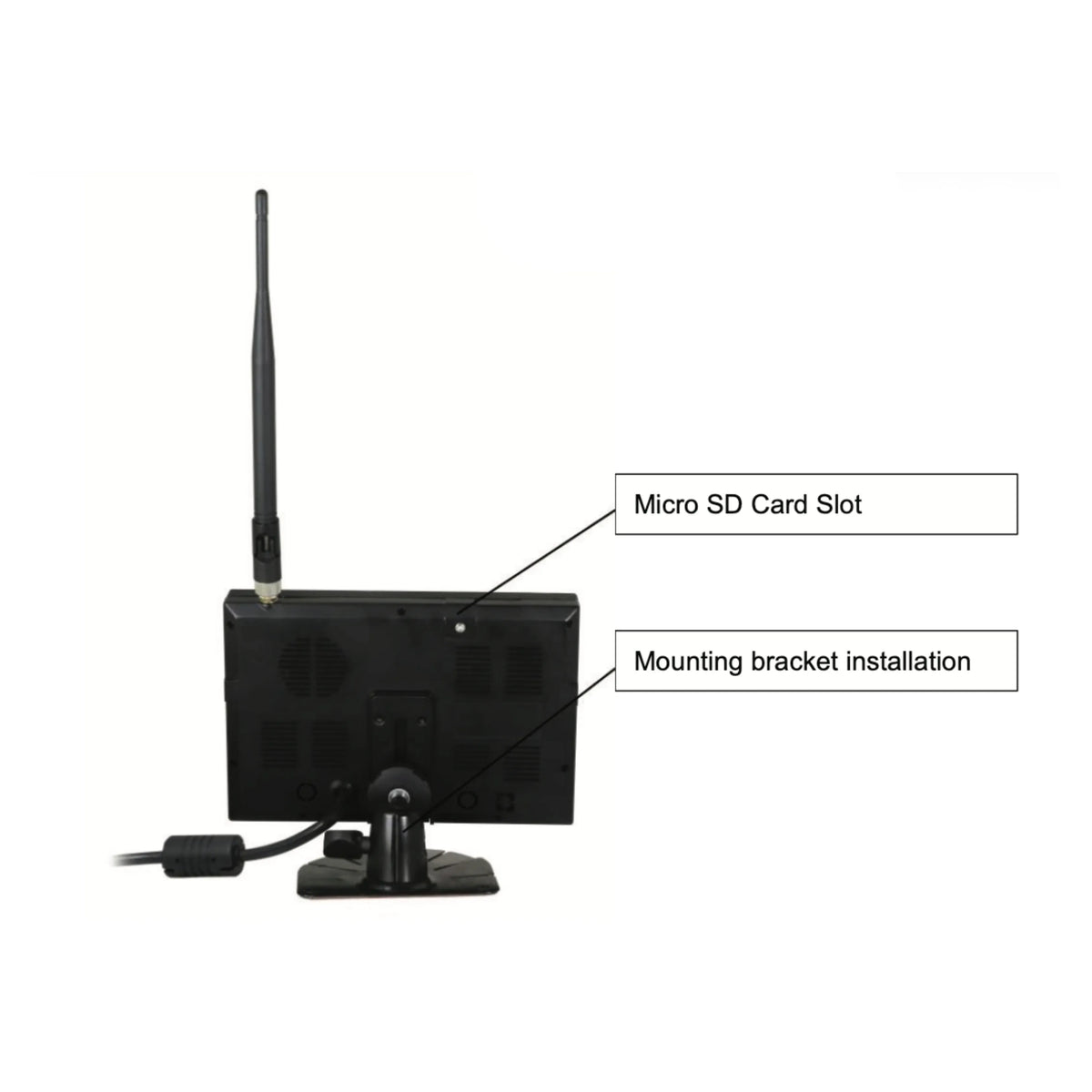

• Recording Media: Micro SD Card: 128GB Max (Not Included)
• Operating Frequency: 2400-2483.5MHz
• Receiving Sensitivity: -78dBm
• Decompression Format: H.264 (MP4)
• Time Delay: 200ms
• Audio Output: Built-in 1.5W
• Operating Voltage: 10-32V DC (Negative Ground)
• Backup: Super Capacitor
• Power Consumption: 10W Max
• Operating Temperature: -20°C to +70°C, RH90%
• Storage Temperature: -30°C to +80°C, RH90%
• Dimensions (Monitor Only): 183mm (W) x 131mm (H) x 30mm (D)

Camera Specifications

• Image Sensor: 1/2.9 inch CMOS
• Effective Pixels: 1920 x 1080
• Viewing Angle: 130° Diagonal
• S/N Ratio: 38dB
• Dynamic Range: 81dB
• Transmitter Power: 20dBm
• Bit Rate: 12Mbps
• Ingress Protection: IP69K
• Minimum Illumination: 0 Lux (4 IR LEDs)
• Operating Frequency: 2403MHz-2478MHz
• Modulation: FHSS
• Line of Sight Range: 120 metres
• Microphone: Yes
• Operating Temperature: -20°C to +70°C, RH95%
• Storage Temperature: -30°C to +80°C, RH95%
• Operating Voltage: 10-32V DC (Negative Ground)
• Power Consumption: 4W Max
• Dimensions (Camera Only): 80mm (W) x 49mm (H) x 67mm (D)

Included Components

• Monitor
• Sunshade
• U-Bracket & Thumb Screw Set
• Stand Mount
• Camera
• Camera Mount & Sunshade
• Wiring Harness
• Power Cable
• Antenna x2
• Patch Antenna
• Hex Key x2

Frequently Asked Questions

How does DVR recording work with wireless cameras?

The HDVR74W records monitor displayed vision to Micro SD card (up to 128GB, not included) in H.264 MP4 format, capturing whatever appears on screen including single camera view, dual split screen, or quad view display. Recording continues in loop mode, overwriting oldest footage when card is full. This provides journey documentation including all camera angles for incident evidence, insurance claims, or fleet management purposes.

What is the actual wireless range in real-world conditions?

The camera's 120 metres line-of-sight range is the maximum distance in open conditions without obstructions. Real-world range depends on vehicle structure, metal interference, and mounting positions. Typical effective range of 20-40 metres covers most vehicle applications including trucks with trailers, caravans, or motorhomes. The FHSS modulation and 20dBm transmitter power ensure reliable signal penetration through typical automotive installations.

Can I view and record all 4 cameras simultaneously?

Yes, the quad view display shows all 4 wireless cameras simultaneously in split quadrant layout, and DVR recording captures the entire screen including all displayed camera views. This enables comprehensive journey recording showing complete vehicle perimeter. Alternatively, single or dual camera views can be displayed and recorded based on preference or operational requirements.

How does 0 Lux with 4 IR LEDs perform in complete darkness?

The camera's 0 Lux minimum illumination with 4 infrared LEDs provides clear visibility in complete darkness. The IR LEDs emit invisible infrared light that the CMOS sensor detects, delivering usable images during night-time operations, underground parking, or unlit loading areas where no ambient lighting exists. The 81dB dynamic range and 38dB signal-to-noise ratio ensure clear image quality in challenging lighting conditions.

What Micro SD card is recommended for DVR recording?

Use Class 10 or UHS-I rated Micro SD cards up to 128GB maximum capacity for reliable DVR recording. Higher-speed cards ensure smooth H.264 MP4 recording without dropped frames. A 64GB card typically stores 8-12 hours of footage before loop recording overwrites oldest files. Format the card in the monitor before first use for optimal compatibility and performance.
