AUTOBACS HD74WK - 7 Inch High Res Wireless System

AUTOBACS HD74WK - 7 Inch High Res Wireless System

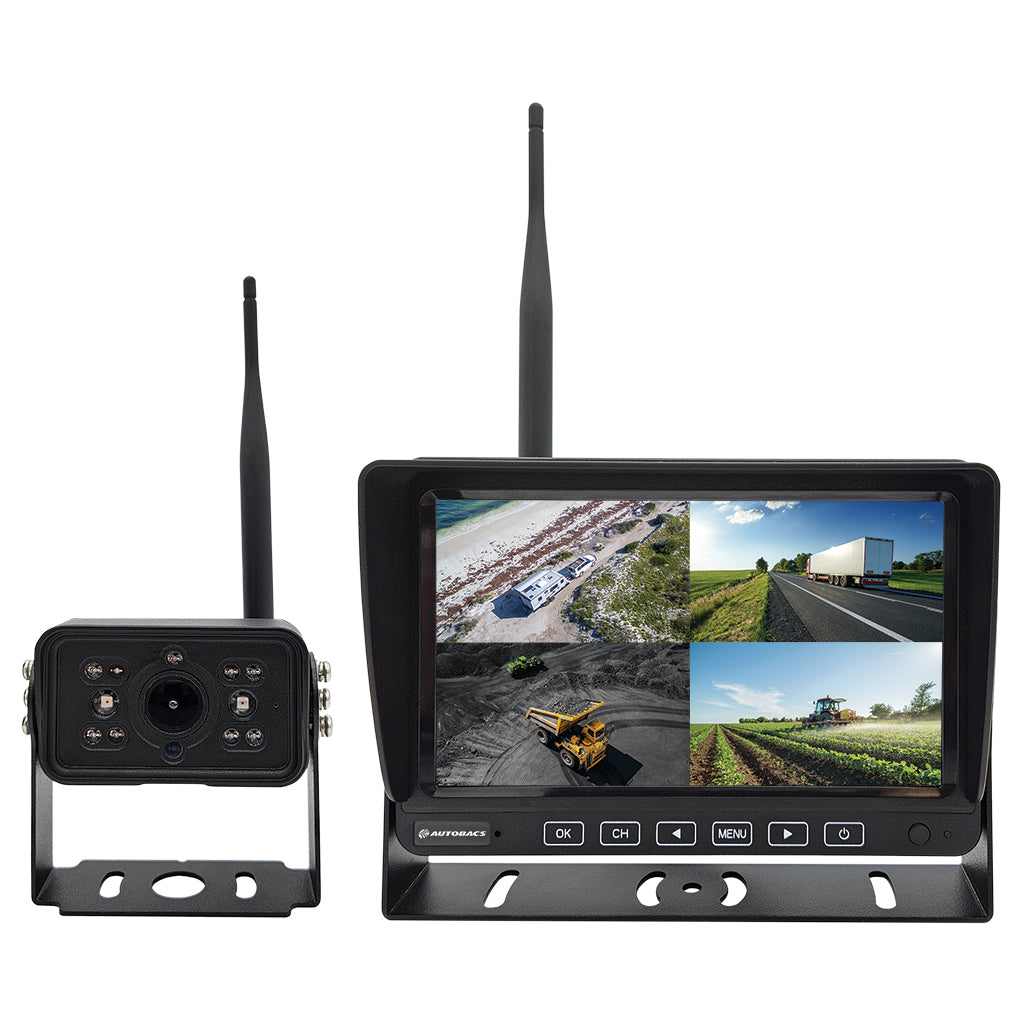

Complete 7-inch high-resolution wireless reversing system featuring 1024 x 600 monitor with quad-view functionality supporting up to 4 cameras, Starlight HD 1920 x 1080 wireless camera with audio capabilities, IP69K rating, 2.4GHz transmission, and 10-32V DC power compatibility.

Product Overview

The AUTOBACS HD74WK 7-inch high-resolution wireless reversing system enhances driving safety through complete wireless solution featuring top-of-the-line camera with audio capabilities, providing crystal-clear visuals even in low light conditions. With quad view functionality, the system allows pairing up to 4 wireless cameras enabling monitoring of multiple angles for complete visibility of vehicle surroundings. The system includes professional 7-inch monitor with 1024 x 600 resolution, 800:1 contrast, 500cd/m2 brightness, and 85° viewing angles in all directions. The monitor supports NTSC and PAL video decoding with 2.412-2.4835 GHz wireless operating frequency, maximum 180ms time delay, single/split screen/quad viewing options, and selectable on/off reversing guidelines. The included Starlight HD camera features 1/2.9-inch image sensor delivering 1920 x 1080 active pixel array with 1000 TV lines resolution, 120° diagonal viewing angle with 103° horizontal coverage, IP69K waterproof rating, 0.1 Lux minimum illumination capability, and 2.412-2.4835GHz wireless transmission with 20dBm transmitter power. Both monitor and camera operate on 10-32V DC power supply supporting 12V and 24V systems, with monitor consuming less than 400mA at 12V and camera less than 300mA at 12V. Operating across -20°C to +70°C temperature range with -30°C to +80°C storage temperature tolerance, the monitor measures 179mm x 122mm x 28mm excluding mount and sunvisor or 197mm x 137mm x 63mm including mount and sunvisor, while camera measures 79mm x 49mm x 54mm excluding mount. Complete system includes monitor, camera, sunshade for glare reduction, U-bracket for mounting, wiring harness, camera DC power cable, and antennas for wireless transmission.

Key Features

Complete Wireless Reversing System - Comprehensive wireless solution eliminating complex cable routing required by traditional wired installations, featuring 2.4GHz wireless transmission between camera and monitor with maximum 180ms time delay, supporting up to 4 wireless cameras for complete perimeter monitoring without permanent cable installation through vehicle structure for simplified installation and maintenance.

Quad View Multi-Camera Support - Advanced quad view functionality supporting up to 4 wireless cameras with selectable viewing options including single camera view, split screen dual view, or quad view displaying all cameras simultaneously, enabling comprehensive monitoring of rear, side, and front approaches with flexible display configuration based on operational requirements for enhanced safety awareness.

Starlight HD Camera Performance - Premium 1/2.9-inch Starlight HD image sensor delivering 1920 x 1080 active pixel array with 1000 TV lines resolution and 0.1 Lux minimum illumination capability, providing crystal-clear visuals even in low light conditions with 120° diagonal viewing angle, audio capabilities, IP69K waterproof protection, and wireless transmission for demanding commercial and recreational vehicle applications.

IP69K Heavy-Duty Camera Protection - Industry-leading IP69K waterproof rating on camera providing maximum protection against high-pressure water jets, steam cleaning operations, dust ingress, and complete water submersion, delivering reliable performance throughout the harshest weather conditions and most demanding cleaning procedures for commercial vehicles, trucks, caravans, and construction equipment.

12V/24V System Compatibility - Universal 10-32V DC power supply compatibility across both monitor and camera supporting 12V systems common in cars, caravans, and light commercial vehicles, and 24V systems typical in trucks and heavy equipment, with monitor consuming less than 400mA at 12V and camera less than 300mA at 12V for efficient operation across various vehicle electrical platforms.

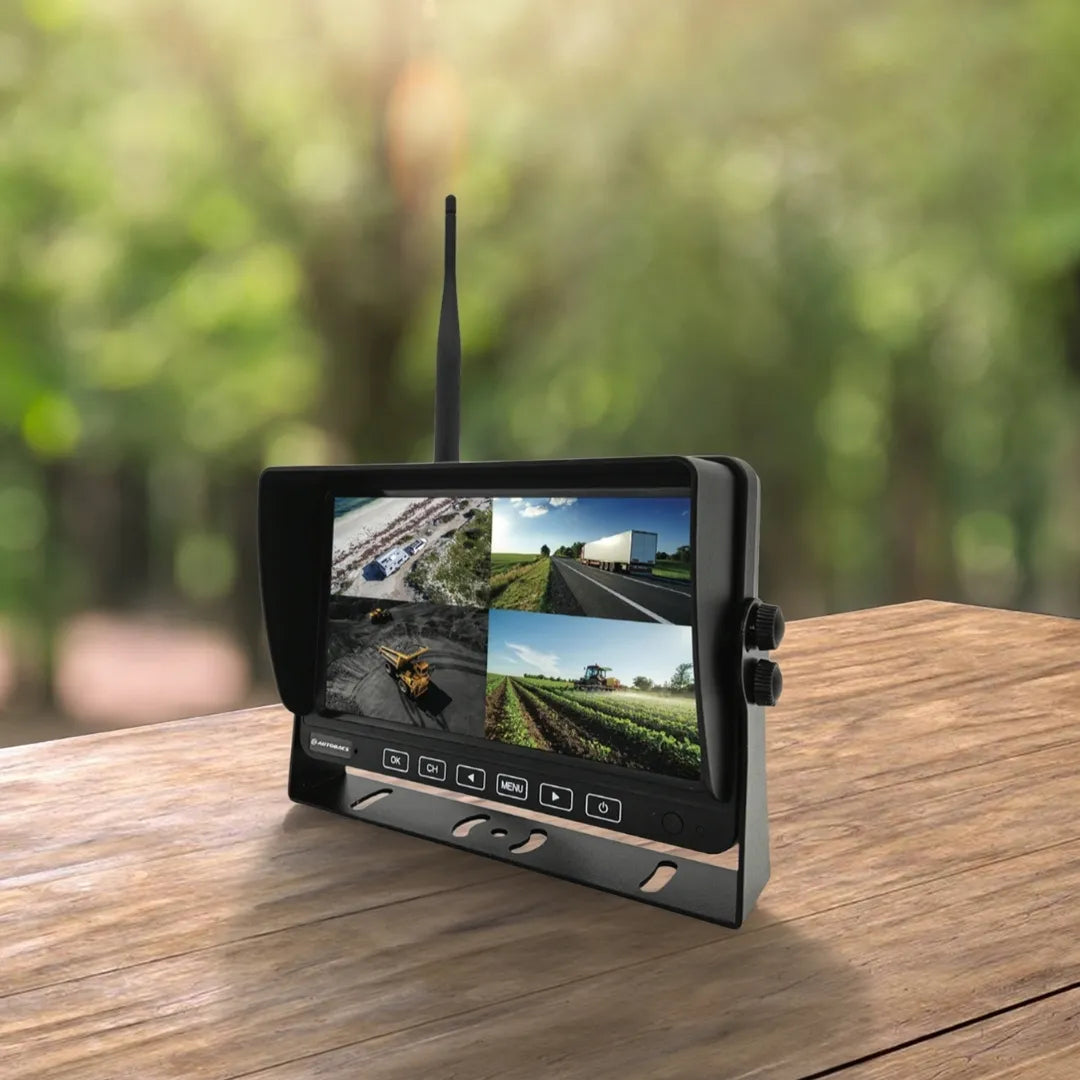

High-Resolution Monitor Display - Professional 7-inch monitor featuring 1024 x 600 resolution with 800:1 contrast ratio and 500cd/m2 brightness, delivering clear image quality with 85° viewing angles in all directions, NTSC and PAL video decoding, selectable reversing guidelines, and comprehensive viewing options including single, split screen, and quad display configurations for optimal monitoring flexibility.

Technical Specifications

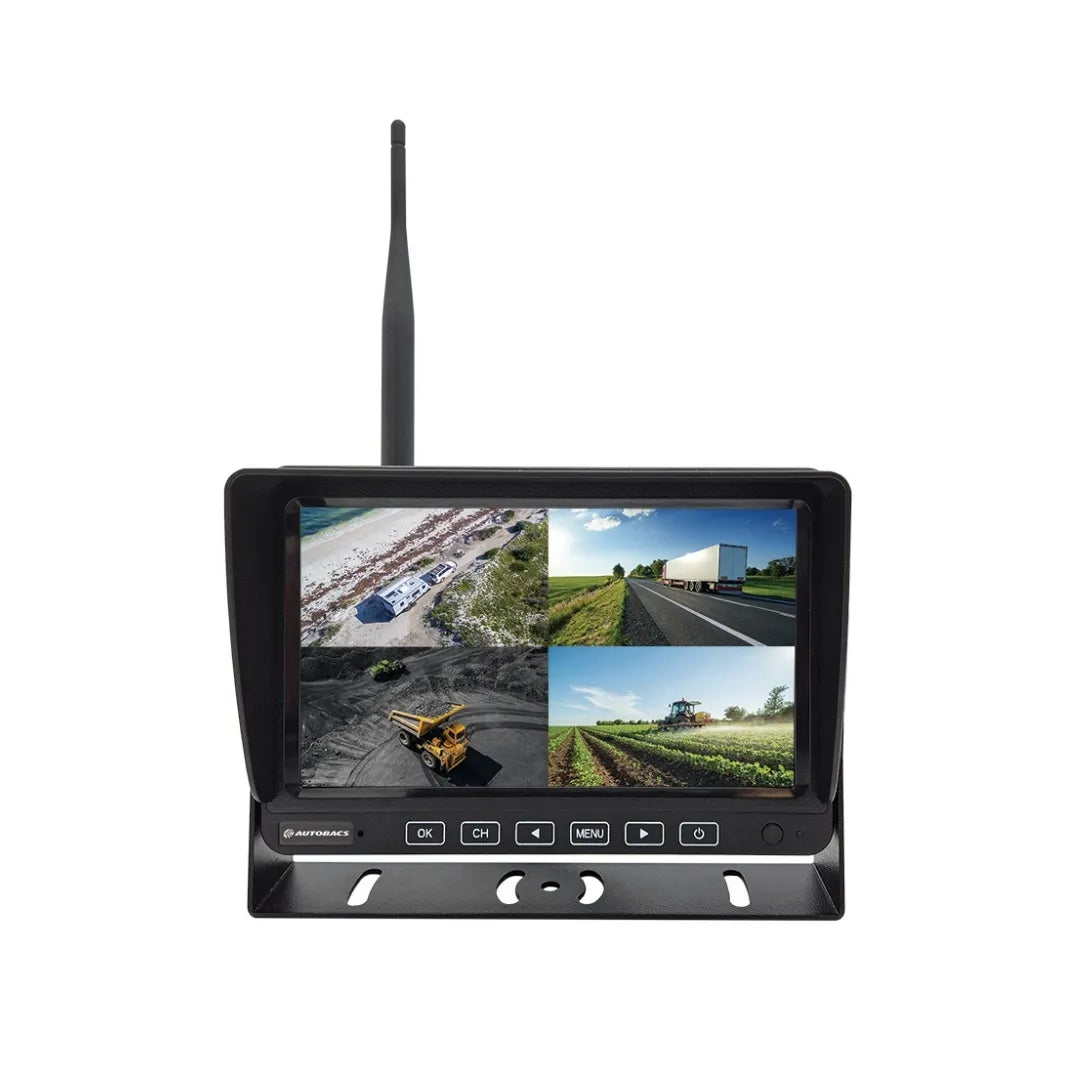

Monitor Specifications

• Video Decoding: NTSC and PAL
• Cameras Supported: Up to 4 cameras
• Resolution: 1024 x 600
• Contrast: 800:1
• Brightness: 500cd/m2
• Viewing Angle: 85° Left/Right/Up/Down
• Viewing Options: Single/Split Screen/Quad
• Reversing Guidelines: Selectable On/Off
• Operating Frequency: 2.412-2.4835 GHz
• Time Delay: 180ms max
• Operating Voltage: 10-32V DC
• Current Consumption: <400mA at 12V
• Operating Temperature: -20°C to +70°C
• Storage Temperature: -30°C to +80°C
• Dimensions (Excluding Mount & Sunvisor): 179mm x 122mm x 28mm
• Dimensions (Including Mount & Sunvisor): 197mm x 137mm x 63mm

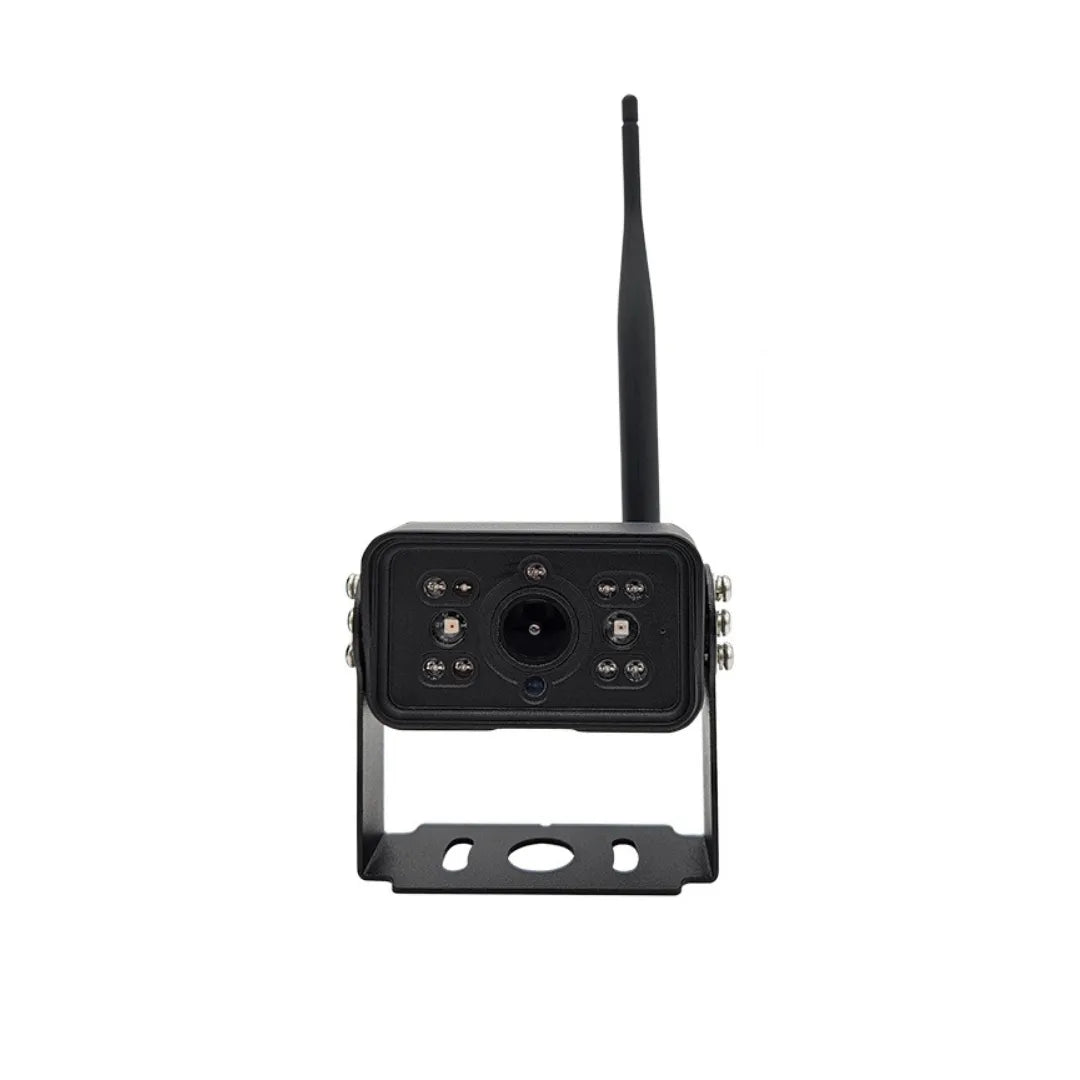

Camera Specifications

• Image Sensor: 1/2.9 inch Starlight HD
• Active Pixel Array: 1920 x 1080
• Viewing Angle: 120° Diagonal, 103° Horizontal
• Resolution: 1000 TV lines
• IP Rating: IP69K
• Minimum Illumination: 0.1 Lux
• Operating Frequency: 2.412-2.4835GHz
• Transmitter Power: 20dBm
• Operating Voltage: 10-32V DC
• Current Consumption: <300mA at 12V
• Operating Temperature: -20°C to +70°C
• Storage Temperature: -30°C to +80°C
• Dimensions (Excluding Mount): 79mm x 49mm x 54mm

Included Components

• Monitor
• Camera
• Sunshade
• U-Bracket
• Wiring Harness
• Camera DC Power Cable
• Antennas

Frequently Asked Questions

How does wireless transmission compare to wired camera systems?

The HD74WK's 2.4GHz wireless transmission with maximum 180ms time delay provides reliable signal transmission without complex cable routing through vehicle structure, eliminating cable damage from trailer articulation and simplifying installation. The system supports up to 4 wireless cameras, making it ideal for caravans, trucks, and applications where running cables would be difficult or impossible, while maintaining clear image quality with minimal latency.

Can I add additional cameras to the system later?

Yes, the HD74WK monitor supports up to 4 wireless cameras operating on 2.412-2.4835GHz frequency. You can start with the included camera and add compatible FHD74W wireless cameras later as needed, enabling gradual system expansion for comprehensive perimeter monitoring including rear, side, and front camera positions without requiring additional monitors or system replacement.

What does Starlight HD sensor mean for low-light performance?

The Starlight HD 1/2.9-inch sensor with 0.1 Lux minimum illumination delivers crystal-clear visuals even in low light conditions, capturing usable images during dawn, dusk, night-time operations, underground parking, or covered loading areas where standard cameras produce grainy unclear images. This advanced sensor technology ensures safe reversing operations regardless of ambient lighting conditions.

How does the quad view functionality work?

Quad view displays all 4 connected wireless cameras simultaneously on the 7-inch screen in split quadrant layout, enabling operators to monitor rear, both sides, and front approaches simultaneously without switching between individual camera views. Alternative viewing options include single camera full-screen view or split screen dual view, selectable based on operational requirements and monitoring preferences.

Is the wireless signal affected by vehicle metal structures?

The 2.4GHz wireless transmission with 20dBm transmitter power provides strong signal penetration through typical automotive installation environments. The included antennas ensure reliable signal transmission between cameras and monitor across normal vehicle mounting distances. Proper antenna positioning and avoiding extreme metal shielding between camera and monitor locations ensures optimal wireless performance with maximum 180ms latency suitable for reversing operations.
