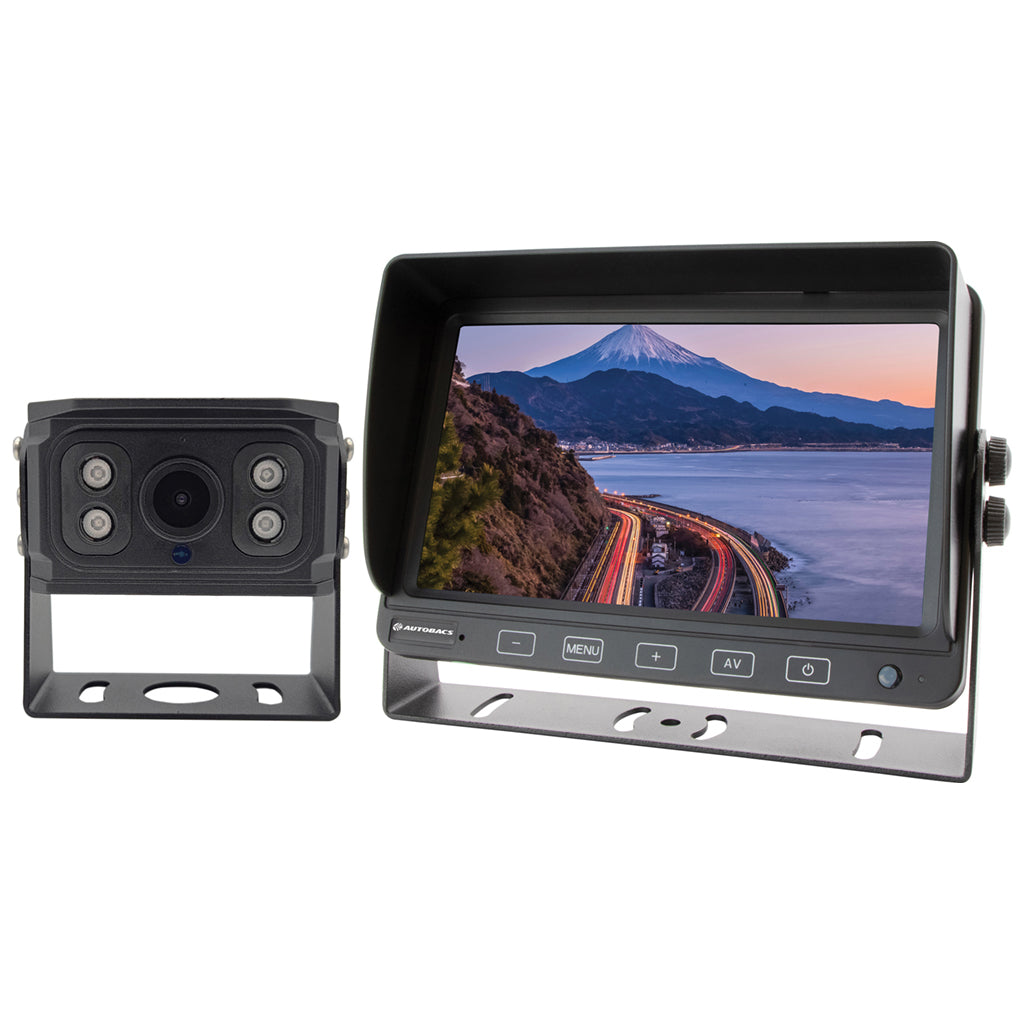

Autobacs HD5120K 5" High Definition Dual Camera Reverse Monitor Kit

Professional-grade reversing vision for heavy-duty applications

The Autobacs HD5120K delivers crystal-clear reversing vision through its 5-inch high-resolution display and included 1080p camera system. Engineered for trucks, machinery, and commercial vehicles, this heavy-duty monitor kit operates reliably across 12V and 24V systems. The kit supports dual camera inputs, allowing operators to monitor multiple angles simultaneously for enhanced safety and productivity.

Built with Grade A LCD technology and 1024 x 600 resolution, the monitor provides sharp image quality in all lighting conditions. The included HD camera features 120° diagonal viewing angle with infrared night vision capability, ensuring clear vision during night operations or in poorly lit areas.

Key Specifications

• Monitor: 5-inch Grade A LCD display with 1024 x 600 resolution
• Camera: 1080p resolution with 1/2.9" sensor and 120° viewing angle
• Power compatibility: 10-32V DC input supports both 12V and 24V systems
• Dual camera inputs with universal 4-pin configuration
• IP68 waterproof rating for camera unit
• Operating temperature range: -20°C to +70°C
• Night vision: 4 infrared LEDs with 0.01 Lux sensitivity
• Audio capability: Integrated speaker and microphone
• Complete kit includes 15m extension cable

Features & Benefits

• Heavy-duty construction - Built for demanding commercial and industrial environments including trucks, excavators, and agricultural machinery
• Dual camera capability - Connect up to two cameras for comprehensive coverage of blind spots and multiple vehicle zones
• Universal voltage compatibility - Works seamlessly with both 12V passenger vehicles and 24V commercial trucks and machinery
• Professional night vision - Four infrared LEDs provide clear visibility during night operations and in underground or covered work areas
• Weatherproof design - IP68-rated camera withstands pressure washing, dust storms, and extreme Australian conditions
• Flexible image control - Normal/mirror/flip options accommodate various mounting configurations and operator preferences
• Touch-sensitive operation - Intuitive controls allow quick adjustments while wearing work gloves

Technical Specs

• Monitor dimensions: 132.2mm W × 94.3mm H × 22.45mm D (excluding bracket and visor)
• Camera dimensions: 77.2mm W × 48.2mm H × 65.2mm D (excluding bracket)
• Display brightness: <500 CD/M²
• Viewing angles: 70° in all directions
• Video system: Auto PAL/NTSC selection
• Camera power consumption: <3W
• Maximum current draw: <250mA
• Connection type: Universal 4-pin male/female configuration
• Cable length: 15m heavy-duty extension included

Frequently Asked Questions

**Will this work with my 24V truck? ** Yes, the HD5120K accepts 10-32V DC input, making it compatible with both 12V and 24V electrical systems commonly found in commercial vehicles.

**How many cameras can I connect? ** The monitor supports up to 2 cameras simultaneously with independent switching and delay controls for each input.

**Is the camera waterproof enough for truck washing? ** The camera has IP68 ingress protection rating, making it fully sealed against high-pressure washing and submersion.

**Does it work in complete darkness? ** Yes, the camera includes 4 infrared LEDs providing clear night vision down to 0.01 Lux illumination levels.

**What's included in the complete kit? ** Monitor with bracket and sun visor, HD camera, power/trigger harness, 15m extension cable, and all mounting hardware.

Compatible With

• Heavy-duty trucks (Kenworth, Mack, Volvo, Isuzu)
• Construction machinery (excavators, loaders, graders)
• Agricultural equipment (tractors, harvesters, spray rigs)
• Caravans and motorhomes requiring 12V operation
• Mining vehicles and equipment
• Bus and coach applications
• Additional HD series cameras for expanded coverage
• Camera extension cables for longer runs
