AUTOBACS FHD74W - HD74WK Wireless Camera

AUTOBACS FHD74W - HD74WK Wireless Camera

Heavy-duty wireless camera featuring 1/2.9" Starlight HD sensor, 1920 x 1080 resolution, 120° diagonal viewing angle, IP69K waterproof rating, built-in microphone, 2.4GHz wireless transmission, and 10-32V DC power compatibility for trucks and caravans.

Product Overview

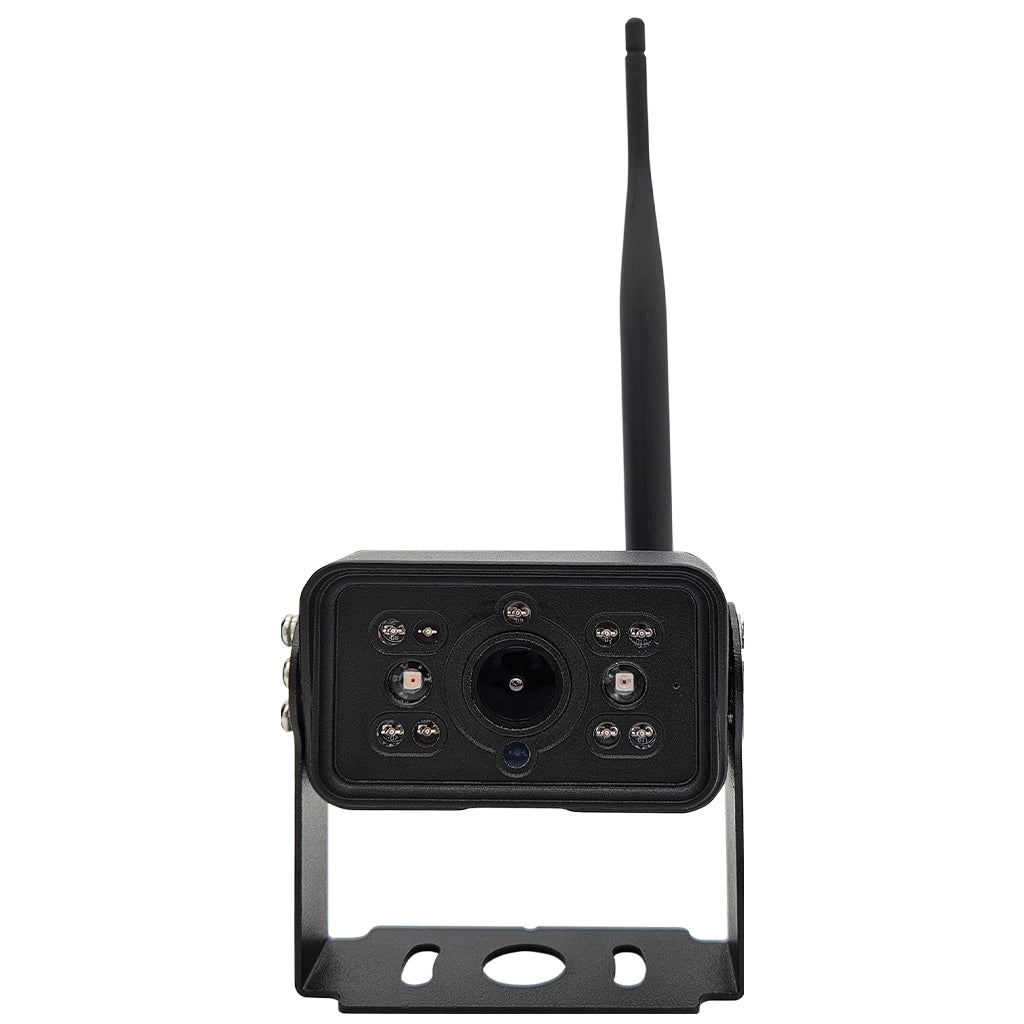

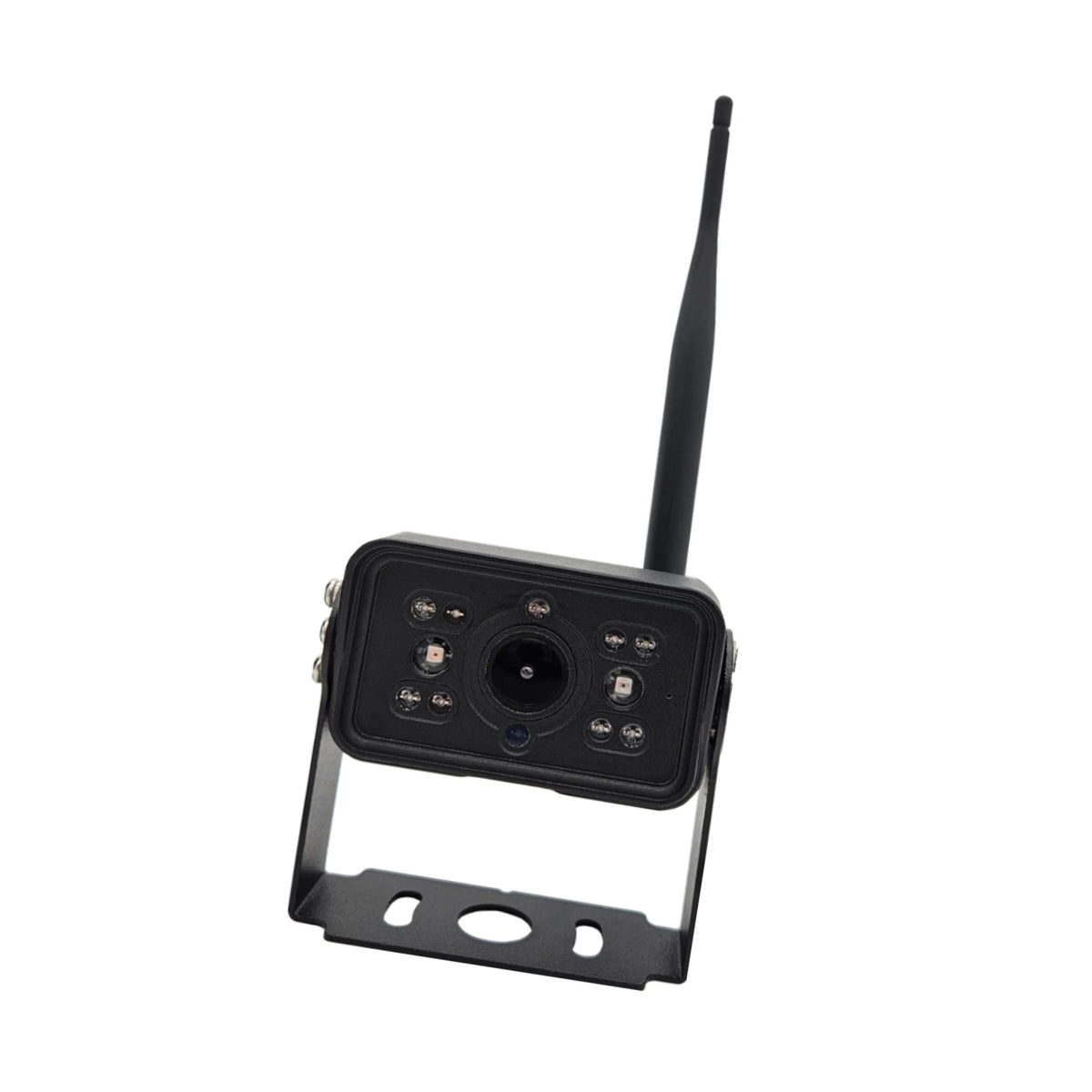

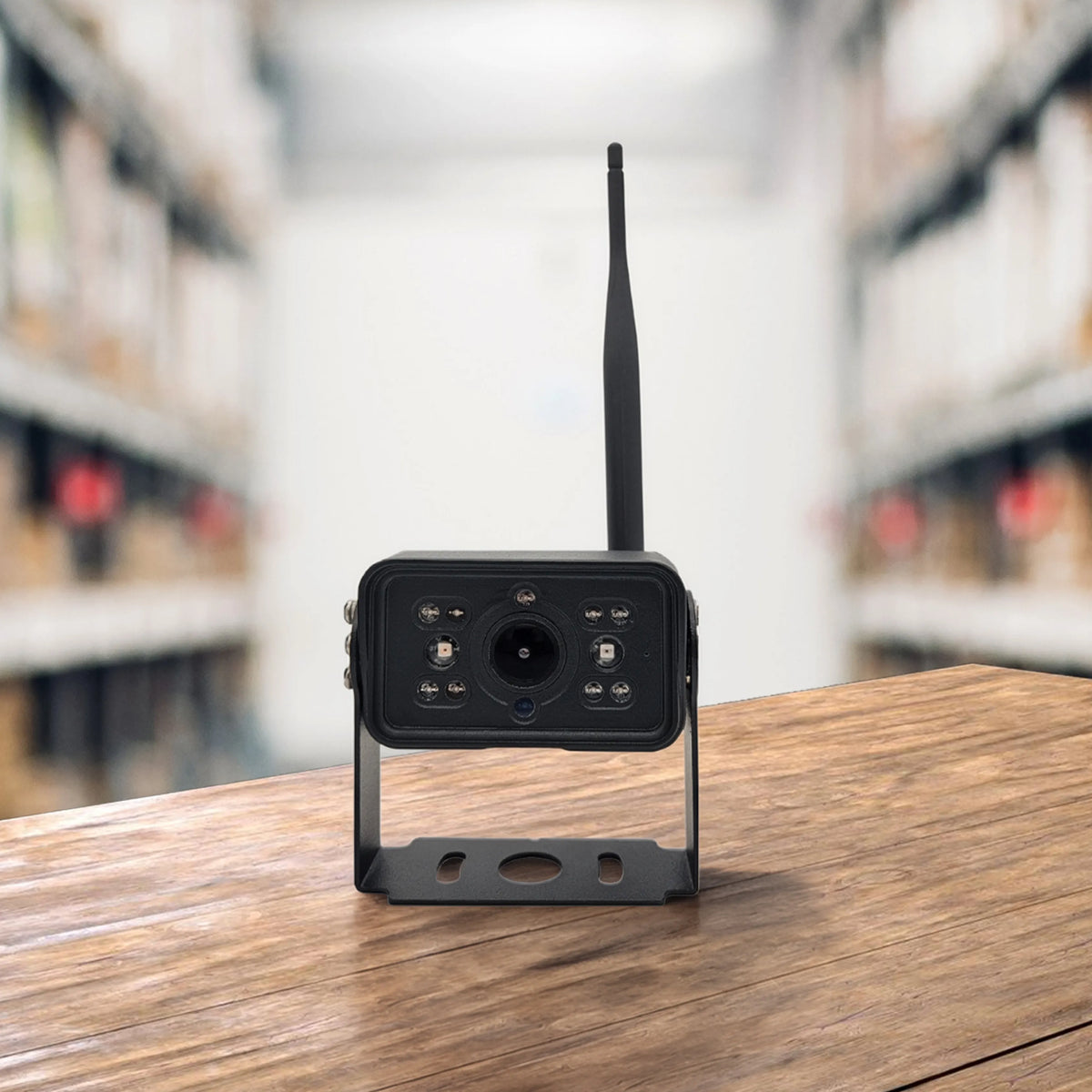

The AUTOBACS FHD74W is a heavy-duty wireless camera designed for compatibility with the HD74WK wireless reversing system, operating on 12/24V power supply and built to withstand tough conditions. This professional-grade wireless camera system features a 1/2.9-inch Starlight HD image sensor providing 1920 x 1080 active pixel array with 1000 TV lines resolution for clear image quality. The 120° diagonal viewing angle with 103° horizontal coverage provides comprehensive rear visibility when reversing. Engineered with IP69K waterproof rating, this camera withstands the most demanding conditions including high-pressure water jets, steam cleaning, and extreme weather exposure for reliable performance in commercial vehicle, truck, and caravan applications. The advanced 0.1 Lux minimum illumination capability ensures clear visibility during night-time or low-light reversing operations. The wireless transmission system operates on 2.412-2.4835GHz frequency with 20dBm transmitter power, eliminating complex cable routing required by traditional wired camera installations. A key feature is the built-in microphone enabling audio recording alongside visual observation for complete situational awareness. The heavy-duty construction measures 79mm x 49mm x 54mm excluding mount, designed specifically for demanding truck and caravan installations. Operating across 10-32V DC power supply compatibility spanning 12V and 24V systems with less than 400mA current consumption at 12V, functioning across -20°C to +70°C operating temperature range with -30°C to +80°C storage temperature tolerance for reliable operation across extreme Australian climates.

Key Features

Starlight HD Image Sensor - Premium 1/2.9-inch Starlight HD image sensor delivering 1920 x 1080 active pixel array with 1000 TV lines resolution, providing clear image quality and enhanced view when reversing with 0.1 Lux minimum illumination capability for reliable performance during night-time or low-light operations across demanding commercial vehicle applications.

Wireless 2.4GHz Transmission - Advanced wireless transmission system operating on 2.412-2.4835GHz frequency with 20dBm transmitter power, eliminating complex cable routing required by traditional wired installations, providing reliable signal transmission between camera and HD74WK wireless receiver while simplifying installation in trucks, caravans, and commercial vehicles.

IP69K Heavy-Duty Protection - Industry-leading IP69K waterproof rating providing maximum protection against high-pressure water jets, steam cleaning operations, dust ingress, and complete water submersion, delivering reliable performance throughout the toughest conditions and most demanding cleaning procedures for heavy-duty commercial vehicle, truck, and caravan applications.

12V/24V Power Compatibility - Versatile 10-32V DC power supply compatibility spanning both 12V and 24V electrical systems common in commercial vehicles, trucks, caravans, and heavy equipment, consuming less than 400mA current at 12V for efficient operation across various vehicle platforms without requiring voltage-specific camera variants.

Wide 120° Viewing Coverage - Comprehensive 120° diagonal viewing angle with 103° horizontal coverage providing extensive rear visibility when reversing, capturing adjacent lanes, loading dock approaches, trailer connections, and peripheral obstacles for enhanced safety during reversing operations in trucks, caravans, and commercial vehicles.

Built-In Audio Recording - Integrated microphone enabling audio recording alongside visual observation for complete situational awareness during reversing operations, allowing operators to hear warning calls from ground personnel, environmental sounds, obstacle alerts, or verbal directions that visual monitoring alone cannot detect for enhanced safety coordination.

Technical Specifications

Image Performance

• Image Sensor: 1/2.9 inch Starlight HD
• Active Pixel Array: 1920 x 1080
• Resolution: 1000 TV lines
• Minimum Illumination: 0.1 Lux

Viewing Angles

• Diagonal Viewing Angle: 120°
• Horizontal Viewing Angle: 103°

Wireless Transmission

• Operating Frequency: 2.412-2.4835GHz
• Transmitter Power: 20dBm

Audio

• Built-In Microphone: Yes

Construction & Protection

• IP Rating: IP69K
• Dimensions (Excluding Mount): 79mm x 49mm x 54mm

Environmental Specifications

• Operating Temperature: -20°C to +70°C
• Storage Temperature: -30°C to +80°C

Electrical Specifications

• Operating Voltage: 10-32V DC
• Current Consumption: <400mA at 12V

Compatibility

• System Compatibility: HD74WK wireless reversing system
• Vehicle Applications: Trucks, caravans, commercial vehicles

Frequently Asked Questions

Is this camera compatible with 24V truck electrical systems?

Yes, the FHD74W features 10-32V DC power supply compatibility, supporting both 12V systems common in cars and caravans, and 24V systems typical in commercial trucks and heavy equipment. This eliminates the need for voltage converters or specific camera variants, simplifying installation across diverse vehicle fleets with varying electrical system specifications.

How does wireless transmission compare to wired camera reliability?

The FHD74W's 2.4GHz wireless transmission with 20dBm transmitter power provides reliable signal transmission between camera and HD74WK receiver without the complex cable routing required by wired installations. Wireless eliminates cable damage from trailer articulation, reduces installation time, and simplifies maintenance while delivering consistent signal quality across typical truck and caravan mounting distances.

What makes IP69K rating essential for truck and caravan applications?

IP69K is the highest ingress protection rating, providing maximum protection against high-pressure water jets up to 1450 PSI and temperatures up to 80°C, essential for commercial trucks and caravans that undergo regular high-pressure washing, steam cleaning, or operation in harsh weather conditions including heavy rain, dust storms, and extreme temperatures typical in Australian commercial vehicle operations.

Can this camera work in low-light or night-time conditions?

Yes, the FHD74W's Starlight HD sensor with 0.1 Lux minimum illumination delivers clear visibility during night-time reversing, low-light loading dock operations, underground parking structures, or unlit work sites. The advanced sensor technology captures usable images in lighting conditions where standard cameras produce grainy or unclear images, ensuring safe reversing operations regardless of ambient lighting.

Does the wireless camera require the HD74WK system to function?

Yes, the FHD74W is specifically designed for compatibility with the HD74WK wireless reversing system. The camera transmits video and audio signals wirelessly on 2.412-2.4835GHz frequency to the HD74WK receiver unit, which then displays the image on your compatible monitor. This integrated system approach ensures reliable wireless performance and simplified installation compared to universal wireless camera solutions.
