AUTOBACS FHD20 - FHD Wide Angle Camera

AUTOBACS FHD20 - FHD Wide Angle Camera

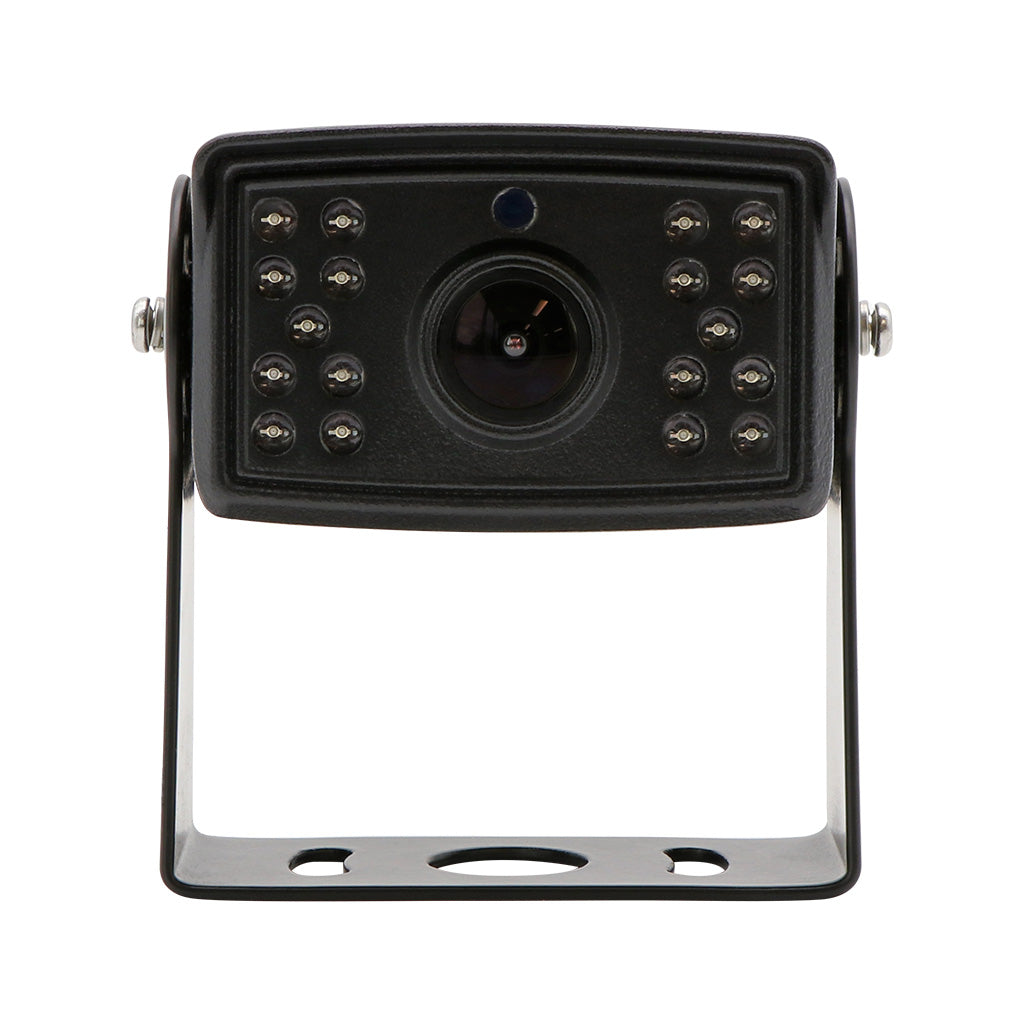

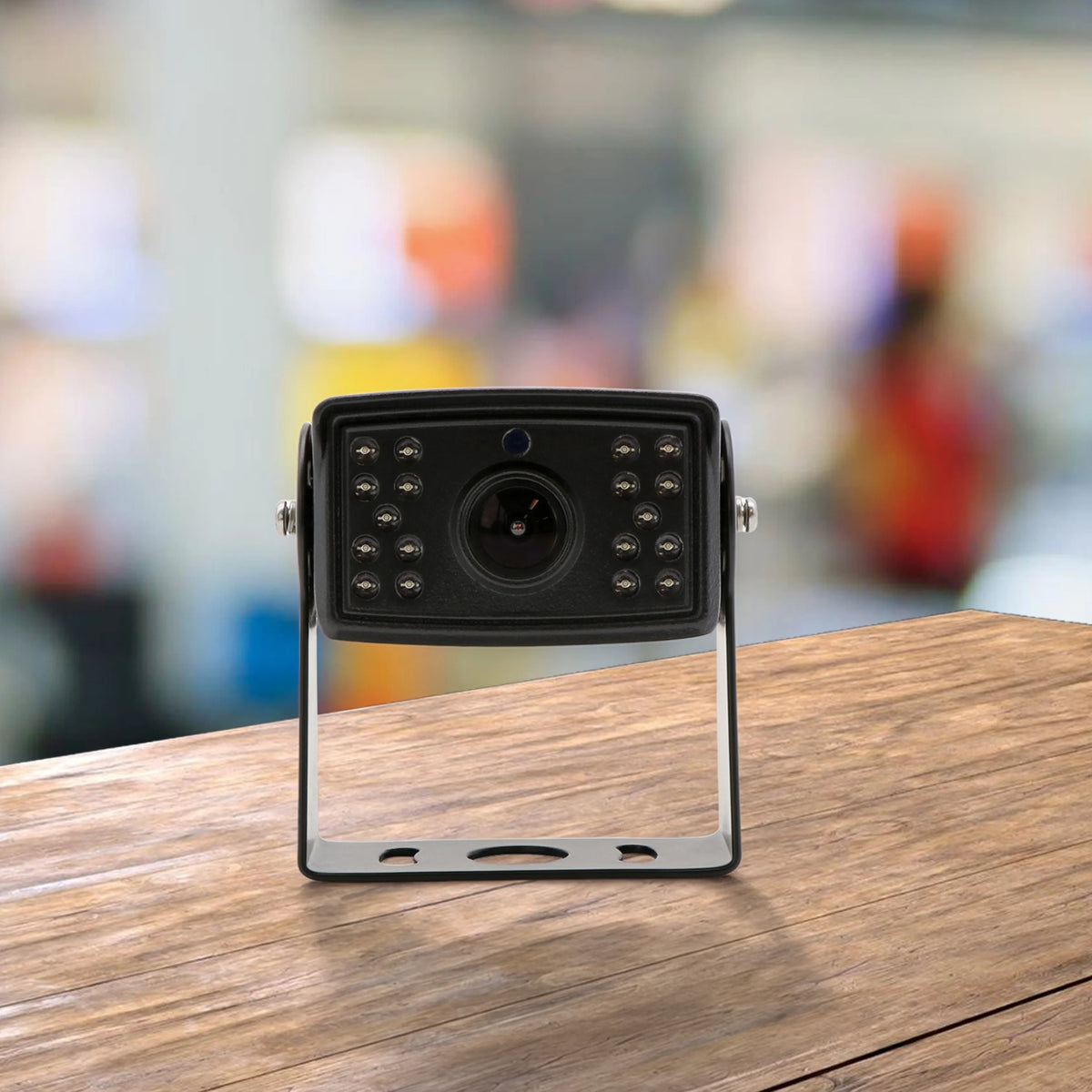

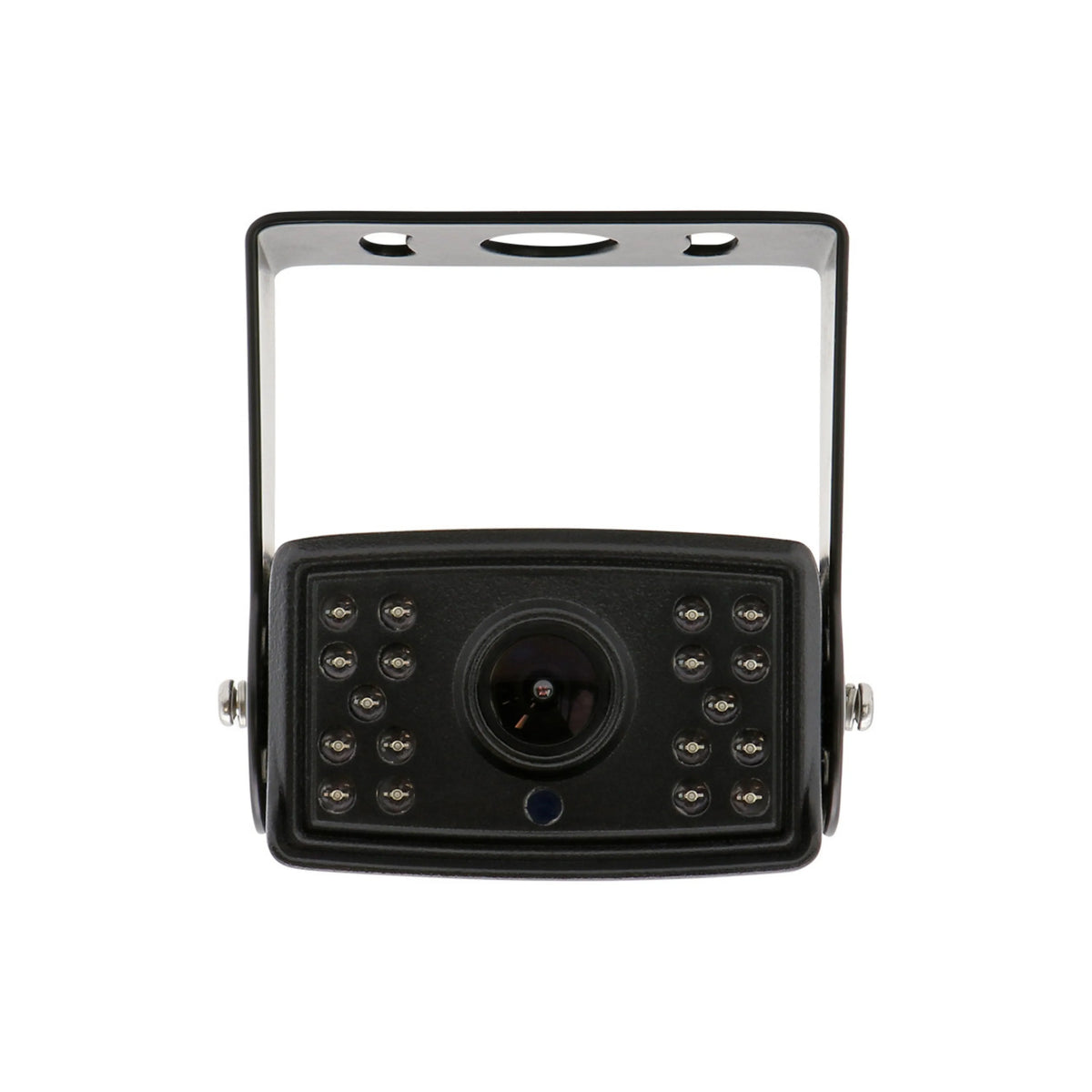

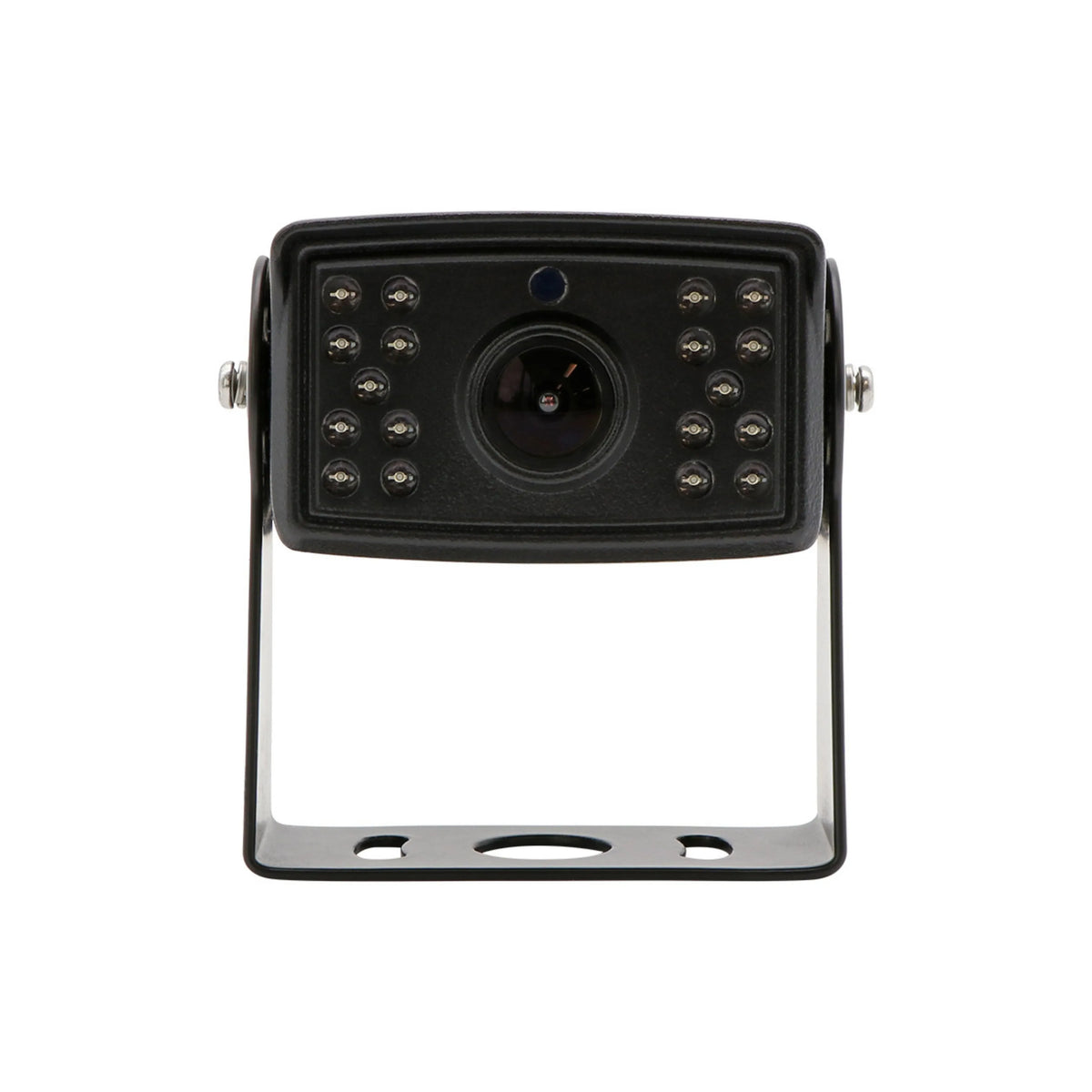

Heavy-duty 1080p wide-angle camera featuring SONY IMX307 1/2.8" CMOS sensor, 145° diagonal viewing angle, IP69K high weatherproof rating, integrated microphone, 18 infrared LEDs for night vision, and universal 4-pin male connection for high-resolution monitor compatibility.

Product Overview

The AUTOBACS FHD20 FHD Wide Angle Camera delivers heavy-duty performance with crystal-clear image quality designed for harsh weather conditions and demanding automotive applications. This professional-grade camera system features a premium SONY IMX307 1/2.8" CMOS image sensor providing 1920 x 1080 effective pixel resolution with 1080p performance and PAL signal system compatibility. The expansive 145° diagonal viewing angle with 125° horizontal viewing angle provides wide-view coverage for enhanced visibility and awareness of surroundings across broader fields of view. Engineered with IP69K high weatherproof rating, this heavy-duty camera withstands the most demanding conditions including high-pressure water jets, steam cleaning, and extreme temperature exposure for reliable performance in commercial vehicle, construction equipment, and agricultural machinery applications. The integrated 18 infrared LED night vision system delivers 0.1 Lux illumination capability ensuring clear visibility during night-time or low-light operations. A key feature is the integrated microphone enabling audio monitoring alongside visual observation for complete situational awareness. The heavy-duty construction measures 76mm width x 47.2mm height x 72.2mm depth excluding bracket, providing robust installation in demanding environments. Operating across -20°C to 70°C temperature range with less than 3W power consumption and less than 250mA maximum current draw from 12V DC supply, this camera connects through universal standard 4-pin male connection for straightforward integration with compatible high-resolution display systems.

Key Features

Premium SONY Wide-Angle Sensor - Professional SONY IMX307 1/2.8" CMOS image device delivering exceptional 1920 x 1080 effective pixel resolution with 1080p performance and PAL signal system compatibility, featuring expansive 145° diagonal viewing angle with 125° horizontal viewing angle providing wide-view coverage that minimizes blind spots and delivers enhanced visibility for superior situational awareness in demanding applications.

IP69K High Weatherproof Rating - Industry-leading IP69K ingress protection rating providing maximum protection against high-pressure water jets, steam cleaning operations, dust ingress, and complete water submersion, delivering reliable performance throughout the harshest weather conditions and most demanding cleaning procedures for heavy-duty commercial vehicle, construction equipment, and agricultural machinery applications.

Heavy-Duty Construction - Robust design engineered specifically for demanding automotive applications including commercial vehicles, construction equipment, agricultural machinery, and harsh operating environments, delivering reliable performance and long-term durability in challenging conditions with wide operating temperature tolerance from -20°C to 70°C for dependable operation across extreme Australian climates.

Advanced Night Vision System - Integrated 18 infrared LED array providing 0.1 Lux illumination capability for clear visibility during night-time operations, low-light working conditions, underground mining environments, or covered loading areas, ensuring consistent image quality regardless of ambient lighting conditions without external lighting requirements or glare issues.

Integrated Audio Monitoring - Built-in microphone enabling audio monitoring alongside visual observation for complete situational awareness during reversing operations, loading activities, or equipment operation, allowing operators to hear warning calls from ground personnel, environmental sounds, obstacle alerts, or verbal directions that visual monitoring alone cannot detect for enhanced safety coordination.

Universal 4-Pin Connection - Universal standard 4-pin male connection system providing straightforward installation compatibility with high-resolution monitors through standardized connection interface, supporting 12V DC power supply while consuming less than 3W power with maximum 250mA current draw for efficient operation across various vehicle electrical systems.

Technical Specifications

Image Performance

• Image Device: CMOS 1/2.8" SONY IMX307
• Effective Pixels: 1920 (H) x 1080 (V)
• Resolution: 1080p
• Signal System: PAL
• Sync System: Internal

Viewing Angles

• Diagonal Viewing Angle: 145°
• Horizontal Viewing Angle: 125°
• Orientation: Mirror Image

Night Vision

• Infrared LEDs: 18
• Illumination: 0.1 Lux with IR on

Audio

• Integrated Microphone: Yes

Construction & Protection

• Ingress Protection: IP69K
• Operating Temperature: -20°C to 70°C
• Dimensions (Excluding Bracket): 76mm (W) x 47.2mm (H) x 72.2mm (D)

Electrical Specifications

• Power Supply: 12V DC
• Power Consumption: <3W
• Max Current: <250mA

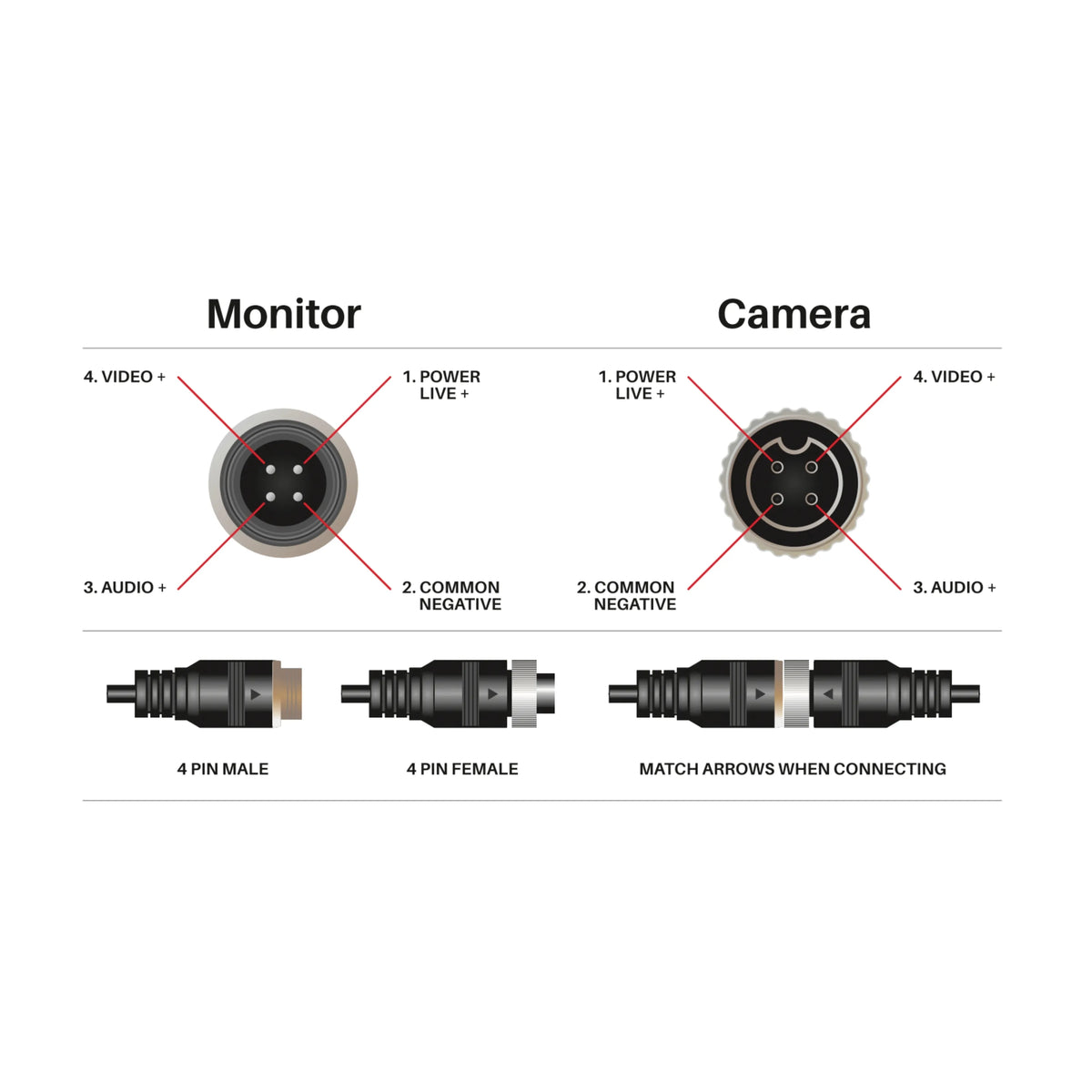

• Connection: Universal Standard 4-Pin Male

Compatibility

• Monitor Compatibility: High Resolution Monitors

Frequently Asked Questions

What makes IP69K rating superior to IP68 for heavy-duty applications?

IP69K is the highest ingress protection rating, providing maximum protection against high-pressure water jets up to 1450 PSI and temperatures up to 80°C, making it ideal for steam cleaning operations and high-pressure wash-down environments. While IP68 protects against water submersion, IP69K additionally withstands high-pressure cleaning typical in commercial vehicle, construction equipment, and food processing vehicle applications where regular high-pressure washing is required.

How does the 145° diagonal viewing angle benefit wide-angle applications?

The FHD20's expansive 145° diagonal viewing angle with 125° horizontal coverage provides significantly broader field of view compared to standard cameras, capturing adjacent lanes, loading dock approaches, equipment positioning, and peripheral obstacles that standard 110° cameras cannot see. This wide-view angle is particularly beneficial for reversing large commercial vehicles, monitoring blind spots on construction equipment, or providing comprehensive perimeter visibility on agricultural machinery.

Can this camera handle extreme Australian weather conditions?

Yes, the FHD20 features IP69K protection and operates across -20°C to 70°C temperature range, handling extreme Australian conditions including intense summer heat, tropical humidity, dust storms, heavy rain, high-pressure washing, and freezing temperatures in alpine regions. The heavy-duty construction ensures reliable operation in demanding commercial and industrial applications where standard cameras would fail.

Why is the integrated microphone important for commercial applications?

The built-in microphone enables audio monitoring alongside visual observation, allowing operators to hear warning calls from ground personnel during loading operations, reversing beepers from nearby equipment, verbal directions from spotters, hydraulic system sounds indicating mechanical issues, or environmental warnings like approaching vehicles that visual monitoring alone cannot detect, providing complete situational awareness critical for workplace safety.

What is the advantage of 18 infrared LEDs versus standard cameras?

The FHD20's 18 infrared LED array provides significantly more powerful night vision illumination compared to cameras with 4-8 LEDs, delivering clear visibility across wider areas during night-time operations, underground mining environments, covered loading docks, or unlit work sites. The increased LED count ensures even illumination distribution without dark spots or hotspot glare typical of lower LED count cameras.
