AUTOBACS FHD10 - FHD H/Duty 120° 1080p 12V Camera

AUTOBACS FHD10 - FHD H/Duty 120° 1080p 12V Camera

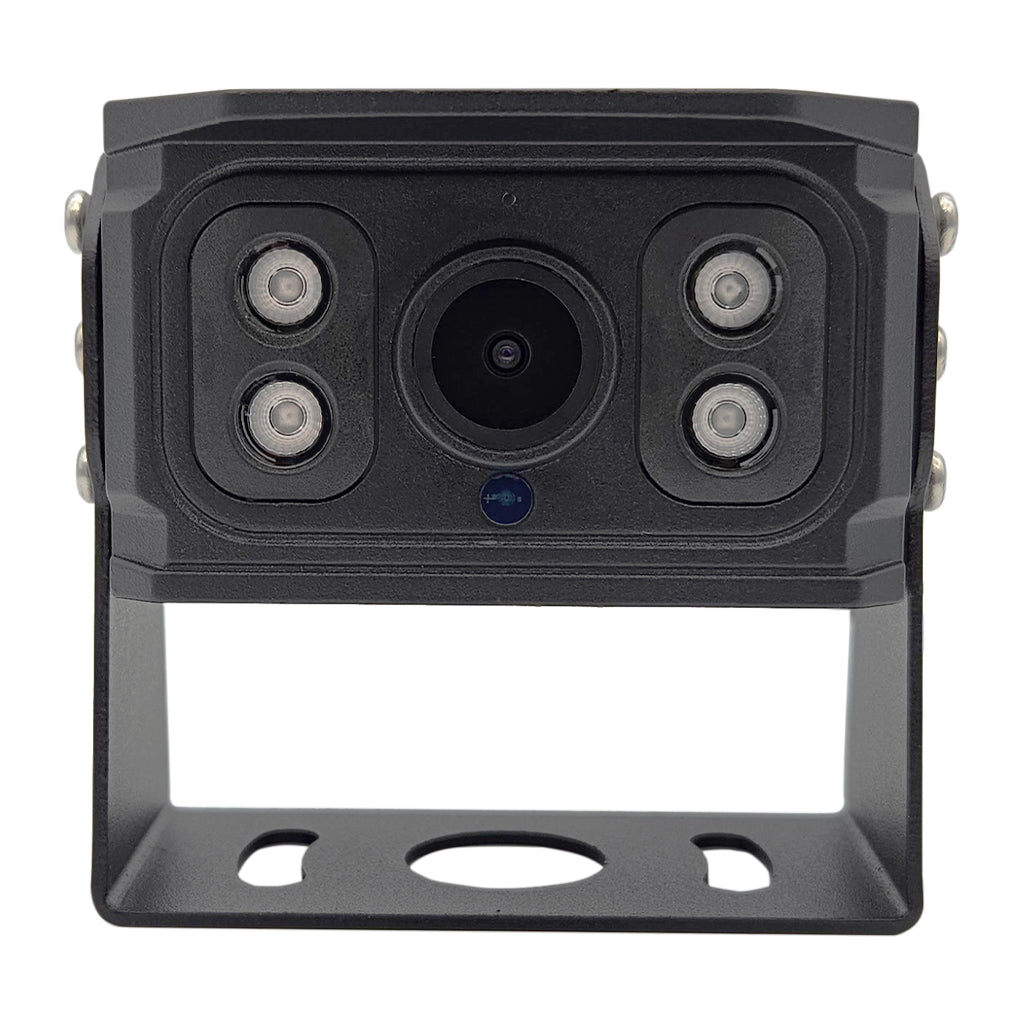

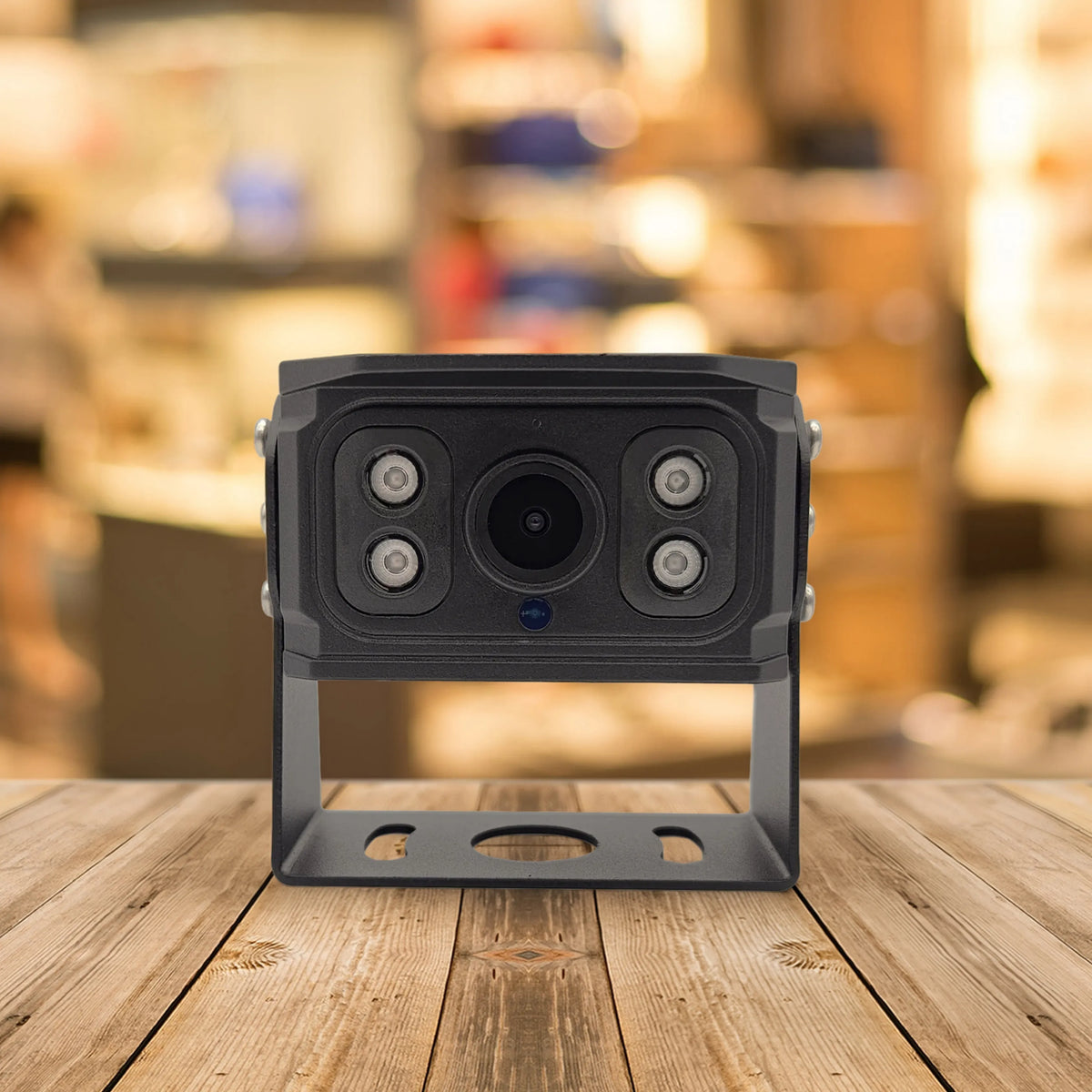

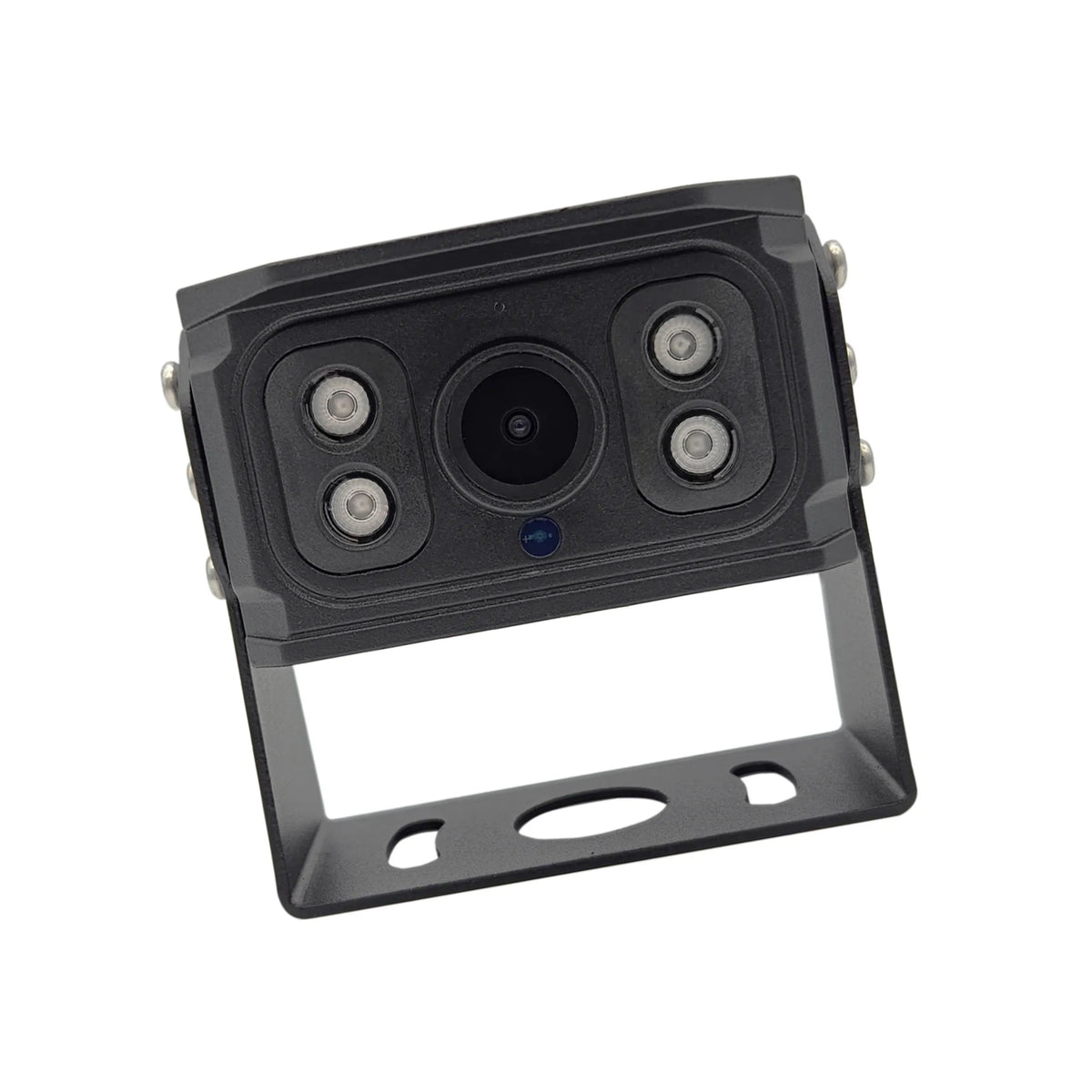

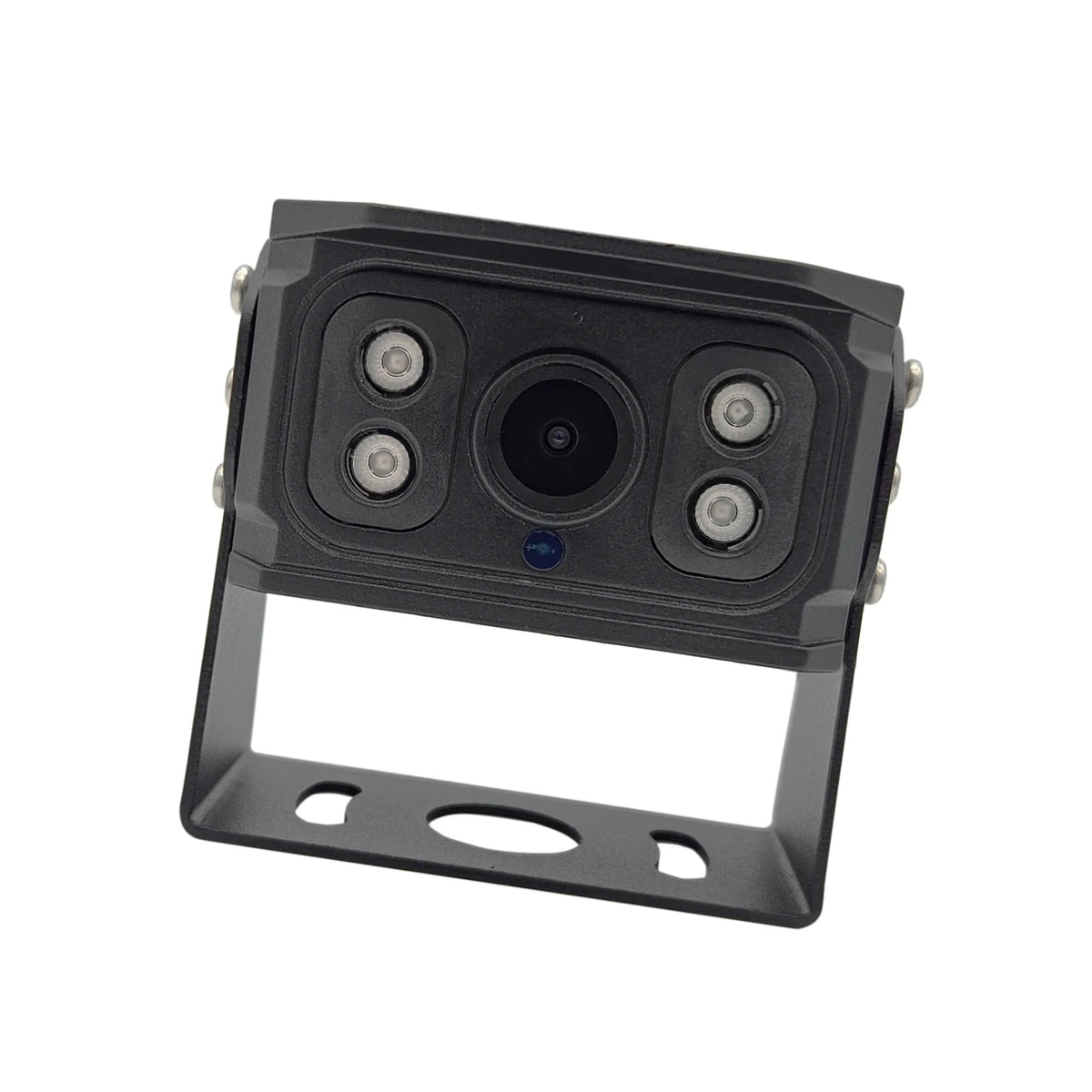

Heavy-duty 1080p rear-view camera featuring 1/2.9" PV4209K image sensor, 120° diagonal viewing angle, IP68 waterproof rating, integrated microphone, 4 infrared LEDs for night vision, and universal 4-pin connection for high-resolution monitor compatibility.

Product Overview

The AUTOBACS FHD10 FHD H/Duty rear-view camera delivers solid and durable high-definition performance designed for demanding automotive applications requiring enhanced audio-visual monitoring capabilities. This professional-grade camera system features a 1/2.9" PV4209K image sensor providing crystal-clear 1920 x 1080 effective pixel resolution with 1080P performance and PAL signal system compatibility. The expansive 120° diagonal viewing angle with 103° horizontal viewing angle provides comprehensive rear visibility coverage for enhanced reversing safety and parking accuracy across wider fields of view. Engineered with IP68 ingress protection rating, this heavy-duty camera withstands complete water submersion and dust exposure for reliable performance in all Australian weather conditions. The integrated 4 infrared LED night vision system delivers exceptional 0.01 Lux illumination capability ensuring clear visibility during night-time or low-light reversing operations. A key differentiator is the integrated microphone enabling audio monitoring alongside visual observation for complete situational awareness during reversing operations. The heavy-duty construction measures 77.2mm width x 48.2mm height x 65.2mm depth excluding bracket, providing robust installation on commercial vehicles, 4WD applications, and demanding environments. Operating across -20°C to 70°C temperature range with less than 3W power consumption and less than 250mA maximum current draw from 12V DC supply with 9-16V input tolerance, this camera connects effortlessly through universal standard 4-pin female connection for straightforward integration with compatible high-resolution HD series display systems.

Key Features

Heavy-Duty Construction - Solid and durable heavy-duty design engineered specifically for demanding automotive applications including commercial vehicles, 4WD touring, construction equipment, and harsh operating environments, delivering reliable performance and long-term durability in challenging conditions with robust IP68 waterproof protection and wide operating temperature tolerance.

Wide 120° Viewing Coverage - Expansive 120° diagonal viewing angle with 103° horizontal viewing angle providing extended rear visibility coverage that captures broader perspective including adjacent lanes, parking space boundaries, trailer connections, and loading dock environments, minimizing blind spots for enhanced safety in commercial and recreational applications.

Integrated Audio Monitoring - Built-in microphone enabling audio monitoring alongside visual observation for complete situational awareness during reversing operations, allowing drivers to hear warning calls from ground personnel, reversing beepers, obstacle alerts, or environmental sounds that visual monitoring alone cannot detect for enhanced safety coordination.

Superior Night Vision Performance - Advanced 4 infrared LED array providing exceptional 0.01 Lux illumination capability for superior low-light performance compared to standard cameras, ensuring clear visibility during night-time reversing operations, underground car parks, covered loading areas, or any challenging lighting conditions without external lighting requirements.

IP68 Waterproof Protection - Military-grade IP68 ingress protection rating ensuring complete protection against water submersion and dust ingress, delivering reliable performance throughout harsh Australian weather conditions including heavy rain, flooding, dust storms, and extreme temperatures from -20°C to 70°C for dependable operation in demanding commercial and off-road applications.

Universal 4-Pin Connection - Universal standard 4-pin female connection system providing straightforward installation compatibility with high-resolution HD series monitors through standardized connection interface, supporting 9-16V input voltage tolerance for compatibility across various vehicle electrical systems while consuming less than 3W power with maximum 250mA current draw.

Technical Specifications

Image Performance

• Image Device: 1/2.9" PV4209K
• Effective Pixels: 1920 (H) x 1080 (V)
• Resolution: 1080P
• Signal System: PAL
• Sync System: Internal

Viewing Angles

• Diagonal Viewing Angle: 120°
• Horizontal Viewing Angle: 103°
• Orientation: Mirror Image

Night Vision

• Infrared LEDs: 4
• Illumination: 0.01 Lux with IR on

Audio

• Integrated Microphone: Yes

Construction & Protection

• Ingress Protection: IP68
• Operating Temperature: -20°C to 70°C
• Dimensions (Excluding Bracket): 77.2mm (W) x 48.2mm (H) x 65.2mm (D)

Electrical Specifications

• Power Supply: 12V DC (9-16V tolerance)
• Power Consumption: <3W
• Max Current: <250mA
• Connection: Universal Standard 4-Pin Female

Compatibility

• Monitor Compatibility: High Resolution HD Series Monitors

Frequently Asked Questions

What makes this camera "heavy-duty" compared to standard models?

The FHD10 features robust construction designed for demanding applications including commercial vehicles, 4WD touring, and harsh environments. The heavy-duty design includes IP68 waterproof protection, wider operating temperature range (-20°C to 70°C), integrated microphone for audio monitoring, and larger physical dimensions (77.2mm x 48.2mm x 65.2mm) providing enhanced durability and functionality beyond standard compact cameras.

How does the integrated microphone benefit reversing operations?

The built-in microphone enables audio monitoring alongside visual observation, allowing drivers to hear warning calls from ground personnel during loading operations, reversing beepers from nearby vehicles, verbal directions from spotters, or environmental sounds like approaching traffic that visual monitoring alone cannot detect, providing complete situational awareness for enhanced safety.

What is the advantage of 0.01 Lux illumination capability?

The FHD10's 0.01 Lux illumination performance is significantly superior to standard 0.1 Lux cameras, enabling clear visibility in extremely low-light conditions such as dimly lit underground car parks, covered loading docks at night, rural areas without street lighting, or heavy overcast conditions where standard cameras would produce grainy or unclear images.

Can this camera handle voltage fluctuations in my vehicle?

Yes, the FHD10 features 9-16V input voltage tolerance providing protection against voltage fluctuations common in vehicle electrical systems during engine start-up, alternator charging cycles, or when operating multiple electrical accessories simultaneously. This tolerance ensures stable camera operation across various voltage conditions while consuming less than 3W power.

What is the difference between 120° diagonal and 103° horizontal viewing angles?

The 120° diagonal viewing angle measures corner-to-corner coverage across the entire image sensor, while the 103° horizontal viewing angle measures the left-to-right field of view. The FHD10's wider angles compared to standard cameras provide significantly broader rear visibility coverage, particularly beneficial for larger vehicles, trailer monitoring, or commercial applications requiring extended peripheral vision.
