AUTOBACS FHD05 - FHD Compact 110° 1080p IP68 12V Camera

AUTOBACS FHD05 - FHD Compact 110° 1080p IP68 12V Camera

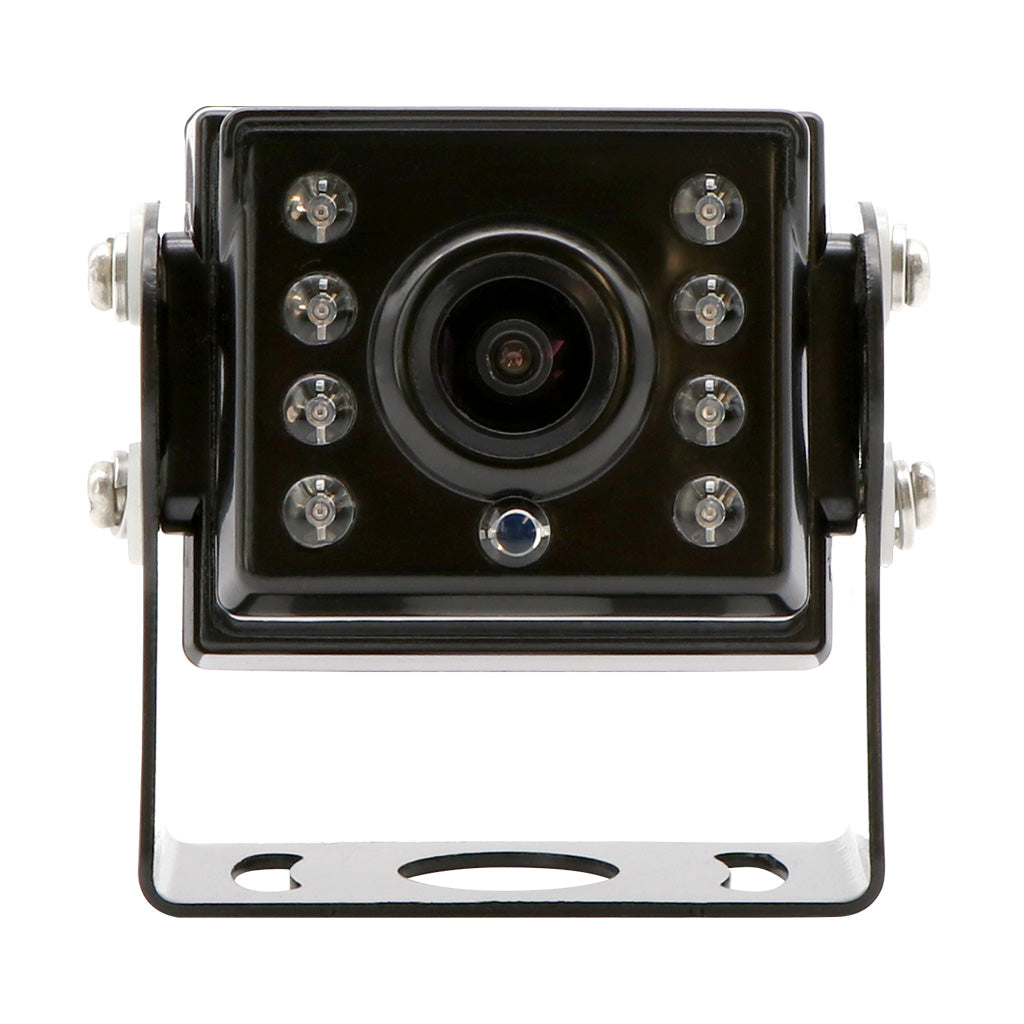

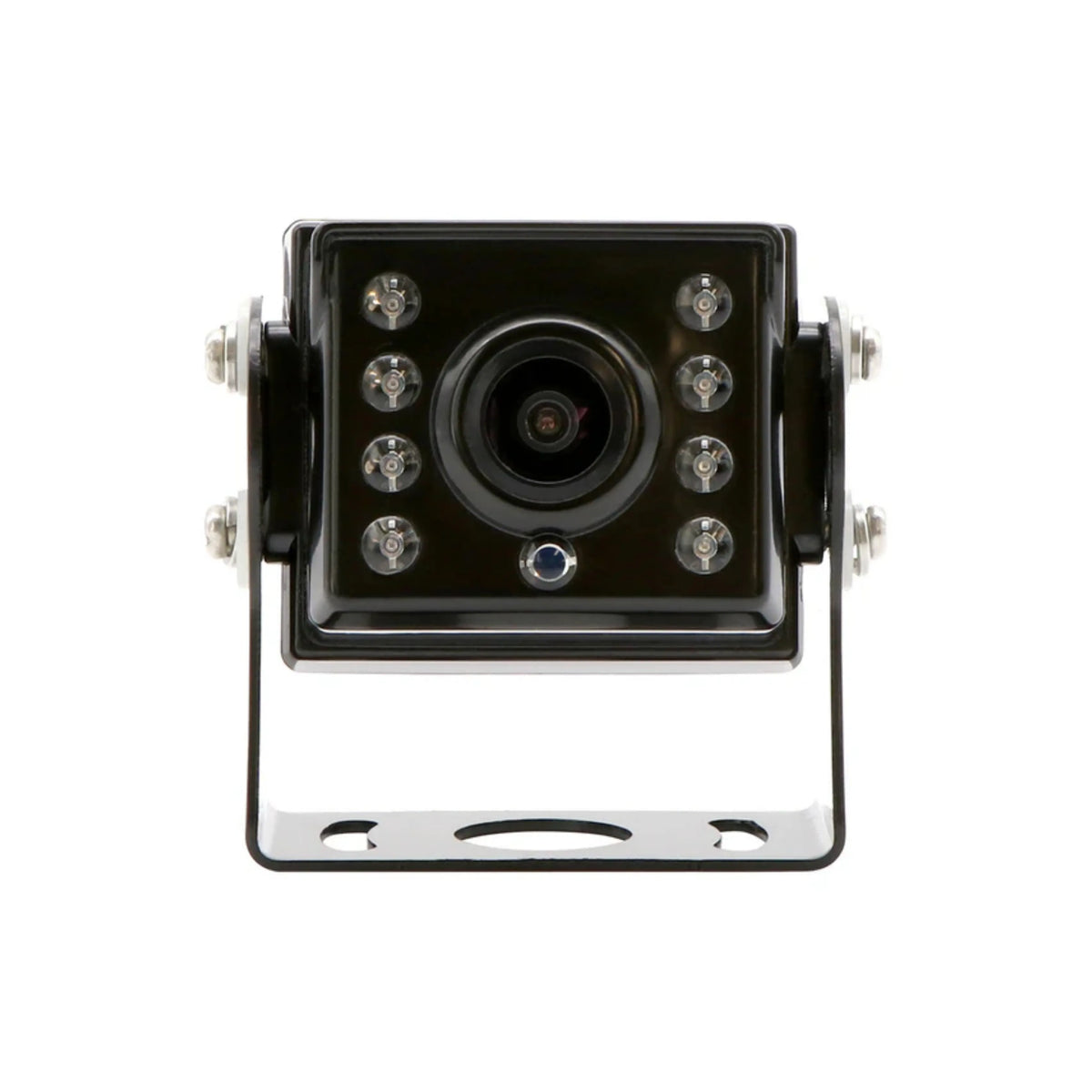

Compact high-definition 1080p rear-view camera featuring SONY IMX307 1/2.8" image sensor, 110° diagonal viewing angle, IP68 waterproof rating, 8 infrared LEDs for night vision, and universal 4-pin connection for high-resolution monitor compatibility.

Product Overview

The AUTOBACS FHD05 FHD Compact rear-view camera delivers professional-grade high-definition visuals in a compact and durable package designed for demanding automotive applications. This advanced camera system features a premium SONY IMX307 1/2.8" image sensor providing crystal-clear 1920 x 1080 effective pixel resolution with 800TV lines performance and PAL signal system compatibility. The 110° diagonal viewing angle with 90° horizontal viewing angle provides comprehensive rear visibility coverage for enhanced reversing safety and parking accuracy. Engineered with IP68 ingress protection rating, this camera withstands complete water submersion and dust exposure for reliable performance in all Australian weather conditions. The integrated 8 infrared LED night vision system delivers 0.1 Lux illumination capability ensuring clear visibility during night-time or low-light reversing operations. The compact dimensions of 52.7mm width x 40mm height x 56.4mm depth excluding bracket enable discreet installation on various vehicle types, while the mirror image orientation provides natural perspective on high-resolution HD series monitors. Operating across -20°C to 70°C temperature range with 3W power consumption and 250mA current draw from 12V DC supply, this camera connects effortlessly through terminated 4-pin female universal connection for straightforward integration with compatible high-resolution display systems.

Key Features

Premium SONY Image Sensor - Professional 1/2.8" SONY IMX307 image device delivering exceptional 1920 x 1080 effective pixel resolution with 800TV lines performance and PAL signal system compatibility, ensuring crystal-clear high-definition image quality that provides improved perspective of surroundings for enhanced reversing safety and parking precision in all visibility conditions.

Wide 110° Viewing Coverage - Comprehensive 110° diagonal viewing angle with 90° horizontal viewing angle providing extensive rear visibility coverage that minimizes blind spots, captures adjacent lane traffic, and delivers complete perspective of parking spaces, obstacles, and pedestrians for confident reversing operations in tight spaces or busy environments.

IP68 Waterproof Protection - Military-grade IP68 ingress protection rating ensuring complete protection against water submersion and dust ingress, delivering reliable performance throughout harsh Australian weather conditions including heavy rain, flooding, dust storms, and extreme temperatures for long-term durability in demanding automotive applications.

Advanced Night Vision System - Integrated 8 infrared LED array providing 0.1 Lux illumination capability for clear visibility during night-time reversing operations, low-light parking situations, or covered underground car parks, ensuring consistent image quality regardless of ambient lighting conditions without external lighting requirements or glare issues.

Compact Professional Design - Space-efficient 52.7mm x 40mm x 56.4mm dimensions excluding mounting bracket enable discreet installation on various vehicle types without compromising aerodynamics or vehicle appearance, while mirror image orientation provides natural perspective on compatible displays and rugged construction ensures long-term reliability.

Universal 4-Pin Connection - Terminated 4-pin female connection system providing straightforward installation compatibility with high-resolution HD series monitors through standardized connection interface, eliminating complex wiring requirements while enabling quick plug-and-play integration with compatible display systems for professional or DIY installations.

Technical Specifications

Image Performance

• Image Device: 1/2.8" SONY IMX307
• Effective Pixels: 1920 (H) x 1080 (V)
• Resolution: 800TV Lines
• Signal System: PAL
• Sync System: Internal

Viewing Angles

• Diagonal Viewing Angle: 110°
• Horizontal Viewing Angle: 90°
• Orientation: Mirror Image

Night Vision

• Infrared LEDs: 8
• Illumination: 0.1 Lux with IR on

Construction & Protection

• Ingress Protection: IP68
• Operating Temperature: -20°C to 70°C
• Dimensions: 52.7mm (W) x 40mm (H) x 56.4mm (D) excluding bracket

Electrical Specifications

• Power Supply: 12V DC
• Power Consumption: 3W, 250mA

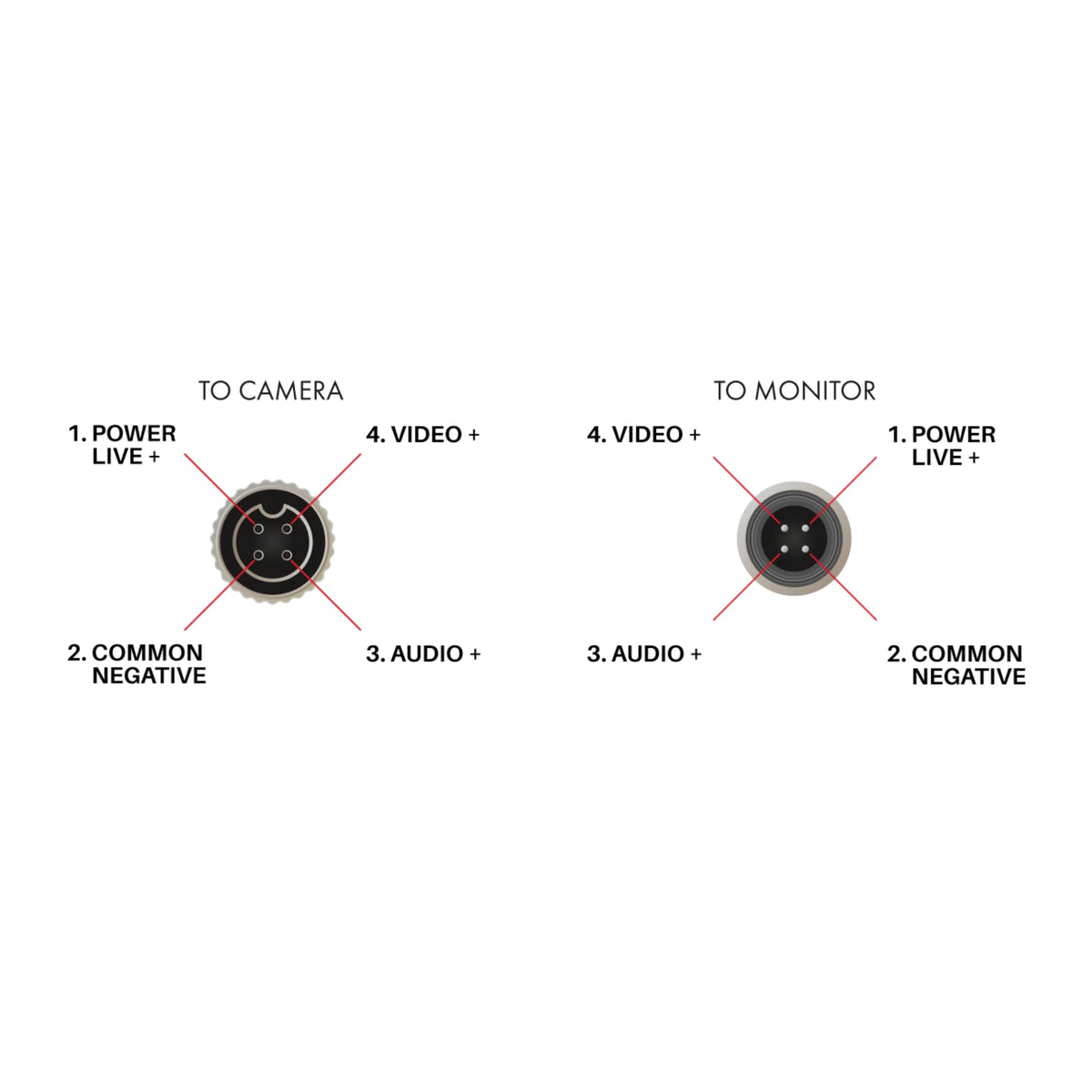

• Connection: Terminated 4-Pin Female

Compatibility

• Monitor Compatibility: High Resolution HD Series Monitors
• Integrated Microphone: No

Frequently Asked Questions

What does IP68 waterproof rating mean for this camera?

IP68 is the highest ingress protection rating, meaning the FHD05 camera is completely protected against dust ingress and can withstand continuous water submersion beyond 1 metre depth. This ensures reliable operation during heavy rain, car washing, water crossings, and flooding conditions without any risk of water damage or image degradation.

Will this camera work at night or in dark conditions?

Yes, the FHD05 features 8 integrated infrared LEDs providing 0.1 Lux illumination capability, enabling clear visibility during night-time reversing, in underground car parks, or any low-light situations. The infrared illumination is invisible to the human eye but provides excellent image clarity on your display without causing glare or disturbing other drivers.

What monitors is this camera compatible with?

The FHD05 is designed for compatibility with high-resolution HD series monitors through its universal 4-pin female connection. The camera delivers 1080p full HD resolution with PAL signal system, requiring a compatible display capable of processing 1920 x 1080 effective pixel resolution for optimal image quality performance.

What is the difference between diagonal and horizontal viewing angles?

The 110° diagonal viewing angle measures corner-to-corner coverage across the entire image sensor, while the 90° horizontal viewing angle measures the left-to-right field of view. Together, these specifications ensure comprehensive rear visibility coverage that captures adjacent lanes, parking space boundaries, and potential obstacles across a wide area behind your vehicle.

Can I install this camera myself or do I need professional installation?

The FHD05 features terminated 4-pin female connection for straightforward wiring integration with compatible monitors. While DIY installation is possible for those experienced with automotive electrical systems, professional installation is recommended to ensure correct mounting position for optimal viewing angles, proper waterproof sealing at connection points, and integration with reverse gear trigger circuits.
