Audison AV 10 VOCE Series 10" 800W Subwoofer

Offers Full Linearity & Elevated Performance Under Extreme Conditions!

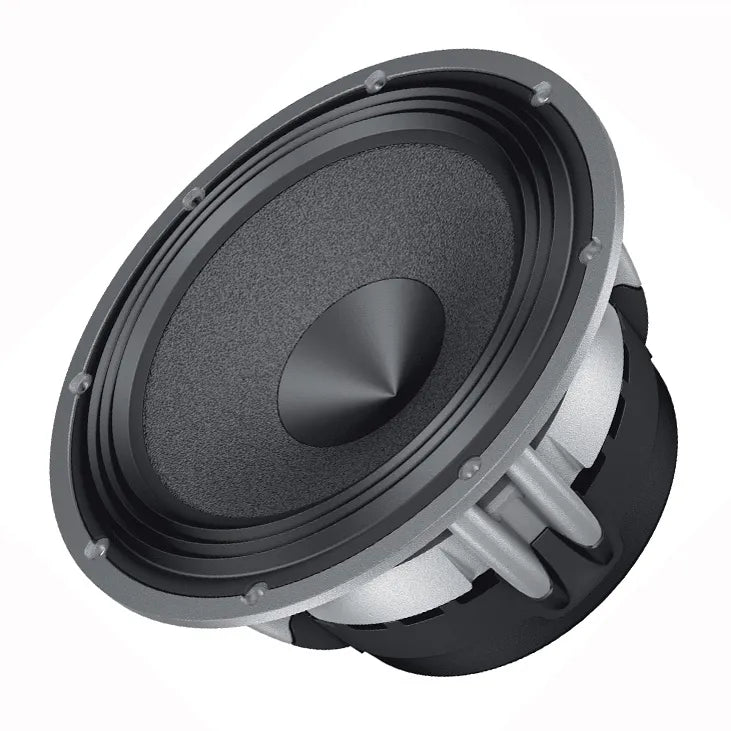

VOCE AV 10 Subwoofer
The AV 10 project started from the Thesis characteristics. AV 10 subwoofer offers full linearity and elevated performance under extreme conditions. Equipped with an aluminum basket with a great aerodynamic structure, a cotton-fibre paper pressed cone with Light Damping treatment, a Triple Wave surround in butyl rubber, and extremely light copper-clad aluminum Wire coils, it provides a very high efficiency and a dynamic sound.

Features:

• The profile of the aerodynamic basket’s spokes, along with the “open-air” design, ensures a drastic reduction of back-wave reflections.
• The exclusive Butyl rubber “Triple Wave” surround profile provides full linearity as well as reliable performance under extreme conditions.
• Extremely lightweight and compact, the CCAW (Copper-Clad Aluminum Wire) voice coils wound on a double layer provide very high efficiency and neat, dynamic sound.
• Cotton-fibre pressed paper cone with “Light Damping” treatment.
• The Radial Venting System ensures high thermal capability, power handling, and reliability.

Specifications:

• Component: Subwoofer
• Size: 250mm (10”)
• Power Handling:
  Peak: 800W
  Continuous: 400W
• Impedance: 4Ω
• Freq. Response: 30 ÷ 1kHz
• Sensitivity: 91dB/SPL
• Magnet Size: 170mm x 80mm x 20mm
• Total Driver Displacement: l (Cu. Ft) 2.4 (146.5)
• Voice Coil Ø: 60mm (2.40")
• Magnet: High-Density Flux Ferrite
• Cone: Cotton-Fibre Pressed Paper With Light Damping Treatment
• Xmech: 23mm
• Weight: 7.12kg
