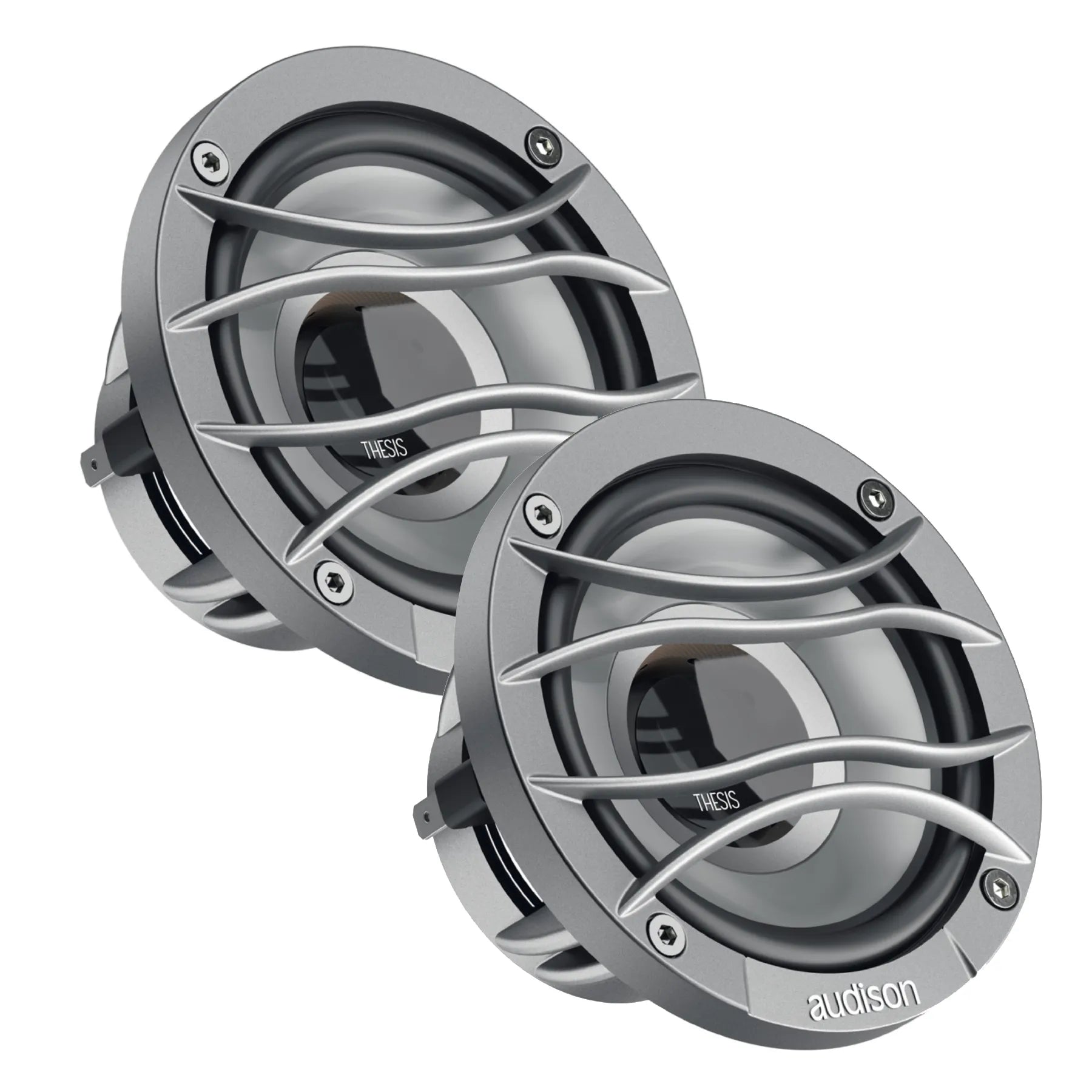

Audison TH3.0II Thesis Line 3.0" 110W Midrange Speaker (TH 3.0 II VOCE)

Medium Frequencies with Maximum Sensitivity & Selectivity!

Thesis Line TH 3.0 II VOCE
The human auditory system processes the range of medium frequencies with maximum sensitivity and selectivity because it makes the voice intelligible from the rest of the audio spectrum. The R&D team started from this simple principle to design from scratch the TH 3.0 II VOCE, dedicated to this fundamental range of frequencies, with the simple as well as ambitious target of extreme linearity, in order not to add or hide anything of the signal reproduced, enhancing in this way every nuance.

Ultra High Control
The extremely powerful custom N38 H-grade Neodymium magnet ensures unmatched control of the mobile group and the aluminium ring nullifies the intermodulation distortion otherwise generated at peak excursions.

Extreme Linearity
Through finite element simulation (FEM) the Audison R&D team has optimized the break-up point between cone/surround, obtaining an ultra-linear frequency response in the mid-range. The generous 30 mm CCAR (Copper Clad Aluminium Ribbon) voice coil wound with flat wire gives the TH 3.0 II Voce an extraordinary excursion and minimizes at the same time the cone non-linearity.

Tpx Cone
TH 3 II Voce membrane is made of TPX, a transparent material that ensures frequency response linearity leaving the speaker interior in full view.

Features:

• 30.5 mm mobile voice coil in CCAR (Copper Clad Aluminium Ribbon) wound with flat wire to maximize the force factor and heat dissipation
• Aluminium demodulation ring which linearizes the high excursion intermodulation distortion, canceling any sound colorations
• N38 H-grade neodymium magnet included in the voice coil to obtain superior control of the mobile crew and superior thermal stability
• Motor geometry is designed using finite element simulation software to optimize efficiency by concentrating the magnetic field in the gap
• The membrane is made of TPX, a transparent material that reduces frequency response irregularities and provides a view of the inside of the speaker
• Membrane geometry designed by simulation software to obtain homogeneous directivity
• Optimized cone/surround break-up with extensive simulations to linearize the response at medium frequencies
• The basket is made of a single piece of die-cast aluminium with four pairs of spokes for maximum rigidity without slowing down the airflow
• Suspension and spider with very high excursion, optimized with simulations of the multi-physical behaviour of the speaker
• eID technology for the traceability of TH 3.0 II Item from production to purchase

Specifications:

• Component: Midrange
• Size: 70mm (3")
• Power Handling:
  • Continuous Power: 55W
  • Peak Power: 110W
• Impedance: 4-Ohm
• Frequency Response: 110 - 5700Hz
• Sensitivity: 85.6 dB/SPL
• Magnet: N38 (H-Grade) Neodymium
• Cone: TPX
