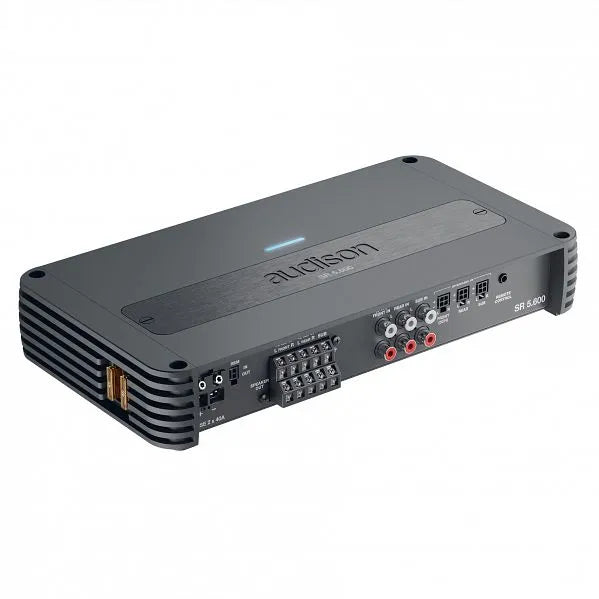

Audison SR 5.600 Series 5-Channel D-Class Amplifier

Totally Preserving the Audio Performance that Characterises Every Audison Design!

SR 5.600 series 5-Channel Amplifier
The Audison SR 5.600 series 5-channel amplifier with crossover and great power packed into ultra-compact dimensions ( 75 W x 4 + 330 W x 1 4Ω)SR line, perfected by taking full advantage of the latest amplification devices. After numerous listening tests with professionals and enthusiasts, the Audison research and development team decided to adopt a new class D technology called ADT (Audison D-Class Technology) for this line of amplifiers, which has made it possible to considerably reduce their size, totally preserving the audio performance that characterises every Audison design.

As far as the electronic design is concerned, every aesthetic and functional detail of the Audison SR 5.600 has been taken care of, resulting in a compact amplifier made of extruded aluminium with rounded corners, which facilitates the installation of the product in narrow spaces. Thanks to the generous heat sinks on the two short sides of the amplifiers, there is no need for internal cooling fans, which often cause noise and dust accumulation. In keeping with tradition, the SR amplifiers confirm their vocation for versatility by including on all models a complete filter section, suitable for any kind of audio system configuration.

The controls, protected by a satin-finished aluminium panel, are located on the top panel of the amplifier so that they can be easily reached from above, even after the product has been installed. When the system includes an Audison bit processor, the filter section can be totally excluded. Optional remote control VCR-S1 offers the possibility to adjust the subwoofer level (-20 / + 6 dB) to your musical preference. Audison USSThanks to the integration of Audison USS (Universal Speakers Simulator) technology in the high-level inputs, the SR amplifiers can also be conveniently connected to OEM sources equipped with the 'speaker load detection' function, which monitors the presence of a low impedance load enabling the audio outputs. Audison SR 5.600 allows multiple connectivity models to have balanced high-level inputs for connecting to the OEM headunit speaker output and a low-level RCA for after-market speakers.

When using the high-level input, the ART (Automatic Remote On/Off) function can be enabled to control the amplifiers' power-up with the head unit's power button. In addition, there is a remote IN / OUT socket to allow control of multiple amplifiers in a cascade that turn on when needed. Through the PRE-OUT signal using the Speaker-IN socket, it is possible to interface the amplifier with OEM sources that only have amplified outputs, allowing for system expansion.

Features:

• Elegant and functional design with rounded corners to minimize space, facilitating installation.
• Built-in USS (Universal Speakers Simulator).
• Full built-in crossover section.
• Optional VCR-S1 remote control offers the possibility to adjust the subwoofer level (-20 / + 6 dB) to your musical preference.
• Balanced high-level inputs for connecting to the OEM head unit speaker output
• Low-level RCA for after-market speakers.
• ART (Automatic Remote On/Off) function.
• Remote IN / OUT socket to allow control of multiple amplifiers.
• PRE-OUT allows for system expansion.

Specifications:

• Amplifier Tech Data:
  Channels: 5
  Class: D-Class
  Hi-Level Input: Yes
  Low-Level Input: Yes
  Digital Input: No
  Power Supply Voltage/Fuse: 11 ÷ 15V DC
  Operating Power Supply Voltage: 6.5 ÷17V DC / 2 x 25A
  Idling Current: 2.2A
  Idling Current When Off: 0.04mA
  Consumption @ 14.4V DC, 2Ω, Max Musical Power: 44A
  Remote OUT: 6.5 ÷ 15 V DC (150mA)
  Remote IN: 6.5 ÷ 15 V DC (1mA)
  ART - Automatic Remote Turn ON/OFF From OUTPUT BTL Speakers (Selectable): 1.5 ÷ 7V DC
• Amplifier Tech Data:
  Distortion - THD @ 100Hz, 4Ω, 70% Rated Power: 0.02%
  Bandwidth A: 10Hz ÷ 35 kHz; 10Hz ÷ 500Hz
  S/N Ratio A: 105 dBA
  Damping Factor A: 100
  Input Sensitivity Pre-In: 0.2 ÷ 5V RMS
  Input sensitivity Speaker-In: 0.8 ÷ 20V RMS
  Total Power RMS: 1010W
  Minimum Load Impedance: 5CH: 2Ω | 3CH: 4Ω + 4Ω + 2Ω
  Output Power (RMS) @14.4V DC, 1% THD: 5CH 75W x 4 + 330W x 1 (4Ω) | 5CH 115W x 4 + 550W x 1 (2Ω) | 3CH 230W x 2 (4Ω) + 310W x 1 (4Ω) | 3CH 230W x 2 (4Ω) + 550W x 1 (2Ω)
  Adjustable Crossover: Yes
• CEA Specifications:
  Output Power @ 4Ω, 1% THD+N, 14.4V: 75W x 4 CH + 300W x 1CH
  SN Ratio (Ref. 1W Output): 75W: 84dBA – 300W: 75dBA
• Inputs:
  Input Type: Pre-In / Speaker-In
  Filter Pass A: Front Ch Filters: Full - Hi-Pass: 50 ÷ 500Hz @ 12dB/Oct. (X1) - Hi-Pass: 50 ÷ 5kHz @ 12dB/Oct. (X10)
  Filter Pass B: Rear CH Filters: Full Hi-Pass: 50 ÷ 5kHz @ 12dB/Oct
  Filter Pass C: Rear CH Filters: Full Band-PASS: 50 ÷ 500Hz (Hi) @ 12dB/Oct.
  Channel Mono: Rear CH Filters: Full 50 ÷ 5kHz (Lo) @ 1 dB/Oct.
  Inputs/Outputs Sub CH: Lo-Pass: 50 ÷ 500Hz @ 24dB/Oct
  Inputs/Outputs Bass Boost: (0 ÷12)dB
  Inputs/Outputs Subsonic: 25Hz @ 24dB/Oct
  Remote Sub Volume: (-20 ÷ 6)dB
• Weight: 2.42kg
