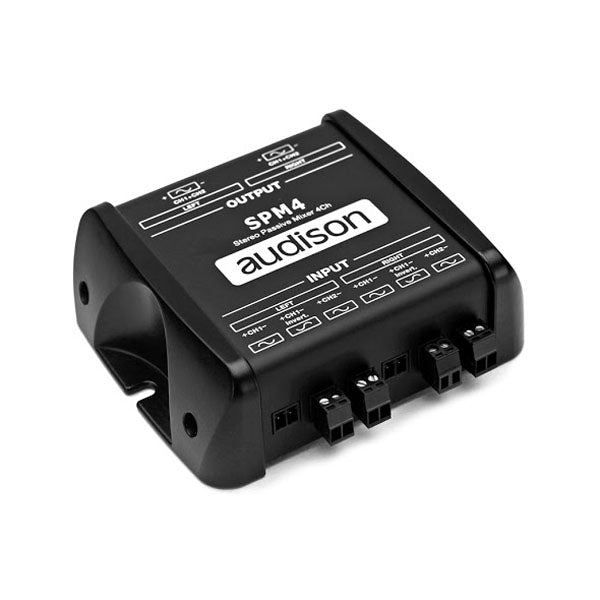

Audison SPM4 50W 4-Channel Stereo Passive Mixer

SKU: SPM4
Price
$249.99
Shipping information

We offer fast and reliable shipping options to ensure that your order arrives in a timely manner. Our dedicated team works diligently to process and ship your items as quickly as possible.

Here are some key points to note about our shipping policy:

Standard Shipping

  • Frankies offers a $15.95 flat rate for Australia-wide shipping, no matter how many items you order. Some larger or heavier items may incur an additional fee, which will be communicated to you when your order is processed.
  • While we endeavour to dispatch all orders promptly, please be advised that due to the current national fuel shortages in Australia and the resulting pressure on logistics networks, order processing and dispatch may take up to 7 business days. We are not liable for delays caused by third-party freight carriers or fuel-related logistical disruptions. By placing an order, you acknowledge that delivery timeframes may be extended beyond our standard estimates during this period.

Estimated delivery times:

  • WA, NT, and TAS: currently experiencing longer shipping times
  • Holiday periods (e.g. Christmas): deliveries may be delayed due to increased freight volumes

Express Shipping

  • Express shipping is available and calculated based on your delivery location, as well as the size and weight of your order. To receive an accurate quote, please contact our Albion Park Rail store and request an "express shipping quote." Our team will promptly assist with pricing and availability. Payment for express shipping can be securely arranged over the phone.

Product features

Designed For Active OEM Multi-Way Systems Where Each Speaker is Powered By One Specific Amplified Channel!

4-Channel Stereo Passive Mixer
Stereo passive mixer (Unpowered) featuring 4 input channels and 2 output channels, designed for active OEM multi-way systems where each speaker is powered by one specific amplified channel. SPM4 mixes audio through 4 audio transformers specifically developed to achieve very low distortion and highly linear acoustic response.

SPM4 provides the ability to mix the midrange/woofer and tweeter channels coming from the amplifier and supply one single mid-high channel. The Ch1(L/R) channels feature two inputs, one features an inverting input compared to Ch2 (L/R) channels; the mixing process often gives better results when one of the two channels undergoes a 180° dephasing.

SPM4 is especially recommended to extend the number of inputs of the Audison digital processors or amplifiers with built-in DSP because they feature a De-equalizer (De-Eq). In that case, any possible non-linear acoustic emissions due to the mixing of the pre-existing filtered channels are duly compensated.

Specifications:

  • RMS Power: 25W
  • Peak Power: 50W
  • Output Gain: -3dB, % (100Hz) 0.5
  • T.H.D: (Input Power Max) % (1kHz) 0.05, % (10kHz) 0.05
  • Bandwidth: (-3dB) 15 ÷ 75kHz
  • Crosstalk: (10kHz) > 55dB
  • Input Impedance: 32Ω
  • Out Impedance: 10kΩ
  • Phase Inverter: CH1 (Left & Right)
  • Dimensions: (W) 103.5mm x (H) 36.5mm x (D) 86.5mm
  • Weight: 0.40kg
