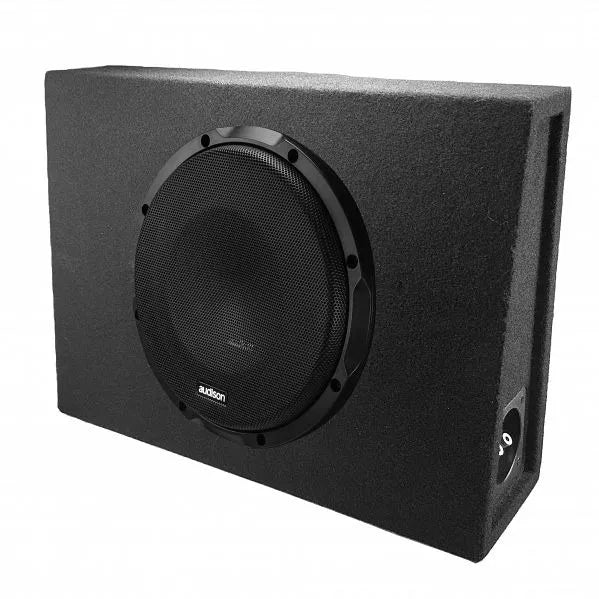

Audison SB10SA1 10" 800W Slimline Loaded Subwoofer Sealed Enclosure Box

Enhances Sound Clarity & Delivers Tight, Punchy Bass For A More Precise Audio Experience!

Audison 10" 800W Slimline Loaded Subwoofer Box
The Audison SB10SA1 is a great option for adding powerful bass to your car audio system. This sealed Aerpro 10" Loaded Slimline Subwoofer Box is designed to save space, with dimensions of 341mm (H) x 485mm (W) and a tapered depth of 85mm to 135mm, making it easy to install in most vehicles. With an internal volume of 11.31 litres and a 232mm mounting cutout, it provides an ideal setup for clean, punchy bass.

The APS10D 800W Subwoofer used is designed to deliver maximum performance in a sealed enclosure with ultra-compact volumes, from 10 lt. to 12 lt. The dual voice coil features push connectors for ease of wiring and configuration. Prima subwoofer components have been developed with a primary goal: to deliver high output in tight spaces. Output is a matter of excursion; the more air the cone moves, the more output. However, reduced mounting depth traditionally has meant low excursion.

Prima subwoofers employ a special cone-dust cap-basket geometry which guarantees large excursion of the mobile group while keeping the mounting depth to a minimum. The surround and spider have been carefully designed to prevent the "rocking - -mode" phenomenon. The cooling circuit has been designed with air vents on the basket underneath the spider, eliminating the need for vents on the bottom - plate. This allows the subwoofer to be mounted close to the back wall of the enclosure, making the most of the reduced mounting depth.

Please Note: The slimline subwoofer box used is the Aerpro SB10S and is not made by Audison.

Features:

• Fits easily in most vehicles without taking up too much space, thanks to its slimline dimensions and tapered depth.
• Sealed Enclosure Enhances sound clarity and delivers tight, punchy bass for a more precise audio experience.
• Durable 12mm MDF Construction ensures long-lasting performance while minimising vibrations for better sound quality.
• Spring-Loaded Banana Socket Terminals allow quick, secure, and hassle-free wiring connections.
• Black Carpet Finish blends seamlessly with most car interiors while protecting the enclosure from scratches and wear.
• Specially designed cone, dust cap, and basket geometry ensure long linear excursion capability (11mm, One Way) keeping mounting depth to a minimum.
• Air vents on the basket underneath the spider, eliminating the need for the central pole vent allowing mounting close to rear wall of enclosure.
• Massive motor assembly, optimized with FEM (Finite Element Modelling) for perfect control under high power, high excursion conditions.
• Water-repellent pressed paper 10-inch cone, featuring a profile developed with FEM simulation and optimized with the Klippel Scan Vibrometer.
• Designed and engineered to deliver exceptional performance in a sealed enclosure, ensuring powerful bass and precise sound reproduction.
• A steel mesh grille and plastic gasket are integrated to protect the subwoofer, ensuring durability and safeguarding against damage.

Specifications:

• Type: Sealed Enclosure
• Power Handling - MAX: 800W
• Power Handling - RMS: 400W
• Impedance: 2-Ohm
• Voice Coil: Dual (4 + 4)
• Volume: 11.31 Litres
• Construction: 12mm MDF
• Carpet Colour: Black
• Terminals: Spring-Loaded Banana Sockets
• Dimensions: (H) 341mm x (W) 485mm x Top (D) 85mm x Bottom (D) 135mm
• Weight: 9.80kg
