Product features

Extreme Compactness, the C20 Can Be Installed in A Hidden Position on the Dashboard!

Hi-Res Digital Interface

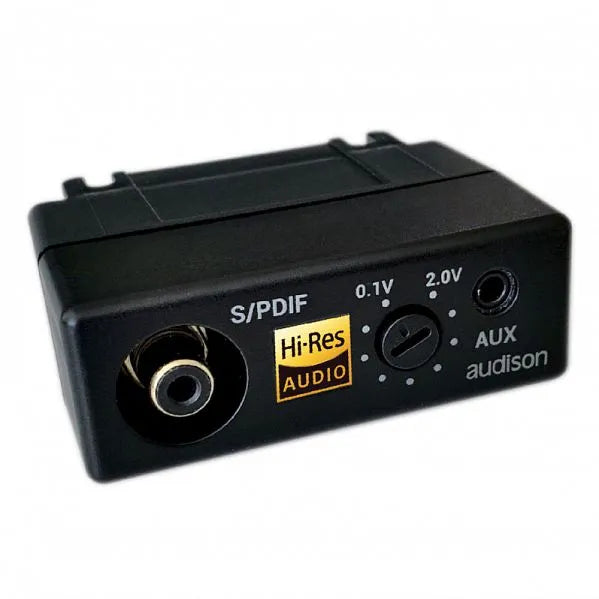

The Audison C2O interface converts the signals coming from the coaxial digital input and from the analogue AUX-IN into a TOSLINK optical digital output signal (up to 24 bit/192kHz). The conversion allows the integration of the new Hi-Res portable devices equipped with coaxial digital output (75 Ohm) and smartphones with analogue output on 3.5 mm mini Jack (also 4 poles) with Audison processors featuring an optical digital input compatible with the resolution of the signal sent to the C20. Thanks to its extreme compactness, the C20 can be installed in a hidden position on the dashboard, drastically reducing the length of the cabling between the portable player and the receiving device and nullifying in this way any issues with interfacing.

Features:

  • The coaxial digital input is provided with an isolation transformer that improves the balance between the transmitter and the receiver circuit, reducing noise due to EMI electromagnetic interference, which is particularly insidious inside the passenger compartment.
  • The AUX-IN input is equipped with a pre-amplifier with an adjustable gain of 0.1V - 2V for an optimal coupling with each device before the Analog - Digital conversion is performed by a high-quality converter at a resolution of 24 bit/48kHz.
  • For maximum ease of use in cars, the C2O independently selects the input with priority assigned to the AUX-IN. With the default setting, after 6 seconds of no analogue signal, the C2O moves to the coaxial digital input. An internal switch allows for the time before the switch to be set to 9 or 12 seconds.

Specifications:

  • Voltage: 6 - 30V DC
  • Idling Current: 70mA @ 12V
  • Remote-IN Voltage: 3V DC (0.5mA)
  • +12 Remote-IN Voltage: 6V DC (80mA)
  • Distortion THD (Analogue Input): 0.002 %
  • Bandwidth (Analogue Input): 5 - 24kHz
  • S/N Ratio @ A Weighted (Analogue Input): 105dB
  • Input Sensitivity (Analogue Input): 0.1 - 2V RMS
  • Analogue Pre-IN: 3.5mm Jack Stereo 3/4 Pole
  • Digital S/PDIF: Electrical Coax (24bit, 192kHz)
  • Signal Priority: Analogue
  • Digital-IN Delay Switch: 6 - 9 - 12 Sec. (Default 6 Sec.)
  • Optical Digital:
    From Analogue Input: 24bit, 48kHz
    From Digital Input: 24bit, 192kHz
  • Dimensions: (W) 69mm x (H) 26mm x (D) 54.5mm (2.71" x 1. 02" x 2.14")
  • Weight: 0.05kg
