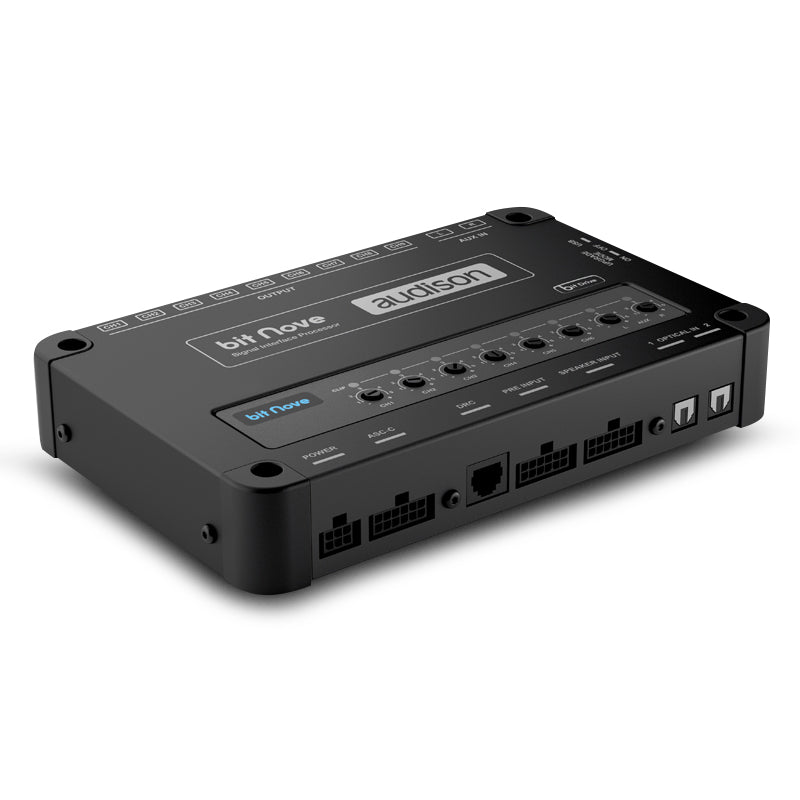

Audison BITNOVED Bit Line 9-Channel Stand Alone Digital Signal Processor

Perfect Tool to Expand a Car Audio System Maximizing its Performance!

BitNove

Audison BitNove is a powerhouse of technology fully dedicated to listening pleasure: since 2007, the year in which the bit One was first introduced, Audison has never stopped delivering innovation to the digital processors segment. The BitNove was born from this unique know-how within the industry, the perfect tool to expand a car audio system maximizing its performance. Featuring 6 channels of input, with Aux and Optical and 9 channels of output, the BitNove will allow you total system flexibility.

Features:

• Input Connectivity:Equipped with 6 high (3 - 20V) and low (1.2 - 8V) level inputs, the bit Nove can be used with any type of aftermarket and OEM source. The auxiliary RCA input (0.3 - 5V) is perfect to connect your smartphone or tablet to the bit Nove providing the highest possible quality. The advanced PC software sums up the channels belonging to the same front and de-equalizes the OEM source frequency response in a few simple steps. There are also two optical digital inputs with a maximum accepted resolution of 192 kHz/24 bit to simultaneously connect an Audison bit DMI to the bit Nove (taking the digital audio from the car MOST bus) and the Hi-Res bit Play HD player.
• USS - Universal Speakers Simulator:Thanks to the integration of the USS technology, the bit Nove can also be connected to headunits featuring the “speaker load detection" circuit that would otherwise mute the audio signal output.
• Output Connectivity:The bit Nove features nine output channels on RCA connectors providing a large number of active multi-amplified configurations, ensuring a wide range of set-up options to the installer. For each channel, the powerful DSP provides: a 10-pole parametric equalizer allowing for optimal adjustments, a 68 steps frequency crossover, Butterworth or Linkwitz-Riley type filters with slopes from 6 to 24 dB/Oct and a time-delay line.

Specifications:

• Power Supply Nominal power supply voltage / Fuse 11 - 15 VDC / 2A:
  • Idling current
  • 0.75 A
  • Remote IN 4 - 15 VDC (1 mA)
  • Remote OUT 4 - 15 VDC (130 mA)
  • ART Automatic Remote Turn on/off from OUTPUT BTL speakers 1.5 - 7 VDC
• Signal Stage:
  • Distortion - THD @ 1 kHz, 1 VRMS Output 0.004 %
  • Bandwidth @ -3 dB 10 Hz - 44 kHz
  • S/N ratio @ A weighted, 4 V Output, 2 V MASTER input 104 dBA
  • S/N ratio @ A weighted, 4 V Output, 2 V AUX input 105 dBA
  • S/N ratio @ A weighted, 4 V Output, OPTICAL IN1/IN2 input 110 dBA
  • Channel Separation @ 1 kHz 80 dBA
  • Input sensitivity PRE IN / Master 1.3 - 9 VRMS
  • Input sensitivity Speaker IN / Master 5 - 32 VRMS
  • Input sensitivity AUX 0.7 - 5 VRMS
  • Input impedance Speaker In / AUX / Pre In 15 k Ohm (Pre IN / AUX) 5 Ohm (Speaker IN)
  • Max Output Level 0.1% THD 4 V
• Input Stage:
  • Low level (Pre) Ch1 - Ch6; AUX L/R
  • High Level (Speaker In) Ch1 - Ch12
  • Digital 2 x Optical S/PDIF; Max 192 kHz/24 bit
• Output Stage:
  • Low level (Pre) Ch1 - Ch13 (IIR mode); Ch1 - Ch 9 (FIR mode)
  • Digital AD Link 1 Ch1 - Ch8 (IIR / FIR mode)
  • Digital AD Link 2 Ch9 - Ch13 (IIR mode); Ch9 only (FIR mode)
• Connection:
  • From / To Personal Computer 1 x micro USB
• Power Supply:
  • Voltage 10.8 - 15 VDC
  • Operating power supply voltage 7.5 - 14.4 VDC
  • Remote IN voltage 4 - 15 VDC (1mA)
  • Remote OUT voltage 10 - 15 VDC (130 mA)
  • ART (Automatic Remote Turn ON) 2 - 7 VDC
• Signal Stage:
  • Distortion - THD @ 1 kHz, 1 VRMS Output 0.005%
  • Bandwidth @ -3 dB 10 Hz - 22 kHz
  • Max Output Level (RMS) @ 0.1% THD 4 V
• Input Stage:
  • Low level (Pre) Ch1 - Ch6; AUX L/R
  • High Level (Speaker In) Ch1 - Ch6
  • Digital 2 x Optical S/PDIF; Max 192 kHz / 24 bit
• Output Stage:
  • Low level (Pre) Ch1 - Ch9
• Connection:
  • From / To Personal Computer 1 x Micro USB
• Crossover:
  • Filter type Full / Hi pass / Low Pass / Band Pass
  • Filter mode and slope Linkwitz @ 12/24 dB - Butterworth @ 6/12/18/24 dB
  • Crossover Frequency 68 steps @ 20 - 20k Hz
  • Phase control 0 / 180 Degree
• Equalizer (20 - 20K Hz):
  • Analog Input Equalizer Automatic De-Equalization
  • Output Equalizer Parametric Equalizers: 10 pole; 20 - 20k Hz
• Time Alignment:
  • Distance 0 - 510 cm / 0 - 200.8 inches
  • Delay 0 - 15 ms
  • Step 0,08 ms; 2,8 cm / 1.1 inch
  • Fine SET 0,02 ms; 0,7 cm / 0.27 inch
• General Requirements:
  • PC connections USB 1.1 / 2.0 / 3.0 Compatible
  • Software/PC requirements Microsoft Windows (32/64 bit): Vista, Windows 7, Windows 8, Windows 10 --Video Resolution with screen resize min. 1024 x 600
  • SIZE
  • W (Width) x H (Height) x D (Depth) mm 130 x 34.5 x 199
  • Weight: 0.7kg
