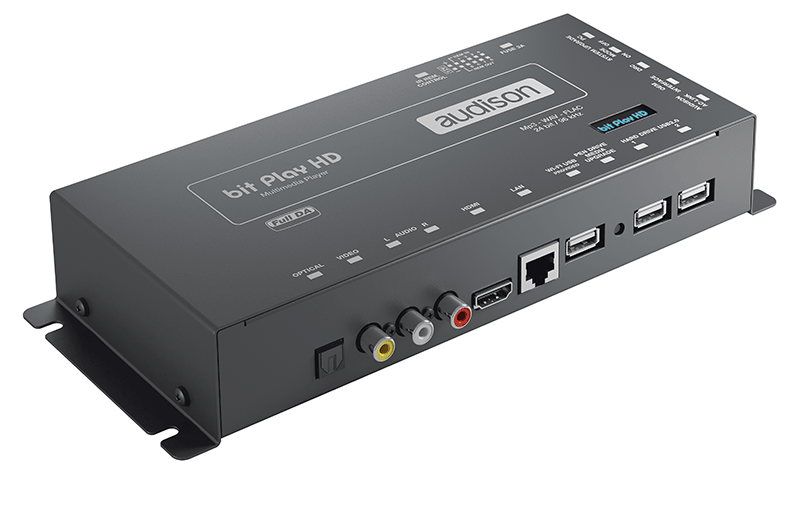

Audison BIT PLAY HD Hi-Resolution In-Car Multimedia Player

Many More Features Which Make Bit Play HD the Object of Desire of Any Car Audio Enthusiast!

Hi-Resolution In-Car Media Player
Wi-Fi high resolution audio streaming and playlist manageable from your Android or Apple device through dedicated App. Reproduction of 24 bit / 96 kHz FLAC files taking audio far beyond the CD standards. Digital output to build an Audison Full DA high resolution system and HDMI output. SSD* unit enclosed in a slot with mechanically damped housing for a smooth in-car music reproduction.

Features:

• User Interface Dual Mode:
  • 1) Advanced control on Video out via Remote control
  • 2) Basic control via iOS/Android App
  • 3) DRC MP Joystick to control the player’s playlist and navigate in the menu
• Smartphone Control Dedicated Audison App for Android and iOS Smartphone, to Allow:
  • 1) Wi-Fi Streaming of smartphone multimedia contents to bit Play HD output (Android only). Alternatively standard DLNA Apps (iOS/Android).
  • 2) Play the bit PlayHD storage multimedia contents.
  • 3) File management of bit Play HD storage contents, with copy, delete and move functions
• Media Storage:
  • 1) 240GB SSD 2.5’’ (Included in bit Play HD SSD, internal, up to 2TB support)
  • 2) External USB HDD/Pendrive/DVD drive
• File System - Media Storage:
  • FAT32
  • NTFS
  • EXT3
  • HFS+ (Mac OS X)
• Wi-Fi:
  • 802.11n - Internal Hotspot with external USB Wi-Fi Dongle (Supplied)

Specifications:

• • Power Supply:
    • Voltage: 8.5 ÷ 14 VDC
    • Idling Current: 1.0 A With Internal SSD A
    • Fuse: 3A
    • Remote In: 7 ÷ 15 VDC (1mA)
    • Remote Out: 12 VDC (130mA)
  • Multimedia Format:
    • Audio Formats:
      • Hi-Res Uncompressed: WAV, FLAC (Up To 96kHz/24bit)
      • Compressed: OGG, AAC, MPEG Audio (MP1, MP2, MP3, MPA)
    • Video Formats: WMV, DivX, Xvid, MPEG, H264
    • Subtitle Formats: MicroDVD <.sub>, SubRip <.srt>, Sub Station Alpha <.ssa>, Sami <.smi>, Idx+Sub, PGS
    • Image Formats: JPG, BMP, PNG, GIF
  • Analog Signal Stage:
    • Distortion - THD @ 1 kHz, 1 VRMS: 0.003%
    • Bandwidth: 20 ÷ 20k Hz
    • S/N Ratio (A Weighted): 100 dBA
    • Output Level: 1 VRMS
  • Signal Connection:
    • Digital Video Output:
    • 1 x HDMI v1.3 (Type A Receptacle) Resolution: 480p, 576p, 720p@50Hz/60Hz, 1080i@50Hz/60Hz, 1080p@50Hz/60Hz
    • Analog Video Ouput: 1 x RCA - Composite Video Resolution: 576i (PAL), 480i (NTSC)
    • Toslink Optical Output: 1 x S/P-DIF - PCM 96 kHz/24 bit
    • Analog Pre Out: 2 x RCA, Left / Right
