Audison AVK6SII | 6.5" 2-Way 4 OHM Component Speakers | 250W Peak Power VOCE II Pair

Audison AVK6SII 6.5" 2-Way 4 OHM Component Speakers 250W Peak Power VOCE II Pair

The Audison VOCE II AVK 6 S II system, equipped with the high-power AV 6.5 S II woofer and Hi-Res Audio certified AV 1.0 II tweeter, delivers superb performance. The integration of AVCX 2 W and AVCX 2 T crossovers simplifies installation while enabling advanced sound tuning, including bi-amplification and meticulous adjustments for tweeter level and mid contour. These crossovers, built with high-quality components, ensure a harmoniously balanced audio experience, enhancing durability and clarity. This setup achieves seamless integration and superior sound customization, making it an ideal solution for sophisticated car audio upgrades.

Give Sound Its True Voice: Audison Voce II, the second generation of our iconic VOCE speakers, challenged us—to rethink how we design, test, and manufacture speakers. We’ve revamped materials, supply chains, assembly techniques, and packaging. Our goal was to “unlearn” to innovate and to “reinforce our expertise” where we knew we were on the right track. This dedication ensures that every aspect of VOCE II not only meets but exceeds the sophisticated demands of today’s car audio enthusiasts.

AVK 6 S II - High-Performance Compact System with Passive Crossover: The Audison AV K 6 S II has been designed to offer high performance in a compact format, ensuring great installation versatility thanks to the reduced depth of the AV 6.5 S II woofer and the AV 1.0 II tweeter. This system is the ideal solution for those looking for superior sound reproduction while maintaining a simple and versatile installation.

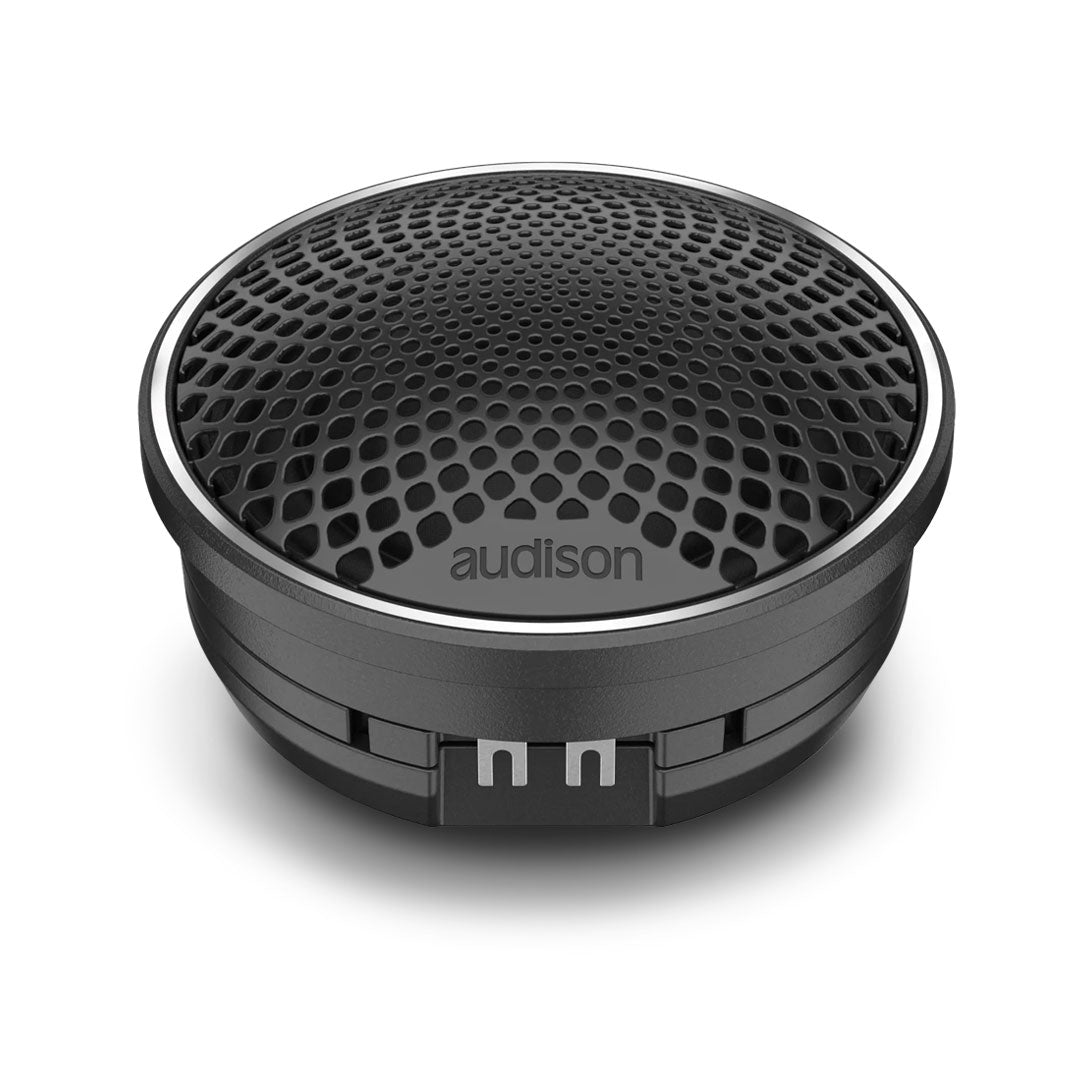

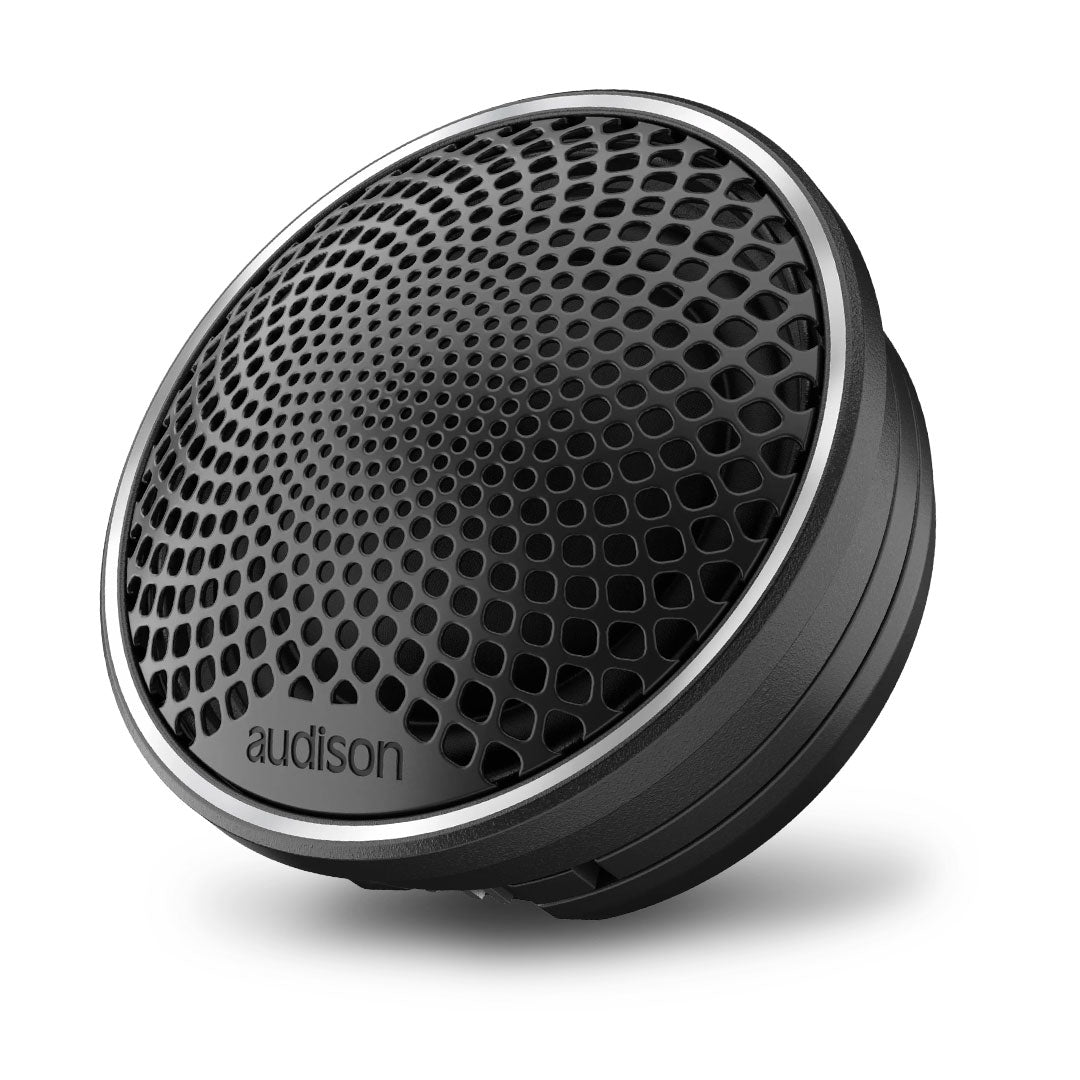

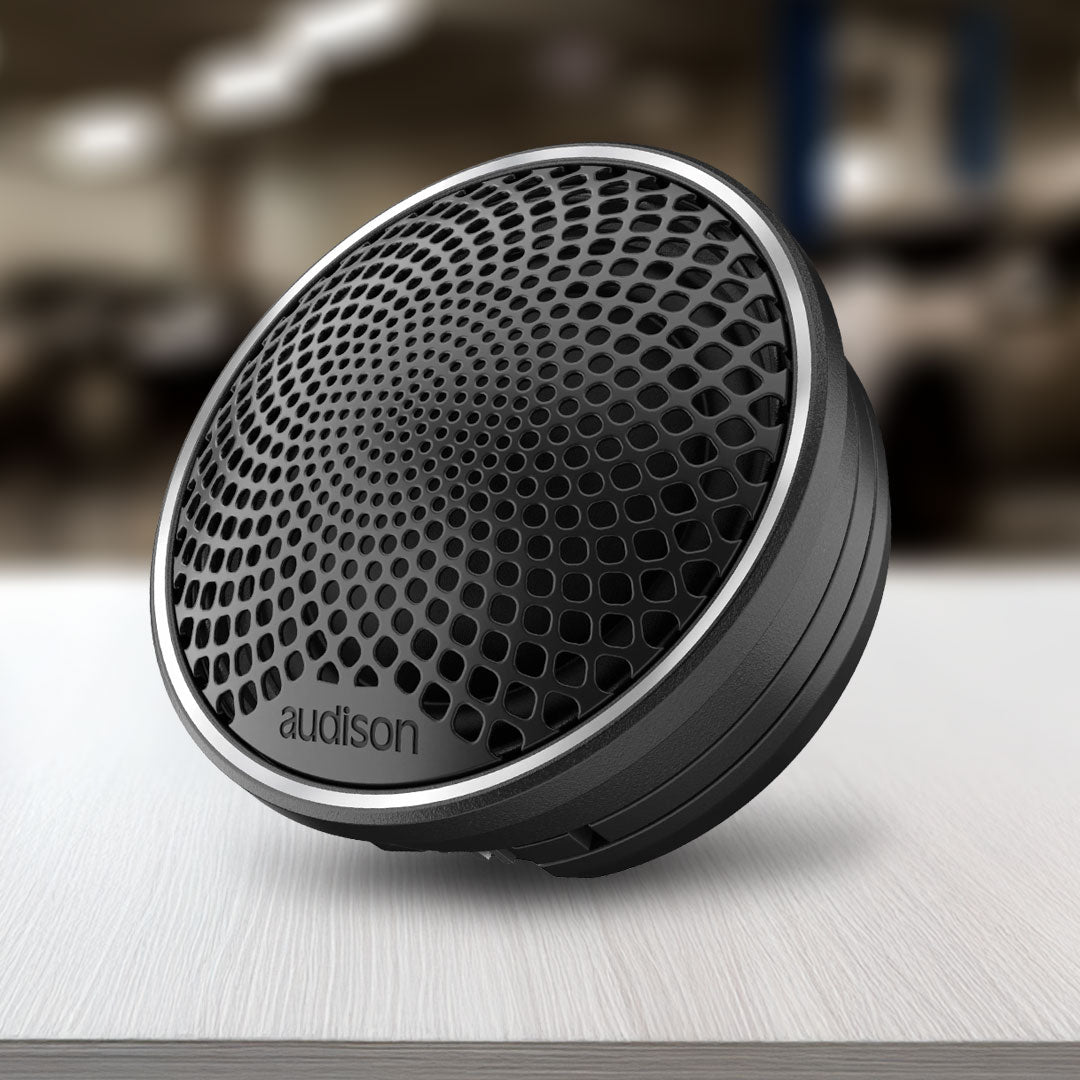

AV 1.0 II Tweeter - Pure Performance with Versatile Installation: The compact AV 1.0 II tweeter is Hi-Res Audio certified, it can extend beyond 40 kHz, delivering detailed high-frequency reproduction with optimal off-axis dispersion, making it perfect for OEM cabin installations. The tweeter is equipped with AIF (Any Install Faceplate) technology, reducing installation time and offering three different mounting accessories, including:

• Mesh grille for the best compromise between protection and performance in A-pillar installations.
• Spoke grille for maximum acoustic performance.
• Customizable faceplate to adapt to any configuration.
• Includes two provided adhesive Audison logos, allowing for personalized placement to enhance branding and aesthetics.

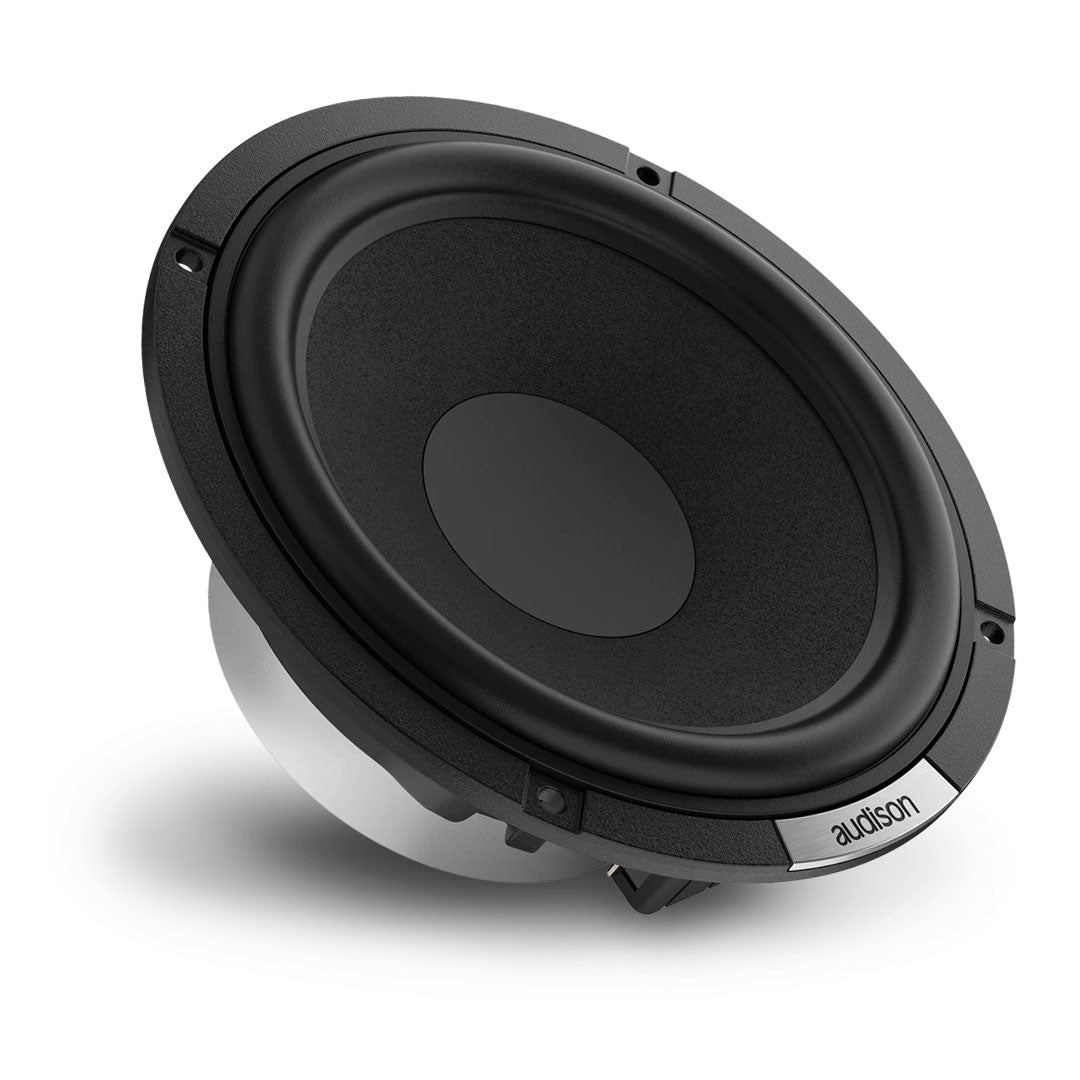

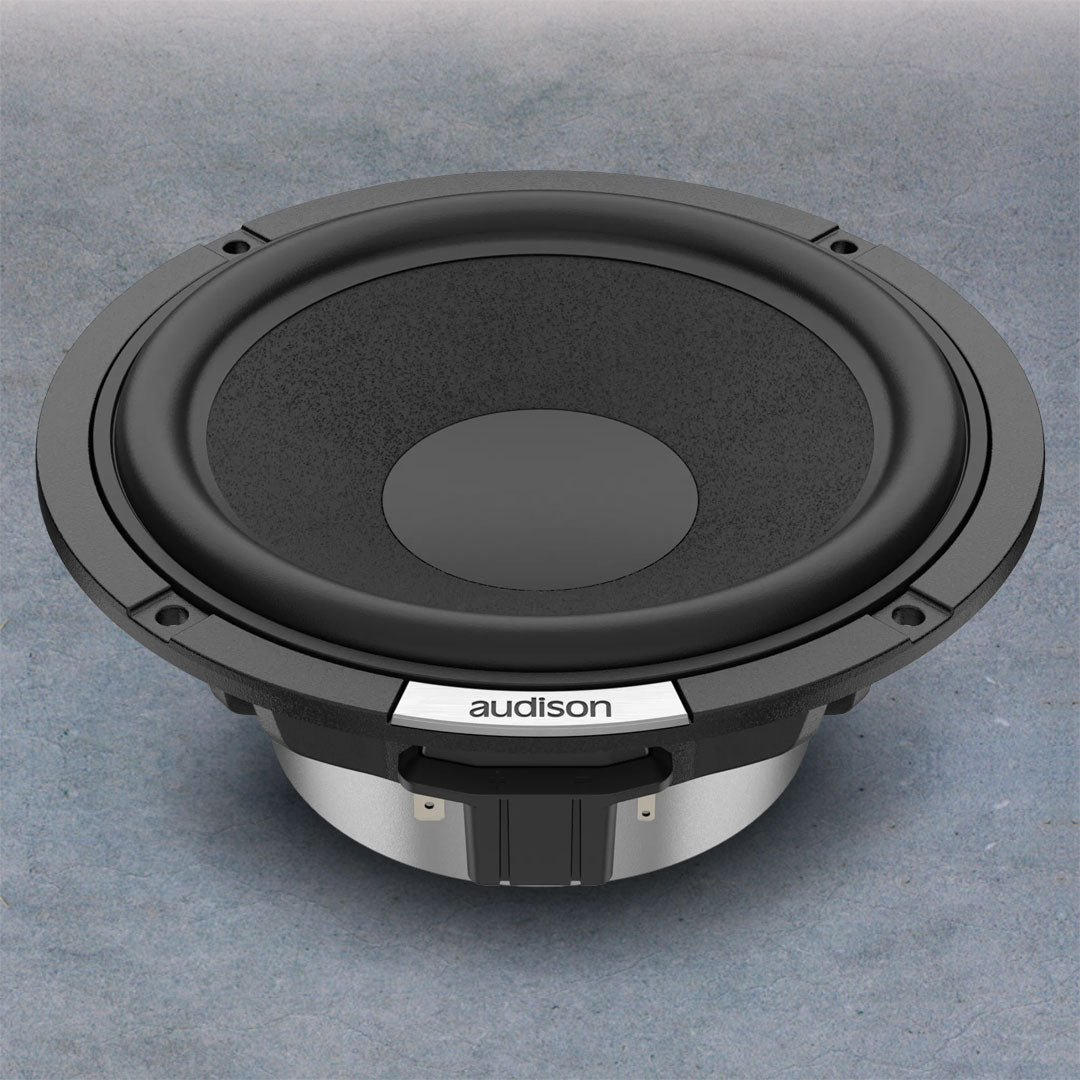

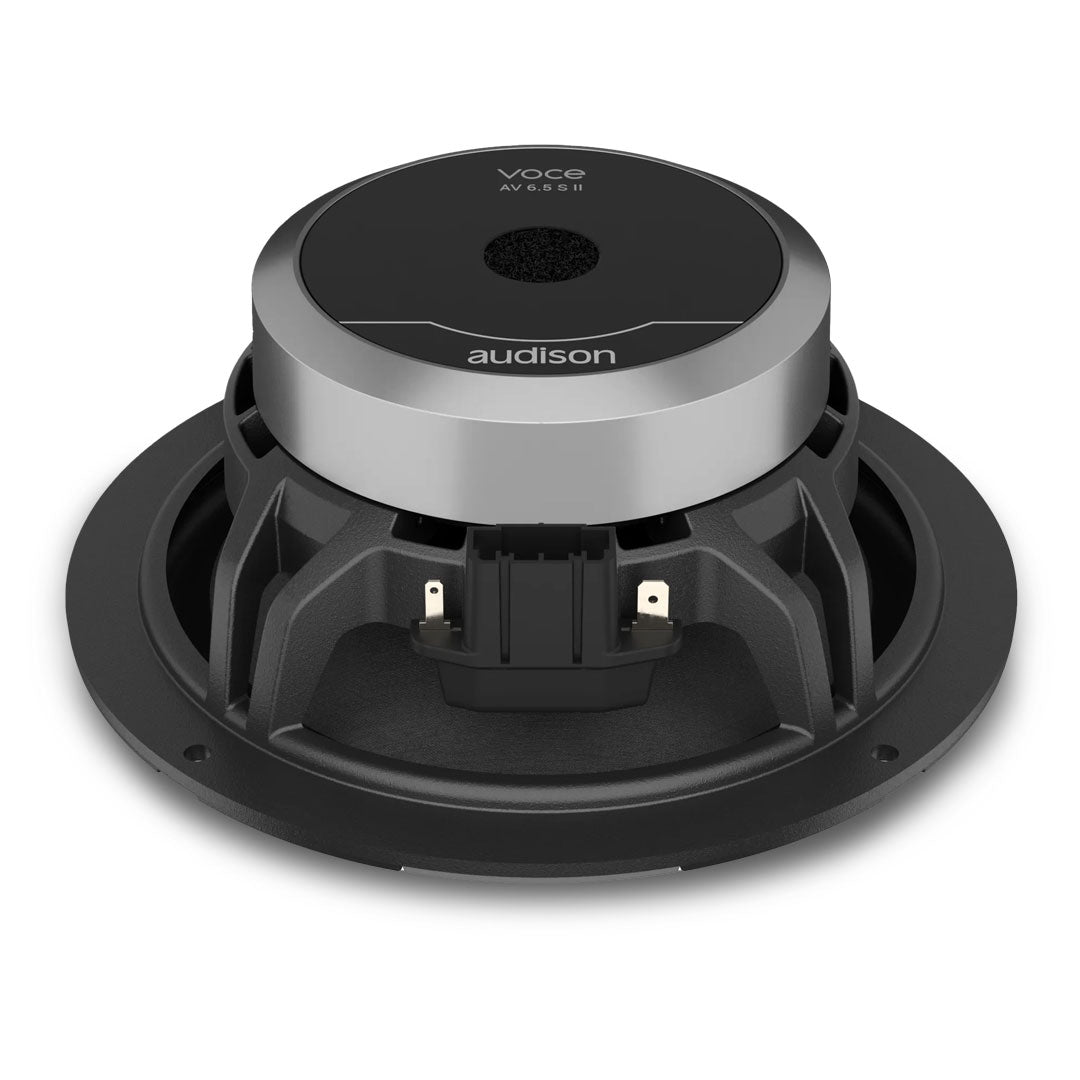

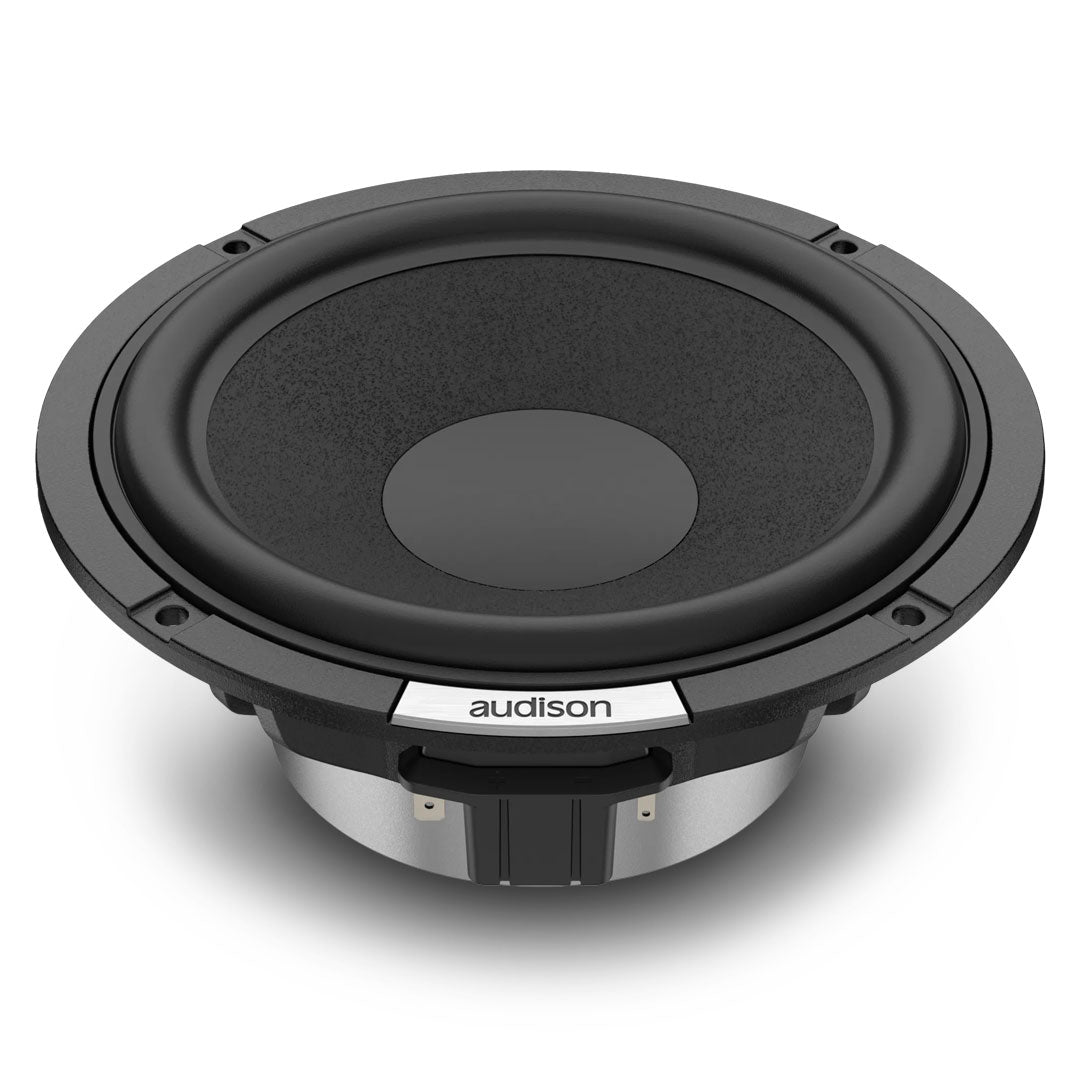

AV 6.5 S II Woofer - Power and Compactness for Superior Sound Quality: The AV 6.5 S II woofer is designed to deliver top-level performance despite its reduced installation depth. Capable of handling up to 100W RMS, this woofer combines compactness with performance, ensuring powerful and well-defined bass, ideal for dynamic and controlled reproduction.

The woofer features a 36 mm CCAW (Copper Clad Aluminum Wire) voice-coil and an optimized magnetic assembly, ensuring wide excursion and precise control even during the most intense dynamic peaks, while always maintaining natural, distortion-free sound.

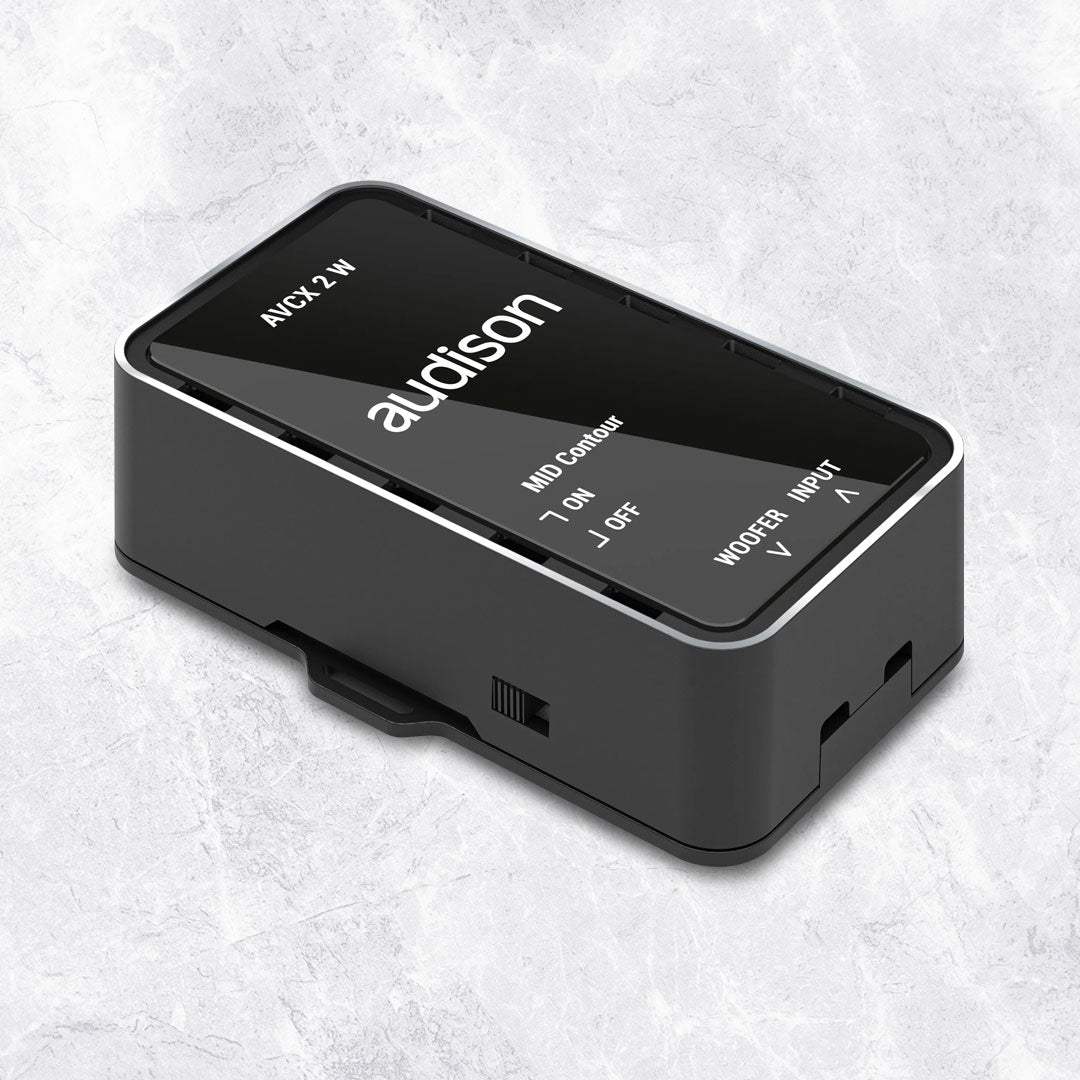

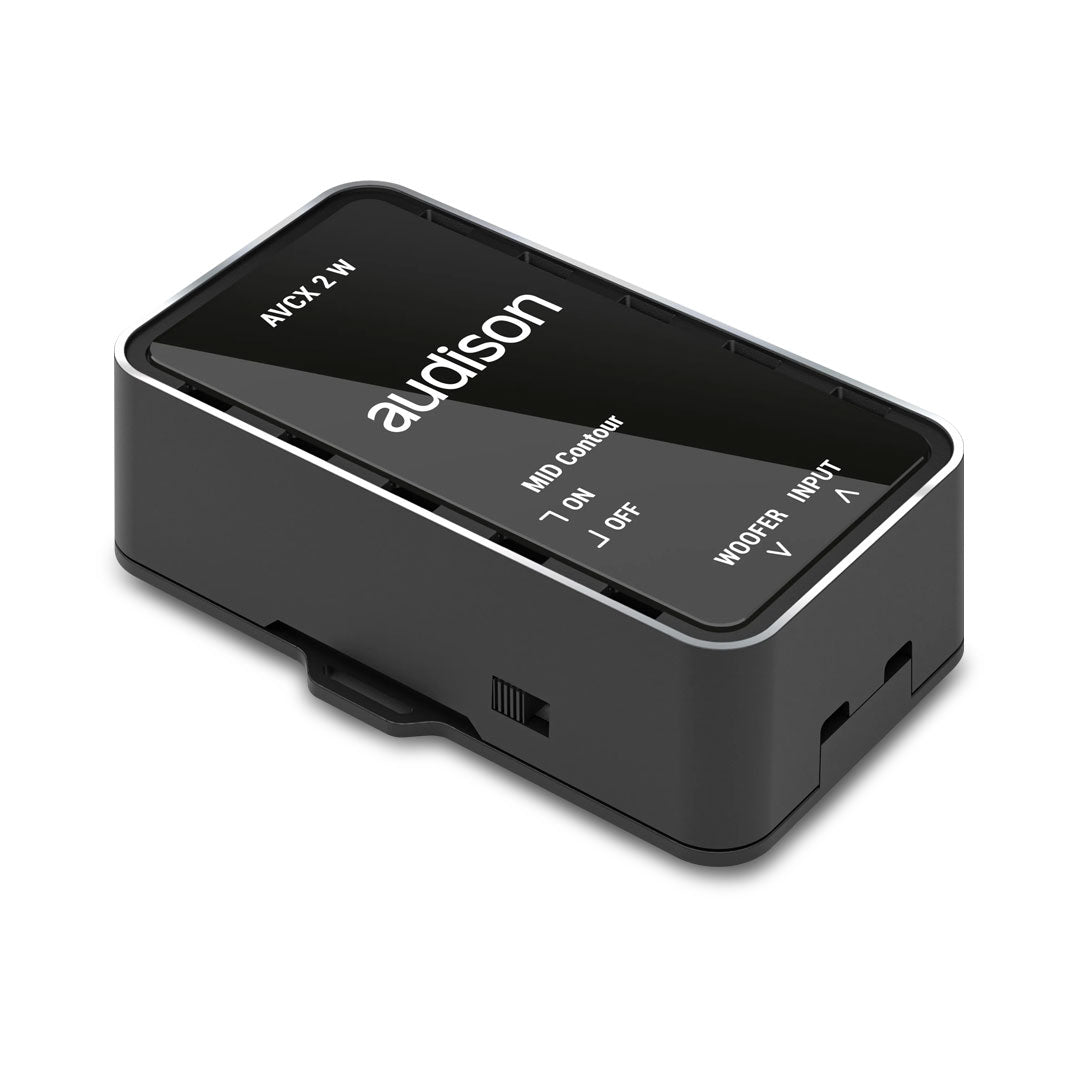

AVCX 2 W and AVCX 2 T: Compact Passive Crossovers for Precision Tuning

The AVK 6S II system comes with two separate, compact passive crossovers:

•AVCX 2 W for the woofer
•AVCX 2 T for the tweeter

These crossovers are designed to take up minimal space and simplify installation, facilitating cable management. Despite their compact size, the carefully selected components ensure optimal crossover performance between the tweeter and woofer, resulting in precise and natural sound reproduction. Audison’s engineers have worked a small miracle, managing to deliver compact dimensions with high performance. Thanks to this meticulous work, the AVK 6 S II system offers excellent reproduction across the entire acoustic spectrum, ensuring an immersive and well-balanced listening experience. This version is optimized for clarity and engagement, effectively communicating the product’s features to car audio enthusiasts and professionals.

Audison AVK6SII Features:

AV 1.0 II

• Hi-Res Audio certification with extension up to 40 kHz: Ensures detailed high-frequency reproduction with improved off-axis response, delivering exceptional sound even when the tweeter is not perfectly oriented towards the listener, ideal for automotive installations.

• Tetolon soft dome: Optimized through precise material characterization, laser vibrometer scanning, and advanced simulations, ensuring a smooth and extended response, offering warm and natural sound reproduction.
  1” (25 mm) CCAW voice coil: Lightweight and stable, it eliminates musical transient compression, ensuring low distortion for clean and natural sound, even at high SPL level.

• Powerful neodymium magnet: Designed to provide superior dynamic response and minimal distortion across the frequency spectrum, improving sound clarity and precision.

• Installation Flexibility: Equipped with OEM-style and Faston connectors, offering maximum installation versatility. Includes two provided adhesive Audison logos, allowing for personalized placement to enhance branding and aesthetics.

• AIF (Any Install Faceplate) Technology: Designed to ensure total installation flexibility and significantly reduce installation time, offering two faceplates and three mounting accessories for any configuration.

• FEM-optimized faceplates (Finite Element Method): Improve sound dispersion for a balanced and immersive listening experience from any angle.

• Mesh and spoke grilles: Both grilles are included to ensure perfect integration within the vehicle cabin, combining aesthetics and performance.
  eID technology: Provides tweeter traceability from production to the owner, guaranteeing authenticity and product security.

AV 6.5 S II

• 1.4” (36 mm) CCAW (Copper Clad Aluminum Wire) voice coil: Maximizes excursion capability and heat dissipation, allowing the driver to reach 100W RMS power, delivering powerful bass free from dynamic compression, even at high listening volumes.

• Low Inductance Design: Optimizes upper midrange (2-3 kHz) reproduction, improving the clarity of vocals and instruments, thanks to an aluminum shorting ring built-in in the motor.

• Oversized Magnetic Assembly: Provides exceptional thermal stability, ensuring optimal dynamic reserve in any listening condition.

• FEM-optimized Magnetic Circuit Geometry: Maximizes efficiency by concentrating the magnetic field on the coil for more precise, dynamic sound.

• Semi-pressed Pulp Cone with Cotton Fibers: Combines rigidity and lightness for wide frequency response and clean reproduction, even in midrange frequencies.

• Die-Cast Aluminum Basket with Magnet Cover: Enhances heat dissipation and reduces turbulent airflows, ensuring maximum rigidity and high performance, even during prolonged use.

• High Excursion Butyl Rubber Surround and Optimized Spider: Uses advanced simulations to ensure greater linearity and cone control, reducing distortion during intense excursions.

• Installation Flexibility: Equipped with OEM-style and Faston connectors, offering maximum installation versatility. Includes two provided adhesive Audison logos, allowing for personalized placement to enhance branding and aesthetics.

• Optional Black or Silver Mesh Metal Grille: Provides robust protection without compromising acoustic performance, adding a touch of elegance to the installation for perfect cabin integration. Includes two provided adhesive Audison logos, allowing for personalized placement to enhance branding and aesthetics.

• eID Technology: Ensures product traceability from production to the final owner, guaranteeing authenticity and security.

AVCX 2 W and AVCX 2 T

• Separate compact crossovers for tweeters and woofers: Allow bi-amplification of tweeter and woofer, reducing space requirements and simplifying wiring, making the installer’s job easier.

• Tweeter Level and Mid Contour Controls: Enable precise tuning to adapt the sound profile to vehicle acoustics and user preferences.

• Selected components: Featuring 160V bi-metalized polypropylene capacitors and 10W aluminum body low-inductance resistors, ensuring high power handling, durability, and distortion-free performance.

• Crossover Optimization: Fine-tuned through advanced simulations and extensive in-car listening sessions to achieve the perfect balance between the tweeter and woofer, guaranteeing seamless integration and a natural, harmonious listening experience.

• OEM-Style Connectors: Provide secure and efficient connections for quick and reliable installation.

Audison AVK6SII Specifications:

• Woofer Size    165 mm (6.5 in)

• Impedance    4 Ohm

• Power Handling - Peak    250 W

• Power Handling - Continuous    125 W

• Frequency Response    50 - 5500 Hz     (-6dB)

• Voice Coil Diameter    36 mm (1.42 in)

• Magnet Material    HIGH DENSITY FLUX FERRITE

• Magnet Size    92 x 42 x 15 mm

• Cone Material    PRESSED PAPER CONE

• Crossover Type    Two Way Separate case for Woofer (AVCX 2 W - Full/6dB Oct.) &
• Tweeter (AVCX 2 T - 12dB/Oct.)

• Crossover Level Adjustment    AVCX 2 T: Tweeter Level: 0 / -1.5 dB; AVCX 2 W:
• Woofer Mid-Contour On / Off

• Tweeter Size    25.4 mm (1 in)

• Frequency Response    1200 - 40000 Hz

• Comply with HiRes Audio JAS, testing condition IEC 60268-5

• Power Handling - Peak    150 W Hi-Pass filtered @ 1,5 kHz - 12dB Oct.

• Voice Coil Diameter    25 mm (1.42 in)

• Dome Material    TETOLON FIBER

• Re    2.9 Ohm

• Fs    67 Hz

• Mms    13.2 g
• Cms    0.43

• BL    4.9

• Qms    6.76

• Qes    0.67

• Qts    0.61

• Vas    10.28 l

• Le    0.3 mH

• Spl    91 dB

• Xmax    4.2 mm (0.17 in)

• Crossover Low-Pass    AVCX 2 W: Woofer, Full/6dB Oct.

• Crossover Hi-Pass    AVCX 2 T: Tweeter, 12dB/Oct.

• Crossover Cut Off    3.5 kHz (Mid-Contour Off)

• Cone Diameter 128.35 mm

• Weight Woofer 1.3 kg

• Weight Tweeter  0.14 kg

• Weight Crossover 0.1 kg

Accessories:

• AVG 6.5 B II Grilles

• AVG 6.5 S II Grilles

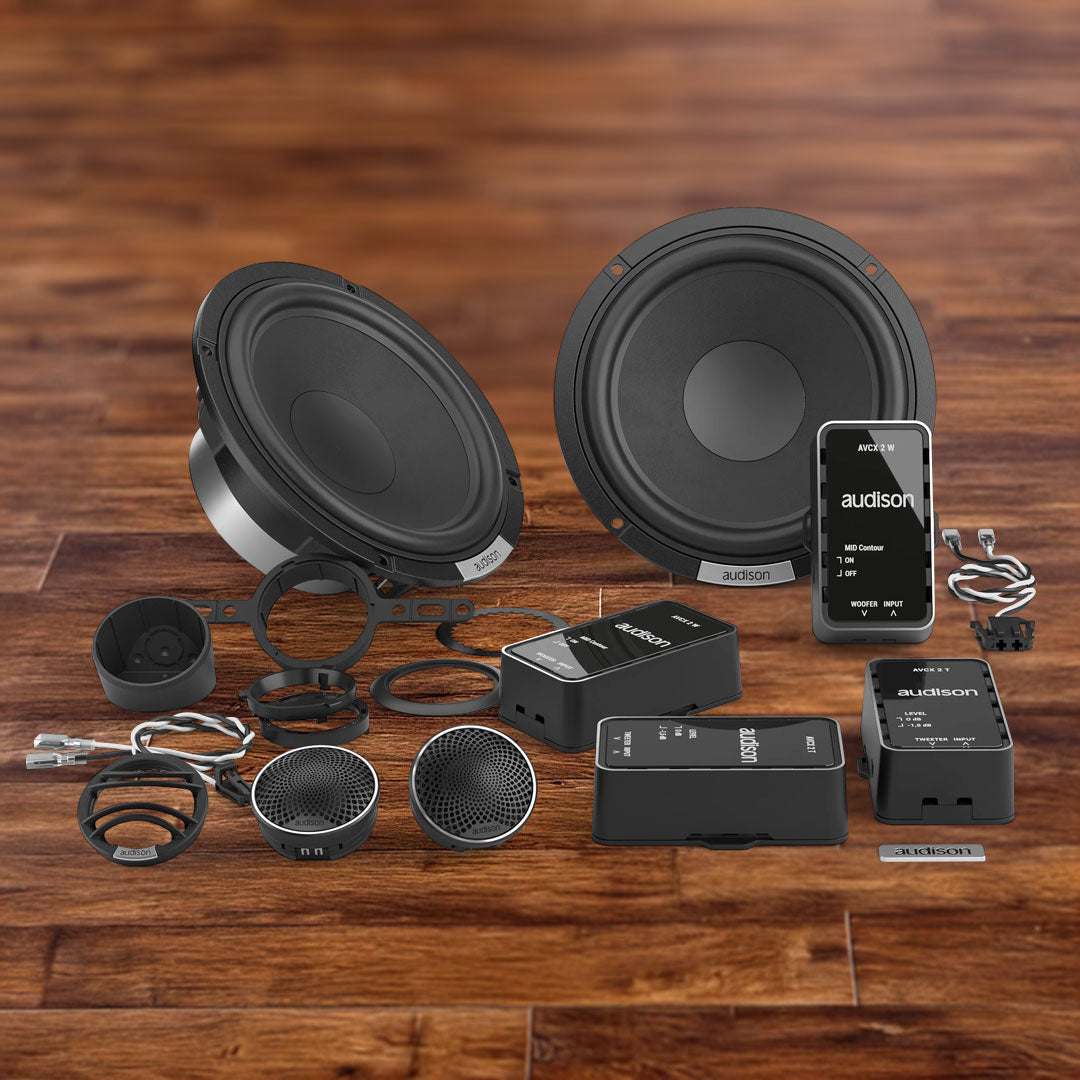

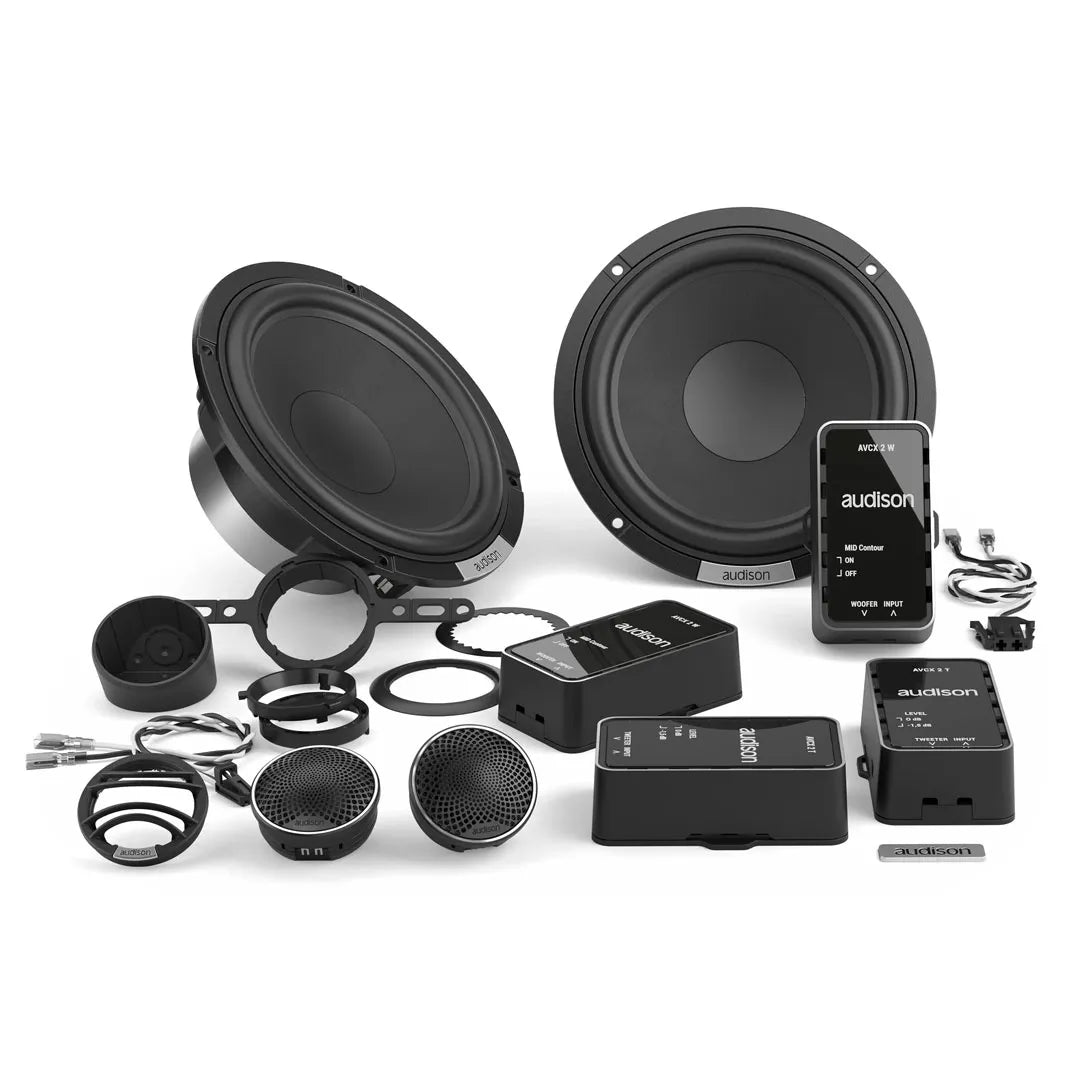

What's in the Box:

• 2x AV 1.0 II tweeter with FP 1, FP 2, FP 3, FP 4 faceplates
• 4x tweeter mounting accessories – Watch band, Double-angle cup, Flush mounting ring, Metal mounting spring
• 2x AV 6.5 S II mid-bass
• 2x AVCX 2 T tweeter crossover
• 2x AVCX 2W mid-bass crossover
• P&P cable
• Audison logo badges
