AUDISON AVCX 3P - Three Way Passive Crossover (Woofer / Midrange / Tweeter – 12dB/Oct.)

AUDISON AVCX 3P - Three Way Passive Crossover (Woofer / Midrange / Tweeter – 12dB/Oct.)

Unleash the full potential of VOCE II. With control, power, and purity—down to the finest detail. The Audison AVCX 3P is the ultimate 3-way passive crossover meticulously engineered to embody the purest expression of Audison acoustic philosophy, designed for seamless integration within the VOCE II speaker system with precision and flexibility enabling advanced system configurations with bi-amplification support ensuring accurate tonal balance and dynamic control across woofer, midrange, and tweeter sections. This sophisticated crossover facilitates bi-amplification and harmonizes the performance of the AV 3.0 II midrange speaker with other VOCE II components creating a coherent high-resolution soundstage tailored to refined listening environments. Built with premium-grade passive components including bi-metalized polyester film capacitors rated at 160V with ultra-low Dissipation Factor (DF) preserving signal integrity delivering pristine transparency, air-wound inductors made from pure copper wire up to 1mm diameter providing high saturation threshold reducing energy loss ensuring consistent distortion-free response, and aluminium-housed resistors for exceptional thermal stability and acoustic neutrality minimizing parasitic inductance. Features versatile contour controls including two-position Mid-Contour for precise mid-bass response adjustment, Hi-Contour control fine-tuning tweeter's high-pass crossover point, three-position tweeter level switch offering 2dB steps, and Hi-Boost control enhancing frequency linearity above 10kHz compensating for off-axis tweeter placement. The ideal complement for AV 3.0 II midrange working in perfect harmony with AV 6.5 P II mid-bass and AV 1.1 II tweeter, the AVCX 3P is the foundation of a truly audiophile-grade passive 3-way setup delivering accurate, dynamic, and emotionally engaging sound reproduction in line with Audison's VOCE legacy for the most sophisticated car audio enthusiasts.

Product Overview

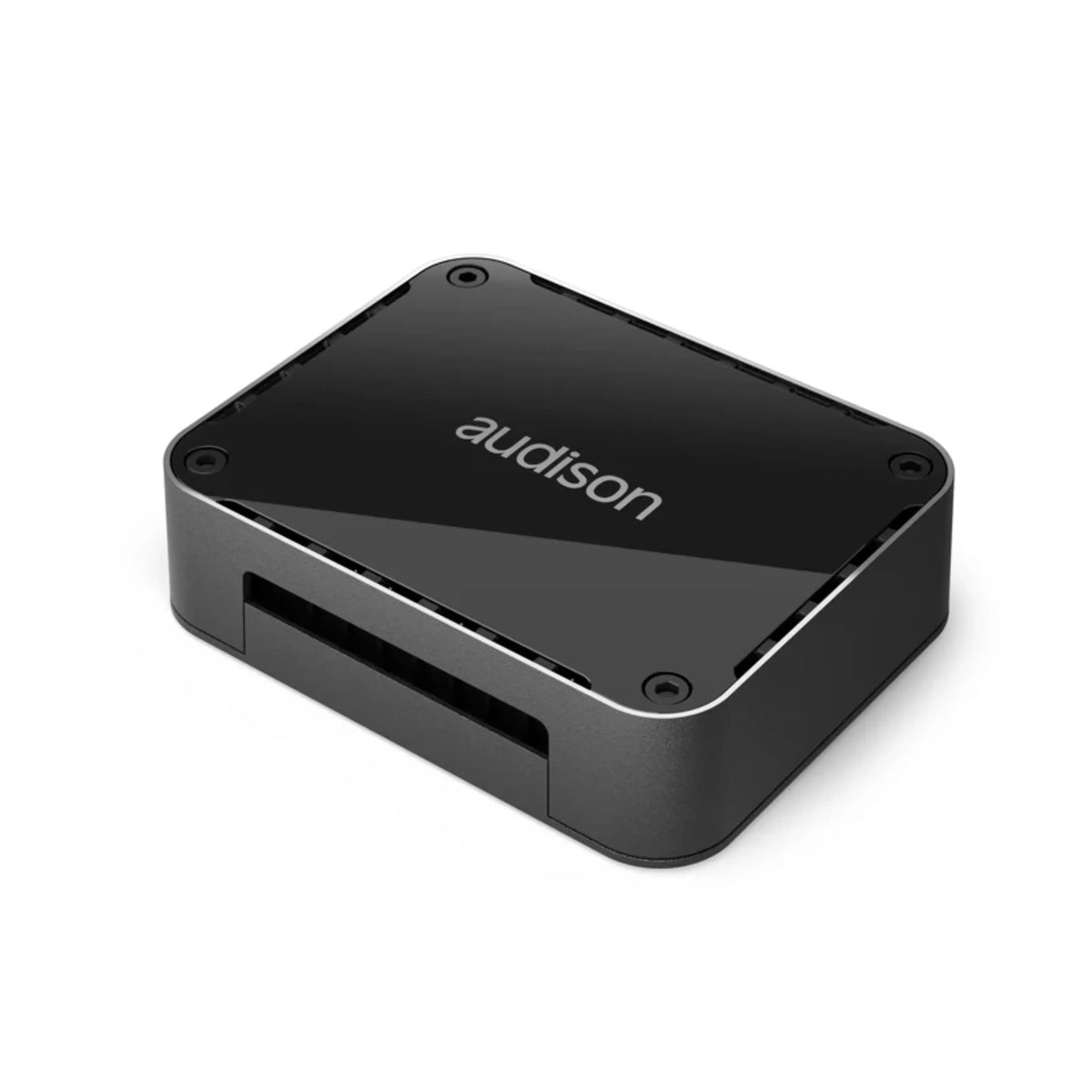

Designed to embody the purest expression of Audison acoustic philosophy, the AVCX 3P is the ultimate 3-way passive crossover developed for seamless integration within the VOCE II speaker system. Engineered with precision and flexibility in mind, it enables advanced system configurations with bi-amplification support, ensuring accurate tonal balance and dynamic control across the woofer, midrange, and tweeter sections.

The AVCX 3P is the ideal complement for the AV 3.0 II midrange, working in perfect harmony with VOCE II components to create a coherent, high-resolution soundstage tailored to the most refined listening environments. With premium components, versatile contour controls, and high-current design, it is the foundation of a truly audiophile-grade passive 3-way setup.

Unleash the full potential of VOCE II. With control, power, and purity—down to the finest detail.

Important Notes:

VOCE II System Integration Required: This crossover is specifically designed for use with Audison VOCE II speaker components. Optimal performance achieved when paired with AV 6.5 P II mid-bass, AV 3.0 II midrange, and AV 1.1 II tweeter. Using non-VOCE II components may result in impedance mismatches, frequency response irregularities, and suboptimal sound quality. Professional installation and system tuning recommended for proper component integration.

Bi-Amplification Capability: High-current switch enables independent amplification of woofer and tweeter sections for maximum control and power handling. When bi-amplifying, ensure amplifier channels are properly gain-matched and time-aligned. Mono-amplification (single amplifier driving all components) is also supported. Verify amplifier power ratings match speaker power handling specifications before connection.

Contour Controls Require Tuning: Mid-Contour and Hi-Contour controls must be adjusted based on speaker placement, vehicle acoustics, and listening position. Incorrect settings may cause frequency response peaks, dips, or poor imaging. Start with neutral settings and adjust incrementally using test tones and music reference tracks. Professional tuning with RTA (Real-Time Analyzer) recommended for optimal results.

High-Current Wiring Essential: Premium passive crossover requires high-quality speaker wire with adequate gauge for power handling. Use minimum 14 AWG (preferably 12 AWG) oxygen-free copper wire for all connections. Poor quality or undersized wiring increases resistance causing power loss, frequency response degradation, and potential component damage under high-current operation.

Proper Mounting and Heat Dissipation: Crossover components generate heat during operation, particularly resistors and inductors under high power. Mount crossover in well-ventilated location away from heat sources. Ensure adequate airflow and avoid enclosing in sealed compartments. Excessive heat degrades component performance and longevity.

Key Features

Bi-Amplification Support - High-current switch enables separate amplifiers or channels for woofer and tweeter, designed to handle substantial power loads ensuring optimal performance and flexibility.

Mid-Contour Two-Position Control - Provides fine adjustment of mid-bass frequency response, optimizing sound output based on woofer placement within vehicle and individual listening preferences.

Hi-Contour Two-Position Control - Enables precise selection of tweeter's high-pass crossover point, tailored to position and angle relative to listener ensuring seamless integration and enhanced high-frequency performance.

Customizable System Configuration - Combination of Mid-Contour and Hi-Contour controls allows creation of bespoke three-way system perfectly balancing AV 6.5 P II mid-bass, AV 3.0 II midrange, and AV 1.1 II tweeter.

Three-Position Tweeter Level Switch - Adjusts tweeter output in 2dB increments (+2/0/-2 dB) allowing fine-tuning of sound balance achieving desired tonal precision for listening environment.

Midrange Level Control - Two-position switch providing 0/-3 dB adjustment for midrange output ensuring proper balance across frequency spectrum.

Hi-Boost Control - Selectable via dedicated switch enhancing high-frequency linearity above 10kHz, compensating for off-axis tweeter positioning maintaining smooth and natural soundstage.

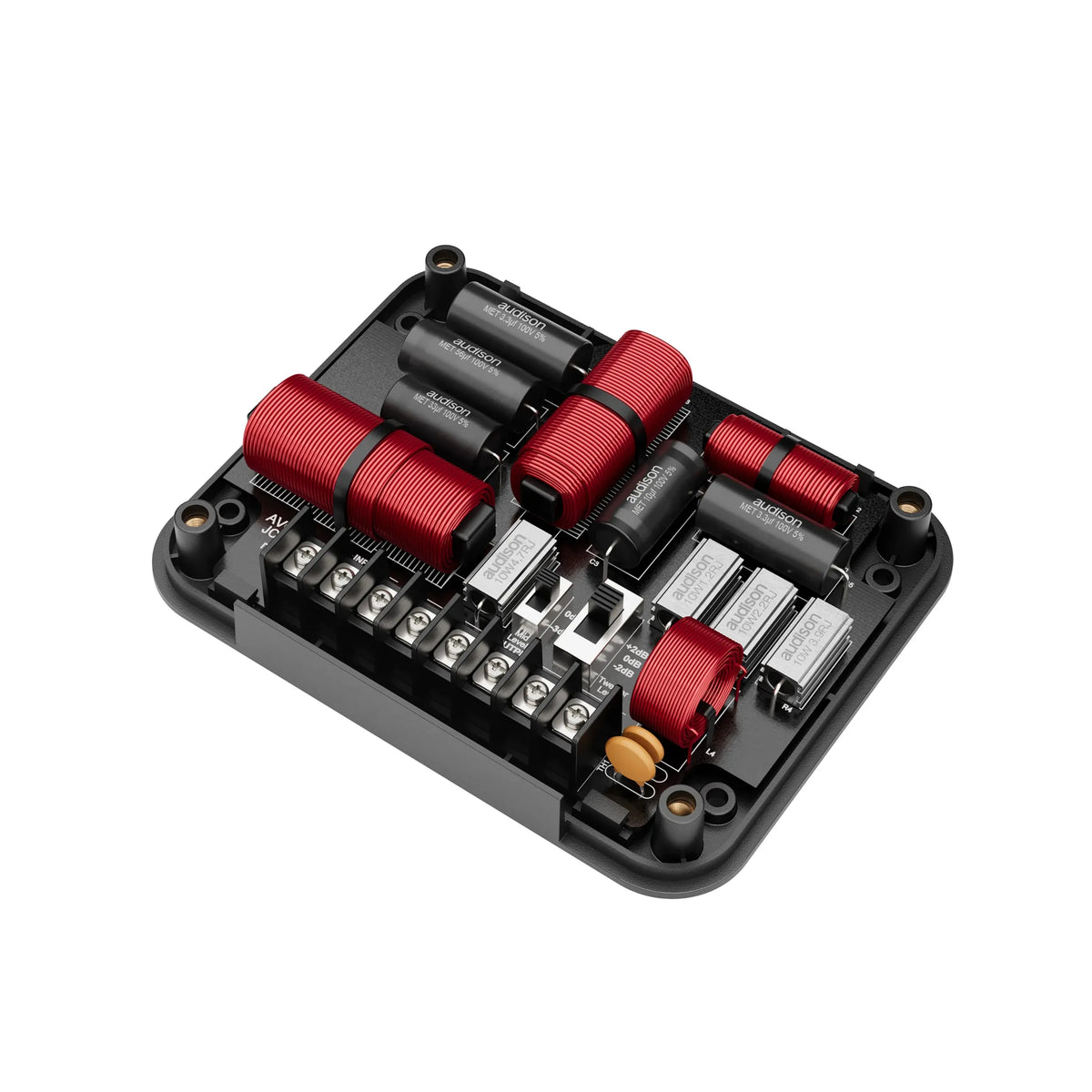

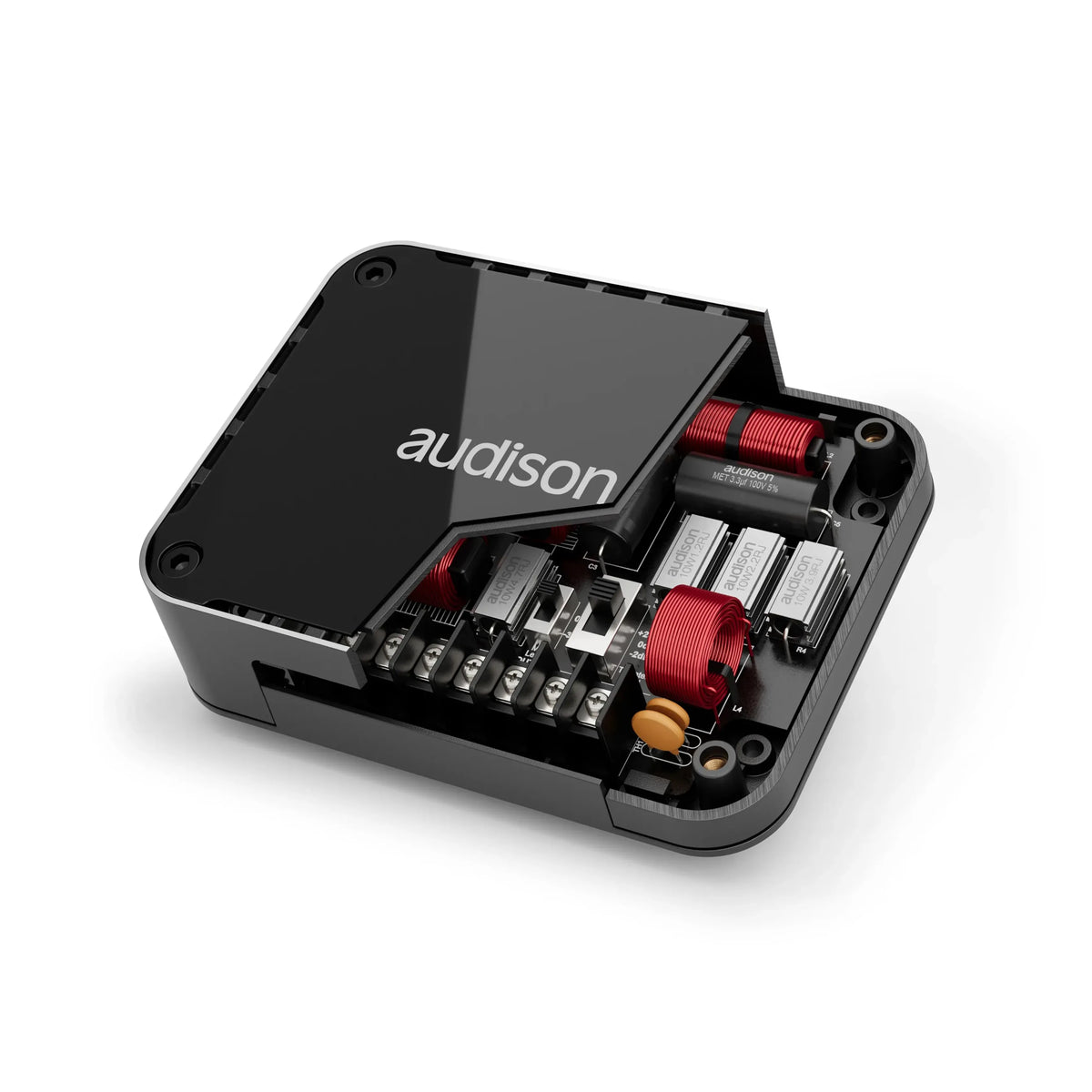

High-Quality Bi-Metalized Capacitors - Equipped with 160V polyester film capacitors featuring ultra-low Dissipation Factor (DF) ensuring exceptional sound transparency and pristine mid/high-frequency reproduction.

Air-Wound Pure Copper Inductors - Constructed with pure copper wire up to 1mm diameter providing high saturation threshold minimizing energy loss delivering consistent performance in woofer section during dynamic and high-current demands.

Aluminium-Housed Resistors - Designed for exceptional thermal stability and acoustic performance minimizing parasitic inductance reducing high-frequency losses ensuring reliable operation under demanding conditions.

12dB/Octave Crossover Slopes - Engineered with 12dB/Oct slopes across all frequency bands providing smooth transitions and optimal phase coherence between drivers.

VOCE II Acoustic Matching - Precisely tuned for AV 3.0 II midrange integration working in perfect harmony with VOCE II component speakers for coherent high-resolution soundstage.

High-Current Design - All internal components rated for high-power operation supporting amplifiers delivering substantial wattage without thermal or electrical limitations.

Premium Component Selection - Every capacitor, inductor, and resistor carefully selected for outstanding electrical and acoustic properties preserving signal integrity across entire frequency spectrum.

Compact Yet Robust Construction - Engineered dimensions (146 x 114 x 40mm) allow flexible mounting locations while maintaining structural integrity and component reliability.

Professional-Grade Engineering - Designed following Audison's VOCE legacy delivering accurate, dynamic, and emotionally engaging sound reproduction for audiophile-grade car audio systems.

Technical Specifications

Frequently Asked Questions

Q: What speakers is the AVCX 3P designed to work with?

A: The AVCX 3P is specifically engineered for Audison VOCE II component speakers. The optimal configuration pairs the AV 6.5 P II mid-bass (250 Hz low-pass), AV 3.0 II midrange (50 Hz - 2.5 kHz band-pass), and AV 1.1 II tweeter (2.5 kHz high-pass). The crossover's frequency points, component values, and contour controls are precisely matched to these drivers' characteristics. Using non-VOCE II speakers may result in impedance mismatches, frequency response irregularities, and suboptimal performance.

Q: What is bi-amplification and should I use it?

A: Bi-amplification means using separate amplifier channels for different speaker sections - in this case, one amplifier/channel for the woofer and another for the midrange/tweeter combination. The AVCX 3P's high-current switch enables this configuration. Benefits include independent power allocation, reduced amplifier stress, improved dynamic headroom, and better control over each frequency band. However, bi-amping requires careful gain matching and time alignment between amplifiers. For simpler installations, mono-amplification (single amplifier driving all components through the crossover) is fully supported and provides excellent results.

Q: How do I adjust the Mid-Contour and Hi-Contour controls?

A: Start with both controls in neutral position. The Mid-Contour adjusts the mid-bass response based on woofer placement - use the alternate position if woofer is door-mounted or requires frequency response compensation. The Hi-Contour adjusts the tweeter's high-pass crossover point based on tweeter position and angle - adjust if tweeter is significantly off-axis or requires integration refinement. Make one adjustment at a time, listening to familiar music tracks with strong mid-bass (kick drums) and high-frequency content (cymbals, vocals). Professional tuning with RTA measurements provides the most accurate results.

Q: What wire gauge should I use and where should I mount the crossover?

A: Use minimum 14 AWG oxygen-free copper speaker wire, with 12 AWG preferred for high-power systems. Keep wire runs as short as practical, maintaining consistent gauge from amplifier through crossover to speakers. Mount the crossover in a well-ventilated location protected from moisture and physical damage - common locations include under seats, in door cavities (if ventilated), or behind kick panels. Ensure adequate airflow around the crossover as passive components generate heat under high power operation. Avoid mounting near amplifiers, heat vents, or in sealed compartments.

Q: Can I use this crossover with active (DSP) processing?

A: The AVCX 3P is a passive crossover designed for use without active DSP processing. However, it can be integrated into systems using DSP for time alignment, equalization, and level matching, as long as the DSP's crossover functions are disabled or set to pass full-range signal to the passive crossover. Some advanced users employ DSP for bass management and overall system EQ while using the AVCX 3P for the three-way component speaker integration. For systems requiring active crossover control, consider Audison's bit amplifiers or processors with full active crossover capabilities instead.
