Product features

Designed to Drive the Subwoofer & is Also Suitable For High-Power Dual Mono Systems!

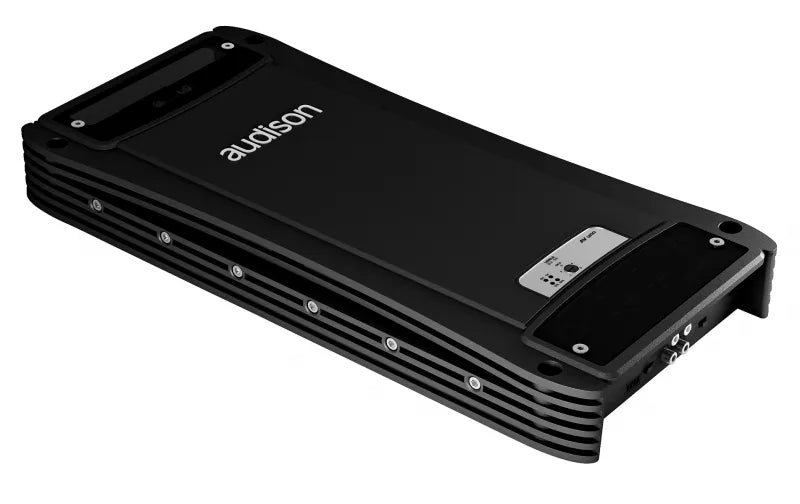

Audison Voce AV Uno Mono-Block Amplifier
AV Uno is an amplifier featuring an innovative circuitry called POD (Power On Demand); it provides at the final stage in AB class a dynamic power that serves as a tracker to the signal to be amplified so as to increase efficiency and reduce the temperature. AV Uno allows for the combination of plus points in terms of audio quality and robustness of the AB Class traditional amplifiers with the efficiency of the D Class amplifiers.

AMP (Amplifier Management Processor) constantly checks the operating status system and communicates with the user through 4 different coloured LEDs, located on the top panel; ART (Automatic Remote Turn On-Off) allows automatic turn-on/off when a remote signal isn’t available from the source. AV uno is a mono amplifier designed to drive the subwoofer and is also suitable for high-power dual mono systems.

Specifications:

  • Power Supply:
    Power Supply Voltage: 11 ÷ 15 VDC
    Idling Current: 2.0 A
    Idling Current when Off: 0.02 mA
    Consumption @ 14.4 VDC (Max Musical Power): 120 A
  • Amplifier Stage:
    Distortion - THD (1kHz @ 4Ω): 0.04 %
    Bandwidth (-3 dB): 7 ÷ 20k Hz
    S/N Ratio (A weighted @ 1V): 95 dBA
    Damping Factor (1k Hz @ 4Ω): 160
    Input Sensitivity: 0.3 ÷ 5 V RMS
    Input Impedance: 15k Ω
    Speaker-In Sensitivity: 1.4 ÷ 24 V RMS
    Speaker-In Impedance: 5k Ω
    Minimum Load Impedance: 1Ω
    Nominal Power (RMS) @ 12 VDC, THD 0.3%, 4Ω: 700 W x 1
  • Output Power (RMS) @ 14.4 VDC,THD 1%:
    1 Ch: 700 W x 1(4Ω)
    1 Ch: 1300 W x 1(2Ω)
    1 Ch: 1700 W x 1(1Ω)
  • Signals Inputs / Filters:
    Inputs: Pre-In / Speakers-In
    Outputs: Hi-Pass Pre Out (50 ÷150 Hz)
    Filters (Full/Lo-Pass): 50 ÷ 150 Hz @ 24dB/Oct.
    Speakers Polarity: Normal / Inverted
    Bass Boost (Freq./Gain): 50-70-90 Hz / 0 ÷ 6 dB
    Subsonic (Cont. Adj.): Off ÷ 50 Hz @ 24dB/Oct.
  • Other Functions:
    Remote In: 7 ÷ 15 VDC - 1mA
    Remote Out: 12 VDC - 50mA
    Fuse (Strip Type): 100 A
    Remote SUB Volume Adj.: (-50 ÷ 6) dB
  • Dimensions: 220mm x 470mm x 58mm
  • Weight: 4.00kg
