Audison AV BIT Voce IN HD Digital Interface AD Link & AC Link Board

Perfect Digital Connection With Audison Bit Processors Provided With AD Link & AC Link Connections!

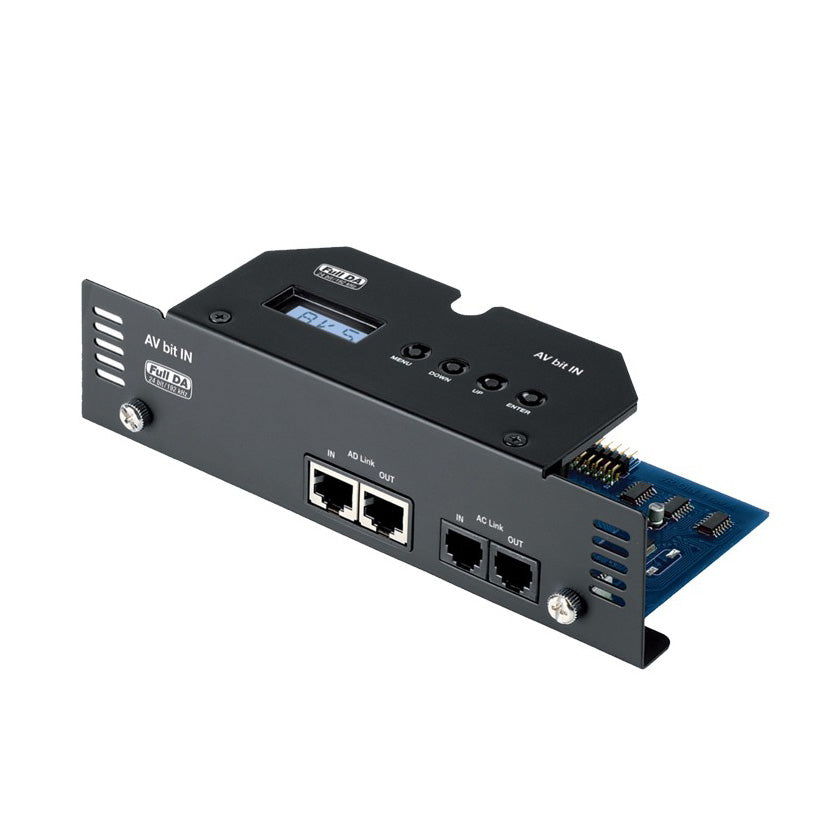

AV Bit IN HD Digital Interface
Digital interface for all AV amplifiers, for perfect digital connection with Audison bit processors provided with AD Link and AC Link connections. By mounting the AV bit IN “Digital Interface” onto the Voce amplifier series, through the AD Link connection the S/PDIF digital signal will get directly to the high-quality internal D/A converters.

After these, the signal becomes analog and is immediately amplified preventing it from deterioration due to the long paths. The result is extremely high-quality music, not achievable with any other analog system. It offers one AD Link and AC Link input, as well as one AD Link and AC Link output in order to drive a multi-amplified system.

Thanks to its digital panel with 3 3-character display and 4 push buttons, you can select the amplifier type, mono or stereo mode, and also the digital channel coming from the audio processor. AV bit IN HD features two new switches on the front panel: one provides you with the ability to turn off the gain control of the amplifier to achieve an improved Signal-to-noise ratio. With the second switch, you can control the DSP remote start function. Connection to amplifier: remove the analog crossover module and insert the AV bit IN module into the amplifier’s front side. It requires no external power supply.

Features:

• Hi-Res Audio: Hi-Res Audio provided by JAS, AV bit IN HD exceeds the 24-bit/96kHz digital to analog conversion processing requirement, providing an astonishing 24-bit/192 kHz.
• Full DA HD: Pure digital signal transfer with a resolution of up to 24-bit/96 kHz.

Specifications:

• Distortion THD: 0.03%
• Bandwidth: 5 ÷ 20kHz
• S/N Ratio (A-Weighted @ 1V) Gain Off: 100dB
• Digital Resolution: 24-Bit / 192kHz
• Input/Output: AD Link / AC Link
• Weight: 0.50kg
