Audison AV 1.1 Voce Series 1.5
Click to open expanded view
AUDISON logo

Discontinued

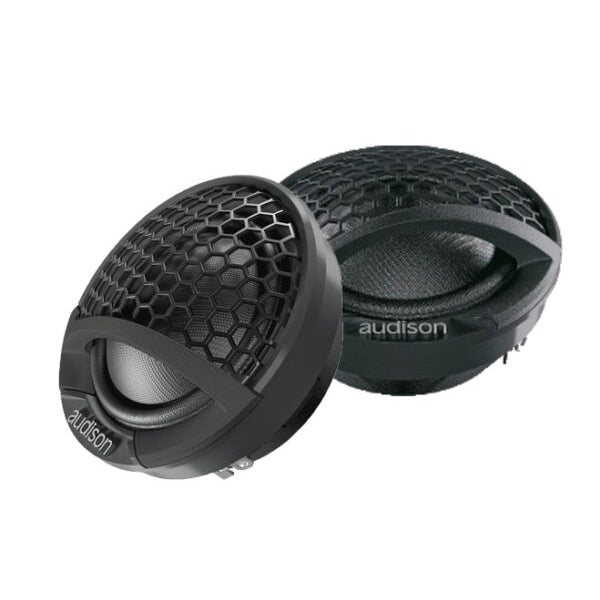

Audison AV 1.1 Voce Series 1.5" 180W Tweeter Set - Pair

SKU: AV11

No Longer Available. Please contact us for recommendations or alternatives. (02) 4257-2636

Shipping information

We offer fast and reliable shipping options to ensure that your order arrives in a timely manner. Our dedicated team works diligently to process and ship your items as quickly as possible.

Here are some key points to note about our shipping policy:

Standard Shipping

  • Frankies offers a $15.95 flat rate for Australia-wide shipping, no matter how many items you order. Some larger or heavier items may incur an additional fee, which will be communicated to you when your order is processed.
  • While we endeavour to dispatch all orders promptly, please be advised that due to the current national fuel shortages in Australia and the resulting pressure on logistics networks, order processing and dispatch may take up to 7 business days. We are not liable for delays caused by third-party freight carriers or fuel-related logistical disruptions. By placing an order, you acknowledge that delivery timeframes may be extended beyond our standard estimates during this period.

Estimated delivery times:

  • WA, NT, and TAS: currently experiencing longer shipping times
  • Holiday periods (e.g. Christmas): deliveries may be delayed due to increased freight volumes

Express Shipping

  • Express shipping is available and calculated based on your delivery location, as well as the size and weight of your order. To receive an accurate quote, please contact our Albion Park Rail store and request an "express shipping quote." Our team will promptly assist with pricing and availability. Payment for express shipping can be securely arranged over the phone.

Share this product

Share Post Pin E-mail

Product features

Advanced Design & Engineering Dedicated to the Rear Damping Chamber!

Voce 1.1" 180W Tetolon Dome Tweeter
The AV 1.1 tweeter features a very light Tetolon membrane, a CCAW voice coil wound on a double layer, and a high-density Neodymium magnet. The advanced design and engineering dedicated to the rear damping chamber with annular geometry and the magnet area, along with the attention to the selection of the materials, resulted in a frequency response on the lower limits, a reduced harmonic distortion, along with a live, natural, rich in detail sound.

Features:

  • Ttolon dome, a combination of silk and cotton with proprietary damping treatment, provides low mass and resonance-free response up to ultrasonic frequencies.
  • CCAW (Copper Clad Aluminium Wire) voice coil wound on a double layer, extremely lightweight and compact, resulting in very high efficiency and a crisp, dynamic sound.
  • The annular geometry of the Rear Damping Chamber, together with the proprietary damping material, extends the frequency response to lower limits and reduces harmonic distortion.
  • High flux density Neodymium magnet, for very high efficiency and detailed sound.

Specifications:

  • Size: 28mm
  • Power Handling - Peak: 180W
  • Power Handling Crossover: Hi-Pass Filtered 2.0 kHz @ 12 dB/Oct
  • Impedance: 4-Ohm
  • Frequency Response: 1.2k ÷ 22kHz
  • Magnet Material: Neodymium
  • Voice Coil Ø: 28mm
  • Voice Coil Material: CCAW
  • Woofer Qes: 1.38
  • Dome Material: Teloton Fibre
  • Weight: 0.07kg
