Audison ASP Prima Series AP Bit Automatic Speaker Presence

Thanks to ASP, there is No Need to Mount Fixed Power Resistors At the Source Outputs!

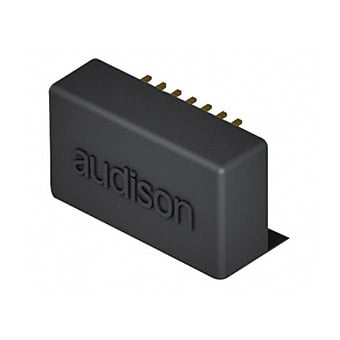

ASP - AP Bit Automatic Speaker Presence
The ASP is indispensable when installing the AP8.9 bit with some OEM sources requiring, only at the initial turn-on instant, a resistive load impedance at the outputs to detect the speakers’ presence. In case there is no load, the source disables the outputs, usually only for the Rear section. Therefore, if during the calibration process, you cannot adjust the input signal level due to lack of signal on some or all of the AP8.9 bit inputs, while installing the ASP module, when you turn on the AP8.9 bit a temporary load will be simulated; afterward that load will automatically get disabled, fixing the issue. Thanks to ASP, there is no need to mount fixed power resistors at the source outputs; the resistors would produce heat and, in addition to that, would make the source heat up unnecessarily.

Specifications:

• Type: Simulator
• Compatible With: Audison Prima AP8.9 bit
• Weight: 0.10kg
