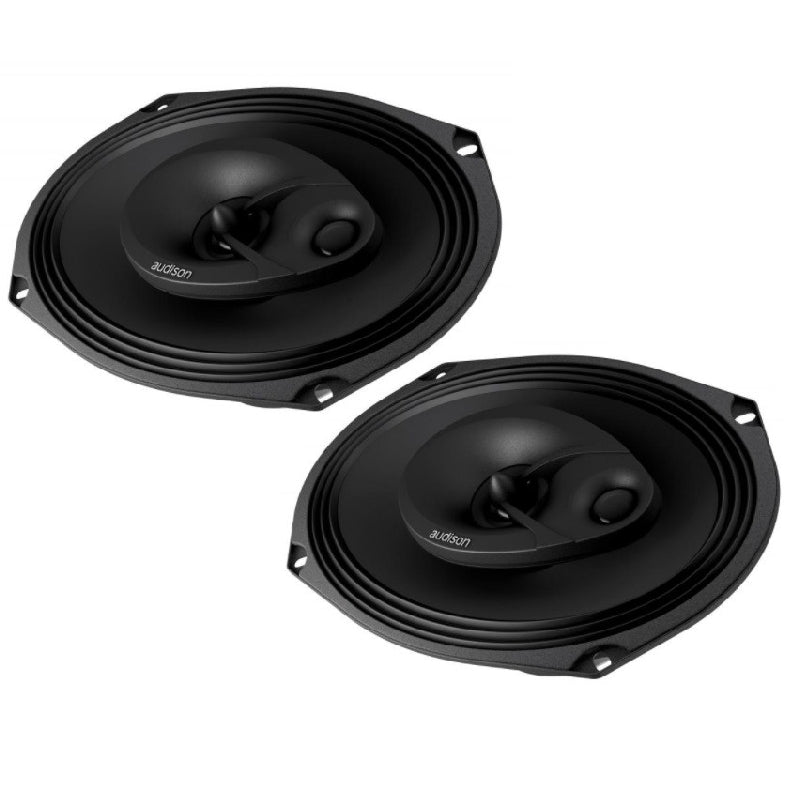

Audison APX690 Prima Line 6 x 9" 3-Way Coaxial Speakers - Pair (APX 690)

SKU: APX690
Price
$259.99
Shipping information

We offer fast and reliable shipping options to ensure that your order arrives in a timely manner. Our dedicated team works diligently to process and ship your items as quickly as possible.

Here are some key points to note about our shipping policy:

Standard Shipping

  • Frankies offers a $15.95 flat rate for Australia-wide shipping, no matter how many items you order. Some larger or heavier items may incur an additional fee, which will be communicated to you when your order is processed.
  • While we endeavour to dispatch all orders promptly, please be advised that due to the current national fuel shortages in Australia and the resulting pressure on logistics networks, order processing and dispatch may take up to 7 business days. We are not liable for delays caused by third-party freight carriers or fuel-related logistical disruptions. By placing an order, you acknowledge that delivery timeframes may be extended beyond our standard estimates during this period.

Estimated delivery times:

  • WA, NT, and TAS: currently experiencing longer shipping times
  • Holiday periods (e.g. Christmas): deliveries may be delayed due to increased freight volumes

Express Shipping

  • Express shipping is available and calculated based on your delivery location, as well as the size and weight of your order. To receive an accurate quote, please contact our Albion Park Rail store and request an "express shipping quote." Our team will promptly assist with pricing and availability. Payment for express shipping can be securely arranged over the phone.

Product features

Extended Bass Response & High-Frequency Projection are Key Features of this Fantastic Set of Speakers!

6 x 9" 3-Way Coaxial Speakers - Pair
The Audison APX 690 (Order Code APX690) features an exclusive 40 mm horn-loading dome tweeter that contributes to maximizing efficiency up to 96dB SPL and an acoustics lens specifically designed and applied to the tweeter to increase dispersion in the high-frequency range. To strengthen the emission of very high-frequency ranges otherwise affected by off-axis positioning compared to the listening point, the APX 690 features a super tweeter.

Features:

  • Horn Loaded Tweeter: 40 mm horn-loaded dome tweeter contributing to its incredible efficiency of up to 96dB SPL.
  • Acoustics lens applied to the tweeter, specifically designed to increase dispersion in the high-frequency range.
  • PEI (Polyethylene injected) super tweeter employed to strengthen emission of very high-frequency ranges otherwise affected by off-axis positioning common to rear deck installations.
  • Water repellent treated paper cone, featuring a profile developed with FEM (Finite Element Method) simulation technology and optimized with the Klippel Scan Vibrometer.
  • Pure copper mobile voice coil, wound on Kapton former, for better thermal and mechanical capacity.
  • TPU (Thermoplastic Polyurethane) surround, featuring the exclusive shallow "Triple Wave" profile, for maximum excursion linearity.
  • Polycotton spider material ensures reliable performance and linear response to musical transients.
  • Large motor assembly, optimised with FEM (Finite Element Method) technology, for stable control and linear excursion.
  • Low carbon content plates for maximum magnetic permeability and high heat dissipation.
  • Compact basket, protected by abrasion-resistant and scratch-proof coating, the motor is affixed with damping epoxy adhesive.
  • High current fast-on terminal with temperature-resistant plastic cover, protecting it against accidental short circuits.
  • Developed with the KLIPPEL suite.
  • Grille Included

Specifications:

  • System: 3-Way Coaxial
  • Woofer Size: 6 x 9"
  • Tweeters Size: 40mm + 15mm
  • Power Handling - Continuous: 100W
  • Power Handling - Peak: 300W
  • Impedance: 4-Ohm
  • Frequency Response: 40 - 23kHz
  • Woofer Magnet Size: (D) 90mm x (D) 32mm x (H) 15mm
  • Woofer Voice Coil: 25mm
  • Tweeter Voice Coil: 20mm
  • Xmax: 3.5mm
  • Cone: Water-Repellent Treated Paper Cone
  • Grilles Included: Yes
  • Packaging Type: Giftbox
  • Weight: 1.23kg
