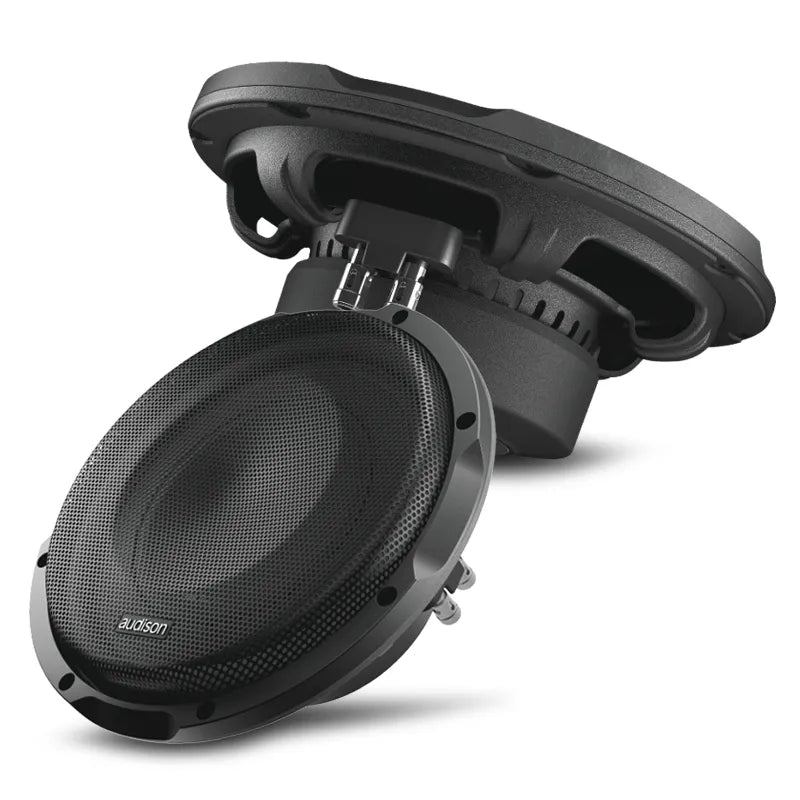

Audison APS10D Prima Series 10" 800W Double Coil Subwoofer Driver (APS 10 D)

Deliver Maximum Performance In A Sealed Enclosure With Ultra-Compact Volumes!

Prima Series 10" 800W Subwoofer
The Audison APS 10 D is designed to deliver maximum performance in a sealed enclosure with ultra-compact volumes, from 10 lt. to 12 lt. The dual voice coil and single voice coil versions feature push connectors for ease of wiring and configuration. Prima subwoofer components have been developed with the primary goal of delivering high output in tight spaces. Output is a matter of excursion; the more air the cone moves, the more output. However, reduced mounting depth traditionally has meant low excursion.

Prima subwoofers employ a special cone-dustcap-basket geometry which guarantees large excursion of the mobile group while keeping the mounting depth to a minimum. The surround and spider have been carefully designed to prevent the rocking-mode phenomenon. The cooling circuit has been designed with air vents on the basket underneath the spider, eliminating the need for vents on the bottom plate. This allows the subwoofer to be mounted close to the back wall of the enclosure, making the most of the reduced mounting depth.

Features:

• Ultra-low profile (4.7 in. / 120 mm) for maximum installation flexibility
• Designed to deliver maximum performance in a sealed enclosure starting from 10 lt
• Special designed cone-dustcap-basket geometry guarantees a long linear excursion capability (11 mm, one-way) while keeping the mounting depth to a minimum
• Air vents on the basket underneath the spider, eliminating the need for the central pole vent allowing mounting close to the rear wall of the enclosure
• Massive motor assembly, optimized with FEM (Finite Element Modeling) for perfect control under high power, high excursion conditions
• Water-repellent treated paper 10 in. cone, featuring a profile developed with FEM simulation and optimized with the Klippel Scan Vibrometer
• Dual voice coil design specifically developed to be combined with either AP8.9 bit (2 CH + 2 CH bridged), AP5.9 bit (Sub CH) or AP4.9 bit/AP4 D (2 CH bridged) amplifiers
• Steel mesh grille and plastic gasket included

Specifications:

• Component: Subwoofer
• Size: 250mm (10")
• Power Handling - Peak: 800W
• Power Handling - Continuous: 400W
• Impedance: 4Ω + 4Ω
• Centre - Centre Distance: 255mm (10.04")
• Magnet Size: 140mm (D) x 70mm (D) x 30mm (H) (5.51" x 2.76" x 1.18")
• Total Driver Displacement: 1.12 (0.02)
• Hole Diameter: 5mm (0.2")
• Magnet: High-Density Flux Ferrite
• Cone Water-Repellent Pressed Paper
• Subwoofer Voice Coil Ø: 60mm (2.36")
• *Xmech: ±18 (0.71)
• Weight: 5.24kg
