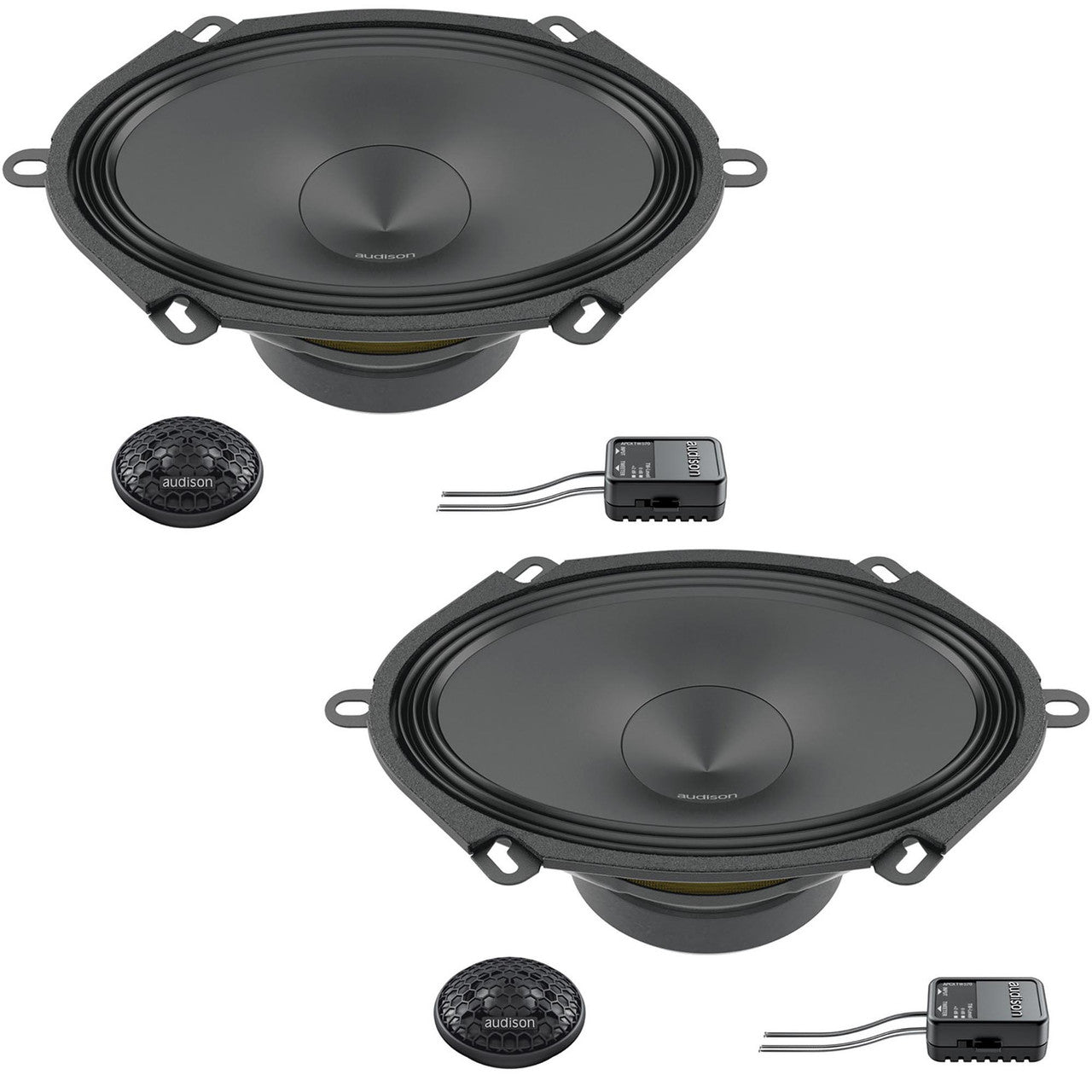

Audison APK 570 Prima Series 5 x 7" 2-Way Component Speaker Set - Pair

SKU: APK570
Price
$469.99
Shipping information

We offer fast and reliable shipping options to ensure that your order arrives in a timely manner. Our dedicated team works diligently to process and ship your items as quickly as possible.

Here are some key points to note about our shipping policy:

Standard Shipping

  • Frankies offers a $15.95 flat rate for Australia-wide shipping, no matter how many items you order. Some larger or heavier items may incur an additional fee, which will be communicated to you when your order is processed.
  • While we endeavour to dispatch all orders promptly, please be advised that due to the current national fuel shortages in Australia and the resulting pressure on logistics networks, order processing and dispatch may take up to 7 business days. We are not liable for delays caused by third-party freight carriers or fuel-related logistical disruptions. By placing an order, you acknowledge that delivery timeframes may be extended beyond our standard estimates during this period.

Estimated delivery times:

  • WA, NT, and TAS: currently experiencing longer shipping times
  • Holiday periods (e.g. Christmas): deliveries may be delayed due to increased freight volumes

Express Shipping

  • Express shipping is available and calculated based on your delivery location, as well as the size and weight of your order. To receive an accurate quote, please contact our Albion Park Rail store and request an "express shipping quote." Our team will promptly assist with pricing and availability. Payment for express shipping can be securely arranged over the phone.

Share this product

Share Post Pin E-mail

Product features

Power Handling & Impeccable Control!

Prima Line - Component Speaker
The Audison APK 570 system is ideal for car models with doors equipped to house elliptical speakers featuring 5x7 in. woofers and AP 1 tweeter with dedicated crossovers APCX TW 570. The crossovers are ultra-compact to facilitate their installation and include attenuation of the tweeter output level for outstanding fine-tuning. The R&D team optimized the electro-acoustic parameters of the new woofers for installation in the car door, respecting all the characteristics of the Prima speakers, such as the compact size of the basket to facilitate installation.

'The mechanical cut-off of the woofer cone-dust cap system ensures they can be used without a filter, maximizing efficiency to be easily driven by any amplifier. The large voice coil ensures high power handling and impeccable control even in the most aggressive dynamic transients. The double Faston connectors with a direct link to the tweeter speed up the speaker's connection, always ensuring perfect contact.

Features:

  • AP 1 Tweeter 1. 26 mm diameter diaphragm combined with a wide-roll surround provided maximum efficiency and reduced resonance frequency.
  • An acoustic lens is designed to compensate for the in-car frequency response in the 10kHz - 13kHz bandwidth caused by critical OEM placements.
  • AP 570 Woofer 1. 32 mm pure copper voice coil, for high power handling and outstanding low-frequency control.
  • Water-repellent treated paper cone, featuring a profile developed with FEM (Finite Element Method) simulation technology and optimized with the Klippel R&D Scan Vibrometer.
  • Reduced mounting depth, providing ease of installation in OEM placements.
  • "Triple Wave" surround profile for maximum excursion linearity.
  • Compact basket, protected by abrasion-resistant and scratchproof coating, the motor is affixed with damping epoxy adhesive.
  • High current fast-on terminal with double contact on positive and negative poles for high flexibility and quick connection.
  • APCX TW 570 Crossover Optimized for OEM Integration featuring an attenuation switch (0 dB, +2dB) to tune the in-car response according to different installation conditions.
  • Supplied with fast-on connectors that eliminate any possible connection errors.

Specifications:

  • Component: 2-Way System
  • Woofer Size: 5 x 7"
  • Tweeter Size: 26mm
  • Power Handling - Peak: 300W
  • Power Handling - Continuous: 100W
  • Impedance: 4-Ohm
  • Frequency Response: 55 - 20kHz
  • Crossover Type: HP 6dB Oct - 3kHz
  • Voice Coil Woofer: 32 (1.26) Tweeter 20 (0.79)
  • Weight: 2.72kg
