Audison APK163 Prima Line 6.5" 375W 3-Way Component Speaker System - Pair (APK 163)

SKU: APK163
Price
$524.99
Shipping information

We offer fast and reliable shipping options to ensure that your order arrives in a timely manner. Our dedicated team works diligently to process and ship your items as quickly as possible.

Here are some key points to note about our shipping policy:

Standard Shipping

  • Frankies offers a $15.95 flat rate for Australia-wide shipping, no matter how many items you order. Some larger or heavier items may incur an additional fee, which will be communicated to you when your order is processed.
  • While we endeavour to dispatch all orders promptly, please be advised that due to the current national fuel shortages in Australia and the resulting pressure on logistics networks, order processing and dispatch may take up to 7 business days. We are not liable for delays caused by third-party freight carriers or fuel-related logistical disruptions. By placing an order, you acknowledge that delivery timeframes may be extended beyond our standard estimates during this period.

Estimated delivery times:

  • WA, NT, and TAS: currently experiencing longer shipping times
  • Holiday periods (e.g. Christmas): deliveries may be delayed due to increased freight volumes

Express Shipping

  • Express shipping is available and calculated based on your delivery location, as well as the size and weight of your order. To receive an accurate quote, please contact our Albion Park Rail store and request an "express shipping quote." Our team will promptly assist with pricing and availability. Payment for express shipping can be securely arranged over the phone.

Share this product

Share Post Pin E-mail

Product features

High Power Handling & Outstanding Low-Frequency Control!

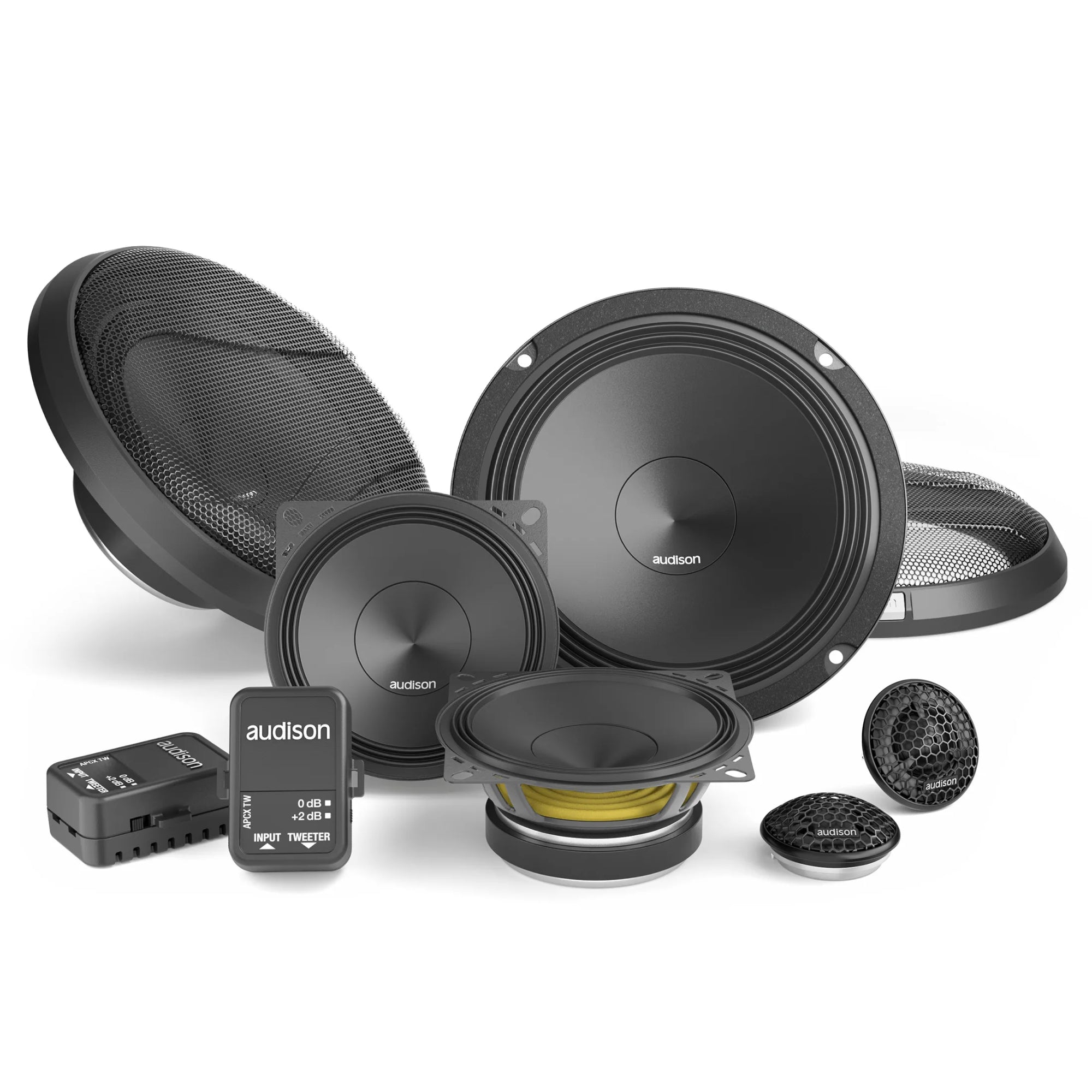

APK 163 3-Way Component System
The three-way system features an AP 1 tweeter, AP 4 mid-bass, and AP 6.5 woofer. APK 163 system deserves special attention; the Audison designers developed a separate crossover dedicated to each speaker, simplifying OEM speaker replacement operation, and negating the routing of additional cables through the door, which could void the car warranty. To ease the installation in OEM placements the woofers are equipped with high current fast-on terminals with double contact on positive and negative poles for high flexibility and quick connection.

Features:

  • AP 1 tweeter with a 26 mm diameter diaphragm combined with a wide-roll surround provides maximum efficiency and reduced resonance frequency.
  • AP 1 tweeter with an acoustic lens designed to compensate for and fine-tune the in-car frequency response anomalies in the 10kHz - 13kHz bandwidth caused by restrictive OEM grilles in critical OEM placements.
  • Dedicated crossovers for each component: APCX TW compact tweeter passive crossover optimised for OEM Integration featuring an attenuation switch (0 dB, +2dB) to tune the in - car response according to different installation conditions; APCX MD midbass crossover and APCX WF woofer crossover. The passive crossovers boast very reduced dimensions and are optimised for OEM Integration.
  • AP4 midbass with extended frequency response, combined with high efficiency.
  • AP 6.5 woofer with 32 mm pure copper voice coil, for high power handling and outstanding low frequency control.
  • AP 6.5 woofer and AP 4 midbass with a water-repellent treated paper cone, featuring a profile developed with FEM (Finite Element Method) simulation technology and optimized with the Klippel R&D Scan Vibrometer.
  • AP 6.5 woofer and AP 4 midbass with reduced mounting depth, providing ease of installation in OEM placements.
  • AP 6.5 woofer and AP 4 midbass with TPU (Thermoplastic Polyurethane) surround, featuring the exclusive shallow "Triple Wave" profile, for maximum excursion linearity.
  • AP 6.5 woofer and AP 4 midbass with compact basket, protected by abrasion - resistant and scratch - proof coating, the motor affixed with damping epoxy adhesive.
  • AP 6.5 woofer with a high current fast-on terminal with double contact on positive and negative poles for high flexibility and quick connection. The terminal features temperature temperature-resistant plastic cover, protecting it against accidental short circuits.

Specifications:

  • Component 3-Way System
  • Woofer Size: 165mm (6.5")
  • Midrange Size: 100mm (4")
  • Tweeter: 26mm (1")
  • Power Handling - Peak: 375W
  • Power Handling - Continuous: 125W
  • Impedance: 4-Ohm
  • Frequency Response: 50 - 20kHz
  • Crossover Type:
    LP @ 600Hz - 6dB Oct.
    HP @ 600/3.5kHz - 6/6dB Oct.
    HP @ 3.5kHz - 6dB Oct.
  • Component Adjustment: +2; 0dB
  • Woofer Voice Coil: 32mm (1.26")
  • Midbass Voice Coil: 25mm (1")
  • TweeterVoice Coil: 20mm (0.8")
  • Measurement Suite: KLIPPEL
  • Grille Included: Yes
  • Packaging Type: Giftbox
  • Weight: 3.18kg
