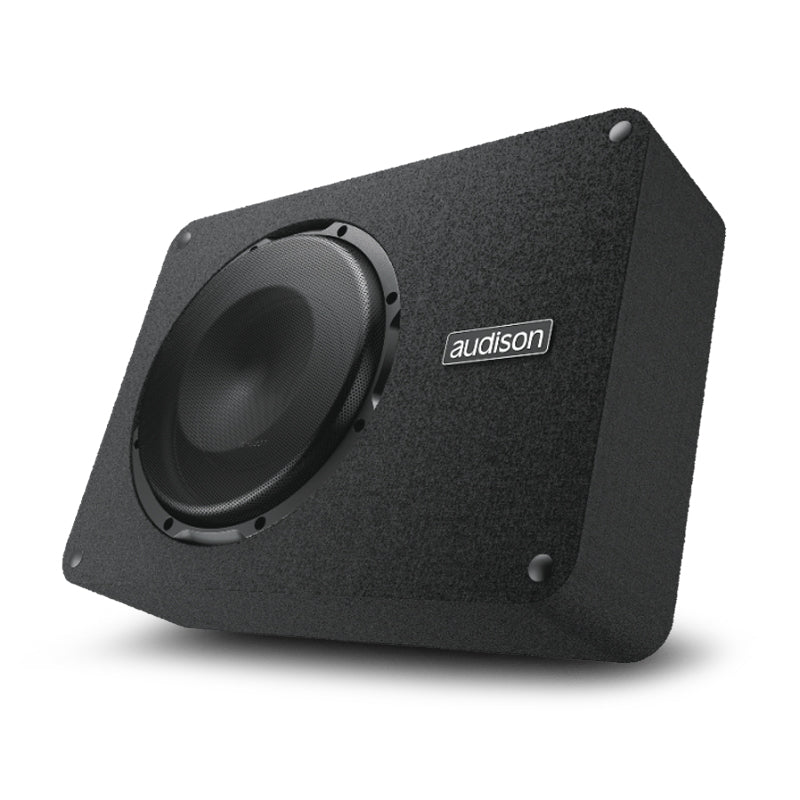

Audison APBX 10 DS 10" 800W Prima Line Loaded Subwoofer Box

Dedicated to the Highest-Performing Prima Systems!

Prima Line - Subwoofer Box (APBX 10 DS)
The APBX 10 DS, a 10" subwoofer loaded in a 12 - litres sealed enclosure, is the line's flagship. It is dedicated to the highest-performing Prima systems, using the AP1 D amplifier for the sub-section. The speaker's mechanical excursion of more than 18 mm provides for incredible authority, while the refined Thiele & Small parameters setup provides the ideal balance for all music genres.

Features:

• Ultra-low profile (5.6 in. / 142 mm) box with a sealed design perfectly tuned to fully exploit the APS 10 D driver.
• 2S2 (2 Sides/2 Sounds) design provides the ability to choose between down-firing mounting to increase the low-frequency extension and Up-firing install to obtain more punch and definition.
• Leveling feet with velcro inserts included for a secure grip on the carpet while maintaining easy removal.
• SSP (Sub Smart Plug) features both traditional push contacts and a Plug-&-Play terminal block to easily configure the impedance as required and provides a quick release.
• Rounded corners allow easy positioning in the trunk and act as reinforcement to reduce enclosure resonance.
• Specially designed cone-dust cap-basket geometry which guarantees a long linear excursion capability (11 mm, one-way).
• Massive driver motor assembly, optimized with FEM (Finite Element Modelling) for perfect control under high excursion conditions.
• Water-repellent pressed paper 10 in. cone, featuring a profile developed with FEM simulation and optimized with the Klippel Scan Vibrometer.
• A sturdy metal grid is included for total protection of the subwoofer driver.

Specifications:

• Component: Passive Sealed Sub Box
• Subwoofer Size: 250mm (10")
• Power Handling - Peak: 800W
• Power Handling - Continuous: 400W
• Impedance: 4 + 4Ω
• Sub Box Size: 470mm x 142mm x 334mm (18.5" x 5.59" x 13.15")
• Magnet: High-Density Flux Ferrite
• Cone: Water-Repellent Pressed Paper
• Subwoofer Voice Coil: 60mm (2.36")
• Packaging Type: Giftbox
• Weight: 8.63kg
