Product features
Same Flat Design & Acoustic Performances as the Previous Version, For Perfect Under-Seat Fitting!

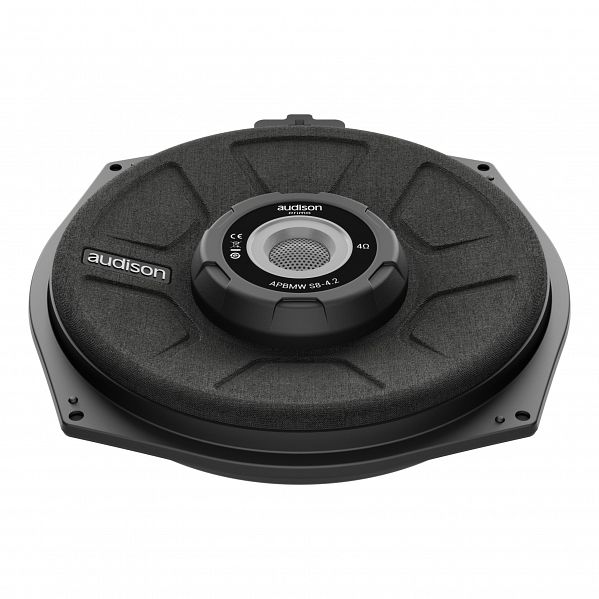

200mm Shallow-Frame Underseat Woofer
The APBMW S8-4.2 features the same flat design and acoustic performances as the previous version, for perfect under-seat fitting. APBMW S8-4.2 fits all the BMW and Mini models already compatible with the previous version. This new version has a further reduced mounting depth for compatibility with G-Series BMW models including the following models: X3 G01 / G08, X5 G05, X4 G02, and X6 G06. Please check the Audison Sound Pack Configurator for detailed information on compatibility.
Audison has engineered a 200 mm shallow-frame under seat woofer for BMW and MINI. These can be used as replacements with OEM amplification, but the best results are attained when used in a system upgrade that includes Audison Forza bit amplifiers and BMW integration harnesses. Audison R&D used an injection-molded frame with graphite fibres (to increase rigidity), and a neodymium magnet for a smaller size (important with the inverted-magnet configuration). The 2"/50mm voice coil is the largest used in any BMW replacement woofer.
The inverted magnet design has a top vent in the pole, to extend thermal performance and power handling. The acoustically-transparent fabric cover keeps debris off of the speaker cone, which prevents distorted sound in the under-seat location. The APSBMW S8-4.2 4 ohm woofer allows more power to be delivered from a single amplifier channel.
In many higher-performance BMW systems, the under seat woofer is used on a single set of channels as mid-bass drivers with purposefully-limited sub-bass extension (while a larger subwoofer does its work in the trunk playing the lowest notes). The APSBMW S8-4.2 is also perfect for this mid-bass application.
Features:
- Neodymium Magnetic group, to maximize performance while minimising bulk and weight
- Developed with electroacoustic parameters customized for BMW-Mini, to increase listening engagement, through powerful and crisp low frequencies, exploiting the acoustic load provided by the factory box
- 38 mm voice coil wound on aluminium support, for considerable power dissipation and stability even during high excursions
- Two 5 mm gaskets were provided, for OEM placements
- 4-ohm configuration for maximum output, in combination with AP 8.9 bit in active multi-amplification
Specifications:
- Component: Woofer
- Size: 200mm (8")
- Power Handling:
- Peak: 300W
- Continuous: 150W
- Impedance: 4 Ohm
- Frequency Response: 40 - 500Hz
- Magnet Size: 48 x 18 x 7mm
- Voice Coil: 50mm (2")
- Weight: 1.21kg
