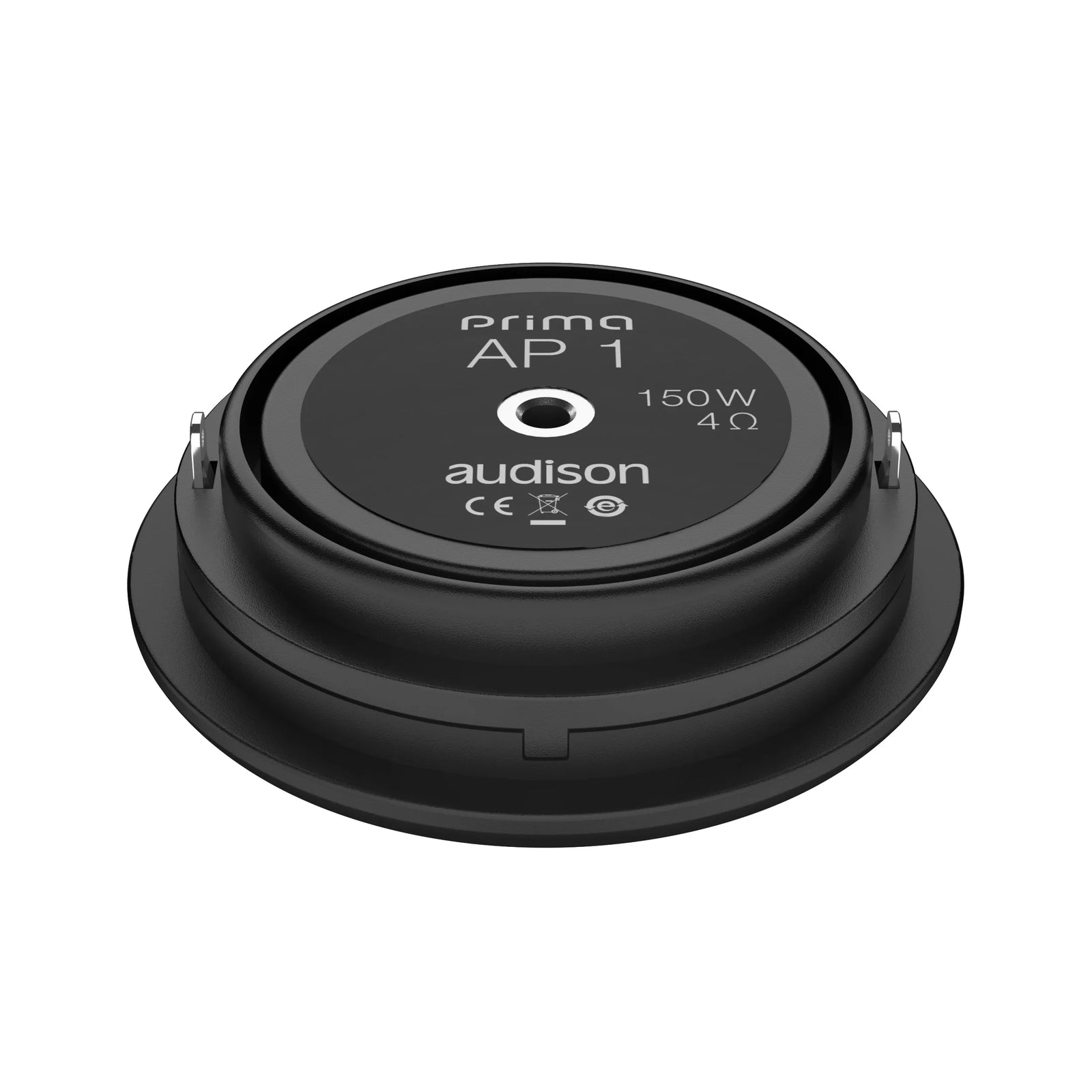

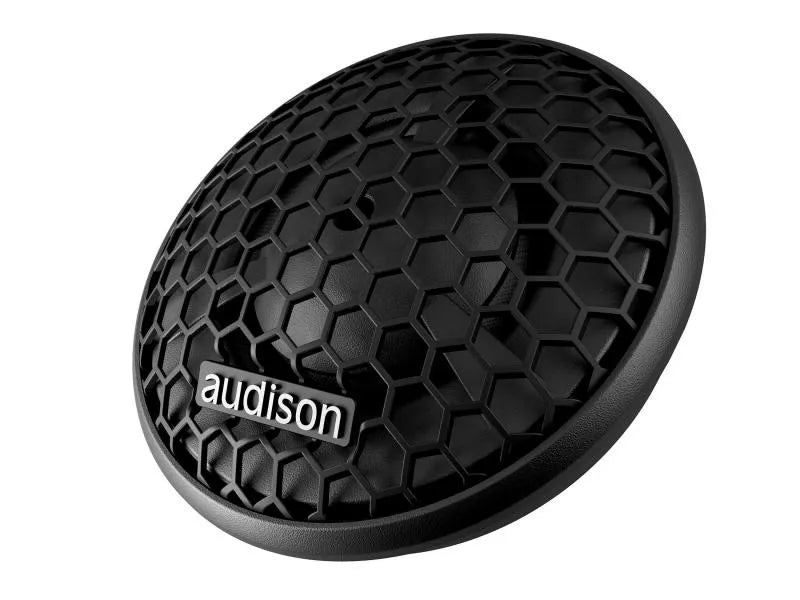

Audison AP1 26mm Tweeter 150W Peak Power 4 Ohm with Passive Crossover

SKU: AP1
Sale price
$20
Regular price
$519
You save
96%

Product features

Premium 26mm tweeter engineered for OEM integration and superior high-frequency reproduction

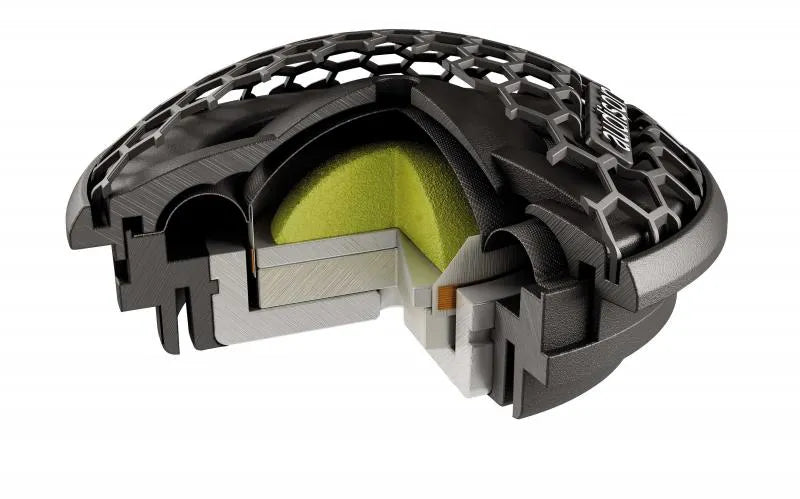

The Audison AP1 tweeter incorporates a 26mm diaphragm combined with wide external suspension that actively contributes to overall emission characteristics. This design increases sound pressure capability while lowering resonance frequency with extremely low moving mass. The powerful motor utilizes a large neodymium magnet for enhanced performance, while the Tetolon fibre dome material provides precise high-frequency reproduction from 2kHz to 20kHz.

The system includes the dedicated APCX TW passive crossover optimized for OEM integration, featuring high-pass filtering at 3.5kHz with 12dB per octave slope. An acoustic lens compensates for frequency response anomalies in the 10kHz-13kHz bandwidth caused by restrictive OEM grilles in critical factory placements.

Key Specifications

  • Nominal diameter: 26mm (1 inch)
  • Power handling: 150W peak
  • Impedance: 4 ohms
  • Sensitivity: 93 dB
  • Frequency response: 2kHz - 20kHz
  • Voice coil diameter: 20mm (0.79 inches)
  • Magnet material: Neodymium
  • Dome material: Tetolon fibre
  • Crossover: Hi-pass filtered at 3.5kHz - 12dB per octave

Features & Benefits

  • 26mm diaphragm with wide-roll surround - Provides maximum efficiency and reduced resonance frequency for enhanced performance
  • Acoustic lens compensation - Designed to fine-tune frequency response anomalies in 10kHz-13kHz bandwidth caused by OEM grilles
  • APCX TW passive crossover included - Compact crossover optimized for OEM integration with attenuation switch (0 dB, +2 dB)
  • OEM Integration compliant connectors - Fast-on connectors with different pole ends eliminate connection errors and speed installation
  • CCAW voice coil - Copper Clad Aluminium Wire ultra-light ferrofluid cooled voice coil wound on Kapton former for better heat dissipation
  • FEM optimized design - Dome profile and motor optimized with Finite Element Method simulation technology
  • KLIPPEL developed - Engineered using professional acoustic measurement and analysis suite

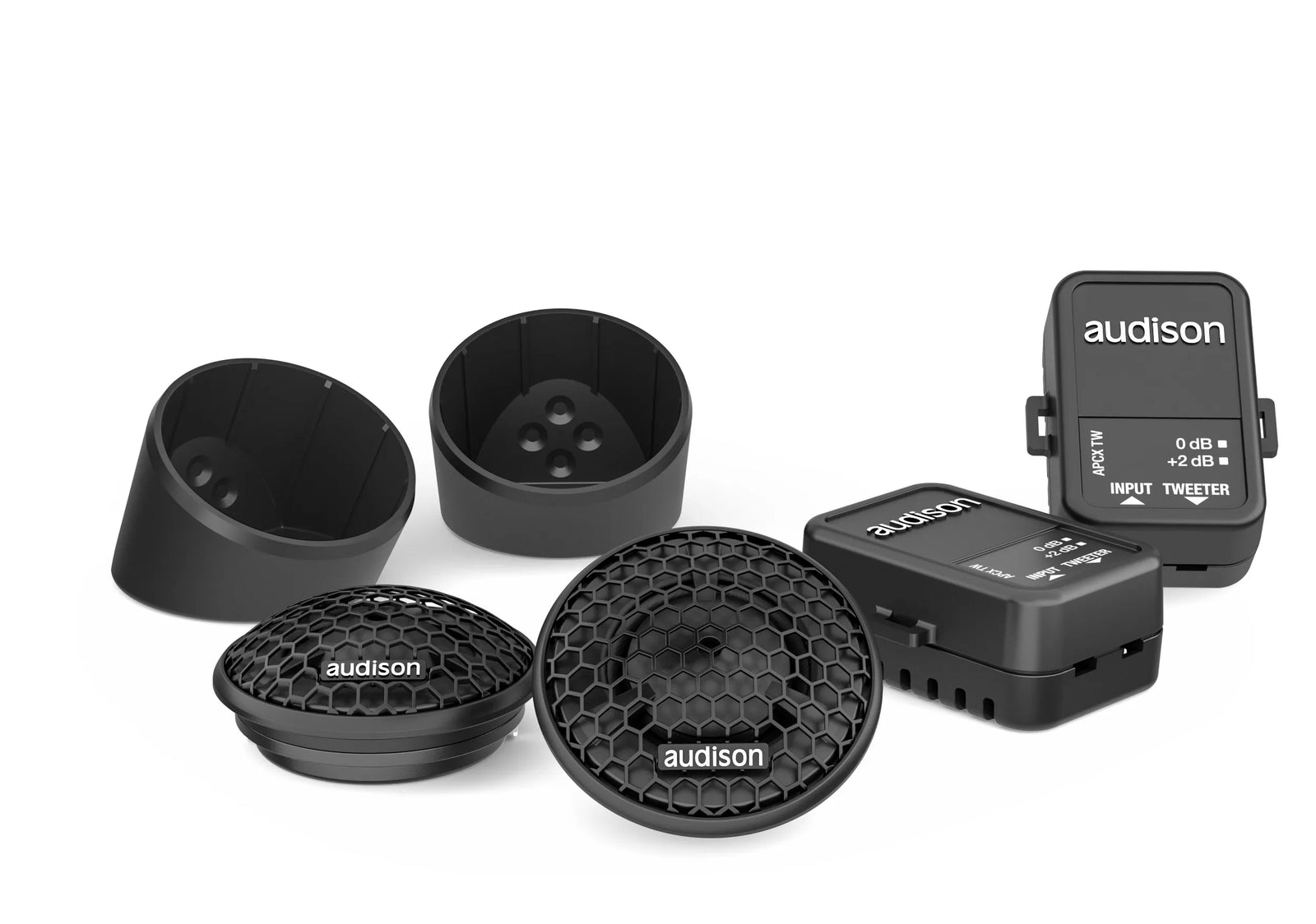

  • Comprehensive mounting accessories - Wide array of mounting accessories supplied for high fitment flexibility

Technical Specs

  • Nominal Diameter: 26mm (1 inch)
  • Impedance: 4 ohms
  • Peak Power: 150W
  • Sensitivity: 93 dB
  • Frequency Response: 2kHz - 20kHz
  • Voice Coil Diameter: 20mm (0.79 inches)
  • Magnet Material: Neodymium
  • Magnet Size: 19 x 3mm
  • Dome Material: Tetolon Fibre
  • Crossover: Hi-pass filtered at 3.5kHz - 12dB Oct
  • Re: 3.5 ohms
  • Fs: 1500Hz
  • Le: 0.02 mH
  • Mms: 0.16g
  • Cms: 0.09 mm/N
  • BL: 1.3 T•m
  • Qts: 0.98
  • Qes: 2.78
  • Qms: 1.5
  • Weight: 0.04kg
  • Crossover Weight: 0.04kg

Frequently Asked Questions

**What does the attenuation switch on the crossover do? ** The APCX TW crossover includes a switch with 0 dB and +2 dB settings to tune response for different installation conditions.

**Are mounting accessories included for OEM installations? ** Yes, a wide array of mounting accessories is supplied for high fitment flexibility in OEM integration applications.

**What is the crossover frequency and slope? ** The included passive crossover provides hi-pass filtering at 3.5kHz with 12dB per octave slope.

**What makes the voice coil design special? ** The CCAW (Copper Clad Aluminium Wire) ultra-light voice coil is ferrofluid cooled and wound on Kapton former for superior heat dissipation.

**How does the acoustic lens help with OEM installations? ** The lens compensates for frequency response anomalies in 10kHz-13kHz range caused by restrictive factory grilles in critical placements.

Compatible With

  • OEM integration projects requiring factory-location tweeter replacement
  • Component speaker systems needing high-quality tweeter upgrade
  • Car audio installations with restrictive factory grille placements
  • Systems requiring precise high-frequency reproduction from 2kHz-20kHz
  • Professional installations demanding KLIPPEL-developed acoustic performance
