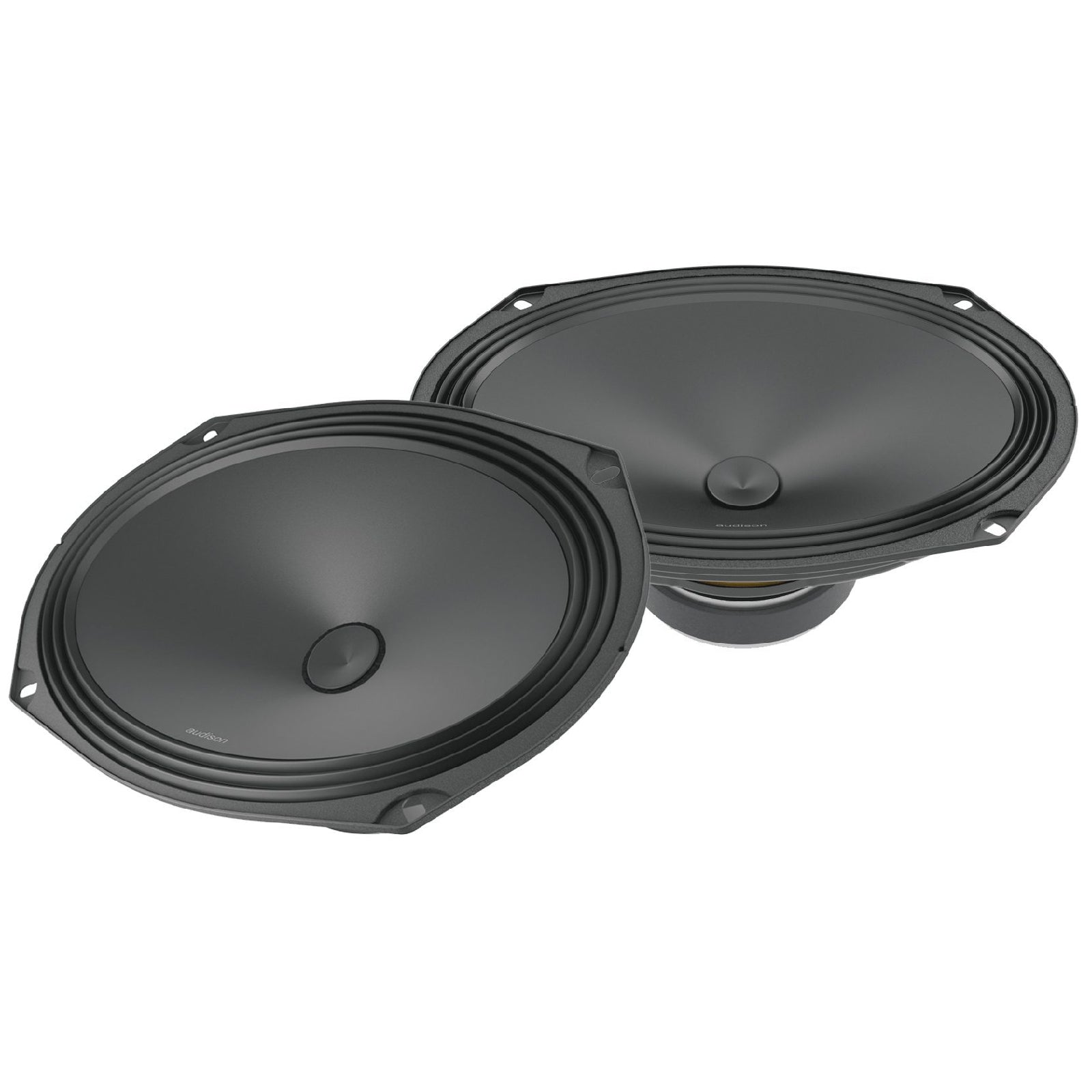

Audison AP 690 Prima 6 x 9 Inch Woofers 300W Pair

SKU: AP690
Price
$314.99

Not on our shelf right now. We order this one in from our supplier.

Available soon. Call or visit us in store. (02) 4257 2636

In store only. This product is sold through our Albion Park Rail and South Nowra stores. Contact us for a quote: email sales@frankiesautoelectrics.com.au or visit either store and our team will help you choose the right setup. Call Albion Park Rail on (02) 4257 2636 or South Nowra on (02) 4423 5254.

Make us your best offer

Tell us the price you have in mind and your postcode, and our team will reply by email. Sending an offer does not commit you or us to a sale.

Audison AP 690 Prima 6 x 9 Inch Woofers 300W Pair
SKU: AP690

Share this product

Share Post Pin E-mail

Product features

Cars with elliptical door openings need a woofer shaped to suit. The Audison AP 690 is a Prima 6 x 9 inch woofer pair rated 100W continuous at 4 ohms, made for door mounting.

A mechanical roll off in the cone and dust cap lets them run without a filter, and double Faston terminals link straight to a tweeter.

Problems it solves

  • Deep woofers that foul the window. Mounting depth is 81mm.
  • Damp doors ruining paper cones. The cone is treated to repel water.
  • Loose spade connections. Double contact Faston terminals on both poles.

AP 690 specifications

  • Size: 6 x 9 inch
  • Power: 100W continuous, 300W peak
  • Impedance: 4 ohm
  • Frequency response: 40Hz to 5kHz
  • Voice coil: 25mm pure copper
  • Cone: water repellent treated paper
  • Surround: Triple Wave
  • Mounting depth: 81mm

Fitment and compatibility

Factory 6 x 9 inch door locations.

What is in the box

Sold as a pair of woofers. No tweeters are included.

Install notes

Add a tweeter to the Faston link to complete the front stage.

Check door depth clears 81mm with the window down.

Warranty

This comes with the manufacturer's warranty through the Australian distributor. See the manufacturer's terms for details, plus our guarantees under the Australian Consumer Law.

AP 690 FAQs

Does the AP 690 have a tweeter built in?

No, it is a woofer only.

Can the AP 690 run full range off the amp?

Yes, the cone roll off means no filter is required.

What depth does the AP 690 need behind the door skin?

81mm.
