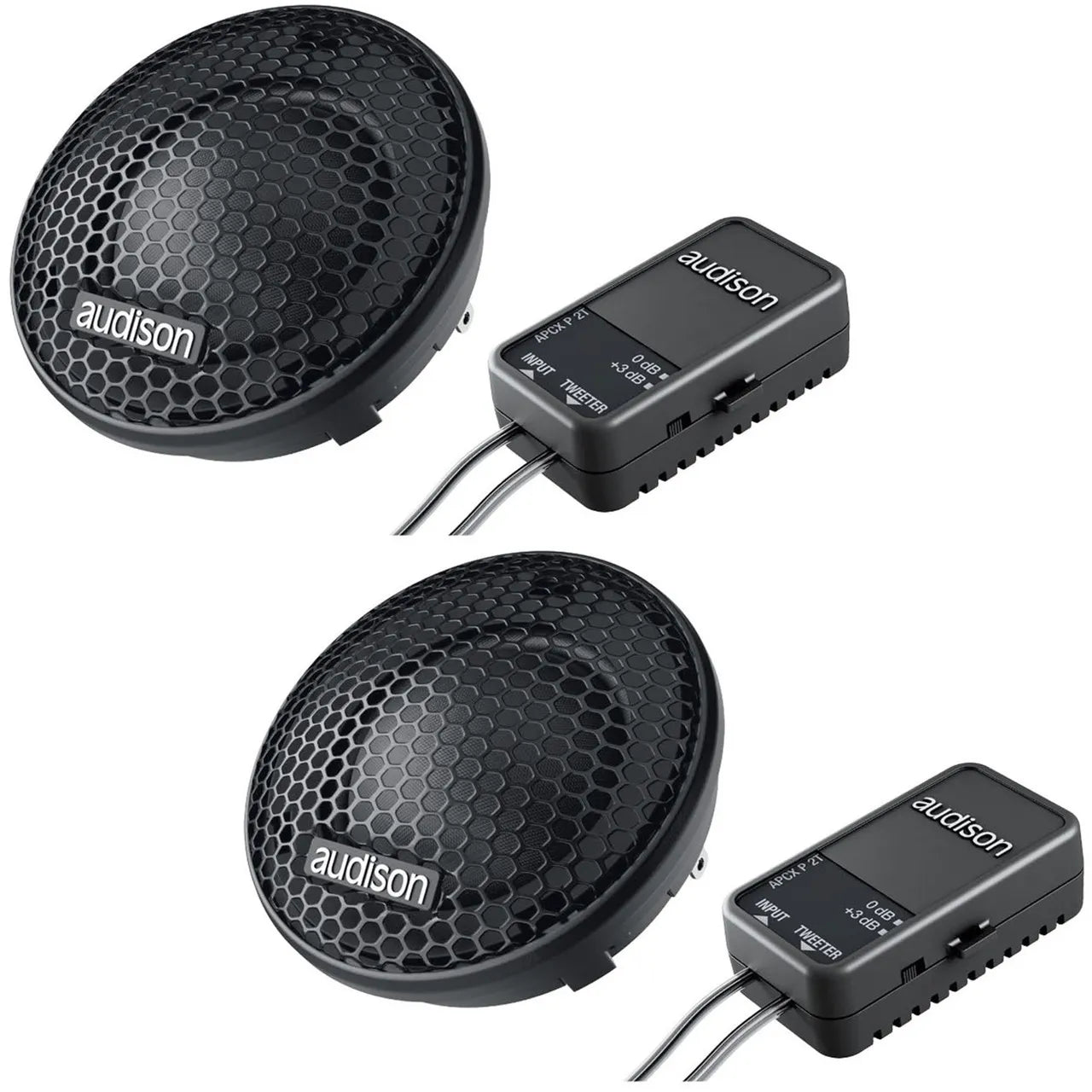

Audison AP 1P Prima Line 1" Tetolon Tweeter With Passive Crossover

Expresses Its Full Potential in Every Application Scenario!

AP1P: Prima Line Tweeter
The exclusive AIF technology (Any Install Faceplate) of the AP 1P Tweeter component provides the installer with 3 different faceplates for total application versatility and a significant reduction in installation time. The double Neodymium tablet used in the motor provides an excellent extension in high frequency and together with the 1" CCAW voice coil ensures an outstanding dynamic response.

Features:

• AIF technology (Any Install Faceplate) for total application versatility and a significant reduction in installation time
• Three mounting accessories are supplied to provide a solution for any type of installation
• A magnetic group with double Neodymium tablet for an excellent high-frequency extension
• 1" CCAW voice coil for superior dynamic response
• Dome profile optimized with FEM simulations for a wide off-axis dispersion

Specifications:

• Size: 25 mm
• Power Handling: - Peak 150W
• Power Handling: Crossover Hi-Pass Filtered @2.5 kHz 12dB/Oct.
• Impedance: 4-Ohm
• Frequency Response: 1,2 ÷ 25k Hz
• Crossover Name: APCX P 2T
• Crossover Type: High Pass 12 dB/oct.
• Crossover Point: 4 kHz
• Crossover Adjustment: Tweeter Level: 0 / +3 dB
• Magnet Material: Neodymium
• Voice Coil: Ø 25 mm
• Woofer QES: 1.74
• Dome Material: Teloton Fibre
